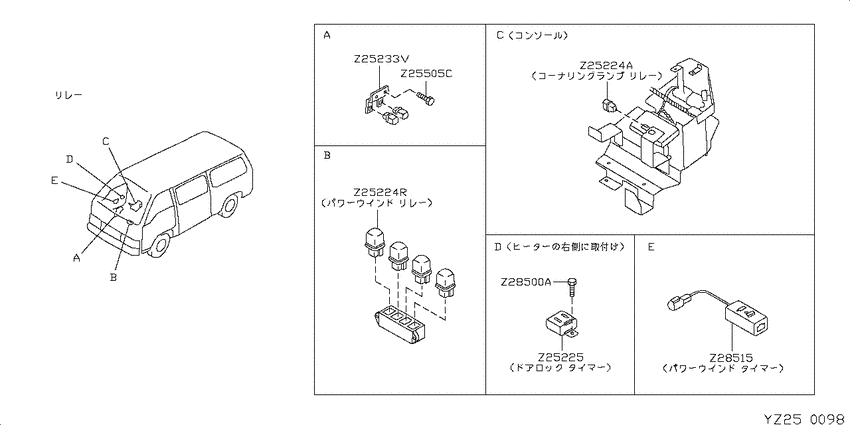

Electrical unit,switch&meters (1995-09-01 ~ ; スイッチ&リレー; ﾊﾟﾗﾒﾃﾞｨｯｸ) Diagram Nissan CARAVAN/HOMY
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- VG30E
- drive
- 2WD
- transmission
- AT.F4
- grade
- DX
- body
- AMB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
Z25224A
|
Z25224A
2523079981 Relay (Air con, Blue)9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
2523079981 |
from US $20.37 |
||
|
Z25224A
|
Z25224A
25230-C9970
Relay
9705--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ ﾒｲﾝ ﾊｰﾈｽ |
25230-C9970 |
— | ||
| replacement | |||||
|
Z25224A
|
Z25224A
25230C9980 Relay9705--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ ﾒｲﾝ ﾊｰﾈｽ |
25230C9980 |
from US $15.60 |
||
|
Z25224R
|
Z25224R
2523079981 Relay (Air con, Blue)9508--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
2523079981 |
from US $20.37 |
||
|
Z25225
|
Z25225
28451-89900 Timer Assy-Door Lock9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
28451-89900 |
US $180 |
||
|
Z25233V
|
Z25233V
25235-58A00 Bracket9705--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ ﾗﾝﾌﾟﾘﾚｰ |
25235-58A00 |
US $7.06 |
||
| replacement | |||||
|
Z25233V
|
Z25233V
25235-58A3A
Bracket-relay
9705--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ ﾗﾝﾌﾟﾘﾚｰ |
25235-58A3A |
— | ||
|
Z25233V
|
Z25233V
25235-S5803 Bracket-Relay9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
25235-S5803 |
US $5.90 |
||
|
Z25505C
|
Z25505C
01456-00023 SCREW9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
01456-00023 |
US $1.73 |
||
|
Z28500A
|
Z28500A
01456-00023 SCREW9508--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
01456-00023 |
US $1.73 |
||
|
Z28515
|
Z28515
28516-89900
Amplifier Assy-Auto Power Window
9509--01 ~ 9906--01; AMB; ﾊﾟﾗﾒﾃﾞｨｯｸ ｼﾖｳ |
28516-89900 |
— | ||
