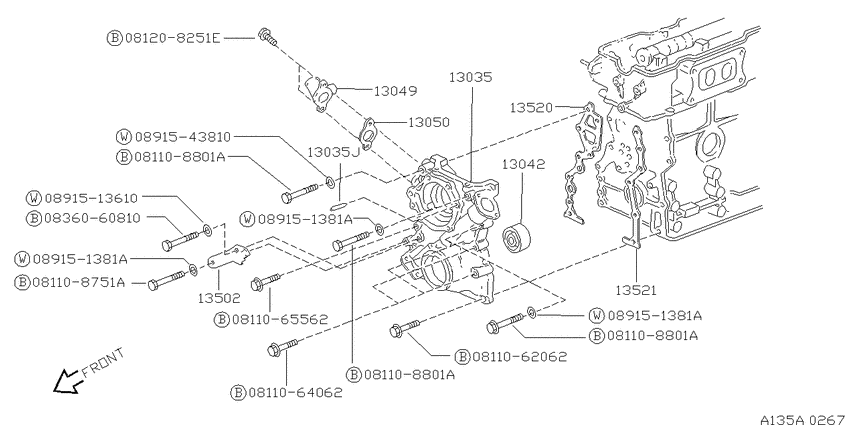

Front cover & fitting (1993-05-01 ~ 1995-08-01; Z20S) Diagram Nissan CARAVAN/HOMY
- Year
- 1993 - 1995
- Sales region
- Japan
- Engine
- Z20S
- drive
- 2WD
- transmission
- MT.F5
- grade
- DX
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811062062
|
0811062062
08110-62062
Bolt-hexagon
|
08110-62062 |
— | ||
|
0811064062
|
0811064062
08110-64062
Bolt-hexagon
|
08110-64062 |
— | ||
|
0811065562
|
0811065562
08110-65562
Bolt-hexagon
|
08110-65562 |
— | ||
|
081108751A
|
081108751A
08110-8751A
Bolt-hexagon
|
08110-8751A |
— | ||
|
081108801A
|
081108801A
08110-8801A
Bolt-hexagon
|
08110-8801A |
— | ||
|
081108801A
|
081108801A
08110-8801A
Bolt-hexagon
|
08110-8801A |
— | ||
|
081108801A
|
081108801A
08110-8801A
Bolt-hexagon
|
08110-8801A |
— | ||
|
081208251E
|
081208251E
08120-8251E Bolt-hexagon |
08120-8251E |
US $2.21 |
||
|
0836060810
|
0836060810
08360-60810
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-60810 |
— | ||
|
0891513610
|
0891513610
08915-13610
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13610 |
— | ||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.54 |
||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.54 |
||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.54 |
||
|
0891543810
|
0891543810
08915-43810
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43810 |
— | ||
|
13035
|
13035
13501-N8402 Cover Assy-Front9305--01 ~ 9508--01; Z20S |
13501-N8402 |
US $159.84 |
||
|
13035
|
13035
1104673402 Dowel-Water Pump9305--01 ~ 9508--01; Z20S |
1104673402 |
from US $0.48 |
||
|
13035J
|
13035J
1104673402 Dowel-Water Pump9305--01 ~ 9508--01; Z20S |
1104673402 |
from US $0.48 |
||
|
13042
|
13042
13042-A8600
Seal-Oil, Crankshaft Front
9305--01 ~ 9508--01; Z20S |
13042-A8600 |
— | ||
| replacement | |||||
|
13042
|
13042
13042A8601 Seal-Oil, Crankshaft Front9305--01 ~ 9508--01; Z20S |
13042A8601 |
from US $7.33 |
||
|
13049
|
13049
13049-17C00 Inlet-Water9305--01 ~ 9508--01; Z20S |
13049-17C00 |
US $24.48 |
||
|
13050
|
13050
1305007N00 Gasket-Water Inlet9305--01 ~ 9508--01; Z20S |
1305007N00 |
from US $2.59 |
||
|
13502
|
13502
13502-T5500 Indicator-Timing9305--01 ~ 9508--01; Z20S |
13502-T5500 |
US $8.93 |
||
|
13520
|
13520
13520-07N02 Gasket-Front Cover, Rh9305--01 ~ 9508--01; Z20S |
13520-07N02 |
from US $5.18 |
||
|
13521
|
13521
13521-07N02 Gasket-Front Cover, Lh9305--01 ~ 9508--01; Z20S |
13521-07N02 |
US $5.18 |
||
