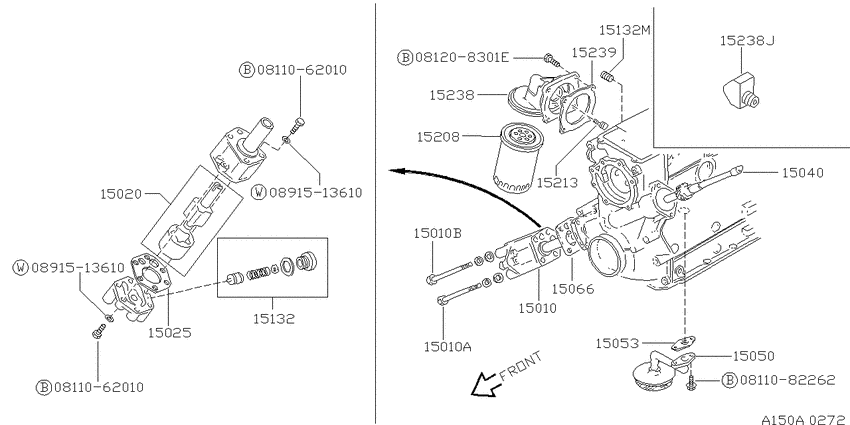

Lubricating system (1993-05-01 ~ 1995-08-01; Z20S) Diagram Nissan CARAVAN/HOMY
- Year
- 1993 - 1995
- Sales region
- Japan
- Engine
- Z20S
- drive
- 2WD
- transmission
- MT.F5
- grade
- DX
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811062010
|
0811062010
08110-62010
Bolt-hexagon
|
08110-62010 |
— | ||
|
0811062010
|
0811062010
08110-62010
Bolt-hexagon
|
08110-62010 |
— | ||
|
0811082262
|
0811082262
08110-82262
Bolt-hexagon
|
08110-82262 |
— | ||
|
081208301E
|
081208301E
08120-8301E
Bolt-hexagon
|
08120-8301E |
— | ||
|
0891513610
|
0891513610
08915-13610
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13610 |
— | ||
|
0891513610
|
0891513610
08915-13610
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13610 |
— | ||
|
15010
|
15010
15010-V0300 Pump Assy-Oil9305--01 ~ 9508--01; Z20S |
15010-V0300 |
US $159.84 |
||
| replacement | |||||
|
15010
|
15010
15010V030A Pump Assy-Oil9305--01 ~ 9508--01; Z20S |
15010V030A |
from US $128.58 |
||
|
15010
|
15010
15036-40F00 Bolt9305--01 ~ 9508--01; Z20S; 15036-21000 ﾖﾘ 2-2 |
15036-40F00 |
US $1.73 |
||
|
15010
|
15010
15037-40F00 Bolt-Oil Pump9305--01 ~ 9508--01; Z20S; 15037-21000 ﾖﾘ 2-2 |
15037-40F00 |
US $1.73 |
||
|
15010A
|
15010A
15036-40F00 Bolt9305--01 ~ 9508--01; Z20S; 15036-21000 ﾖﾘ 2-2 |
15036-40F00 |
US $1.73 |
||
|
15010B
|
15010B
15037-40F00 Bolt-Oil Pump9305--01 ~ 9508--01; Z20S; 15037-21000 ﾖﾘ 2-2 |
15037-40F00 |
US $1.73 |
||
|
15020
|
15020
15020-V0300 Shaft Assy-Oil Pump9305--01 ~ 9508--01; Z20S |
15020-V0300 |
US $36.43 |
||
| replacement | |||||
|
15020
|
15020
15020-S800A
Shaft assy-oil pump
9305--01 ~ 9508--01; Z20S |
15020-S800A |
— | ||
|
15025
|
15025
1502521000 Gasket-Oil Pump9305--01 ~ 9508--01; Z20S |
1502521000 |
US $1.67 |
||
|
15040
|
15040
15040-W0400 Spindle Assy-Oil Pump Drive9305--01 ~ 9508--01; Z20S |
15040-W0400 |
US $51.56 |
||
|
15050
|
15050
15050-T5500 Strainer Assy-Oil9305--01 ~ 9508--01; Z20S |
15050-T5500 |
US $26.06 |
||
|
15053
|
15053
15059-73400 Gasket-Oil Strainer9305--01 ~ 9508--01; Z20S |
15059-73400 |
US $1.67 |
||
|
15066
|
15066
1506621001 Gasket-Oil Pump To Cylinder Block9305--01 ~ 9508--01; Z20S |
1506621001 |
from US $0.20 |
||
|
15132
|
15132
15132-21005 Valve Assy-Oil Regulator9305--01 ~ 9508--01; Z20S |
15132-21005 |
US $12.33 |
||
|
15132
|
15132
15241-73400 Valve-Oil Pressure Regulator9305--01 ~ 9508--01; Z20S |
15241-73400 |
US $4.32 |
||
|
15132M
|
15132M
15241-73400 Valve-Oil Pressure Regulator9305--01 ~ 9508--01; Z20S |
15241-73400 |
US $4.32 |
||
|
15208
|
15208
AY100NS007 Filter Assy-Oil9305--01 ~ 9508--01; Z20S |
AY100NS007 |
US $11.13 |
||
|
15213
|
15213
15213-W2100 Stud-Oil Filter9305--01 ~ 9508--01; Z20S |
15213-W2100 |
US $8.78 |
||
|
15238
|
15238
15238-T6000 Bracket-Oil Filter9305--01 ~ 9508--01; Z20S |
15238-T6000 |
US $91.01 |
||
|
15238
|
15238
25071-N8500 Connector9305--01 ~ 9508--01; Z20S |
25071-N8500 |
US $18.43 |
||
|
15238J
|
15238J
25071-N8500 Connector9305--01 ~ 9508--01; Z20S |
25071-N8500 |
US $18.43 |
||
|
15239
|
15239
15239-07N00 Gasket-Oil Filter To Cylinder Block9305--01 ~ 9508--01; Z20S; Z ｹｲ ﾉﾐ ｺﾞｶﾝｾｲ ｱﾘ |
15239-07N00 |
US $8.45 |
||
