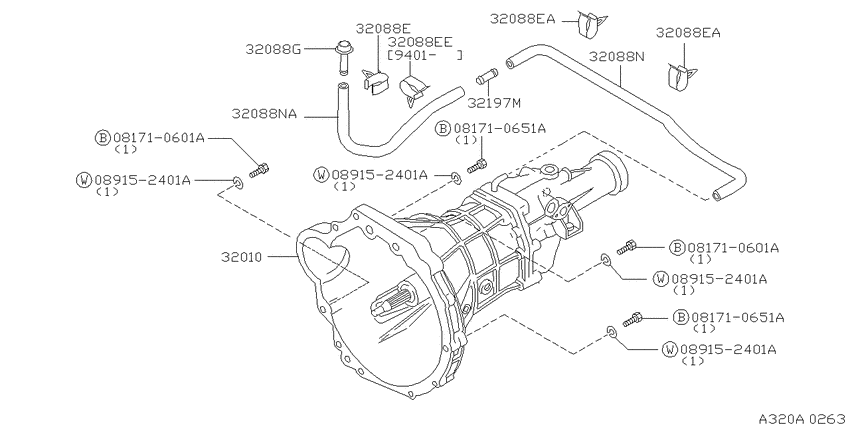

Manual transmission, transaxle & fitting (1993-05-01 ~ 1995-08-01; RS5W71C; Z20S.MT.F5) Diagram Nissan CARAVAN/HOMY
- Year
- 1993 - 1995
- Sales region
- Japan
- Engine
- Z20S
- drive
- 2WD
- transmission
- MT.F5
- grade
- DX
- body
- K
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081710601A
|
081710601A
081710601A
Bolt-hexagon
|
081710601A |
— | ||
|
081710601A
|
081710601A
081710601A
Bolt-hexagon
|
081710601A |
— | ||
|
081710651A
|
081710651A
081710651A Bolt-hexagon |
081710651A |
US $1.13 |
||
|
081710651A
|
081710651A
081710651A Bolt-hexagon |
081710651A |
US $1.13 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
32010
|
32010
32010-27N00 Transmission Assy9305--01 ~ 9508--01; Z20S.MT.F5; RS5W71C |
32010-27N00 |
US $1,932 |
||
|
32088E
|
32088E
24220R8000 Clip-Wiring Harness9305--01 ~ 9508--01; Z20S.MT.F5 |
24220R8000 |
US $0.86 |
||
|
32088E
|
32088E
24220-G3100 Clip-Harness9305--01 ~ 9508--01; Z20S.MT.F5 |
24220-G3100 |
US $1.15 |
||
|
32088E
|
32088E
24220R8000 Clip-Wiring Harness9401--01 ~ 9508--01; Z20S.MT.F5 |
24220R8000 |
US $0.86 |
||
|
32088EA
|
32088EA
24220-G3100 Clip-Harness9305--01 ~ 9508--01; Z20S.MT.F5 |
24220-G3100 |
US $1.15 |
||
|
32088EA
|
32088EA
24220-G3100 Clip-Harness9305--01 ~ 9508--01; Z20S.MT.F5 |
24220-G3100 |
US $1.15 |
||
|
32088EE
|
32088EE
24220R8000 Clip-Wiring Harness9401--01 ~ 9508--01; Z20S.MT.F5 |
24220R8000 |
US $0.86 |
||
|
32088G
|
32088G
38323-36N00 Connector-Breather Hose9305--01 ~ 9508--01; Z20S.MT.F5 |
38323-36N00 |
US $8.06 |
||
|
32088N
|
32088N
38322-39N00 Hose-Breather9305--01 ~ 9508--01; Z20S.MT.F5 |
38322-39N00 |
US $6.91 |
||
|
32088N
|
32088N
38322-38N00 Hose-Breather9305--01 ~ 9508--01; Z20S.MT.F5 |
38322-38N00 |
US $6.91 |
||
|
32088NA
|
32088NA
38322-38N00 Hose-Breather9305--01 ~ 9508--01; Z20S.MT.F5 |
38322-38N00 |
US $6.91 |
||
|
32197M
|
32197M
01692-00013 CONNECTOR-BREATHER HOSE9305--01 ~ 9508--01; Z20S.MT.F5 |
01692-00013 |
US $5.90 |
