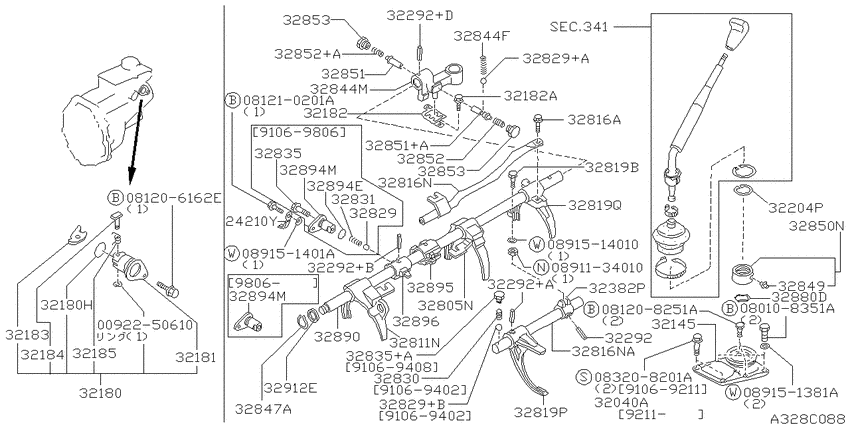

Transmission shift control (1991-06-01 ~ 1999-08-01; VG30E.MT.F5) Diagram Nissan CEDRIC/GLORIA
- Year
- 1991 - 1999
- Sales region
- Japan
- Engine
- VG30E
- transmission
- MT.F5
- grade
- ORG/P
- body
- S
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250610
|
0092250610
0092250610 CLIP |
0092250610 |
from US $0.61 |
||
|
080108351A
|
080108351A
08010-8351A
Bolt-hexagon
|
08010-8351A |
— | ||
|
081206162E
|
081206162E
08120-6162E Bolt-hexagon |
08120-6162E |
US $2.21 |
||
|
081208251A
|
081208251A
08120-8251A
Bolt-hexagon
|
08120-8251A |
— | ||
| replacement | |||||
|
081208251A
|
081208251A
08120-8251E Bolt-hexagon |
08120-8251E |
US $2.21 |
||
|
081210201A
|
081210201A
08121-0201A
Bolt-hexagon
|
08121-0201A |
— | ||
|
083208201A
|
083208201A
08320-8201A
ｽｸﾘﾕ-,ﾏｼﾝ
|
08320-8201A |
— | ||
|
0891134010
|
0891134010
08911-34010
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-34010 |
— | ||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.56 |
||
|
0891514010
|
0891514010
08915-14010
WASHER-LOCK
|
08915-14010 |
— | ||
| replacement | |||||
|
0891514010
|
0891514010
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
24210Y
|
24210Y
24222-01R01 Clip-Wiring Harness9106--01 ~ 0512--01; VG30E.MT.F5 |
24222-01R01 |
US $4.57 |
||
|
32040A
|
32040A
0114100421 BOLT9211--01 ~ 0512--01; VG30E.MT.F5 |
0114100421 |
US $2.78 |
||
|
32145
|
32145
32515-21V00 Housing-Shift Control9106--01 ~ 0512--01; VG30E.MT.F5 |
32515-21V00 |
US $49.82 |
||
|
32180
|
32180
32180-03G63 Checking Assy-Reverse9106--01 ~ 9510--01; VG30E.MT.F5 |
32180-03G63 |
US $25.49 |
||
|
32180
|
32180
32180-03G64 Checking Assy-Reverse0411--01 ~ 0512--01; VG30E.MT.F5 |
32180-03G64 |
US $25.49 |
||
|
32180
|
32180
32180-03G65 Checking Assy-Reverse9510--01 ~ 0411--01; VG30E.MT.F5 |
32180-03G65 |
US $25.49 |
||
|
32180
|
32180
31933X0100 Seal-O Ring9106--01 ~ 0411--01; VG30E.MT.F5 |
31933X0100 |
US $0.81 |
||
|
32180
|
32180
32182-EA000 Seal-O Ring0411--01 ~ 0512--01; VG30E.MT.F5 |
32182-EA000 |
US $1.73 |
||
|
32180H
|
32180H
31933X0100 Seal-O Ring9106--01 ~ 0411--01; VG30E.MT.F5 |
31933X0100 |
US $0.81 |
||
|
32180H
|
32180H
32182-EA000 Seal-O Ring0411--01 ~ 0512--01; VG30E.MT.F5 |
32182-EA000 |
US $1.73 |
||
|
32181
|
32181
32186-03G63 Sleeve-Reverse Checking9106--01 ~ 0512--01; VG30E.MT.F5 |
32186-03G63 |
US $17.28 |
||
|
32182
|
32182
32181-33P00 Plate-Guide, Shift Lever9106--01 ~ 9211--01; VG30E.MT.F5 |
32181-33P00 |
US $23.18 |
||
|
32182
|
32182
32181-33P01 Plate-Guide, Shift Lever9211--01 ~ 0512--01; VG30E.MT.F5 |
32181-33P01 |
US $23.18 |
||
|
32182
|
32182
32152-03G60 Bolt-Guide Plate9106--01 ~ 9407--01; VG30E.MT.F5 |
32152-03G60 |
US $2.45 |
||
|
32182
|
32182
32152-33P20 Bolt-Guide Plate9407--01 ~ 0512--01; VG30E.MT.F5 |
32152-33P20 |
US $1.82 |
||
|
32182A
|
32182A
32152-03G60 Bolt-Guide Plate9106--01 ~ 9407--01; VG30E.MT.F5 |
32152-03G60 |
US $2.45 |
||
|
32182A
|
32182A
32152-33P20 Bolt-Guide Plate9407--01 ~ 0512--01; VG30E.MT.F5 |
32152-33P20 |
US $1.82 |
||
|
32183
|
32183
32183-31G00 Cam-Reverse Checking9106--01 ~ 9510--01; VG30E.MT.F5 |
32183-31G00 |
US $4.03 |
||
|
32183
|
32183
32183-31G10 Cam-Reverse Checking9510--01 ~ 0411--01; VG30E.MT.F5 |
32183-31G10 |
US $4.18 |
||
|
32184
|
32184
32184-V5003 Shaft Set-Cam9106--01 ~ 0512--01; VG30E.MT.F5 |
32184-V5003 |
US $2.45 |
||
|
32185
|
32185
32185-E9801 Spring-Reverse Checking9106--01 ~ 0512--01; VG30E.MT.F5 |
32185-E9801 |
US $1.73 |
||
|
32204P
|
32204P
32204V5004 Ring-Snap, Control Lever9106--01 ~ 0512--01; VG30E.MT.F5 |
32204V5004 |
from US $2.07 |
||
|
32292
|
32292
34133M8000 Pin-Retaining9106--01 ~ 0512--01; VG30E.MT.F5 |
34133M8000 |
from US $4.03 |
||
|
32292
|
32292
34133M8000 Pin-Retaining9106--01 ~ 0512--01; VG30E.MT.F5 |
34133M8000 |
from US $4.03 |
||
|
32292
|
32292
34133M8000 Pin-Retaining9106--01 ~ 0512--01; VG30E.MT.F5 |
34133M8000 |
from US $4.03 |
||
|
32292
|
32292
34133M8000 Pin-Retaining9106--01 ~ 0512--01; VG30E.MT.F5 |
34133M8000 |
from US $4.03 |
||
|
32292+A
|
32292+A
34133M8000 Pin-Retaining9106--01 ~ 0512--01; VG30E.MT.F5 |
34133M8000 |
from US $4.03 |
||
|
32292+B
|
32292+B
34133M8000 Pin-Retaining9106--01 ~ 0512--01; VG30E.MT.F5 |
34133M8000 |
from US $4.03 |
||
|
32292+D
|
32292+D
34133M8000 Pin-Retaining9106--01 ~ 0512--01; VG30E.MT.F5 |
34133M8000 |
from US $4.03 |
||
|
32382P
|
32382P
32382-01G00 Bracket-Rod, Overdrive9106--01 ~ 9908--01; VG30E.MT.F5 |
32382-01G00 |
US $17.42 |
||
|
32382P
|
32382P
32382-01G05 Bracket-Rod, Overdrive9908--01 ~ 0512--01; VG30E.MT.F5 |
32382-01G05 |
US $17.71 |
||
|
32805N
|
32805N
32805-33P00
Fork-Shift, 1St & 2Nd
9106--01 ~ 9806--01; VG30E.MT.F5 |
32805-33P00 |
— | ||
|
32811N
|
32811N
3281133P00 Fork-Shift, 3Rd & 4Th9106--01 ~ 9712--01; VG30E.MT.F5 |
3281133P00 |
US $39.09 |
||
|
32811N
|
32811N
32811-33P10
Fork-Shift, 3Rd & 4Th
9712--01 ~ 0512--01; VG30E.MT.F5 |
32811-33P10 |
— | ||
| replacement | |||||
|
32811N
|
32811N
32811-VY10A Fork-Shift, 3Rd & 4Th9712--01 ~ 0512--01; VG30E.MT.F5 |
32811-VY10A |
from US $39.91 |
||
|
32816A
|
32816A
3281501G00 Bolt-Reverse & Overdrive Rod9106--01 ~ 0512--01; VG30E.MT.F5 |
3281501G00 |
US $1.73 |
||
|
32816N
|
32816N
32816-01G00 Rod-Fork, Reverse & Overdrive9106--01 ~ 9609--01; VG30E.MT.F5 |
32816-01G00 |
US $36.14 |
||
|
32816N
|
32816N
3281633P60 Rod-Fork, Reverse & Overdrive9609--01 ~ 0512--01; VG30E.MT.F5 |
3281633P60 |
US $36.86 |
||
|
32816N
|
32816N
32816-30P10 Rod-Fork, Overdrive9106--01 ~ 9407--01; VG30E.MT.F5 |
32816-30P10 |
US $20.88 |
||
|
32816N
|
32816N
32816-30P20 Rod-Fork, Overdrive9407--01 ~ 0512--01; VG30E.MT.F5 |
32816-30P20 |
US $21.31 |
||
|
32816NA
|
32816NA
32816-30P10 Rod-Fork, Overdrive9106--01 ~ 9407--01; VG30E.MT.F5 |
32816-30P10 |
US $20.88 |
||
|
32816NA
|
32816NA
32816-30P20 Rod-Fork, Overdrive9407--01 ~ 0512--01; VG30E.MT.F5 |
32816-30P20 |
US $21.31 |
||
|
32819B
|
32819B
32809-01G00 Bolt-Shift Fork9106--01 ~ 0512--01; VG30E.MT.F5 |
32809-01G00 |
US $4.18 |
||
|
32819P
|
32819P
32819-01G61 Fork-Shift, Overdrive9106--01 ~ 9612--01; VG30E.MT.F5 |
32819-01G61 |
US $37.15 |
||
|
32819P
|
32819P
32819-01G70
Fork-Shift, Overdrive
9612--01 ~ 0009--01; VG30E.MT.F5 |
32819-01G70 |
— | ||
| replacement | |||||
|
32819P
|
32819P
32819-VY10A Fork-Shift, Overdrive9612--01 ~ 0009--01; VG30E.MT.F5 |
32819-VY10A |
US $35.77 |
||
|
32819P
|
32819P
32819-01G71 Fork-Shift, Overdrive0009--01 ~ 0206--01; VG30E.MT.F5 |
32819-01G71 |
US $37.15 |
||
|
32819Q
|
32819Q
32819-33P00 Fork-Shift, Reverse9106--01 ~ 9610--01; VG30E.MT.F5 |
32819-33P00 |
US $43.92 |
||
|
32819Q
|
32819Q
32819-33P20 Fork-Shift, Reverse9610--01 ~ 9806--01; VG30E.MT.F5 |
32819-33P20 |
US $43.92 |
||
|
32819Q
|
32819Q
32819-33P21 Fork-Shift, Reverse0009--01 ~ 0012--01; VG30E.MT.F5 |
32819-33P21 |
US $43.92 |
||
|
32819Q
|
32819Q
32819-33P2A Fork-Shift, Reverse0509--01 ~ 0512--01; VG30E.MT.F5 |
32819-33P2A |
US $44.78 |
||
|
32829
|
32829
32186-M8000 Ball-Check9106--01 ~ 9806--01; VG30E.MT.F5 |
32186-M8000 |
US $0.86 |
||
|
32829
|
32829
32829-26760 Ball-Check9106--01 ~ 0304--01; VG30E.MT.F5 |
32829-26760 |
from US $0.74 |
||
|
32829
|
32829
32829-96W00
Ball-Check
0304--01 ~ 0512--01; VG30E.MT.F5 |
32829-96W00 |
— | ||
| replacement | |||||
|
32829
|
32829
32829-26760 Ball-Check0304--01 ~ 0512--01; VG30E.MT.F5 |
32829-26760 |
from US $0.74 |
||
|
32829
|
32829
32829-26760 Ball-Check9106--01 ~ 9402--01; VG30E.MT.F5 |
32829-26760 |
from US $0.74 |
||
|
32829+A
|
32829+A
32829-26760 Ball-Check9106--01 ~ 0304--01; VG30E.MT.F5 |
32829-26760 |
from US $0.74 |
||
|
32829+A
|
32829+A
32829-96W00
Ball-Check
0304--01 ~ 0512--01; VG30E.MT.F5 |
32829-96W00 |
— | ||
| replacement | |||||
|
32829+A
|
32829+A
32829-26760 Ball-Check0304--01 ~ 0512--01; VG30E.MT.F5 |
32829-26760 |
from US $0.74 |
||
|
32829+B
|
32829+B
32829-26760 Ball-Check9106--01 ~ 9402--01; VG30E.MT.F5 |
32829-26760 |
from US $0.74 |
||
|
32830
|
32830
32830-20100 Spring-Locking9106--01 ~ 9402--01; VG30E.MT.F5 |
32830-20100 |
US $0.82 |
||
|
32831
|
32831
32831-30P00
Spring-Check Ball
9106--01 ~ 9208--01; VG30E.MT.F5 |
32831-30P00 |
— | ||
| replacement | |||||
|
32831
|
32831
32831-30P10 Spring-Check Ball9106--01 ~ 9208--01; VG30E.MT.F5 |
32831-30P10 |
from US $1.59 |
||
|
32831
|
32831
32831-30P10 Spring-Check Ball9208--01 ~ 9806--01; VG30E.MT.F5 |
32831-30P10 |
from US $1.59 |
||
|
32835
|
32835
32835-30P00 Plug-Checking Ball9106--01 ~ 9806--01; VG30E.MT.F5 |
32835-30P00 |
US $2.64 |
||
|
32835
|
32835
32835-78000
Plug-Checking Ball
9106--01 ~ 9408--01; VG30E.MT.F5 |
32835-78000 |
— | ||
| replacement | |||||
|
32835
|
32835
32835-7800A Plug-Checking Ball9106--01 ~ 9408--01; VG30E.MT.F5 |
32835-7800A |
US $2.36 |
||
|
32835+A
|
32835+A
32835-78000
Plug-Checking Ball
9106--01 ~ 9408--01; VG30E.MT.F5 |
32835-78000 |
— | ||
| replacement | |||||
|
32835+A
|
32835+A
32835-7800A Plug-Checking Ball9106--01 ~ 9408--01; VG30E.MT.F5 |
32835-7800A |
US $2.36 |
||
|
32844F
|
32844F
32858-03G60 Spring-Check, Striking Arm9106--01 ~ 0512--01; VG30E.MT.F5 |
32858-03G60 |
US $0.86 |
||
|
32844M
|
32844M
32844-03G60 Arm-Striking9106--01 ~ 9806--01; VG30E.MT.F5 |
32844-03G60 |
US $30.96 |
||
|
32844M
|
32844M
32844-VR300 Arm-Striking9806--01 ~ 0512--01; VG30E.MT.F5 |
32844-VR300 |
US $40.18 |
||
|
32847A
|
32847A
48269-78500 Shim-Worm9106--01 ~ 0512--01; VG30E.MT.F5 |
48269-78500 |
US $3.40 |
||
|
32849
|
32849
32849-V5003 Pin-Control Arm9106--01 ~ 9908--01; VG30E.MT.F5 |
32849-V5003 |
US $4.03 |
||
|
32850N
|
32850N
32870V5003 Socket Assy-Control Lever9106--01 ~ 0512--01; VG30E.MT.F5 |
32870V5003 |
from US $18.71 |
||
|
32851
|
32851
32851-01G01 Plunger9106--01 ~ 9806--01; VG30E.MT.F5 |
32851-01G01 |
US $11.95 |
||
|
32851
|
32851
32851-33P00 Plunger9806--01 ~ 0512--01; VG30E.MT.F5 |
32851-33P00 |
US $8.93 |
||
|
32851
|
32851
32851-01G11 Plunger9106--01 ~ 9806--01; VG30E.MT.F5 |
32851-01G11 |
US $7.06 |
||
|
32851
|
32851
32851-17U00 Plunger9806--01 ~ 0512--01; VG30E.MT.F5 |
32851-17U00 |
US $8.93 |
||
|
32851+A
|
32851+A
32851-01G11 Plunger9106--01 ~ 9806--01; VG30E.MT.F5 |
32851-01G11 |
US $7.06 |
||
|
32851+A
|
32851+A
32851-17U00 Plunger9806--01 ~ 0512--01; VG30E.MT.F5 |
32851-17U00 |
US $8.93 |
||
|
32852
|
32852
32852-01G01 Spring-Return9106--01 ~ 0512--01; VG30E.MT.F5 |
32852-01G01 |
US $0.86 |
||
|
32852
|
32852
32852-01G04 Spring-Return9106--01 ~ 0512--01; VG30E.MT.F5 |
32852-01G04 |
US $0.86 |
||
|
32852+A
|
32852+A
32852-01G04 Spring-Return9106--01 ~ 0512--01; VG30E.MT.F5 |
32852-01G04 |
US $0.86 |
||
|
32853
|
32853
32853-V5001 Plug-Return Spring9106--01 ~ 9311--01; VG30E.MT.F5 |
32853-V5001 |
US $2.45 |
||
|
32853
|
32853
32854-01G10
Plug-Return Spring
9311--01 ~ 0512--01; VG30E.MT.F5 |
32854-01G10 |
— | ||
| replacement | |||||
|
32853
|
32853
3285401G1A Plug-Return Spring9311--01 ~ 0512--01; VG30E.MT.F5 |
3285401G1A |
US $3.75 |
||
|
32853
|
32853
32853-V5001 Plug-Return Spring9106--01 ~ 9311--01; VG30E.MT.F5 |
32853-V5001 |
US $2.45 |
||
|
32853
|
32853
32854-01G10
Plug-Return Spring
9311--01 ~ 0512--01; VG30E.MT.F5 |
32854-01G10 |
— | ||
| replacement | |||||
|
32853
|
32853
3285401G1A Plug-Return Spring9311--01 ~ 0512--01; VG30E.MT.F5 |
3285401G1A |
US $3.75 |
||
|
32880D
|
32880D
3287603G61 Washer-Lock9106--01 ~ 0512--01; VG30E.MT.F5 |
3287603G61 |
US $3.46 |
||
|
32890
|
32890
32892-0H900 Rod-Striking9106--01 ~ 0512--01; VG30E.MT.F5 |
32892-0H900 |
US $43.20 |
||
|
32894E
|
32894E
32182-01G00
Seal-O Ring
9106--01 ~ 9806--01; VG30E.MT.F5 |
32182-01G00 |
— | ||
| replacement | |||||
|
32894E
|
32894E
32182-01G01 SEAL9106--01 ~ 9806--01; VG30E.MT.F5 |
32182-01G01 |
US $1.82 |
||
|
32894M
|
32894M
32897-30P00
Stopper-Inter Lock
9106--01 ~ 9806--01; VG30E.MT.F5 |
32897-30P00 |
— | ||
| replacement | |||||
|
32894M
|
32894M
32897-30P1A Stopper-Interlock9106--01 ~ 9806--01; VG30E.MT.F5 |
32897-30P1A |
US $18.71 |
||
|
32894M
|
32894M
32897-30P10
Stopper-Inter Lock
9806--01 ~ 0512--01; VG30E.MT.F5 |
32897-30P10 |
— | ||
| replacement | |||||
|
32894M
|
32894M
32897-30P1A Stopper-Interlock9806--01 ~ 0512--01; VG30E.MT.F5 |
32897-30P1A |
US $18.71 |
||
|
32894M
|
32894M
32897-30P00
Stopper-Inter Lock
9106--01 ~ 9806--01; VG30E.MT.F5 |
32897-30P00 |
— | ||
| replacement | |||||
|
32894M
|
32894M
32897-30P1A Stopper-Interlock9106--01 ~ 9806--01; VG30E.MT.F5 |
32897-30P1A |
US $18.71 |
||
|
32894M
|
32894M
32897-30P10
Stopper-Inter Lock
9806--01 ~ 0512--01; VG30E.MT.F5 |
32897-30P10 |
— | ||
| replacement | |||||
|
32894M
|
32894M
32897-30P1A Stopper-Interlock9806--01 ~ 0512--01; VG30E.MT.F5 |
32897-30P1A |
US $18.71 |
||
|
32895
|
32895
3289501G61 Inter Lock-Striking9106--01 ~ 0512--01; VG30E.MT.F5 |
3289501G61 |
US $26.19 |
||
|
32896
|
32896
3289633P02 Lever-Striking9106--01 ~ 9806--01; VG30E.MT.F5 |
3289633P02 |
US $34.78 |
||
|
32896
|
32896
32896-33P10
Lever-Striking
9806--01 ~ 0512--01; VG30E.MT.F5 |
32896-33P10 |
— | ||
| replacement | |||||
|
32896
|
32896
32800-VY10A Controller Assy-Shift9806--01 ~ 0512--01; VG30E.MT.F5 |
32800-VY10A |
US $56.55 |
||
|
32912E
|
32912E
32812-01G11 Stopper9106--01 ~ 0512--01; VG30E.MT.F5 |
32812-01G11 |
US $4.90 |
||
|
341
|
Transmission control & linkage
341
|
||||
|
341
|
Transmission control & linkage
341
|
||||
|
341
|
Transmission control & linkage
341
|
||||
|
341
|
Transmission control & linkage
341
|
||||
|
341
|
Transmission control & linkage
341
|
||||
