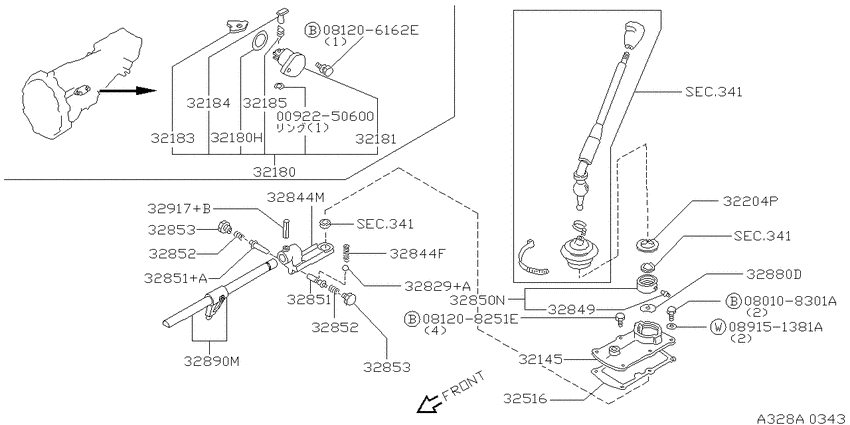

Transmission shift control (1997-08-01 ~ ; ｽﾄﾗｲｷﾝｸﾞ ﾛｯﾄﾞ(FS5W71C); MT.F5) Diagram Nissan CEDRIC/GLORIA
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- VG20E
- transmission
- MT.F5
- grade
- DX
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250600
|
0092250600
00922-50600
ﾘﾝｸﾞ,ｽﾅﾂﾌﾟ
|
00922-50600 |
— | ||
|
080108301A
|
080108301A
08010-8301A
Bolt-hexagon
|
08010-8301A |
— | ||
|
081206162E
|
081206162E
08120-6162E Bolt-hexagon |
08120-6162E |
US $2.21 |
||
|
081208251E
|
081208251E
08120-8251E Bolt-hexagon |
08120-8251E |
US $2.21 |
||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.56 |
||
|
32145
|
32145
32515-70L60 Housing-Shift Control9708--01 ~ ; MT.F5 |
32515-70L60 |
US $49.39 |
||
|
32180
|
32180
32180-V5003
Checking Assy-Reverse
9708--01 ~ ; MT.F5 |
32180-V5003 |
— | ||
| replacement | |||||
|
32180
|
32180
32180-V5005 Checking Assy-Reverse9708--01 ~ ; MT.F5 |
32180-V5005 |
US $24.54 |
||
|
32180
|
32180
31933X0100 Seal-O Ring9708--01 ~ ; MT.F5 |
31933X0100 |
US $0.81 |
||
|
32180H
|
32180H
31933X0100 Seal-O Ring9708--01 ~ ; MT.F5 |
31933X0100 |
US $0.81 |
||
|
32181
|
32181
32181-V5003 Sleeve-Reverse Checking9708--01 ~ ; MT.F5 |
32181-V5003 |
US $16.63 |
||
|
32183
|
32183
32183-V5001 Cam-Reverse Checking9708--01 ~ ; MT.F5 |
32183-V5001 |
US $4.18 |
||
|
32184
|
32184
32184-V5003 Shaft Set-Cam9708--01 ~ ; MT.F5 |
32184-V5003 |
US $2.45 |
||
|
32185
|
32185
32185-E9801 Spring-Reverse Checking9708--01 ~ ; MT.F5 |
32185-E9801 |
US $1.73 |
||
|
32204P
|
32204P
32204V5004 Ring-Snap, Control Lever9708--01 ~ ; MT.F5 |
32204V5004 |
from US $2.07 |
||
|
32516
|
32516
3251603U11 Gasket-Shift Housing9708--01 ~ ; MT.F5 |
3251603U11 |
from US $8.08 |
||
|
32829+A
|
32829+A
32829-26760 Ball-Check9708--01 ~ ; MT.F5 |
32829-26760 |
from US $0.74 |
||
|
32844F
|
32844F
32858-V5000 Spring-Check, Striking Arm9708--01 ~ ; MT.F5 |
32858-V5000 |
US $1.83 |
||
|
32844M
|
32844M
32844-V5002 Arm-Striking9708--01 ~ ; MT.F5 |
32844-V5002 |
US $39.74 |
||
|
32849
|
32849
32849-V5003 Pin-Control Arm9708--01 ~ ; MT.F5 |
32849-V5003 |
US $4.03 |
||
|
32850N
|
32850N
32870V5003 Socket Assy-Control Lever9708--01 ~ ; MT.F5 |
32870V5003 |
from US $18.71 |
||
|
32851
|
32851
32851V5005 Plunger9708--01 ~ ; MT.F5 |
32851V5005 |
US $6.79 |
||
|
32851
|
32851
32851-V5006 Plunger9708--01 ~ ; MT.F5 |
32851-V5006 |
US $6.79 |
||
|
32851+A
|
32851+A
32851-V5006 Plunger9708--01 ~ ; MT.F5 |
32851-V5006 |
US $6.79 |
||
|
32852
|
32852
32852-B4800 Spring-Return9708--01 ~ ; MT.F5 |
32852-B4800 |
US $0.97 |
||
|
32852
|
32852
32852-B4800 Spring-Return9708--01 ~ ; MT.F5 |
32852-B4800 |
US $0.97 |
||
|
32853
|
32853
32854-01G10
Plug-Return Spring
9708--01 ~ ; MT.F5 |
32854-01G10 |
— | ||
| replacement | |||||
|
32853
|
32853
3285401G1A Plug-Return Spring9708--01 ~ ; MT.F5 |
3285401G1A |
US $3.75 |
||
|
32853
|
32853
32854-01G10
Plug-Return Spring
9708--01 ~ ; MT.F5 |
32854-01G10 |
— | ||
| replacement | |||||
|
32853
|
32853
3285401G1A Plug-Return Spring9708--01 ~ ; MT.F5 |
3285401G1A |
US $3.75 |
||
|
32880D
|
32880D
3287603G61 Washer-Lock9708--01 ~ ; MT.F5 |
3287603G61 |
US $3.46 |
||
|
32890M
|
32890M
32890-V5003 Rod-Striking With Lever9708--01 ~ ; MT.F5 |
32890-V5003 |
US $80.50 |
||
|
32917+B
|
32917+B
32917-E9620 Pin-Spring9708--01 ~ ; MT.F5 |
32917-E9620 |
US $3.31 |
||
