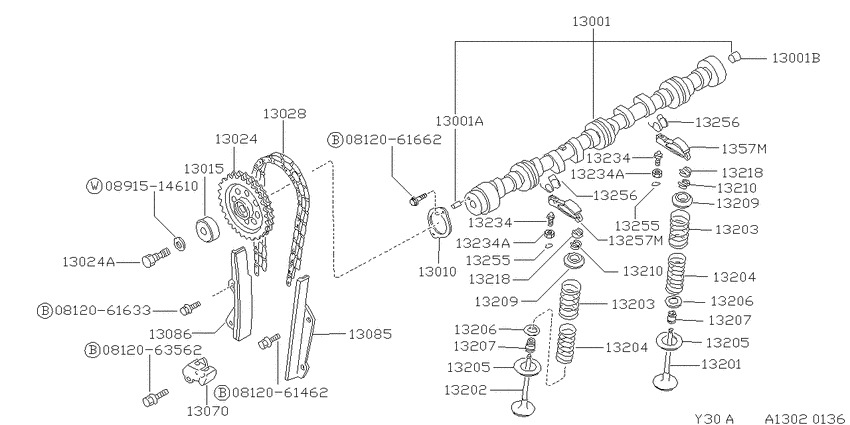

cam shaft & ﾊﾞﾙﾌﾞ ﾒｶﾆｽﾞﾑ (1984-02-01 ~ ; L20P) Diagram Nissan CEDRIC/GLORIA
- Year
- 1984 - 1995
- Sales region
- Japan
- Engine
- L20P
- transmission
- R4
- grade
- CDX
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061462
|
0812061462
08120-61462
Bolt-hexagon
|
08120-61462 |
— | ||
|
0812061633
|
0812061633
08120-61633
Bolt-hexagon
|
08120-61633 |
— | ||
| replacement | |||||
|
0812061633
|
0812061633
08120-6161F Bolt-hexagon |
08120-6161F |
from US $2.36 |
||
|
0812061662
|
0812061662
08120-61662
Bolt-hexagon
|
08120-61662 |
— | ||
|
0812063562
|
0812063562
08120-63562
Bolt-hexagon
|
08120-63562 |
— | ||
|
0891514610
|
0891514610
08915-14610
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-14610 |
— | ||
|
13001
|
13001
13001-01L80 Camshaft Assy8402--01 ~ 9511--01; L20P |
13001-01L80 |
US $709.42 |
||
|
13001
|
13001
1303218000 Dowel-Camshaft8402--01 ~ 9511--01; L20P |
1303218000 |
from US $0.63 |
||
|
13001
|
13001
11024K0100 Plug-Taper8402--01 ~ 9511--01; L20P |
11024K0100 |
from US $0.52 |
||
|
13001A
|
13001A
1303218000 Dowel-Camshaft8402--01 ~ 9511--01; L20P |
1303218000 |
from US $0.63 |
||
|
13001B
|
13001B
11024K0100 Plug-Taper8402--01 ~ 9511--01; L20P |
11024K0100 |
from US $0.52 |
||
|
13010
|
13010
13010-21000 Plate-Locating, Camshaft8402--01 ~ 9511--01; L20P |
13010-21000 |
US $9.56 |
||
|
13024
|
13024
13024-U8000 Sprocket-Camshaft8402--01 ~ 8506--01; L20P |
13024-U8000 |
US $81.24 |
||
|
13024
|
13024
13024-U8001
Sprocket-Camshaft
8506--01 ~ 9511--01; L20P |
13024-U8001 |
— | ||
| replacement | |||||
|
13024
|
13024
13024-U8000 Sprocket-Camshaft8506--01 ~ 9511--01; L20P |
13024-U8000 |
US $81.24 |
||
|
13024
|
13024
13012-W0400 Bolt-Sprocket, Camshaft8402--01 ~ 9511--01; L20P |
13012-W0400 |
US $5.90 |
||
|
13024A
|
13024A
13012-W0400 Bolt-Sprocket, Camshaft8402--01 ~ 9511--01; L20P |
13012-W0400 |
US $5.90 |
||
|
13028
|
13028
1302821000 Chain-Timing Camshaft8402--01 ~ 9511--01; L20P |
1302821000 |
US $219 |
||
|
13070
|
13070
13070E3000 Tensioner Assy-Chain8402--01 ~ 9511--01; L20P |
13070E3000 |
US $46.26 |
||
|
13085
|
13085
1308521002 Guide-Chain, Tension Side8402--01 ~ 9511--01; L20P |
1308521002 |
US $13.29 |
||
| replacement | |||||
|
13085
|
13085
13085-W3400
Guide-Chain, Tension Side
8402--01 ~ 9511--01; L20P |
13085-W3400 |
— | ||
|
13086
|
13086
13091A3500 Guide-Chain, Slack Side8402--01 ~ 9511--01; L20P |
13091A3500 |
US $127.66 |
||
|
13201
|
13201
13201-A3510 Valve-Intake8402--01 ~ 9511--01; L20P |
13201-A3510 |
US $36.29 |
||
|
13202
|
13202
13202-23002
Valve-Exhaust
8402--01 ~ 9511--01; L20P |
13202-23002 |
— | ||
|
13203
|
13203
13203-E3000 Spring-Valve, Outer8402--01 ~ 8701--01; L20P |
13203-E3000 |
US $8.78 |
||
|
13203
|
13203
13203-V0300 Spring-Valve, Outer8701--01 ~ 9511--01; L20P |
13203-V0300 |
US $5.90 |
||
|
13203
|
13203
13203-E3000 Spring-Valve, Outer8402--01 ~ 8701--01; L20P |
13203-E3000 |
US $8.78 |
||
|
13203
|
13203
13203-V0300 Spring-Valve, Outer8701--01 ~ 9511--01; L20P |
13203-V0300 |
US $5.90 |
||
|
13204
|
13204
13204-E3000 Spring-Valve, Inner8402--01 ~ 8701--01; L20P |
13204-E3000 |
US $10.51 |
||
|
13204
|
13204
13204-V0300
Spring-Valve, Inner
8701--01 ~ 9511--01; L20P |
13204-V0300 |
— | ||
|
13204
|
13204
13204-E3000 Spring-Valve, Inner8402--01 ~ 8701--01; L20P |
13204-E3000 |
US $10.51 |
||
|
13204
|
13204
13204-V0300
Spring-Valve, Inner
8701--01 ~ 9511--01; L20P |
13204-V0300 |
— | ||
|
13205
|
13205
13205-D0200
Seat-Valve Spring, Outer
8402--01 ~ 9511--01; L20P |
13205-D0200 |
— | ||
| replacement | |||||
|
13205
|
13205
13205D020A SEAT VALVE SPR8402--01 ~ 9511--01; L20P |
13205D020A |
US $1.93 |
||
|
13205
|
13205
13205-D0200
Seat-Valve Spring, Outer
8402--01 ~ 9511--01; L20P |
13205-D0200 |
— | ||
| replacement | |||||
|
13205
|
13205
13205D020A SEAT VALVE SPR8402--01 ~ 9511--01; L20P |
13205D020A |
US $1.93 |
||
|
13206
|
13206
13206-23000
Seat-Valve Spring, Inner
8402--01 ~ 9511--01; L20P |
13206-23000 |
— | ||
| replacement | |||||
|
13206
|
13206
13206-2300A Seat-Valve Spring, Inner8402--01 ~ 9511--01; L20P |
13206-2300A |
from US $0.61 |
||
|
13206
|
13206
13206-23000
Seat-Valve Spring, Inner
8402--01 ~ 9511--01; L20P |
13206-23000 |
— | ||
| replacement | |||||
|
13206
|
13206
13206-2300A Seat-Valve Spring, Inner8402--01 ~ 9511--01; L20P |
13206-2300A |
from US $0.61 |
||
|
13207
|
13207
13207-21002
Seal-Oil, Valve
8402--01 ~ 8507--01; L20P |
13207-21002 |
— | ||
| replacement | |||||
|
13207
|
13207
1320781W00 Seal-Oil, Valve8402--01 ~ 8507--01; L20P |
1320781W00 |
from US $3.19 |
||
|
13207
|
13207
1320781W00 Seal-Oil, Valve8507--01 ~ 9511--01; L20P |
1320781W00 |
from US $3.19 |
||
|
13207
|
13207
13207-21002
Seal-Oil, Valve
8402--01 ~ 8507--01; L20P |
13207-21002 |
— | ||
| replacement | |||||
|
13207
|
13207
1320781W00 Seal-Oil, Valve8402--01 ~ 8507--01; L20P |
1320781W00 |
from US $3.19 |
||
|
13207
|
13207
1320781W00 Seal-Oil, Valve8507--01 ~ 9511--01; L20P |
1320781W00 |
from US $3.19 |
||
|
13209
|
13209
13209-N6800 Retainer-valve spring8402--01 ~ 9511--01; L20P |
13209-N6800 |
US $4.18 |
||
|
13209
|
13209
13209-N6800 Retainer-valve spring8402--01 ~ 9511--01; L20P |
13209-N6800 |
US $4.18 |
||
|
13210
|
13210
13210U0100 Collet-Valve Spring8402--01 ~ 9511--01; L20P |
13210U0100 |
from US $0.81 |
||
|
13210
|
13210
13210U0100 Collet-Valve Spring8402--01 ~ 9511--01; L20P |
13210U0100 |
from US $0.81 |
||
|
13218
|
13218
13218-Y7000 Guide-Rocker Valve8402--01 ~ 9511--01; L20P |
13218-Y7000 |
from US $2.49 |
||
|
13218
|
13218
13218-Y7000 Guide-Rocker Valve8402--01 ~ 9511--01; L20P |
13218-Y7000 |
from US $2.49 |
||
|
13234
|
13234
13234-21000 Screw-Adjust, Valve Rocker8402--01 ~ 9511--01; L20P |
13234-21000 |
US $4.42 |
||
|
13234
|
13234
13235-U0100 Nut-Lock, Rocker Pivot Screw8402--01 ~ 9511--01; L20P |
13235-U0100 |
US $3.88 |
||
|
13234
|
13234
13234-21000 Screw-Adjust, Valve Rocker8402--01 ~ 9511--01; L20P |
13234-21000 |
US $4.42 |
||
|
13234
|
13234
13235-U0100 Nut-Lock, Rocker Pivot Screw8402--01 ~ 9511--01; L20P |
13235-U0100 |
US $3.88 |
||
|
13234A
|
13234A
13235-U0100 Nut-Lock, Rocker Pivot Screw8402--01 ~ 9511--01; L20P |
13235-U0100 |
US $3.88 |
||
|
13234A
|
13234A
13235-U0100 Nut-Lock, Rocker Pivot Screw8402--01 ~ 9511--01; L20P |
13235-U0100 |
US $3.88 |
||
|
13255
|
13255
13255-21000
Retainer-Rocker Pivot
8402--01 ~ 9511--01; L20P |
13255-21000 |
— | ||
|
13255
|
13255
13255-21000
Retainer-Rocker Pivot
8402--01 ~ 9511--01; L20P |
13255-21000 |
— | ||
|
13256
|
13256
13256-21003 Spring-Rocker8402--01 ~ 9511--01; L20P |
13256-21003 |
US $1.67 |
||
|
13256
|
13256
13256-21003 Spring-Rocker8402--01 ~ 9511--01; L20P |
13256-21003 |
US $1.67 |
||
|
13257M
|
13257M
13257W0300 Rocker-Valve8402--01 ~ 9511--01; L20P |
13257W0300 |
US $205.14 |
||
