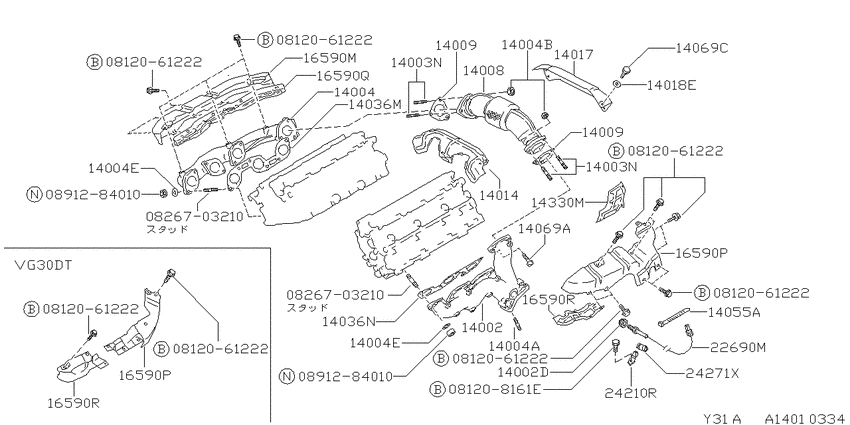

Manifold (1988-01-01 ~ ; エキゾースト側; VG30D#) Diagram Nissan CEDRIC/GLORIA
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- VG30D
- transmission
- AT
- grade
- CIMA1
- body
- K
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061222
|
0812061222
08120-61222
Bolt-hexagon
|
08120-61222 |
— | ||
|
0812061222
|
0812061222
08120-61222
Bolt-hexagon
|
08120-61222 |
— | ||
|
0812061222
|
0812061222
08120-61222
Bolt-hexagon
|
08120-61222 |
— | ||
|
0812061222
|
0812061222
08120-61222
Bolt-hexagon
|
08120-61222 |
— | ||
|
0812061222
|
0812061222
08120-61222
Bolt-hexagon
|
08120-61222 |
— | ||
|
0812061222
|
0812061222
08120-61222
Bolt-hexagon
|
08120-61222 |
— | ||
|
0812061222
|
0812061222
08120-61222
Bolt-hexagon
|
08120-61222 |
— | ||
|
081208161E
|
081208161E
081208161E Bolt-hexagon |
081208161E |
from US $0.59 |
||
|
0826703210
|
0826703210
08267-03210 STUD |
08267-03210 |
US $46.40 |
||
|
0826703210
|
0826703210
08267-03210 STUD |
08267-03210 |
US $46.40 |
||
|
0891284010
|
0891284010
0891284010
NUT
|
0891284010 |
— | ||
|
0891284010
|
0891284010
0891284010
NUT
|
0891284010 |
— | ||
|
14002
|
14002
14006-F6502 Manifold Assy-Exhaust8801--01 ~ ; VG30D |
14006-F6502 |
US $392.23 |
||
|
14002
|
14002
16163-F6500
Bolt
8801--01 ~ ; VG30D# |
16163-F6500 |
— | ||
|
14002
|
14002
20607-V5000 Nut8801--01 ~ ; VG30D+VG30DT |
20607-V5000 |
US $7.06 |
||
|
14002D
|
14002D
20607-V5000 Nut8801--01 ~ ; VG30D+VG30DT |
20607-V5000 |
US $7.06 |
||
|
14003N
|
14003N
14414-P7600 Stud8801--01 ~ ; VG30D# |
14414-P7600 |
US $2.45 |
||
|
14003N
|
14003N
14414-P7600 Stud8801--01 ~ ; VG30D# |
14414-P7600 |
US $2.45 |
||
|
14004
|
14004
14004-F6501 Manifold-Exhaust8801--01 ~ ; VG30D |
14004-F6501 |
US $288 |
||
|
14004
|
14004
14064N4200 Stud8801--01 ~ ; VG30D |
14064N4200 |
US $3.46 |
||
| replacement | |||||
|
14004
|
14004
14064-N420A Stud8801--01 ~ ; VG30D |
14064-N420A |
from US $2.24 |
||
|
14004
|
14004
14039-V5011 Nut8801--01 ~ ; VG30D# |
14039-V5011 |
US $4.03 |
||
|
14004
|
14004
1403742L02 Yoke-Manifold8801--01 ~ ; VG30D# |
1403742L02 |
from US $1.07 |
||
|
14004A
|
14004A
14064N4200 Stud8801--01 ~ ; VG30D |
14064N4200 |
US $3.46 |
||
| replacement | |||||
|
14004A
|
14004A
14064-N420A Stud8801--01 ~ ; VG30D |
14064-N420A |
from US $2.24 |
||
|
14004B
|
14004B
14039-V5011 Nut8801--01 ~ ; VG30D# |
14039-V5011 |
US $4.03 |
||
|
14004E
|
14004E
1403742L02 Yoke-Manifold8801--01 ~ ; VG30D# |
1403742L02 |
from US $1.07 |
||
|
14004E
|
14004E
1403742L02 Yoke-Manifold8801--01 ~ ; VG30D# |
1403742L02 |
from US $1.07 |
||
|
14008
|
14008
14012-V5202 Tube-Balance8801--01 ~ ; VG30D |
14012-V5202 |
US $304.44 |
||
|
14008
|
14008
16163-F6520 Bolt8801--01 ~ ; VG30D# |
16163-F6520 |
US $52.95 |
||
|
14009
|
14009
14038V5000 Gasket-Balance Tube8801--01 ~ ; VG30D# |
14038V5000 |
US $30.91 |
||
|
14009
|
14009
14038V5000 Gasket-Balance Tube8801--01 ~ ; VG30D# |
14038V5000 |
US $30.91 |
||
|
14014
|
14014
14330-F6501 Plate-Heat Shield, Rear8801--01 ~ ; VG30D# |
14330-F6501 |
US $43.49 |
||
|
14017
|
14017
14014-F6500 Support-Manifold8801--01 ~ ; VG30D# |
14014-F6500 |
US $83.52 |
||
|
14018E
|
14018E
36513-09400 Washer-Plain8801--01 ~ ; VG30D# |
36513-09400 |
from US $0.09 |
||
|
14036M
|
14036M
14036-F6510 Gasket-Exhaust Manifold, A8801--01 ~ ; VG30D |
14036-F6510 |
US $20.30 |
||
|
14036N
|
14036N
14036F6500 Gasket-Exhaust Manifold, B8801--01 ~ ; VG30D |
14036F6500 |
US $20.30 |
||
|
14055A
|
14055A
01552-00033 CLIP-HARNESS8801--01 ~ ; VG30D# |
01552-00033 |
US $4.85 |
||
|
14069A
|
14069A
14069-F6610 Bolt8811--01 ~ ; VG20DT +VG30D +VG30DT; |
14069-F6610 |
US $4.03 |
||
|
14069A
|
14069A
14069-V5010 Bolt8801--01 ~ 8811--01; VG30D# |
14069-V5010 |
US $4.18 |
||
|
14069C
|
14069C
14069-V5020 Bolt8801--01 ~ ; VG30D# |
14069-V5020 |
US $5.12 |
||
|
14330M
|
14330M
14353-F6501 Plate-Heat Shield, Sub8801--01 ~ ; VG30D |
14353-F6501 |
US $53.14 |
||
|
16590M
|
16590M
14351-45V00 Cover-Manifold8801--01 ~ ; VG30D# |
14351-45V00 |
US $65.52 |
||
|
16590P
|
16590P
14350-F6502 Cover-Exhaust Manifold8801--01 ~ ; VG30D |
14350-F6502 |
US $65.52 |
||
|
16590P
|
16590P
14350-F6502 Cover-Exhaust Manifold8801--01 ~ ; VG30D |
14350-F6502 |
US $65.52 |
||
|
16590Q
|
16590Q
14354-F6501 Cover-Exhaust Manifold8801--01 ~ ; VG30D# |
14354-F6501 |
US $53.14 |
||
|
16590R
|
16590R
14352-F6500 Cover-Manifold8801--01 ~ ; VG30D |
14352-F6500 |
US $32.98 |
||
|
16590R
|
16590R
14352-F6500 Cover-Manifold8801--01 ~ ; VG30D |
14352-F6500 |
US $32.98 |
||
|
22690M
|
22690M
2269016V15 Heated Oxygen Sensor8801--01 ~ ; VG30D# |
2269016V15 |
US $441.79 |
||
|
24210R
|
24210R
24210-45V00 Clamp-O2 Sensor Harness8801--01 ~ ; VG30D# |
24210-45V00 |
US $11.52 |
||
|
24271X
|
24271X
24270-16V00 Protector-Harness8801--01 ~ ; VG30D# |
24270-16V00 |
US $7.78 |
||
