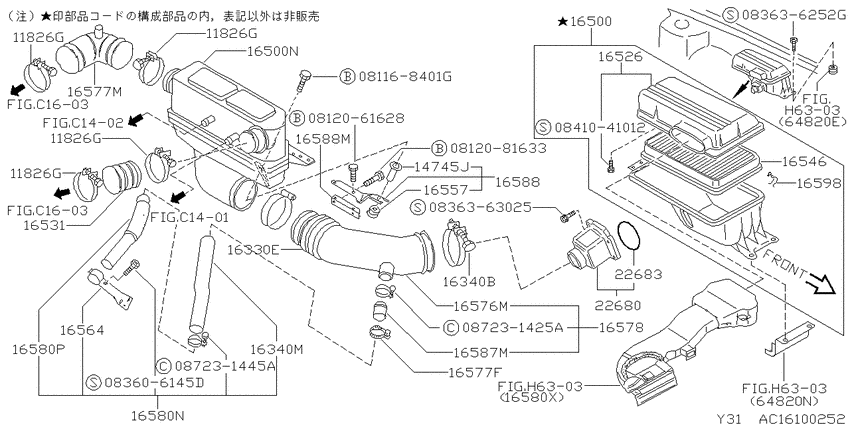

ｴｱ ｸﾘ-ﾅ- & ｴｱ ﾌﾛ- ﾒ-ﾀ- (1988-01-01 ~ ; VG30D) Diagram Nissan CEDRIC/GLORIA
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- VG30D
- transmission
- AT
- grade
- CIMA1
- body
- K
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081168401G
|
081168401G
081168401G
Bolt-hexagon
|
081168401G |
— | ||
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
from US $0.65 |
||
|
0812081633
|
0812081633
08120-81633
Bolt-hexagon
|
08120-81633 |
— | ||
|
083606145D
|
083606145D
08360-6145D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-6145D |
— | ||
|
083636252G
|
083636252G
083636252G SCREWMACHINE |
083636252G |
US $1.83 |
||
|
0836363025
|
0836363025
08363-63025
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-63025 |
— | ||
|
0841041012
|
0841041012
08410-41012
ｽｸﾘﾕ-,ﾏｼﾝ
|
08410-41012 |
— | ||
|
11826G
|
11826G
14464-W1503 Clamp-Hose8801--01 ~ ; VG30D |
14464-W1503 |
US $12.67 |
||
|
11826G
|
11826G
14464-W1503 Clamp-Hose8801--01 ~ ; VG30D |
14464-W1503 |
US $12.67 |
||
|
11826G
|
11826G
14464-W1503 Clamp-Hose8801--01 ~ ; VG30D |
14464-W1503 |
US $12.67 |
||
|
11826G
|
11826G
14464-W1503 Clamp-Hose8801--01 ~ ; VG30D |
14464-W1503 |
US $12.67 |
||
|
14745J
|
14745J
14747-F6500 Collar-Mounting Rubber8801--01 ~ ; VG30D |
14747-F6500 |
US $9.79 |
||
|
16330E
|
16330E
14464-W1500
Clamp-Hose
8801--01 ~ ; VG30DE |
14464-W1500 |
— | ||
| replacement | |||||
|
16330E
|
16330E
14464-04U2B Clamp-Hose8801--01 ~ ; VG30DE |
14464-04U2B |
US $11.26 |
||
|
16340B
|
16340B
01555-00113 CLAMP-HOSE8801--01 ~ ; VG30D# |
01555-00113 |
US $4.03 |
||
| replacement | |||||
|
16340B
|
16340B
0155500323 CLAMP-HOSE8801--01 ~ ; VG30D# |
0155500323 |
US $4.18 |
||
|
16340M
|
16340M
16570-45V00 Hose-Connector To Connector8801--01 ~ 8908--01; VG30D |
16570-45V00 |
US $14.26 |
||
|
16500
|
16500
16500-55S00 Air Cleaner8801--01 ~ ; VG30D |
16500-55S00 |
US $216 |
||
|
16500
|
16500
16501-45V00 Box Assy-Air8801--01 ~ 8908--01; VG30D |
16501-45V00 |
US $181.44 |
||
|
16500
|
16500
16501-71V00 Box Assy-Air8908--01 ~ ; K.VG30D |
16501-71V00 |
US $181.44 |
||
|
16500N
|
16500N
16501-45V00 Box Assy-Air8801--01 ~ 8908--01; VG30D |
16501-45V00 |
US $181.44 |
||
|
16500N
|
16500N
16501-71V00 Box Assy-Air8908--01 ~ ; K.VG30D |
16501-71V00 |
US $181.44 |
||
|
16526
|
16526
16526-F6500 Air Cleaner Cover8801--01 ~ ; VG30D |
16526-F6500 |
US $31.54 |
||
|
16531
|
16531
14463-45V00 Hose-Air Inlet8801--01 ~ ; VG30D |
14463-45V00 |
US $65.09 |
||
|
16546
|
16546
AY120NS001
Element Assy-Air
8801--01 ~ ; VG30D# |
AY120NS001 |
— | ||
| replacements | |||||
|
16546
|
16546
AY120NS00101 Element Assy-Air8801--01 ~ ; VG30D# |
AY120NS00101 |
US $29.76 |
||
|
16546
|
16546
AY120-NS063 Element Assy-Air8801--01 ~ ; VG30D# |
AY120-NS063 |
US $24.74 |
||
|
16557
|
16557
16557-F6500 Cushion-Rubber8801--01 ~ ; VG30D |
16557-F6500 |
US $8.21 |
||
|
16564
|
16564
16581-45V00 Bracket8801--01 ~ ; VG30D |
16581-45V00 |
US $13.10 |
||
|
16576M
|
16576M
16578-45V01 Pipe Assy-Air Duct8801--01 ~ ; VG30D |
16578-45V01 |
US $70.70 |
||
|
16577F
|
16577F
14464-27M00 Clamp-Hose8801--01 ~ ; VG30D# |
14464-27M00 |
US $21.31 |
||
| replacement | |||||
|
16577F
|
16577F
1446445V13 Clamp-Hose8801--01 ~ ; VG30D# |
1446445V13 |
US $21.31 |
||
|
16577M
|
16577M
14463-45V10 Hose Assy-Air Duct8801--01 ~ ; VG30D |
14463-45V10 |
US $86.40 |
||
|
16578
|
16578
16576-45V00 Duct-Air8801--01 ~ ; VG30D |
16576-45V00 |
US $98.21 |
||
|
16578
|
16578
16581-45V00 Bracket8801--01 ~ ; VG30D |
16581-45V00 |
US $13.10 |
||
|
16580N
|
16580N
16585-45V03 Resonator Assy8801--01 ~ ; VG30D |
16585-45V03 |
US $81.50 |
||
|
16580P
|
16580P
16585-45V02 Resonator Assy8801--01 ~ 8908--01; VG30D |
16585-45V02 |
US $81.50 |
||
|
16588
|
16588
16588-45V00 Bracket-Resonator8801--01 ~ ; VG30D |
16588-45V00 |
US $19.15 |
||
|
16588
|
16588
16588-45V11 Bracket-Air Inlet Pipe8801--01 ~ ; VG30D |
16588-45V11 |
US $17.28 |
||
|
16588M
|
16588M
16588-45V11 Bracket-Air Inlet Pipe8801--01 ~ ; VG30D |
16588-45V11 |
US $17.28 |
||
|
16598
|
16598
16598-V0100 Clip8801--01 ~ ; VG30D# |
16598-V0100 |
US $2.45 |
||
|
22680
|
22680
2268016V00 Mass Air Flow8801--01 ~ ; VG30D# |
2268016V00 |
US $627.29 |
||
|
22683
|
22683
2268316V00 Seal-O Ring8801--01 ~ ; VG30DT+VG30D |
2268316V00 |
US $2.42 |
||
