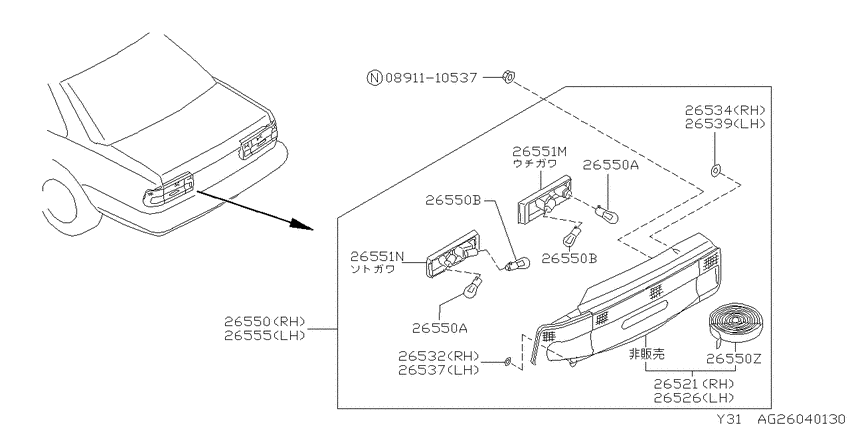

Rear combination lamp (1988-01-01 ~ ; K.CIMA#) Diagram Nissan CEDRIC/GLORIA
- Year
- 1988 - 2012
- Sales region
- Japan
- Engine
- VG30D
- transmission
- AT
- grade
- CIMA1
- body
- K
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0891110537
|
0891110537
0891110537 NUT |
0891110537 |
US $1.73 |
||
|
26521
|
26521
B6554-45V00 Lens-Combination Lamp, Rh8801--01 ~ 8908--01; K.CIMA#; [B113] |
B6554-45V00 |
US $457.37 |
||
|
26521
|
26521
B6554-71V00 Lens-Combination Lamp, Rh8908--01 ~ ; K.(VG30D+VG30DT); [B113] |
B6554-71V00 |
US $344.09 |
||
|
26526
|
26526
B6559-45V00 Lens-Combination Lamp, Lh8801--01 ~ 8908--01; K.CIMA#; [B113] |
B6559-45V00 |
US $457.37 |
||
|
26526
|
26526
B6559-71V00 Lens-Combination Lamp, Lh8908--01 ~ ; K.(VG30D+VG30DT); [B113] |
B6559-71V00 |
US $344.09 |
||
|
26532
|
26532
26553-45V00 Packing-Sheet, Rh8801--01 ~ ; K.(VG30D+VG30DT); ｼﾀｶﾞﾜ[B113] |
26553-45V00 |
US $3.60 |
||
|
26534
|
26534
26553D5500 Packing-Lamp8801--01 ~ ; K.(VG30D+VG30DT); ｳｴｶﾞﾜ[B113] |
26553D5500 |
US $3.74 |
||
|
26537
|
26537
26553-45V00 Packing-Sheet, Rh8801--01 ~ ; K.(VG30D+VG30DT); ｼﾀｶﾞﾜ[B113] |
26553-45V00 |
US $3.60 |
||
|
26539
|
26539
26553D5500 Packing-Lamp8801--01 ~ ; K.CIMA#; ｳｴｶﾞﾜ[B113] |
26553D5500 |
US $3.74 |
||
|
26550
|
26550
B6550-45V00 Lamp Assy-Rear Combination, Rh8801--01 ~ 8908--01; K.CIMA#; [B113] |
B6550-45V00 |
US $508.34 |
||
|
26550
|
26550
B6550-71V00 Lamp Assy-Rear Combination, Rh8908--01 ~ ; K.(VG30D+VG30DT); [B113] |
B6550-71V00 |
US $438.96 |
||
|
26550
|
26550
AY08000023
Bulb
8706--01 ~ ; S +K; 12V-21W |
AY08000023 |
— | ||
| replacement | |||||
|
26550
|
26550
AY080-00087 Bulb (12V 21W)8706--01 ~ ; S +K; 12V-21W |
AY080-00087 |
US $1.55 |
||
|
26550
|
26550
AY08000009 Bulb8706--01 ~ ; S +K; 12V-21/5W |
AY08000009 |
US $1.68 |
||
| replacement | |||||
|
26550
|
26550
AY080-00085 BULB8706--01 ~ ; S +K; 12V-21/5W |
AY080-00085 |
from US $1.74 |
||
|
26550
|
26550
B655389915
Sealer-Rear Combination Lamp
8706--01 ~ ; S.(CTM#+CL#+BRO#) K; L=1500[B113] |
B655389915 |
— | ||
| replacement | |||||
|
26550
|
26550
B6EEC89915 SEALERREAR COM8706--01 ~ ; S.(CTM#+CL#+BRO#) K; L=1500[B113] |
B6EEC89915 |
from US $35.91 |
||
|
26550A
|
26550A
AY08000023
Bulb
8706--01 ~ ; S +K; 12V-21W |
AY08000023 |
— | ||
| replacement | |||||
|
26550A
|
26550A
AY080-00087 Bulb (12V 21W)8706--01 ~ ; S +K; 12V-21W |
AY080-00087 |
US $1.55 |
||
|
26550A
|
26550A
AY08000023
Bulb
8706--01 ~ ; S +K; 12V-21W |
AY08000023 |
— | ||
| replacement | |||||
|
26550A
|
26550A
AY080-00087 Bulb (12V 21W)8706--01 ~ ; S +K; 12V-21W |
AY080-00087 |
US $1.55 |
||
|
26550B
|
26550B
AY08000009 Bulb8706--01 ~ ; S +K; 12V-21/5W |
AY08000009 |
US $1.68 |
||
| replacement | |||||
|
26550B
|
26550B
AY080-00085 BULB8706--01 ~ ; S +K; 12V-21/5W |
AY080-00085 |
from US $1.74 |
||
|
26550B
|
26550B
AY08000009 Bulb8706--01 ~ ; S +K; 12V-21/5W |
AY08000009 |
US $1.68 |
||
| replacement | |||||
|
26550B
|
26550B
AY080-00085 BULB8706--01 ~ ; S +K; 12V-21/5W |
AY080-00085 |
from US $1.74 |
||
|
26550Z
|
26550Z
B655389915
Sealer-Rear Combination Lamp
8706--01 ~ ; S.(CTM#+CL#+BRO#) K; L=1500[B113] |
B655389915 |
— | ||
| replacement | |||||
|
26550Z
|
26550Z
B6EEC89915 SEALERREAR COM8706--01 ~ ; S.(CTM#+CL#+BRO#) K; L=1500[B113] |
B6EEC89915 |
from US $35.91 |
||
|
26551M
|
26551M
26551-45V00 Harness Assy-Rear Combination8801--01 ~ 8908--01; K.CIMA#; ﾐｷﾞ ｳﾁｶﾞﾜ ﾖｳ[B113] |
26551-45V00 |
US $31.97 |
||
|
26551M
|
26551M
26551-71V00 Harness Assy-Rear Combination8908--01 ~ ; K.(VG30D+VG30DT); ﾐｷﾞ ｳﾁｶﾞﾜ ﾖｳ[B113] |
26551-71V00 |
US $37.01 |
||
|
26551M
|
26551M
26556-45V00 Harness Assy-Rear Combination8801--01 ~ 8908--01; K.CIMA#; ﾋﾀﾞﾘ ｳﾁｶﾞﾜ ﾖｳ[B113] |
26556-45V00 |
US $31.97 |
||
|
26551M
|
26551M
26556-71V00 Harness Assy-Rear Combination8908--01 ~ ; K.(VG30D+VG30DT); ﾋﾀﾞﾘ ｳﾁｶﾞﾜ ﾖｳ[B113] |
26556-71V00 |
US $37.01 |
||
|
26551N
|
26551N
26551-45V01 Harness Assy-Rear Combination8801--01 ~ 8908--01; K.CIMA#; ﾐｷﾞ ｿﾄｶﾞﾜ ﾖｳ[B113] |
26551-45V01 |
US $31.97 |
||
|
26551N
|
26551N
26551-71V01 Harness Assy-Rear Combination8908--01 ~ ; K.(VG30D+VG30DT); ﾐｷﾞ ｿﾄｶﾞﾜ ﾖｳ[B113] |
26551-71V01 |
US $41.62 |
||
|
26551N
|
26551N
26556-45V01 Harness Assy-Rear Combination8801--01 ~ 8908--01; K.CIMA#; ﾋﾀﾞﾘ ｿﾄｶﾞﾜ ﾖｳ[B113] |
26556-45V01 |
US $31.97 |
||
|
26551N
|
26551N
26556-71V01 Harness Assy-Rear Combination8908--01 ~ ; K.(VG30D+VG30DT); ﾋﾀﾞﾘ ｿﾄｶﾞﾜ ﾖｳ[B113] |
26556-71V01 |
US $41.62 |
||
|
26555
|
26555
B6555-45V00 Lamp Assy-Rear Combination, Lh8801--01 ~ 8908--01; K.CIMA#; [B113] |
B6555-45V00 |
US $508.34 |
||
|
26555
|
26555
B6555-71V00 Lamp Assy-Rear Combination, Lh8908--01 ~ ; K.(VG30D+VG30DT); [B113] |
B6555-71V00 |
US $438.96 |
||
