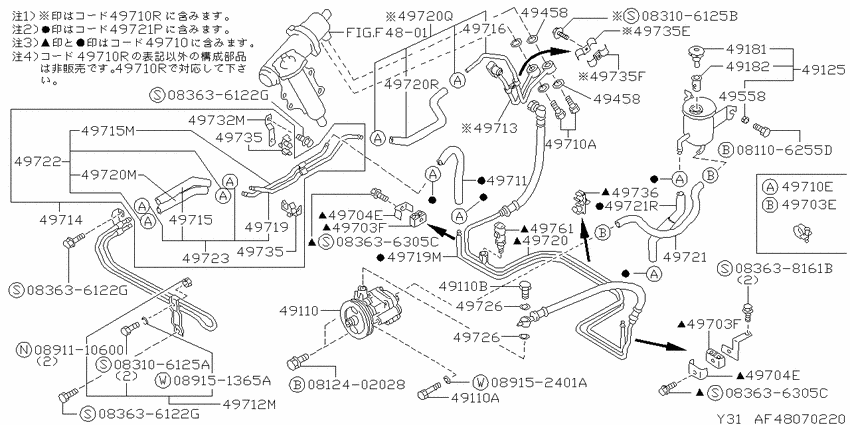

power steering control (1987-06-01 ~ ; 全体図; RB20P) Diagram Nissan CEDRIC/GLORIA
- Year
- 1987 - 2012
- Sales region
- Japan
- Engine
- RB20P
- transmission
- AT
- grade
- CL
- body
- S
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081106255D
|
081106255D
08110-6255D
Bolt-hexagon
|
08110-6255D |
— | ||
|
0812402028
|
0812402028
08124-02028
Bolt-hexagon
|
08124-02028 |
— | ||
|
083106125A
|
083106125A
08310-6125A
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-6125A |
— | ||
|
083106125B
|
083106125B
08310-6125B
ｽｸﾘﾕ-,ﾏｼﾝ
|
08310-6125B |
— | ||
|
083636122G
|
083636122G
083636122G Bolt |
083636122G |
US $2.21 |
||
|
083636122G
|
083636122G
083636122G Bolt |
083636122G |
US $2.21 |
||
|
083636122G
|
083636122G
083636122G Bolt |
083636122G |
US $2.21 |
||
|
083636305C
|
083636305C
08363-6305C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6305C |
— | ||
|
083636305C
|
083636305C
08363-6305C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6305C |
— | ||
|
083638161B
|
083638161B
083638161B
ｽｸﾘﾕ-,ﾏｼﾝ
|
083638161B |
— | ||
|
0891110600
|
0891110600
08911-10600
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-10600 |
— | ||
|
089152401A
|
089152401A
089152401A Washer |
089152401A |
from US $1.83 |
||
|
49110
|
49110
4911019V00 Pump Assy-Power Steering8706--01 ~ 8906--01; $RB20P.(CLSV+BRO) *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
4911019V00 |
US $913.32 |
||
|
49110
|
49110
48361-55S00 Bolt8706--01 ~ 8906--01; LRB20P.(CLSV+BRO) VG20#+VG30E# *CA20P *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
48361-55S00 |
US $4.42 |
||
| replacement | |||||
|
49110
|
49110
4836155S0A Bolt8706--01 ~ 8906--01; LRB20P.(CLSV+BRO) VG20#+VG30E# *CA20P *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
4836155S0A |
from US $2.02 |
||
|
49110
|
49110
0161900011 BOLT8906--01 ~ ; OS.(ORG/Y+SCTM/DS+GTSV+CLSV+BRO#)+S.(VG20E+RD28).(SCTM+CL)+K*CA20P*RB20P*RD28.MT; ﾊﾟﾜｽﾃ ﾖｳ |
0161900011 |
from US $3.77 |
||
|
49110
|
49110
4959150L26 Seal Kit-Power Steering Pump8706--01 ~ 8906--01; NRB20P.(CLSV+BRO) VG20E.(STCM+CL#) RD28.(SCTM+CL#) Y *ORG+LPG.(CTM#+CL); ﾊﾟﾜｽﾃ ﾖｳ |
4959150L26 |
from US $15.11 |
||
|
49110A
|
49110A
48361-55S00 Bolt8706--01 ~ 8906--01; LRB20P.(CLSV+BRO) VG20#+VG30E# *CA20P *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
48361-55S00 |
US $4.42 |
||
| replacement | |||||
|
49110A
|
49110A
4836155S0A Bolt8706--01 ~ 8906--01; LRB20P.(CLSV+BRO) VG20#+VG30E# *CA20P *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
4836155S0A |
from US $2.02 |
||
|
49110B
|
49110B
0161900011 BOLT8906--01 ~ ; OS.(ORG/Y+SCTM/DS+GTSV+CLSV+BRO#)+S.(VG20E+RD28).(SCTM+CL)+K*CA20P*RB20P*RD28.MT; ﾊﾟﾜｽﾃ ﾖｳ |
0161900011 |
from US $3.77 |
||
|
49125
|
49125
49115-42L00 Tank Assy-Reservoir8706--01 ~ 8802--01; 8RB20P.(CLSV+BRO) *CA20P *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49115-42L00 |
US $168.48 |
||
|
49125
|
49125
49180-42L05 Tank Assy-Reservoir8802--01 ~ 8906--01; 8RB20P.(CLSV+BRO) *CA20P *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49180-42L05 |
US $164.16 |
||
|
49181
|
49181
49181-W1700
Cap Assy-Pump
8801--01 ~ 8906--01; 8RB20P.(CLSV+BRO) *CA20P *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49181-W1700 |
— | ||
| replacement | |||||
|
49181
|
49181
49181W1705 Cap Assy-Pump8801--01 ~ 8906--01; 8RB20P.(CLSV+BRO) *CA20P *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49181W1705 |
from US $14.42 |
||
|
49181
|
49181
49181W1705 Cap Assy-Pump8906--01 ~ ; OS.(ORG/Y+SCTM/DS+GTSV+CLSV+BRO#)+S.(VG20E+RD28).(SCTM+CL)+K*CA20P*RB20P*RD28.MT; ﾊﾟﾜｽﾃ ﾖｳ |
49181W1705 |
from US $14.42 |
||
|
49182
|
49182
49182-42L00 Filter Assy-Pump8906--01 ~ ; OS.(ORG/Y+SCTM/DS+GTSV+CLSV+BRO#)+S.(VG20E+RD28).(SCTM+CL)+K*CA20P*RB20P*RD28.MT; ﾊﾟﾜｽﾃ ﾖｳ |
49182-42L00 |
US $5.55 |
||
|
49458
|
49458
4972650W00 Seal-O Ring8706--01 ~ 8906--01; 8S.RB20P.(CLSV,BRO) *CA20P+RD28.R4 *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
4972650W00 |
from US $1.94 |
||
|
49458
|
49458
4972650W00 Seal-O Ring8706--01 ~ 8906--01; 8S.RB20P.(CLSV,BRO) *CA20P+RD28.R4 *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
4972650W00 |
from US $1.94 |
||
|
49558
|
49558
18316S3260 Bush8802--01 ~ 8906--01; LRB20P.(CLSV+BRO) VG20E+VG30E#+VG30D RD28.(F5+FA) *CA20P *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
18316S3260 |
from US $3.44 |
||
|
49703E
|
49703E
01555-00241 CLIP8906--01 ~ ; OS.(ORG/Y+SCTM/DS+GTSV+CLSV+BRO#)+S.(VG20E+RD28).(SCTM+CL)+K*CA20P*RB20P*RD28.MT; ﾊﾟﾜｽﾃ ﾖｳ |
01555-00241 |
US $2.45 |
||
| replacement | |||||
|
49703E
|
49703E
0155500861 CLIP8906--01 ~ ; OS.(ORG/Y+SCTM/DS+GTSV+CLSV+BRO#)+S.(VG20E+RD28).(SCTM+CL)+K*CA20P*RB20P*RD28.MT; ﾊﾟﾜｽﾃ ﾖｳ |
0155500861 |
US $2.45 |
||
|
49703F
|
49703F
49733-W1100 Insulator8706--01 ~ 8906--01; LRB20P.(CLSV+BRO) VG20DT *CA20P *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49733-W1100 |
US $5.18 |
||
|
49703F
|
49703F
49733-W1100 Insulator8706--01 ~ 8906--01; LRB20P.(CLSV+BRO) VG20DT *CA20P *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49733-W1100 |
US $5.18 |
||
|
49704E
|
49704E
49729-W1700 Clamp8706--01 ~ 8712--01; LRB20P.(CLSV+BRO) VG20DT *CA20P *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49729-W1700 |
US $2.59 |
||
|
49704E
|
49704E
49729-W1700 Clamp8706--01 ~ 8712--01; LRB20P.(CLSV+BRO) VG20DT *CA20P *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49729-W1700 |
US $2.59 |
||
|
49710
|
49710
49710-19V00 Hose & Tube Set-Power Steering8706--01 ~ ; $RB20P.(CLSV+BRO) *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49710-19V00 |
US $318.60 |
||
|
49710
|
49710
49738-V5000 Bolt-Connector8706--01 ~ 8906--01; 8S.RB20P.(CLSV,BRO) *CA20P+RD28.R4 *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49738-V5000 |
US $5.47 |
||
| replacement | |||||
|
49710
|
49710
49738V500A Bolt8706--01 ~ 8906--01; 8S.RB20P.(CLSV,BRO) *CA20P+RD28.R4 *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49738V500A |
US $5.33 |
||
|
49710
|
49710
0155500691 CLAMP8906--01 ~ ; OS.(ORG/Y+SCTM/DS+GTSV+CLSV+BRO#)+S.(VG20E+RD28).(SCTM+CL)+K*CA20P*RB20P*RD28.MT; ﾊﾟﾜｽﾃ ﾖｳ |
0155500691 |
from US $2.11 |
||
|
49710
|
49710
49710-18V00 Hose & Tube Set-Power Steering8706--01 ~ ; $RB20P.(CLSV+BRO) *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49710-18V00 |
US $118.22 |
||
|
49710A
|
49710A
49738-V5000 Bolt-Connector8706--01 ~ 8906--01; 8S.RB20P.(CLSV,BRO) *CA20P+RD28.R4 *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49738-V5000 |
US $5.47 |
||
| replacement | |||||
|
49710A
|
49710A
49738V500A Bolt8706--01 ~ 8906--01; 8S.RB20P.(CLSV,BRO) *CA20P+RD28.R4 *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49738V500A |
US $5.33 |
||
|
49710E
|
49710E
0155500691 CLAMP8906--01 ~ ; OS.(ORG/Y+SCTM/DS+GTSV+CLSV+BRO#)+S.(VG20E+RD28).(SCTM+CL)+K*CA20P*RB20P*RD28.MT; ﾊﾟﾜｽﾃ ﾖｳ |
0155500691 |
from US $2.11 |
||
|
49710R
|
49710R
49710-18V00 Hose & Tube Set-Power Steering8706--01 ~ ; $RB20P.(CLSV+BRO) *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49710-18V00 |
US $118.22 |
||
|
49710R
|
49710R
49710-18V00 Hose & Tube Set-Power Steering8706--01 ~ ; $RB20P.(CLSV+BRO) *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49710-18V00 |
US $118.22 |
||
|
49711
|
49711
49725-19V01 Hose-Return, Power Steering8706--01 ~ 8906--01; $RB20P.(CLSV+BRO) *RB20P.(SCTM+CL) |
49725-19V01 |
US $23.76 |
||
|
49712M
|
49712M
49790-10V05 Tube Assy-Power Steering8706--01 ~ ; .*CA20P.(ORG+CTM#) +*RB20P.(SCTM+CL) +*RD28.ORG; ﾊﾟﾜｽﾃ ﾖｳ |
49790-10V05 |
US $23.33 |
||
|
49713
|
49713
49713-18V00 Tube-Connector To Pump8706--01 ~ 8906--01; 8RB20P.(CLSV+BRO) *CA20P *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49713-18V00 |
US $55.58 |
||
|
49714
|
49714
49790-19V00 Tube Assy-Power Steering8706--01 ~ ; *RB20P.(CLSV+BRO) +*CA20P +*RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49790-19V00 |
US $94.18 |
||
|
49715
|
49715
49725-11V02 Hose-Return, Power Steering8706--01 ~ 8906--01; ORB20P.(CLSV+BRO) VG20E+VG30E# RD28.(F5+AT) *ORG *LPG.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ 49723 ﾉ ｺｳｾｲ |
49725-11V02 |
US $19.87 |
||
|
49715
|
49715
49726-11V00 Tube Assy-Power Steering8906--01 ~ ; PRB20P.(CLSV+BRO)+VG20E+VG30E#+VG30D+RD28.(MT.F5+AT)*CA20P*RB20P.(SCTM+CL)*RD28MT; ﾊﾟﾜｽﾃ ﾖｳ |
49726-11V00 |
US $15.41 |
||
|
49715M
|
49715M
49726-11V00 Tube Assy-Power Steering8906--01 ~ ; PRB20P.(CLSV+BRO)+VG20E+VG30E#+VG30D+RD28.(MT.F5+AT)*CA20P*RB20P.(SCTM+CL)*RD28MT; ﾊﾟﾜｽﾃ ﾖｳ |
49726-11V00 |
US $15.41 |
||
|
49716
|
49716
49726-20V00 Tube-Power Steering8706--01 ~ ; 8S.RB20P.(CLSV,BRO) *CA20P+RD28.R4 *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49726-20V00 |
US $31.68 |
||
|
49719
|
49719
49726-11V01 Tube Assy-Power Steering8706--01 ~ 8906--01; NRB20P.(CLSV+BRO) VG20E+VG30E# RD28.(SCTM+CL#+BRO) *LPG.(ORG+CTM#+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49726-11V01 |
US $15.41 |
||
|
49719
|
49719
49726-19V00 Tube Assy-Power Steering8706--01 ~ 8906--01; $RB20P.(CLSV+BRO) *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49726-19V00 |
US $31.68 |
||
|
49719M
|
49719M
49726-19V00 Tube Assy-Power Steering8706--01 ~ 8906--01; $RB20P.(CLSV+BRO) *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49726-19V00 |
US $31.68 |
||
|
49720
|
49720
49720-19V00 Hose & Tube Assy-Pressure, Ps8706--01 ~ 8906--01; $RB20P.(CLSV+BRO) *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49720-19V00 |
US $216 |
||
|
49720
|
49720
49725-11V01 Hose-Return, Power Steering8706--01 ~ 8906--01; ORB20P.(CLSV+BRO) VG20E+VG30E# RD28.(F5+AT) *ORG *LPG.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49725-11V01 |
US $19.87 |
||
|
49720
|
49720
49721-18V00 Hose & Tube Assy-Power Steering8706--01 ~ ; 8RB20P.(CLSV+BRO) *CA20P *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49721-18V00 |
US $65.09 |
||
|
49720
|
49720
49725-18V00 Hose-Return, Power Steering8706--01 ~ ; 8RB20P.(CLSV+BRO) *CA20P *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49725-18V00 |
US $19.87 |
||
|
49720M
|
49720M
49725-11V01 Hose-Return, Power Steering8706--01 ~ 8906--01; ORB20P.(CLSV+BRO) VG20E+VG30E# RD28.(F5+AT) *ORG *LPG.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49725-11V01 |
US $19.87 |
||
|
49720Q
|
49720Q
49721-18V00 Hose & Tube Assy-Power Steering8706--01 ~ ; 8RB20P.(CLSV+BRO) *CA20P *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49721-18V00 |
US $65.09 |
||
|
49720R
|
49720R
49725-18V00 Hose-Return, Power Steering8706--01 ~ ; 8RB20P.(CLSV+BRO) *CA20P *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49725-18V00 |
US $19.87 |
||
|
49721
|
49721
49717-19V10 Hose Assy-Suction, Power Steering8706--01 ~ 8906--01; $RB20P.(CLSV+BRO) *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49717-19V10 |
US $31.54 |
||
|
49721
|
49721
49721-19V00 Hose & Tube Assy-Power Steering8706--01 ~ 8906--01; $RB20P.(CLSV+BRO) *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49721-19V00 |
US $78.91 |
||
|
49721
|
49721
49725-19V00 Hose-Return, Power Steering8706--01 ~ 8906--01; $RB20P.(CLSV+BRO) *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49725-19V00 |
US $23.76 |
||
|
49721P
|
49721P
49721-19V00 Hose & Tube Assy-Power Steering8706--01 ~ 8906--01; $RB20P.(CLSV+BRO) *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49721-19V00 |
US $78.91 |
||
|
49721R
|
49721R
49725-19V00 Hose-Return, Power Steering8706--01 ~ 8906--01; $RB20P.(CLSV+BRO) *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49725-19V00 |
US $23.76 |
||
|
49722
|
49722
49721-19V05 Hose & Tube Assy-Power Steering8706--01 ~ 8906--01; 8RB20P.(CLSV+BRO) *CA20P *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49721-19V05 |
US $43.34 |
||
|
49723
|
49723
49721-11V01 Hose & Tube Assy-Power Steering8706--01 ~ 8906--01; NRB20P.(CLSV+BRO) VG20E+VG30E# RD28.(SCTM+CL#+BRO) *LPG (ORG+CTM#+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49721-11V01 |
US $29.52 |
||
|
49726
|
49726
49726Y0100 Washer-Copper8906--01 ~ ; OS.(ORG/Y+SCTM/DS+GTSV+CLSV+BRO#)+S.(VG20E+RD28).(SCTM+CL)+K*CA20P*RB20P*RD28.MT; ﾊﾟﾜｽﾃ ﾖｳ |
49726Y0100 |
from US $1.81 |
||
|
49726
|
49726
49726Y0100 Washer-Copper8906--01 ~ ; OS.(ORG/Y+SCTM/DS+GTSV+CLSV+BRO#)+S.(VG20E+RD28).(SCTM+CL)+K*CA20P*RB20P*RD28.MT; ﾊﾟﾜｽﾃ ﾖｳ |
49726Y0100 |
from US $1.81 |
||
|
49732M
|
49732M
49730-11V00 Bracket-Tube8706--01 ~ 8906--01; ORB20P.(CLSV+BRO) VG20E+VG30E# RD28.(F5+AT) *ORG *LPG.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49730-11V00 |
US $10.22 |
||
|
49735
|
49735
49791-28E00 CLIP8706--01 ~ 8906--01; ORB20P.(CLSV+BRO) VG20E+VG30E# RD28.(F5+AT) *ORG *LPG.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49791-28E00 |
US $8.06 |
||
|
49735
|
49735
49730-01J61 Clamp8706--01 ~ ; *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49730-01J61 |
US $11.95 |
||
|
49735
|
49735
49730-01J62 Clamp8706--01 ~ ; *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49730-01J62 |
US $5.04 |
||
|
49735
|
49735
49791-28E00 CLIP8706--01 ~ 8906--01; ORB20P.(CLSV+BRO) VG20E+VG30E# RD28.(F5+AT) *ORG *LPG.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49791-28E00 |
US $8.06 |
||
|
49735
|
49735
49730-01J61 Clamp8706--01 ~ ; *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49730-01J61 |
US $11.95 |
||
|
49735
|
49735
49730-01J62 Clamp8706--01 ~ ; *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49730-01J62 |
US $5.04 |
||
|
49735E
|
49735E
49730-01J61 Clamp8706--01 ~ ; *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49730-01J61 |
US $11.95 |
||
|
49735F
|
49735F
49730-01J62 Clamp8706--01 ~ ; *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49730-01J62 |
US $5.04 |
||
|
49736
|
49736
49791-16V00 Clip8706--01 ~ 8906--01; 8RB20P.(CLSV+BRO) VG20DT *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49791-16V00 |
US $8.05 |
||
|
49761
|
49761
49761V5400 Switch-Pressure, Power Steering8706--01 ~ 8906--01; LRB20P.(CLSV+BRO) VG20DT *CA20P *RB20P.(SCTM+CL); ﾊﾟﾜｽﾃ ﾖｳ |
49761V5400 |
US $59.04 |
||
