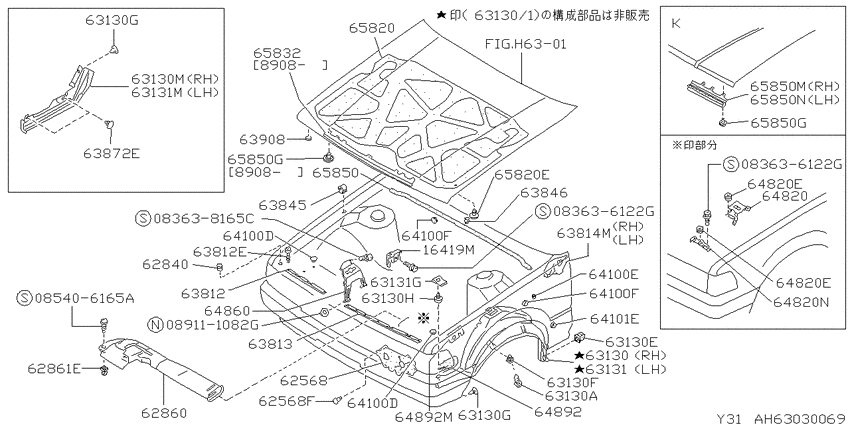

front body- fitting (1987-06-01 ~ ; RD28) Diagram Nissan CEDRIC/GLORIA
- Year
- 1987 - 2012
- Sales region
- Japan
- Engine
- RD28
- transmission
- AT
- grade
- BRO
- body
- K
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636122G
|
083636122G
083636122G Bolt |
083636122G |
US $2.21 |
||
|
083636122G
|
083636122G
083636122G Bolt |
083636122G |
US $2.21 |
||
|
083638165C
|
083638165C
08363-8165C
SCREW
|
08363-8165C |
— | ||
|
085406165A
|
085406165A
08540-6165A
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08540-6165A |
— | ||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
16419M
|
16419M
16419-20V10 Bracket Assy-Fuel Strainer8706--01 ~ ; (S+K).RD28 |
16419-20V10 |
US $17.86 |
||
|
62568
|
62568
62568-25V00 Seal-Head Lamp Hole8706--01 ~ 8906--01; K.(VG20DT+VG30E#) K.RD28; ﾐｷﾞ |
62568-25V00 |
US $11.23 |
||
|
62568
|
62568
62568-25V10 Seal-Head Lamp Hole8706--01 ~ 8906--01; K.(VG20DT+VG30E#) K.RD28; ﾋﾀﾞﾘ |
62568-25V10 |
US $11.23 |
||
|
62568
|
62568
66919H1001 Clip8706--01 ~ 8906--01; RB20P+VG20DT+VG30E# RD28 |
66919H1001 |
from US $0.81 |
||
|
62568F
|
62568F
66919H1001 Clip8706--01 ~ 8906--01; RB20P+VG20DT+VG30E# RD28 |
66919H1001 |
from US $0.81 |
||
|
62840
|
62840
6582201M00 Bumper-Hood8706--01 ~ 8906--01; S+K･(CL#+GT#+BRO#) |
6582201M00 |
from US $2.39 |
||
|
62860
|
62860
62862-20V00 Duct-Air8706--01 ~ 8906--01; RD28 |
62862-20V00 |
US $41.62 |
||
|
62861E
|
62861E
0128100231 GROMMET8706--01 ~ 8906--01; S+K; M6ｽｸﾘﾕ-ﾖｳ |
0128100231 |
US $0.97 |
||
|
63130
|
63130
63842-10V00 ﾌﾟﾛﾃｸﾀ-,ﾌﾛﾝﾄ ﾌｴﾝﾀﾞ- rh8706--01 ~ 8905--01; S+K･(CL#+GT#+BRO#) |
63842-10V00 |
US $87.26 |
||
|
63130
|
63130
63842-60V00 Protector-Front Fender, Rh8906--01 ~ ; $S +K.(VG20E+VG20DT+VG30E+VG30T+RD28) |
63842-60V00 |
US $71.86 |
||
|
63130
|
63130
01461-00341
SCREW
8801--01 ~ 8906--01; )ORG+CTM#+GT# BRO#+CIMA# Y; M6 ﾀﾂﾋﾟﾝｸﾞ |
01461-00341 |
— | ||
| replacement | |||||
|
63130
|
63130
0854061608 SCREWTAPPING8801--01 ~ 8906--01; )ORG+CTM#+GT# BRO#+CIMA# Y; M6 ﾀﾂﾋﾟﾝｸﾞ |
0854061608 |
from US $0.54 |
||
|
63130
|
63130
0128100441
GROMMET-SCREW
8706--01 ~ ; S +K; M5 M6 ｽｸﾘﾕ-ﾖｳ |
0128100441 |
— | ||
| replacement | |||||
|
63130
|
63130
0128100801 GROMMET-SCREW8706--01 ~ ; S +K; M5 M6 ｽｸﾘﾕ-ﾖｳ |
0128100801 |
from US $1.07 |
||
|
63130
|
63130
63848-D4000 Clip8706--01 ~ ; S +K |
63848-D4000 |
from US $0.83 |
||
|
63130
|
63130
6384401A00 Fastener8706--01 ~ 8803--01; 6S.RB20P.(CL#+BRO) VG20#.(CL#+BRO) RD28.(CL#+BRO) |
6384401A00 |
US $2.36 |
||
|
63130
|
63130
6384801G00 Clip-Harness Protector9102--01 ~ ; S +K; |
6384801G00 |
from US $0.54 |
||
|
63130
|
63130
01461-00271 SCREW8906--01 ~ ; BS.(VG20E+VG20DT) +S.RD28.(SCTM+CL+CLSV+BRO) +K.(VG20E+VG20DT+RD28); M6 ﾀﾂﾋﾟﾝｸﾞ ｸﾛ |
01461-00271 |
from US $2.08 |
||
|
63130
|
63130
63844-10V00 Protector-Front Fender Lower Rh8810--01 ~ 8906--01; $VG20#.(SCTM+CL#) +CA20P +RB20P +RD28; 5NO ﾛｱ ﾌﾟﾛﾃｸﾀ-ﾖｳ |
63844-10V00 |
US $22.18 |
||
|
63130
|
63130
63844-50V00 ﾌﾟﾛﾃｸﾀ-,ﾌﾛﾝﾄ ﾌｴﾝﾀﾞ- ﾛｱ rh8906--01 ~ ; -VG20#.(SCTM#+CL#) +RD28.(CL#+BRO) +*VG20#.BRO; *ｶﾗ-ﾄﾞﾊﾞﾝﾊﾟ- ｼﾖｳ |
63844-50V00 |
US $76.75 |
||
|
63130
|
63130
75893-17V11 Cover-Front Under, Rh9008--01 ~ ; *K.(VG20E+RD28).BRO; ﾌﾞﾛｱﾑ ｾﾚｸｼﾖﾝ |
75893-17V11 |
US $55.30 |
||
|
63130A
|
63130A
01461-00341
SCREW
8801--01 ~ 8906--01; )ORG+CTM#+GT# BRO#+CIMA# Y; M6 ﾀﾂﾋﾟﾝｸﾞ |
01461-00341 |
— | ||
| replacement | |||||
|
63130A
|
63130A
0854061608 SCREWTAPPING8801--01 ~ 8906--01; )ORG+CTM#+GT# BRO#+CIMA# Y; M6 ﾀﾂﾋﾟﾝｸﾞ |
0854061608 |
from US $0.54 |
||
|
63130E
|
63130E
0128100441
GROMMET-SCREW
8706--01 ~ ; S +K; M5 M6 ｽｸﾘﾕ-ﾖｳ |
0128100441 |
— | ||
| replacement | |||||
|
63130E
|
63130E
0128100801 GROMMET-SCREW8706--01 ~ ; S +K; M5 M6 ｽｸﾘﾕ-ﾖｳ |
0128100801 |
from US $1.07 |
||
|
63130F
|
63130F
63848-D4000 Clip8706--01 ~ ; S +K |
63848-D4000 |
from US $0.83 |
||
|
63130G
|
63130G
6384401A00 Fastener8706--01 ~ 8803--01; 6S.RB20P.(CL#+BRO) VG20#.(CL#+BRO) RD28.(CL#+BRO) |
6384401A00 |
US $2.36 |
||
|
63130G
|
63130G
6384801G00 Clip-Harness Protector9102--01 ~ ; S +K; |
6384801G00 |
from US $0.54 |
||
|
63130G
|
63130G
6384401A00 Fastener8706--01 ~ 8803--01; 6S.RB20P.(CL#+BRO) VG20#.(CL#+BRO) RD28.(CL#+BRO) |
6384401A00 |
US $2.36 |
||
|
63130G
|
63130G
6384801G00 Clip-Harness Protector9102--01 ~ ; S +K; |
6384801G00 |
from US $0.54 |
||
|
63130H
|
63130H
01461-00271 SCREW8906--01 ~ ; BS.(VG20E+VG20DT) +S.RD28.(SCTM+CL+CLSV+BRO) +K.(VG20E+VG20DT+RD28); M6 ﾀﾂﾋﾟﾝｸﾞ ｸﾛ |
01461-00271 |
from US $2.08 |
||
|
63130M
|
63130M
63844-10V00 Protector-Front Fender Lower Rh8810--01 ~ 8906--01; $VG20#.(SCTM+CL#) +CA20P +RB20P +RD28; 5NO ﾛｱ ﾌﾟﾛﾃｸﾀ-ﾖｳ |
63844-10V00 |
US $22.18 |
||
|
63130M
|
63130M
63844-50V00 ﾌﾟﾛﾃｸﾀ-,ﾌﾛﾝﾄ ﾌｴﾝﾀﾞ- ﾛｱ rh8906--01 ~ ; -VG20#.(SCTM#+CL#) +RD28.(CL#+BRO) +*VG20#.BRO; *ｶﾗ-ﾄﾞﾊﾞﾝﾊﾟ- ｼﾖｳ |
63844-50V00 |
US $76.75 |
||
|
63130M
|
63130M
75893-17V11 Cover-Front Under, Rh9008--01 ~ ; *K.(VG20E+RD28).BRO; ﾌﾞﾛｱﾑ ｾﾚｸｼﾖﾝ |
75893-17V11 |
US $55.30 |
||
|
63131
|
63131
63843-10V00 ﾌﾟﾛﾃｸﾀ-,ﾌﾛﾝﾄ ﾌｴﾝﾀﾞ- lh8706--01 ~ 8905--01; S+K･(CL#+GT#+BRO#) |
63843-10V00 |
US $87.26 |
||
|
63131
|
63131
63843-60V00 Protector-Front Fender, Lh8906--01 ~ ; BS.(CA20P+RB20P+VG20E+VG30E+VG30T+RD28) +K.(VG20E+VG30E+VG30T+RD28) |
63843-60V00 |
US $71.86 |
||
|
63131
|
63131
0124100471 NUT8911--01 ~ ; ;S.(VG20E+RD28).(CL+CLSV+BRO) +K.VG20E.(CL+CLSV+BRO) +K.RD28; M6 ｽｸﾘﾕ-ﾖｳ |
0124100471 |
from US $0.57 |
||
|
63131
|
63131
63845-10V00 Protector-Front Fender Lower Lh8810--01 ~ 8906--01; VG20#+CA20P RB20P+RD28; 5NO ﾛｱ ﾌﾟﾛﾃｸﾀ-ﾖｳ |
63845-10V00 |
US $22.18 |
||
|
63131
|
63131
63845-50V00 ﾌﾟﾛﾃｸﾀ-,ﾌﾛﾝﾄ ﾌｴﾝﾀﾞ- ﾛｱ lh8906--01 ~ ; AS.VG20E +S.RD28.(SCTM+CL+CLSV+BRO) +K.VG20E.(CL+CLSV+BRO) +K.RD28 |
63845-50V00 |
US $76.75 |
||
|
63131G
|
63131G
0124100471 NUT8911--01 ~ ; ;S.(VG20E+RD28).(CL+CLSV+BRO) +K.VG20E.(CL+CLSV+BRO) +K.RD28; M6 ｽｸﾘﾕ-ﾖｳ |
0124100471 |
from US $0.57 |
||
|
63131M
|
63131M
63845-10V00 Protector-Front Fender Lower Lh8810--01 ~ 8906--01; VG20#+CA20P RB20P+RD28; 5NO ﾛｱ ﾌﾟﾛﾃｸﾀ-ﾖｳ |
63845-10V00 |
US $22.18 |
||
|
63131M
|
63131M
63845-50V00 ﾌﾟﾛﾃｸﾀ-,ﾌﾛﾝﾄ ﾌｴﾝﾀﾞ- ﾛｱ lh8906--01 ~ ; AS.VG20E +S.RD28.(SCTM+CL+CLSV+BRO) +K.VG20E.(CL+CLSV+BRO) +K.RD28 |
63845-50V00 |
US $76.75 |
||
|
63812
|
63812
65812-10V00 Seal-Hood, Front Rh8706--01 ~ 8906--01; S+K･(CL#+GT#+BRO#) |
65812-10V00 |
US $7.92 |
||
|
63812
|
63812
0155301182 CLIP8706--01 ~ ; S +K |
0155301182 |
from US $0.59 |
||
|
63812E
|
63812E
0155301182 CLIP8706--01 ~ ; S +K |
0155301182 |
from US $0.59 |
||
|
63813
|
63813
65813-10V00 Seal-Hood, Front Lh8706--01 ~ 8906--01; S+K･(CL#+GT#+BRO#) |
65813-10V00 |
US $7.92 |
||
|
63813
|
63813
6384801G00 Clip-Harness Protector8904--01 ~ ; CA20P+RB20P+RD28 VG20#+VG30#; ﾊﾞﾂｸﾙ ﾄﾘﾂｹ |
6384801G00 |
from US $0.54 |
||
|
63814M
|
63814M
63820-25V00 ｽﾍﾟ-ｻ-,ｼ-ﾘﾝｸﾞ ﾌﾛﾝﾄ ﾌｴﾝﾀﾞ-8706--01 ~ 8906--01; K･(CL#+GT#+BRO#); ﾐｷﾞ |
63820-25V00 |
US $9.65 |
||
|
63814M
|
63814M
63821-25V00 ｽﾍﾟ-ｻ-,ｼ-ﾘﾝｸﾞ ﾌﾛﾝﾄ ﾌｴﾝﾀﾞ-8706--01 ~ 8906--01; K･(CL#+GT#+BRO#); ﾋﾀﾞﾘ |
63821-25V00 |
US $9.65 |
||
|
63845
|
63845
65158-V0100 Bumper-Hood, Side8706--01 ~ 8906--01; $S K.(GT#+CL#+BRO#) |
65158-V0100 |
from US $5.12 |
||
|
63846
|
63846
0165800881 BUMPER RUBBER-DOOR8706--01 ~ ; S+K; M8ｱﾅﾄﾘﾂｹﾖｳ |
0165800881 |
from US $1.55 |
||
|
63872E
|
63872E
75889-01A00 Clip8810--01 ~ 8906--01; VG20#+CA20P RB20P+RD28; 5NO ﾛｱ ﾌﾟﾛﾃｸﾀ-ﾖｳ ｼﾀｱﾅ 8MMﾖｳ |
75889-01A00 |
US $4.18 |
||
|
63908
|
63908
26392-01P00 Seal Rubber8706--01 ~ ; S +K |
26392-01P00 |
US $2.74 |
||
|
64100D
|
64100D
0165801481 PLUG8706--01 ~ 8801--01; ,CA20P+RB20P+VG20# VG30E.(Y+BRO) RD28; M4.5ｶﾗM6ｱﾅﾖｳ |
0165801481 |
US $3.18 |
||
|
64100D
|
64100D
0165801481 PLUG8706--01 ~ 8801--01; ,CA20P+RB20P+VG20# VG30E.(Y+BRO) RD28; M4.5ｶﾗM6ｱﾅﾖｳ |
0165801481 |
US $3.18 |
||
|
64100E
|
64100E
0165801501 PLUG8706--01 ~ ; S +K; M7.5ｶﾗM9ｱﾅﾖｳ |
0165801501 |
US $3.06 |
||
|
64100F
|
64100F
01658-01511 PLUG8706--01 ~ 8801--01; HCA20P+RB20P VG20#+RD28 VG30E･(ORG+BRO) *VG30E#･BROV; M9ｶﾗM11ｱﾅﾖｳ |
01658-01511 |
US $3.18 |
||
|
64100F
|
64100F
01658-01511 PLUG8706--01 ~ 8801--01; HCA20P+RB20P VG20#+RD28 VG30E･(ORG+BRO) *VG30E#･BROV; M9ｶﾗM11ｱﾅﾖｳ |
01658-01511 |
US $3.18 |
||
|
64101E
|
64101E
0165801541 PLUG-RUBBER8706--01 ~ ; S +K; M15ｶﾗM17ｱﾅﾖｳ |
0165801541 |
from US $1.26 |
||
|
64820
|
64820
64820-20V00 Bracket-Air Cleaner8706--01 ~ ; (S+K).RD28; |
64820-20V00 |
US $21.46 |
||
|
64820
|
64820
6483553A10 Bush8706--01 ~ 8801--01; S+K |
6483553A10 |
US $5.90 |
||
|
64820
|
64820
64821-20V00 Bracket-Air Cleaner Front8706--01 ~ 8906--01; RD28; ﾌﾛﾝﾄ |
64821-20V00 |
US $17.42 |
||
|
64820E
|
64820E
6483553A10 Bush8706--01 ~ 8801--01; S+K |
6483553A10 |
US $5.90 |
||
|
64820E
|
64820E
6483553A10 Bush8706--01 ~ 8801--01; S+K |
6483553A10 |
US $5.90 |
||
|
64820N
|
64820N
64821-20V00 Bracket-Air Cleaner Front8706--01 ~ 8906--01; RD28; ﾌﾛﾝﾄ |
64821-20V00 |
US $17.42 |
||
|
64860
|
64860
64882-20V00 Bracket-Control Device Mounting8706--01 ~ ; (S+K).RD28; ﾊﾞｷﾕ-ﾑ ﾀﾝｸ ﾖｳ |
64882-20V00 |
US $26.64 |
||
|
64892
|
64892
64892-10V00 Blind-Hole Rubber8706--01 ~ ; S +K |
64892-10V00 |
US $11.23 |
||
|
64892
|
64892
64892-10V10 Blind-Hole Rubber8706--01 ~ 8801--01; S +K |
64892-10V10 |
US $11.23 |
||
|
64892M
|
64892M
64892-10V10 Blind-Hole Rubber8706--01 ~ 8801--01; S +K |
64892-10V10 |
US $11.23 |
||
|
65820
|
65820
65840-10V00 Insulator-Hood8706--01 ~ 8806--01; 'CA20P+RB20P+VG20# VG30E#･BRO#･AT+RD28 |
65840-10V00 |
US $135.29 |
||
|
65820
|
65820
6584630F00
Clip-Insulator
8706--01 ~ 8906--01; 'CA20P+RB20P+VG20# VG30E#･BRO#･AT+RD28 |
6584630F00 |
— | ||
| replacement | |||||
|
65820
|
65820
F584630F00 Clip-Insulator8706--01 ~ 8906--01; 'CA20P+RB20P+VG20# VG30E#･BRO#･AT+RD28 |
F584630F00 |
from US $1.37 |
||
|
65820E
|
65820E
6584630F00
Clip-Insulator
8706--01 ~ 8906--01; 'CA20P+RB20P+VG20# VG30E#･BRO#･AT+RD28 |
6584630F00 |
— | ||
| replacement | |||||
|
65820E
|
65820E
F584630F00 Clip-Insulator8706--01 ~ 8906--01; 'CA20P+RB20P+VG20# VG30E#･BRO#･AT+RD28 |
F584630F00 |
from US $1.37 |
||
|
65832
|
65832
65822-50V00 ｼ-ﾘﾝｸﾞ ﾗﾊﾞ-8908--01 ~ ; !K.(VG20E+VG20DT+VG30E+VG30T+RD28) |
65822-50V00 |
US $40.18 |
||
|
65850
|
65850
66830-10V00 Sealing Rubber8706--01 ~ ; S +K |
66830-10V00 |
US $30.96 |
||
|
65850
|
65850
27948-M7001 Clip8706--01 ~ ; K |
27948-M7001 |
US $1.01 |
||
|
65850
|
65850
65850-25V00 ﾌﾟﾛﾃｸﾀ- ｱﾂｾﾝﾌﾞﾘ-,ﾌ-ﾄﾞ ﾌﾛﾝﾄ rh8706--01 ~ 8906--01; K･(CL#+GT#+BRO#) |
65850-25V00 |
US $21.17 |
||
|
65850
|
65850
6585125V00 ﾌﾟﾛﾃｸﾀ-,ﾌｰﾄﾞ8706--01 ~ 8906--01; K･(CL#+GT#+BRO#) |
6585125V00 |
US $21.17 |
||
|
65850G
|
65850G
27948-M7001 Clip8706--01 ~ ; K |
27948-M7001 |
US $1.01 |
||
|
65850G
|
65850G
27948-M7001 Clip8706--01 ~ ; K |
27948-M7001 |
US $1.01 |
||
|
65850M
|
65850M
65850-25V00 ﾌﾟﾛﾃｸﾀ- ｱﾂｾﾝﾌﾞﾘ-,ﾌ-ﾄﾞ ﾌﾛﾝﾄ rh8706--01 ~ 8906--01; K･(CL#+GT#+BRO#) |
65850-25V00 |
US $21.17 |
||
|
65850N
|
65850N
6585125V00 ﾌﾟﾛﾃｸﾀ-,ﾌｰﾄﾞ8706--01 ~ 8906--01; K･(CL#+GT#+BRO#) |
6585125V00 |
US $21.17 |
||
