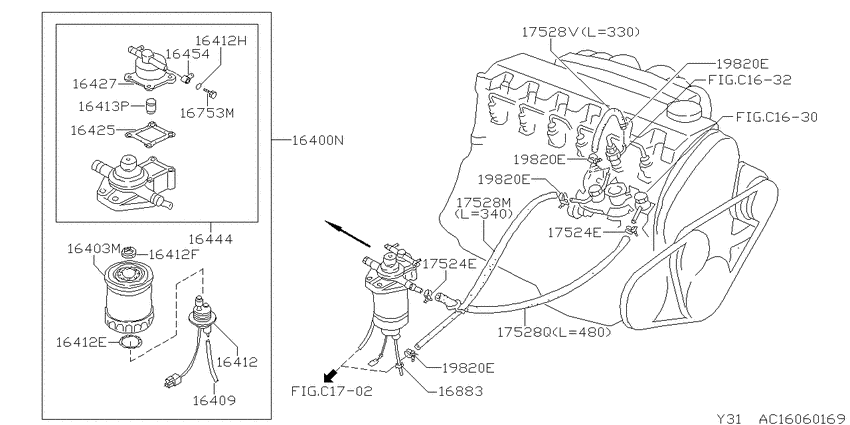

ﾌﾕ-ｴﾙ ｽﾄﾚ-ﾅ- & ﾊﾟｲﾋﾟﾝｸﾞ (1987-06-01 ~ ; 寒冷地用; *RD28) Diagram Nissan CEDRIC/GLORIA
- Year
- 1987 - 2012
- Sales region
- Japan
- Engine
- RD28
- transmission
- AT
- grade
- BRO
- body
- K
- transmission/shift type
- F4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16400N
|
16400N
16400-20V00 Strainer Assy-Fuel For Diesel8706--01 ~ ; RD28 |
16400-20V00 |
US $218.88 |
||
|
16400N
|
16400N
16400-20V10 Strainer Assy-Fuel For Diesel8706--01 ~ 9003--01; *RD28; ｶﾝﾚｲﾁ ﾖｳ |
16400-20V10 |
US $339.84 |
||
|
16400N
|
16400N
16400-20V11 Strainer Assy-Fuel For Diesel9003--01 ~ ; *RD28; ｶﾝﾚｲﾁ ﾖｳ |
16400-20V11 |
US $218.88 |
||
|
16403M
|
16403M
AY500NS001 Cartridge Assy-Fuel Filter8706--01 ~ ; RD28 |
AY500NS001 |
US $67.36 |
||
|
16409
|
16409
16409-05E01 TUBE-VINYL8706--01 ~ ; RD28 |
16409-05E01 |
US $3.31 |
||
|
16412
|
16412
16412-05E01 SENSOR ASSY8706--01 ~ 8710--01; RD28 |
16412-05E01 |
US $40.03 |
||
|
16412
|
16412
16412-40L01 Sensor Assy8710--01 ~ ; RD28 |
16412-40L01 |
from US $56.06 |
||
|
16412
|
16412
1640605E00 SEAL-O RING8706--01 ~ ; RD28 |
1640605E00 |
from US $1.31 |
||
|
16412
|
16412
16407W4900 Seal-O Ring8706--01 ~ ; RD28 |
16407W4900 |
from US $1.41 |
||
|
16412
|
16412
16407-06N01 Seal-O Ring8706--01 ~ 8906--01; *RD28; ｶﾝﾚｲﾁ ﾖｳ |
16407-06N01 |
US $3.17 |
||
|
16412
|
16412
16407-40L10 Packing8906--01 ~ ; *RD28; ｶﾝﾚｲﾁ ﾖｳ |
16407-40L10 |
US $2.74 |
||
|
16412E
|
16412E
1640605E00 SEAL-O RING8706--01 ~ ; RD28 |
1640605E00 |
from US $1.31 |
||
|
16412F
|
16412F
16407W4900 Seal-O Ring8706--01 ~ ; RD28 |
16407W4900 |
from US $1.41 |
||
|
16412H
|
16412H
16407-06N01 Seal-O Ring8706--01 ~ 8906--01; *RD28; ｶﾝﾚｲﾁ ﾖｳ |
16407-06N01 |
US $3.17 |
||
|
16412H
|
16412H
16407-40L10 Packing8906--01 ~ ; *RD28; ｶﾝﾚｲﾁ ﾖｳ |
16407-40L10 |
US $2.74 |
||
|
16413P
|
16413P
16428-06N00 Valve-Float8706--01 ~ ; *RD28; ｶﾝﾚｲﾁ ﾖｳ |
16428-06N00 |
US $7.04 |
||
|
16425
|
16425
19242-06N00 Gasket8706--01 ~ 9003--01; *RD28; ｶﾝﾚｲﾁ ﾖｳ |
19242-06N00 |
US $6.91 |
||
|
16425
|
16425
19242-06N01 Gasket9003--01 ~ ; *RD28; ｶﾝﾚｲﾁ ﾖｳ |
19242-06N01 |
US $3.60 |
||
|
16427
|
16427
16427-20V11 Cover Assy-Float9003--01 ~ ; *RD28; ｶﾝﾚｲﾁ ﾖｳ |
16427-20V11 |
US $79.78 |
||
|
16427
|
16427
16427-40L10 Cover Assy-Float8706--01 ~ 9003--01; *RD28; ｶﾝﾚｲﾁ ﾖｳ |
16427-40L10 |
US $81.36 |
||
|
16444
|
16444
16401-20V00 Cover-Upper8706--01 ~ ; RD28 |
16401-20V00 |
US $84.24 |
||
|
16444
|
16444
16401-20V10 Cover-Upper8706--01 ~ 9003--01; *RD28; ｶﾝﾚｲﾁ ﾖｳ |
16401-20V10 |
US $133.34 |
||
|
16444
|
16444
16401-20V11 Cover-Upper9003--01 ~ ; *RD28; ｶﾝﾚｲﾁ ﾖｳ |
16401-20V11 |
US $84.24 |
||
|
16454
|
16454
16454-06N00 Connector8706--01 ~ ; *RD28; ｶﾝﾚｲﾁ ﾖｳ |
16454-06N00 |
US $6.19 |
||
|
16753M
|
16753M
16432-06N00 Bolt-Eye8706--01 ~ ; *RD28; ｶﾝﾚｲﾁ ﾖｳ |
16432-06N00 |
US $3.46 |
||
|
16883
|
16883
01552-00051 CLIP-WIRING HARNESS8706--01 ~ ; RD28 |
01552-00051 |
US $1.73 |
||
|
17524E
|
17524E
01555-00191 CLAMP8706--01 ~ ; RD28+*RD28 |
01555-00191 |
US $2.45 |
||
| replacement | |||||
|
17524E
|
17524E
0155500801 CLAMP8706--01 ~ ; RD28+*RD28 |
0155500801 |
US $3.06 |
||
|
17524E
|
17524E
01555-00191 CLAMP8706--01 ~ ; RD28+*RD28 |
01555-00191 |
US $2.45 |
||
| replacement | |||||
|
17524E
|
17524E
0155500801 CLAMP8706--01 ~ ; RD28+*RD28 |
0155500801 |
US $3.06 |
||
|
17528M
|
17528M
08740-18011
HOSE-FUEL
8706--01 ~ ; RD28; L=180S/#A8742-20010 |
08740-18011 |
— | ||
|
17528M
|
17528M
08740-34011 HOSE-FUEL8706--01 ~ ; *RD28; L=340S/#A8742-20010 ｶﾝﾚｲﾁ ﾖｳ |
08740-34011 |
US $55.87 |
||
|
17528M
|
17528M
08740-56011
HOSE-FUEL
8706--01 ~ ; RD28; L=560S/#A8742-20010 |
08740-56011 |
— | ||
|
17528Q
|
17528Q
08740-48031
HOSE-FUEL
8706--01 ~ ; RD28 *RD28; L=480S/#A8742-20030 |
08740-48031 |
— | ||
|
17528V
|
17528V
08740-33011
HOSE-FUEL
8706--01 ~ ; *RD28; L=330S/#A8742-20010 |
08740-33011 |
— | ||
|
19820E
|
19820E
01555-00411
CLAMP-HOSE
8706--01 ~ ; RD28+*RD28 |
01555-00411 |
— | ||
| replacement | |||||
|
19820E
|
19820E
0155500771 CLIP8706--01 ~ ; RD28+*RD28 |
0155500771 |
US $2.78 |
||
|
19820E
|
19820E
01555-00411
CLAMP-HOSE
8706--01 ~ ; RD28+*RD28 |
01555-00411 |
— | ||
| replacement | |||||
|
19820E
|
19820E
0155500771 CLIP8706--01 ~ ; RD28+*RD28 |
0155500771 |
US $2.78 |
||
|
19820E
|
19820E
01555-00411
CLAMP-HOSE
8706--01 ~ ; RD28+*RD28 |
01555-00411 |
— | ||
| replacement | |||||
|
19820E
|
19820E
0155500771 CLIP8706--01 ~ ; RD28+*RD28 |
0155500771 |
US $2.78 |
||
|
19820E
|
19820E
01555-00411
CLAMP-HOSE
8706--01 ~ ; RD28+*RD28 |
01555-00411 |
— | ||
| replacement | |||||
|
19820E
|
19820E
0155500771 CLIP8706--01 ~ ; RD28+*RD28 |
0155500771 |
US $2.78 |
||
