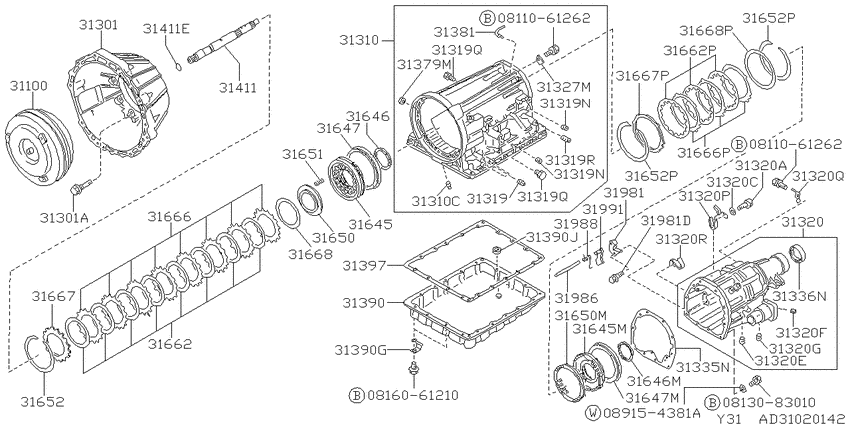

ﾄﾙｸ ｺﾝﾊﾞ-ﾀ- & ｹ-ｽ (1989-06-01 ~ ; RE5R01A VG20DT) Diagram Nissan CEDRIC/GLORIA
- Year
- 1989 - 2012
- Sales region
- Japan
- Engine
- VG20DT
- transmission
- AT
- grade
- BRO
- body
- S
- transmission/shift type
- F5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811061262
|
0811061262
08110-61262
Bolt-hexagon
|
08110-61262 |
— | ||
|
0811061262
|
0811061262
08110-61262
Bolt-hexagon
|
08110-61262 |
— | ||
|
0813083010
|
0813083010
08130-83010 Bolt-hexagon |
08130-83010 |
US $3.46 |
||
|
0816061210
|
0816061210
08160-61210
Bolt-hexagon
|
08160-61210 |
— | ||
| replacement | |||||
|
0816061210
|
0816061210
08110-61225
Bolt-hexagon
|
08110-61225 |
— | ||
|
089154381A
|
089154381A
089154381A Washer-Plain |
089154381A |
US $0.57 |
||
|
31100
|
31100
31100-41X08 Converter Assy-Torque8706--01 ~ 8906--01; VG20DT.AT |
31100-41X08 |
US $1,336.70 |
||
|
31100
|
31100
31100-41X24 Converter Assy-Torque8906--01 ~ ; VG20DT.AT |
31100-41X24 |
US $1,336.70 |
||
|
31301
|
31301
31300-41X01 Housing-Converter8706--01 ~ 8906--01; (VG20#+VG30#).AT |
31300-41X01 |
US $525.34 |
||
|
31301
|
31301
31301-41X03 Housing-Converter8906--01 ~ ; (VG20#+VG30#).AT |
31301-41X03 |
US $515.42 |
||
|
31301
|
31301
31309-X6600 Bolt8706--01 ~ ; AT |
31309-X6600 |
US $2.45 |
||
|
31301A
|
31301A
31309-X6600 Bolt8706--01 ~ ; AT |
31309-X6600 |
US $2.45 |
||
|
31310
|
31310
31310-41X00 Case Assy-Automatic Transmission8706--01 ~ 8801--01; AT |
31310-41X00 |
US $525.34 |
||
|
31310
|
31310
31310-60X00 Case Assy-Automatic Transmission8906--01 ~ ; VG20DT.AT |
31310-60X00 |
US $525.34 |
||
|
31310
|
31310
31308-51X00 Pin-Dowel8906--01 ~ ; VG20DT |
31308-51X00 |
US $2.45 |
||
|
31310C
|
31310C
31308-51X00 Pin-Dowel8906--01 ~ ; VG20DT |
31308-51X00 |
US $2.45 |
||
|
31319
|
31319
31305-41X02 Plug-Thread, Square Head8805--01 ~ ; AT; |
31305-41X02 |
US $2.45 |
||
|
31319
|
31319
31319-X0100 Plug-Thread, Square Head8706--01 ~ 8805--01; AT |
31319-X0100 |
US $2.45 |
||
|
31319
|
31319
31305-41X01 Plug-Thread8710--01 ~ ; AT |
31305-41X01 |
US $2.45 |
||
|
31319
|
31319
31305-41X00 Plug-Thread8706--01 ~ 8801--01; AT; ﾛﾂｶｸ ｱﾀﾏ |
31305-41X00 |
US $1.67 |
||
|
31319
|
31319
31345-X6101 Plug8706--01 ~ 8801--01; AT |
31345-X6101 |
US $2.45 |
||
|
31319N
|
31319N
31305-41X01 Plug-Thread8710--01 ~ ; AT |
31305-41X01 |
US $2.45 |
||
|
31319N
|
31319N
31305-41X01 Plug-Thread8710--01 ~ ; AT |
31305-41X01 |
US $2.45 |
||
|
31319Q
|
31319Q
31305-41X00 Plug-Thread8706--01 ~ 8801--01; AT; ﾛﾂｶｸ ｱﾀﾏ |
31305-41X00 |
US $1.67 |
||
|
31319Q
|
31319Q
31305-41X00 Plug-Thread8706--01 ~ 8801--01; AT; ﾛﾂｶｸ ｱﾀﾏ |
31305-41X00 |
US $1.67 |
||
|
31319R
|
31319R
31345-X6101 Plug8706--01 ~ 8801--01; AT |
31345-X6101 |
US $2.45 |
||
|
31320
|
31320
31320-60X00 Case Assy-Reduction8906--01 ~ ; VG20DT.AT |
31320-60X00 |
US $337.01 |
||
|
31320
|
31320
31377-60X02 Bolt8906--01 ~ ; VG20DT.AT |
31377-60X02 |
US $1.73 |
||
|
31320
|
31320
31378-60X00 Washer8906--01 ~ ; VG20DT.AT |
31378-60X00 |
US $0.86 |
||
|
31320
|
31320
31305-41X02 Plug-Thread, Square Head8906--01 ~ ; VG20DT.AT |
31305-41X02 |
US $2.45 |
||
|
31320
|
31320
31305-60X00 Plug-Thread8906--01 ~ ; VG20DT.AT |
31305-60X00 |
US $0.86 |
||
|
31320
|
31320
31322-21X01 Plug-Thread8906--01 ~ ; VG20DT.AT |
31322-21X01 |
US $1.73 |
||
|
31320
|
31320
31376-60X00 Clip8906--01 ~ ; VG20DT.AT |
31376-60X00 |
US $2.45 |
||
|
31320
|
31320
31376-60X02 Clip8906--01 ~ ; VG20DT.AT |
31376-60X02 |
US $2.45 |
||
|
31320
|
31320
31376-60X01 Clip8906--01 ~ ; VG20DT.AT |
31376-60X01 |
US $2.45 |
||
|
31320A
|
31320A
31377-60X02 Bolt8906--01 ~ ; VG20DT.AT |
31377-60X02 |
US $1.73 |
||
|
31320C
|
31320C
31378-60X00 Washer8906--01 ~ ; VG20DT.AT |
31378-60X00 |
US $0.86 |
||
|
31320E
|
31320E
31305-41X02 Plug-Thread, Square Head8906--01 ~ ; VG20DT.AT |
31305-41X02 |
US $2.45 |
||
|
31320F
|
31320F
31305-60X00 Plug-Thread8906--01 ~ ; VG20DT.AT |
31305-60X00 |
US $0.86 |
||
|
31320G
|
31320G
31322-21X01 Plug-Thread8906--01 ~ ; VG20DT.AT |
31322-21X01 |
US $1.73 |
||
|
31320P
|
31320P
31376-60X00 Clip8906--01 ~ ; VG20DT.AT |
31376-60X00 |
US $2.45 |
||
|
31320Q
|
31320Q
31376-60X02 Clip8906--01 ~ ; VG20DT.AT |
31376-60X02 |
US $2.45 |
||
|
31320R
|
31320R
31376-60X01 Clip8906--01 ~ ; VG20DT.AT |
31376-60X01 |
US $2.45 |
||
|
31327M
|
31327M
31327-41X00 Plate-Baffle8708--01 ~ 8801--01; AT |
31327-41X00 |
US $2.45 |
||
|
31335N
|
31335N
31338-60X00 Gasket-Reduction Case8906--01 ~ ; VG20DT.AT |
31338-60X00 |
US $8.93 |
||
|
31336N
|
31336N
3213601G10 Seal-Oil, Reduction Case8906--01 ~ ; VG20DT.AT |
3213601G10 |
US $4.92 |
||
|
31379M
|
31379M
3137541X00 Seal-Oil8706--01 ~ ; AT |
3137541X00 |
from US $2.36 |
||
|
31381
|
31381
31381-51X01 Breather-Air8906--01 ~ ; AT |
31381-51X01 |
US $8.93 |
||
|
31381
|
31381
31381-X0100 Breather-Air8706--01 ~ 8801--01; AT |
31381-X0100 |
US $2.45 |
||
| replacement | |||||
|
31381
|
31381
31381-41X0A
Breather-air
8706--01 ~ 8801--01; AT |
31381-41X0A |
— | ||
|
31390
|
31390
31391-41X00 Pan Assy-Oil8706--01 ~ 8801--01; AT; |
31391-41X00 |
US $25.49 |
||
|
31390
|
31390
31391-60X00 Pan Assy-Oil8906--01 ~ ; VG20DT.AT |
31391-60X00 |
US $25.49 |
||
|
31390
|
31390
21644-41X00 Bracket-Oil Cooler Tube8706--01 ~ ; AT |
21644-41X00 |
US $9.02 |
||
|
31390
|
31390
31392-X5100
Magnet
8706--01 ~ ; AT |
31392-X5100 |
— | ||
| replacement | |||||
|
31390
|
31390
313793AX0A Magnet8706--01 ~ ; AT |
313793AX0A |
from US $2.94 |
||
|
31390G
|
31390G
21644-41X00 Bracket-Oil Cooler Tube8706--01 ~ ; AT |
21644-41X00 |
US $9.02 |
||
|
31390J
|
31390J
31392-X5100
Magnet
8706--01 ~ ; AT |
31392-X5100 |
— | ||
| replacement | |||||
|
31390J
|
31390J
313793AX0A Magnet8706--01 ~ ; AT |
313793AX0A |
from US $2.94 |
||
|
31397
|
31397
31397-41X00 Gasket-Oil Pan8706--01 ~ 8801--01; AT |
31397-41X00 |
US $22.03 |
||
|
31397
|
31397
31397-41X25
Gasket & Seal Kit-Auto Transmission
8706--01 ~ 8801--01; AT |
31397-41X25 |
— | ||
|
31397
|
31397
31397-60X25
Gasket & Seal Kit-Auto Transmission
8906--01 ~ 8909--01; VG20DT.AT |
31397-60X25 |
— | ||
|
31397
|
31397
31397-60X26
Gasket & Seal Kit-Auto Transmission
8909--01 ~ ; VG20DT.AT |
31397-60X26 |
— | ||
|
31411
|
31411
31411-41X01 Shaft-Input8706--01 ~ 8906--01; (RB20P+VG20#).AT |
31411-41X01 |
US $77.33 |
||
|
31411
|
31411
31411-41X03 Shaft-Input8906--01 ~ ; VG20DT.AT |
31411-41X03 |
US $77.33 |
||
|
31411
|
31411
31159-X6101 Seal-O Ring8706--01 ~ 8801--01; AT |
31159-X6101 |
US $3.31 |
||
|
31411E
|
31411E
31159-X6101 Seal-O Ring8706--01 ~ 8801--01; AT |
31159-X6101 |
US $3.31 |
||
|
31645
|
31645
31645-41X02 Piston Assy-Low & Reverse Brake8706--01 ~ 8801--01; (VG20DT+VG30E).AT VG30T.AT |
31645-41X02 |
US $22.46 |
||
|
31645
|
31645
31645-41X04 Piston Assy-Low & Reverse Brake8906--01 ~ ; (VG20DT+VG30E+VG30D).AT; |
31645-41X04 |
US $22.46 |
||
|
31645
|
31645
31647-60X00 Piston-Reduction Brake8906--01 ~ ; VG20DT.AT |
31647-60X00 |
US $34.70 |
||
|
31645M
|
31645M
31647-60X00 Piston-Reduction Brake8906--01 ~ ; VG20DT.AT |
31647-60X00 |
US $34.70 |
||
|
31646
|
31646
31527-41X05 Seal-Lathe Cut Ring8706--01 ~ 8801--01; AT |
31527-41X05 |
US $4.03 |
||
|
31646
|
31646
31527-60X00 Seal-Lathe Cut Ring8906--01 ~ ; VG20DT.AT |
31527-60X00 |
US $1.73 |
||
|
31646M
|
31646M
31527-60X00 Seal-Lathe Cut Ring8906--01 ~ ; VG20DT.AT |
31527-60X00 |
US $1.73 |
||
|
31647
|
31647
31528-41X00 Seal-Lip8706--01 ~ 8801--01; AT |
31528-41X00 |
US $7.92 |
||
|
31647
|
31647
31528-60X01 Seal-O Ring8906--01 ~ ; VG20DT.AT |
31528-60X01 |
US $6.05 |
||
|
31647M
|
31647M
31528-60X01 Seal-O Ring8906--01 ~ ; VG20DT.AT |
31528-60X01 |
US $6.05 |
||
|
31650
|
31650
31656-41X00 Retainer-Low & Reverse Brake8706--01 ~ 8801--01; AT |
31656-41X00 |
US $10.51 |
||
|
31650
|
31650
31655-60X00 Retainer-Spring, Reduction Brake8906--01 ~ ; VG20DT.AT |
31655-60X00 |
US $22.75 |
||
|
31650M
|
31650M
31655-60X00 Retainer-Spring, Reduction Brake8906--01 ~ ; VG20DT.AT |
31655-60X00 |
US $22.75 |
||
|
31651
|
31651
3152121X00 Spring-Piston Return8706--01 ~ 8801--01; AT |
3152121X00 |
US $1.73 |
||
|
31652
|
31652
31506-41X09 Ring-Snap8706--01 ~ 8801--01; AT |
31506-41X09 |
US $4.03 |
||
|
31652
|
31652
31506-60X01 Ring-Snap8906--01 ~ ; VG20DT.AT |
31506-60X01 |
US $1.73 |
||
|
31652P
|
31652P
31506-60X01 Ring-Snap8906--01 ~ ; VG20DT.AT |
31506-60X01 |
US $1.73 |
||
|
31652P
|
31652P
31506-60X01 Ring-Snap8906--01 ~ ; VG20DT.AT |
31506-60X01 |
US $1.73 |
||
|
31662
|
31662
31532-41X08 Plate Assy-Drive8706--01 ~ 8801--01; (VG20DT+VG30E).AT |
31532-41X08 |
US $34.70 |
||
|
31662
|
31662
31532-41X14 Plate Assy-Drive8906--01 ~ ; VG20DT.AT |
31532-41X14 |
US $34.70 |
||
|
31662
|
31662
31532-60X02 Plate Assy-Drive8906--01 ~ ; VG20DT.AT |
31532-60X02 |
US $17.71 |
||
|
31662P
|
31662P
31532-60X02 Plate Assy-Drive8906--01 ~ ; VG20DT.AT |
31532-60X02 |
US $17.71 |
||
|
31666
|
31666
31666-41X00 Plate-Driven8706--01 ~ 8801--01; (VG20DT+VG30E).AT |
31666-41X00 |
US $19.87 |
||
|
31666
|
31666
31666-41X01 Plate-Driven8905--01 ~ 8906--01; (VG20DT+VG30E).AT VG30D.AT |
31666-41X01 |
US $19.87 |
||
|
31666
|
31666
31666-41X00 Plate-Driven8706--01 ~ 8801--01; (VG20DT+VG30E).AT |
31666-41X00 |
US $19.87 |
||
|
31666
|
31666
31536-60X02 Plate-Driven8906--01 ~ ; VG20DT.AT |
31536-60X02 |
US $6.05 |
||
|
31666P
|
31666P
31536-60X02 Plate-Driven8906--01 ~ ; VG20DT.AT |
31536-60X02 |
US $6.05 |
||
|
31667
|
31667
31667-41X00 Plate-Retaining8706--01 ~ 8801--01; AT; ｾﾝﾀｸ T=8.0 |
31667-41X00 |
US $17.71 |
||
|
31667
|
31667
31667-41X01 Plate-Retaining8706--01 ~ 8801--01; AT; ｾﾝﾀｸ T=8.2 |
31667-41X01 |
US $17.71 |
||
|
31667
|
31667
31667-41X02 Plate-Retaining8706--01 ~ 8801--01; AT; ｾﾝﾀｸ T=8.4 |
31667-41X02 |
US $17.71 |
||
|
31667
|
31667
31667-41X03 Plate-Retaining8706--01 ~ 8801--01; AT; ｾﾝﾀｸ T=8.6 |
31667-41X03 |
US $17.42 |
||
|
31667
|
31667
31667-41X04 Plate-Retaining8706--01 ~ 8801--01; AT; ｾﾝﾀｸ T=8.8 |
31667-41X04 |
US $17.42 |
||
|
31667
|
31667
31667-41X05 Plate-Retaining8706--01 ~ 8801--01; AT; ｾﾝﾀｸ T=9.0 |
31667-41X05 |
US $17.42 |
||
|
31667
|
31667
31667-41X06 Plate-Retaining8706--01 ~ 8801--01; AT; ｾﾝﾀｸ T=9.2 |
31667-41X06 |
US $17.42 |
||
|
31667
|
31667
31667-41X07 Plate-Retaining8710--01 ~ 8801--01; (VG20#+VG30E#).AT RD28.AT; ｾﾝﾀｸ T=7.6 |
31667-41X07 |
US $17.42 |
||
|
31667
|
31667
31667-41X08 Plate-Retaining8710--01 ~ 8801--01; (VG20#+VG30E#).AT RD28.AT; ｾﾝﾀｸ T=7.8 |
31667-41X08 |
US $17.71 |
||
|
31667
|
31667
31667-41X14 Plate-Retaining8906--01 ~ ; VG20DT.AT; ｾﾝﾀｸ T=7.4 |
31667-41X14 |
US $17.42 |
||
|
31667
|
31667
31537-60X05 Plate-Retaining8906--01 ~ ; VG20DT.AT; ｾﾝﾀｸ T=4.4 |
31537-60X05 |
US $17.42 |
||
|
31667
|
31667
31537-60X06 Plate-Retaining8906--01 ~ ; VG20DT.AT; ｾﾝﾀｸ T=4.6 |
31537-60X06 |
US $17.42 |
||
|
31667
|
31667
31537-60X07 Plate-Retaining9008--01 ~ ; VG20DT.AT; ｾﾝﾀｸ T=4.8 |
31537-60X07 |
US $17.42 |
||
|
31667
|
31667
31537-60X08 Plate-Retaining9008--01 ~ ; VG20DT.AT; ｾﾝﾀｸ T=5.0 |
31537-60X08 |
US $17.42 |
||
|
31667
|
31667
31537-60X09 Plate-Retaining9008--01 ~ ; VG20DT.AT; ｾﾝﾀｸ T=5.2 |
31537-60X09 |
US $17.42 |
||
|
31667
|
31667
31537-60X16 Plate-Retaining8906--01 ~ ; VG20DT.AT; ｾﾝﾀｸ T=4.0 |
31537-60X16 |
US $17.71 |
||
|
31667
|
31667
31537-60X17 Plate-Retaining8906--01 ~ ; VG20DT.AT; ｾﾝﾀｸ T=4.2 |
31537-60X17 |
US $17.42 |
||
|
31667P
|
31667P
31537-60X05 Plate-Retaining8906--01 ~ ; VG20DT.AT; ｾﾝﾀｸ T=4.4 |
31537-60X05 |
US $17.42 |
||
|
31667P
|
31667P
31537-60X06 Plate-Retaining8906--01 ~ ; VG20DT.AT; ｾﾝﾀｸ T=4.6 |
31537-60X06 |
US $17.42 |
||
|
31667P
|
31667P
31537-60X07 Plate-Retaining9008--01 ~ ; VG20DT.AT; ｾﾝﾀｸ T=4.8 |
31537-60X07 |
US $17.42 |
||
|
31667P
|
31667P
31537-60X08 Plate-Retaining9008--01 ~ ; VG20DT.AT; ｾﾝﾀｸ T=5.0 |
31537-60X08 |
US $17.42 |
||
|
31667P
|
31667P
31537-60X09 Plate-Retaining9008--01 ~ ; VG20DT.AT; ｾﾝﾀｸ T=5.2 |
31537-60X09 |
US $17.42 |
||
|
31667P
|
31667P
31537-60X16 Plate-Retaining8906--01 ~ ; VG20DT.AT; ｾﾝﾀｸ T=4.0 |
31537-60X16 |
US $17.71 |
||
|
31667P
|
31667P
31537-60X17 Plate-Retaining8906--01 ~ ; VG20DT.AT; ｾﾝﾀｸ T=4.2 |
31537-60X17 |
US $17.42 |
||
|
31668
|
31668
31535-41X07 Plate-Dished8706--01 ~ 8801--01; AT |
31535-41X07 |
US $29.23 |
||
|
31668
|
31668
31535-41X08 Plate-Dished8906--01 ~ ; VG20DT.AT |
31535-41X08 |
US $29.23 |
||
|
31668
|
31668
31535-60X01 Plate-Dished8906--01 ~ ; VG20DT.AT |
31535-60X01 |
US $6.05 |
||
|
31668P
|
31668P
31535-60X01 Plate-Dished8906--01 ~ ; VG20DT.AT |
31535-60X01 |
US $6.05 |
||
|
31981
|
31981
31981-41X01 Support-Parking Actuator8706--01 ~ 8906--01; AT; |
31981-41X01 |
US $4.18 |
||
|
31981
|
31981
31981-60X00 Support-Parking Actuator8906--01 ~ 9302--01; VG20DT.AT |
31981-60X00 |
US $36.86 |
||
|
31981
|
31981
31377-41X00 Bolt8906--01 ~ ; VG20DT.AT |
31377-41X00 |
US $1.73 |
||
|
31981D
|
31981D
31377-41X00 Bolt8906--01 ~ ; VG20DT.AT |
31377-41X00 |
US $1.73 |
||
|
31986
|
31986
31986-41X00 Shaft-Parking Pawl8706--01 ~ 8801--01; AT |
31986-41X00 |
US $4.03 |
||
|
31986
|
31986
31986-60X00 Shaft-Parking Pawl8906--01 ~ ; VG20DT.AT |
31986-60X00 |
US $4.03 |
||
|
31988
|
31988
31988-41X00 Spring-Return Pawl8706--01 ~ 8906--01; AT |
31988-41X00 |
US $7.92 |
||
|
31988
|
31988
31988-60X00 Spring-Return Pawl8906--01 ~ ; VG20DT.AT |
31988-60X00 |
US $7.92 |
||
|
31991
|
31991
31991-41X01 Pawl-Parking8706--01 ~ 8906--01; AT; |
31991-41X01 |
US $33.12 |
||
|
31991
|
31991
31991-60X00 Pawl-Parking8906--01 ~ ; VG20DT.AT |
31991-60X00 |
US $33.12 |
||
