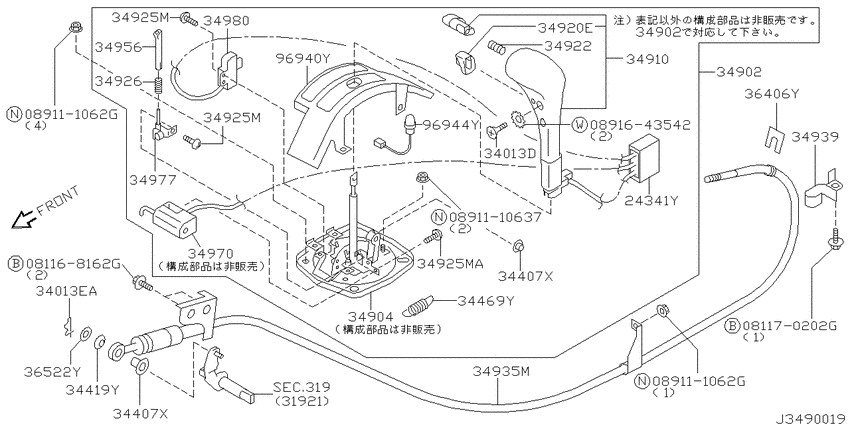

Auto transmission control device (1997-06-01 ~ ; RB25DET) Diagram Nissan CEDRIC/GLORIA
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- RB25DET
- drive
- 4WD
- transmission
- AT
- grade
- BRO
- body
- K
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081168162G
|
081168162G
081168162G Bolt-hexagon |
081168162G |
US $3.06 |
||
|
081170202G
|
081170202G
08117-0202G
Bolt-hexagon
|
08117-0202G |
— | ||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
0891643542
|
0891643542
0891643542
ﾜﾂｼﾔ-,ﾂ-ｽ
|
0891643542 |
— | ||
|
24341Y
|
24341Y
24341-0P011 Housing-Connector9706--01 ~ ; RB25DET |
24341-0P011 |
US $3.31 |
||
|
319
|
Control switch & system
319
|
||||
|
34013D
|
34013D
0141300051 SCREW9706--01 ~ ; RB25DET |
0141300051 |
from US $0.37 |
||
|
34013EA
|
34013EA
0153200022 PIN9706--01 ~ ; RB25DET |
0153200022 |
US $1.73 |
||
|
34407X
|
34407X
3440701E00 BUSH9706--01 ~ ; RB25DET |
3440701E00 |
US $4.18 |
||
|
34407X
|
34407X
3440701E00 BUSH9706--01 ~ ; RB25DET |
3440701E00 |
US $4.18 |
||
|
34419Y
|
34419Y
34419-04100
Washer-Lock
9706--01 ~ ; RB25DET |
34419-04100 |
— | ||
| replacement | |||||
|
34419Y
|
34419Y
344190410A Washer9706--01 ~ ; RB25DET |
344190410A |
US $2.91 |
||
|
34469Y
|
34469Y
34469-1P400 Spring-Checking9706--01 ~ ; RB25DET |
34469-1P400 |
US $4.46 |
||
|
34902
|
34902
34901-5P500 Device Assy-Transmission Control9706--01 ~ ; RB25DET.(BRO/J+BRO).AT |
34901-5P500 |
US $715.08 |
||
|
34902
|
34902
34901-5P503 Device Assy-Transmission Control9706--01 ~ ; RB25DET.(BRO/J+BRO).AT |
34901-5P503 |
US $715.08 |
||
|
34902
|
34902
34901-5P510 Device Assy-Transmission Control9706--01 ~ ; *RB25DET.BRO.AT; ASCD ｼﾖｳ |
34901-5P510 |
US $804.29 |
||
|
34902
|
34902
34901-5P513 Device Assy-Transmission Control9706--01 ~ ; *RB25DET.BRO.AT; ASCD ｼﾖｳ |
34901-5P513 |
US $804.29 |
||
|
34904
|
34904
34904-5P500 Bracket Compl-Control Lever9706--01 ~ ; RB25DET |
34904-5P500 |
US $386.57 |
||
|
34910
|
34910
34910-5P500 Knob Assy-Control Lever, Auto9706--01 ~ ; RB25DET.(BRO/J+BRO).AT |
34910-5P500 |
US $91.58 |
||
|
34910
|
34910
34910-5P503 Knob Assy-Control Lever, Auto9706--01 ~ ; RB25DET.(BRO/J+BRO).AT |
34910-5P503 |
US $91.58 |
||
|
34910
|
34910
34910-5P510 Knob Assy-Control Lever, Auto9706--01 ~ ; *RB25DET.BRO.AT; ASCD ｼﾖｳ |
34910-5P510 |
US $201.60 |
||
|
34910
|
34910
34910-5P513 Knob Assy-Control Lever, Auto9706--01 ~ ; *RB25DET.BRO.AT; ASCD ｼﾖｳ |
34910-5P513 |
US $201.60 |
||
|
34920E
|
34920E
25130-4P000 Switch Assy-Over Drive9706--01 ~ ; RB25DET.(BRO/J+BRO).AT |
25130-4P000 |
US $23.76 |
||
|
34920E
|
34920E
25130-6P003 Switch Assy-Over Drive9706--01 ~ ; RB25DET.(BRO/J+BRO).AT |
25130-6P003 |
US $21.46 |
||
|
34920E
|
34920E
25130-6P010 Switch Assy-Over Drive9706--01 ~ ; *RB25DET.BRO.AT; ASCD ｼﾖｳ |
25130-6P010 |
US $15.98 |
||
|
34922
|
34922
3492201P00 Spring-Return, Button9706--01 ~ ; RB25DET |
3492201P00 |
from US $1.81 |
||
|
34925M
|
34925M
34925-71L10 Screw9706--01 ~ ; RB25DET |
34925-71L10 |
US $3.31 |
||
|
34925M
|
34925M
34925-1P400 Screw9706--01 ~ ; RB25DET |
34925-1P400 |
US $3.46 |
||
|
34925M
|
34925M
34925-71L10 Screw9706--01 ~ ; RB25DET |
34925-71L10 |
US $3.31 |
||
|
34925M
|
34925M
34925-1P400 Screw9706--01 ~ ; RB25DET |
34925-1P400 |
US $3.46 |
||
|
34925MA
|
34925MA
34925-1P400 Screw9706--01 ~ ; RB25DET |
34925-1P400 |
US $3.46 |
||
|
34926
|
34926
34926-0E800 Spring-Return9706--01 ~ ; RB25DET |
34926-0E800 |
US $3.31 |
||
|
34935M
|
34935M
349355P500
Cable Assy-Control
9706--01 ~ ; RB25DET |
349355P500 |
— | ||
|
34939
|
34939
34939-04U10 Bracket-Cable Mounting9706--01 ~ ; RB25DET |
34939-04U10 |
US $60.62 |
||
|
34956
|
34956
34956-0E800 Knob-Release Lever9706--01 ~ ; RB25DET |
34956-0E800 |
US $4.90 |
||
|
34970
|
34970
34970-40U00 Solenoid Assy-Select Lock9706--01 ~ ; RB25DET |
34970-40U00 |
US $83.52 |
||
|
34977
|
34977
34977-1P400 Bracket Assy-Release Lever9706--01 ~ ; RB25DET |
34977-1P400 |
US $5.47 |
||
|
34980
|
34980
34980-5P500 Park Position Switch9706--01 ~ ; RB25DET |
34980-5P500 |
US $61.34 |
||
|
36406Y
|
36406Y
36406-P0100 Plate-Cable Lock9706--01 ~ ; RB25DET |
36406-P0100 |
US $1.58 |
||
|
36522Y
|
36522Y
36522-68200
Washer-Plain
9706--01 ~ ; RB25DET |
36522-68200 |
— | ||
| replacement | |||||
|
36522Y
|
36522Y
365226820A Washer9706--01 ~ ; RB25DET |
365226820A |
from US $1.07 |
||
|
96940Y
|
96940Y
96940-1P400 ｲﾝｼﾞｹ-ﾀ- ｱﾂｾﾝﾌﾞﾘ-,ｵ-ﾄ ﾄﾗﾝｽﾐﾂｼﾖﾝ ｺﾝﾄﾛ-ﾙ9706--01 ~ ; RB25DET.(BRO/J+BRO).AT |
96940-1P400 |
US $141.41 |
||
|
96944Y
|
96944Y
96942-23U06 Bulb-Indicator9706--01 ~ ; RB25DET.(BRO/J+BRO).AT |
96942-23U06 |
US $11.38 |
||
