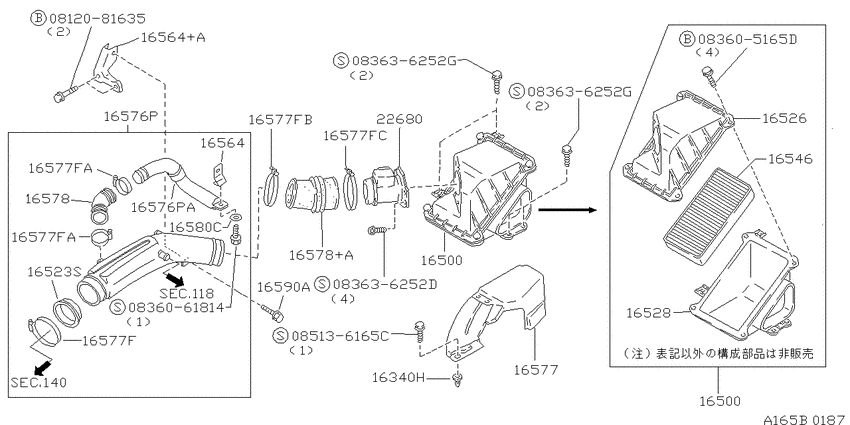

Air cleaner (1990-08-01 ~ 1992-06-01; RB20D) Diagram Nissan CEFIRO
- Year
- 1990 - 1992
- Sales region
- Japan
- Engine
- RB20D
- drive
- 2WD
- transmission
- MT.F5
- grade
- NASHI
- body
- S
- Suspension
- HICAS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083605165D
|
083605165D
08360-5165D
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-5165D |
— | ||
|
0836061814
|
0836061814
08360-61814
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-61814 |
— | ||
|
083636252D
|
083636252D
083636252D
ｽｸﾘﾕ-,ﾏｼﾝ
|
083636252D |
— | ||
|
083636252G
|
083636252G
083636252G SCREWMACHINE |
083636252G |
US $1.83 |
||
|
083636252G
|
083636252G
083636252G SCREWMACHINE |
083636252G |
US $1.83 |
||
|
085136165C
|
085136165C
085136165C
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
085136165C |
— | ||
|
118
|
Crankcase ventilation
118
|
||||
|
118
|
Crankcase ventilation
118
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
16340H
|
16340H
0128100231 GROMMET8809--01 ~ 9008--01; RB20D |
0128100231 |
US $0.97 |
||
|
16500
|
16500
16500-79S00
Air Cleaner
8809--01 ~ 9008--01; RB20D |
16500-79S00 |
— | ||
|
16500
|
16500
16500-79S00
Air Cleaner
8809--01 ~ 9008--01; RB20D |
16500-79S00 |
— | ||
|
16523S
|
16523S
16523-42L10 Insulator8809--01 ~ 9008--01; RB20D |
16523-42L10 |
US $6.05 |
||
|
16526
|
16526
16526-79S00 Air Cleaner Cover8809--01 ~ 9008--01; RB20D |
16526-79S00 |
US $95.90 |
||
|
16528
|
16528
16528-79S00 Body Assy-Air Cleaner8809--01 ~ 9008--01; RB20D |
16528-79S00 |
US $130.46 |
||
|
16546
|
16546
AY120NS001
Element Assy-Air
8809--01 ~ 9008--01; RB20D |
AY120NS001 |
— | ||
| replacements | |||||
|
16546
|
16546
AY120NS00101 Element Assy-Air8809--01 ~ 9008--01; RB20D |
AY120NS00101 |
US $29.76 |
||
|
16546
|
16546
AY120-NS063 Element Assy-Air8809--01 ~ 9008--01; RB20D |
AY120-NS063 |
US $24.74 |
||
|
16564
|
16564
16564-72L00 Bracket8809--01 ~ 9008--01; RB20D |
16564-72L00 |
US $22.18 |
||
|
16564
|
16564
16581-58S02 Bracket8809--01 ~ 9008--01; RB20D |
16581-58S02 |
US $10.22 |
||
|
16564+A
|
16564+A
16581-58S02 Bracket8809--01 ~ 9008--01; RB20D |
16581-58S02 |
US $10.22 |
||
|
16576P
|
16576P
16576-72L00 Duct Assy-Air8809--01 ~ 9008--01; RB20D |
16576-72L00 |
US $131.62 |
||
|
16576P
|
16576P
16576-72L01 Duct Assy-Air9104--01 ~ 9206--01; RB20D |
16576-72L01 |
US $131.47 |
||
|
16576P
|
16576P
16587-72L00 Duct Assy-Air8809--01 ~ 9008--01; RB20D |
16587-72L00 |
US $131.47 |
||
|
16576PA
|
16576PA
16587-72L00 Duct Assy-Air8809--01 ~ 9008--01; RB20D |
16587-72L00 |
US $131.47 |
||
|
16577
|
16577
16554-71L10 Duct Assy-Air8809--01 ~ 8810--01; RB20D |
16554-71L10 |
US $13.82 |
||
|
16577
|
16577
16554-71L15 Duct Assy-Air8810--01 ~ 9008--01; RB20D |
16554-71L15 |
US $71.28 |
||
|
16577
|
16577
14464-W1500
Clamp-Hose
8809--01 ~ 9008--01; RB20D |
14464-W1500 |
— | ||
| replacement | |||||
|
16577
|
16577
14464-04U2B Clamp-Hose8809--01 ~ 9008--01; RB20D |
14464-04U2B |
US $11.26 |
||
|
16577
|
16577
16439-01U10 Clamp-Hose8809--01 ~ 9008--01; RB20D |
16439-01U10 |
US $4.18 |
||
|
16577
|
16577
01555-00113 CLAMP-HOSE8809--01 ~ 9008--01; RB20D |
01555-00113 |
US $4.03 |
||
| replacement | |||||
|
16577
|
16577
0155500323 CLAMP-HOSE8809--01 ~ 9008--01; RB20D |
0155500323 |
US $4.18 |
||
|
16577
|
16577
01555-00601 CLAMP-HOSE8809--01 ~ 9008--01; RB20D |
01555-00601 |
US $7.20 |
||
| replacement | |||||
|
16577
|
16577
01555-01021
CLAMP-HOSE
8809--01 ~ 9008--01; RB20D |
01555-01021 |
— | ||
|
16577F
|
16577F
14464-W1500
Clamp-Hose
8809--01 ~ 9008--01; RB20D |
14464-W1500 |
— | ||
| replacement | |||||
|
16577F
|
16577F
14464-04U2B Clamp-Hose8809--01 ~ 9008--01; RB20D |
14464-04U2B |
US $11.26 |
||
|
16577F
|
16577F
16439-01U10 Clamp-Hose8809--01 ~ 9008--01; RB20D |
16439-01U10 |
US $4.18 |
||
|
16577F
|
16577F
01555-00113 CLAMP-HOSE8809--01 ~ 9008--01; RB20D |
01555-00113 |
US $4.03 |
||
| replacement | |||||
|
16577F
|
16577F
0155500323 CLAMP-HOSE8809--01 ~ 9008--01; RB20D |
0155500323 |
US $4.18 |
||
|
16577F
|
16577F
01555-00601 CLAMP-HOSE8809--01 ~ 9008--01; RB20D |
01555-00601 |
US $7.20 |
||
| replacement | |||||
|
16577F
|
16577F
01555-01021
CLAMP-HOSE
8809--01 ~ 9008--01; RB20D |
01555-01021 |
— | ||
|
16577FA
|
16577FA
16439-01U10 Clamp-Hose8809--01 ~ 9008--01; RB20D |
16439-01U10 |
US $4.18 |
||
|
16577FA
|
16577FA
16439-01U10 Clamp-Hose8809--01 ~ 9008--01; RB20D |
16439-01U10 |
US $4.18 |
||
|
16577FB
|
16577FB
01555-00113 CLAMP-HOSE8809--01 ~ 9008--01; RB20D |
01555-00113 |
US $4.03 |
||
| replacement | |||||
|
16577FB
|
16577FB
0155500323 CLAMP-HOSE8809--01 ~ 9008--01; RB20D |
0155500323 |
US $4.18 |
||
|
16577FC
|
16577FC
01555-00601 CLAMP-HOSE8809--01 ~ 9008--01; RB20D |
01555-00601 |
US $7.20 |
||
| replacement | |||||
|
16577FC
|
16577FC
01555-01021
CLAMP-HOSE
8809--01 ~ 9008--01; RB20D |
01555-01021 |
— | ||
|
16578
|
16578
1657872L00 Duct-Air8809--01 ~ 9008--01; RB20D |
1657872L00 |
US $19.15 |
||
|
16578
|
16578
16578-72L01 Duct-Air9108--01 ~ 9206--01; RB20D |
16578-72L01 |
US $80.93 |
||
|
16578
|
16578
1657871L00 Duct-Air8809--01 ~ 9008--01; RB20D |
1657871L00 |
US $62.50 |
||
|
16578+A
|
16578+A
1657871L00 Duct-Air8809--01 ~ 9008--01; RB20D |
1657871L00 |
US $62.50 |
||
|
16580C
|
16580C
16425-72L00 Washer8809--01 ~ 9008--01; RB20D |
16425-72L00 |
US $2.45 |
||
|
16590A
|
16590A
01121-04231 BOLT8809--01 ~ 9008--01; RB20D |
01121-04231 |
US $1.73 |
||
|
22680
|
22680
2268002U00
Mass Air Flow
9008--01 ~ 9206--01; RB20D |
2268002U00 |
— | ||
| replacement | |||||
|
22680
|
22680
B2680-02U00 Mass Air Flow9008--01 ~ 9206--01; RB20D |
B2680-02U00 |
US $569.34 |
||
|
22680
|
22680
2268016V00 Mass Air Flow8809--01 ~ 9008--01; RB20D |
2268016V00 |
US $627.29 |
||
