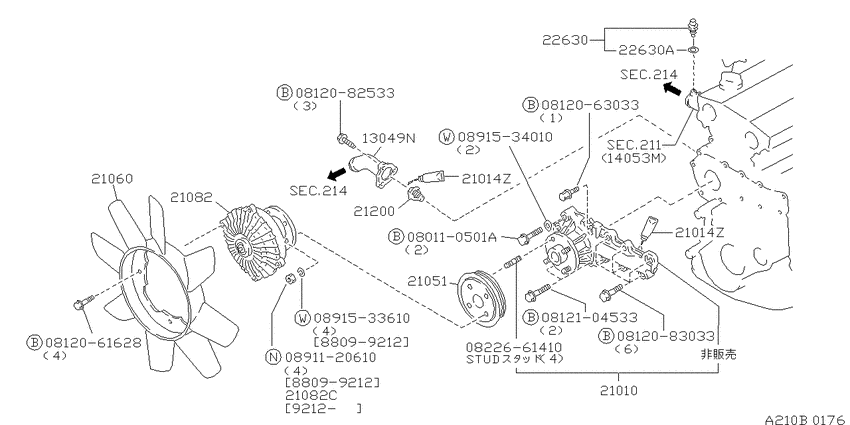

Water pump, cooling fan & thermostat (1990-08-01 ~ 1992-06-01; RB20D) Diagram Nissan CEFIRO
- Year
- 1990 - 1992
- Sales region
- Japan
- Engine
- RB20D
- drive
- 2WD
- transmission
- MT.F5
- grade
- NASHI
- body
- S
- Suspension
- HICAS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080110501A
|
080110501A
08011-0501A
Bolt-hexagon
|
08011-0501A |
— | ||
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
from US $2.21 |
||
|
0812063033
|
0812063033
08120-63033
Bolt-hexagon
|
08120-63033 |
— | ||
|
0812082533
|
0812082533
08120-82533
Bolt-hexagon
|
08120-82533 |
— | ||
|
0812083033
|
0812083033
08120-83033
Bolt-hexagon
|
08120-83033 |
— | ||
| replacement | |||||
|
0812083033
|
0812083033
08120-8302F
Bolt-hexagon
|
08120-8302F |
— | ||
|
0812104533
|
0812104533
08121-04533
Bolt-hexagon
|
08121-04533 |
— | ||
|
0822661410
|
0822661410
0822661410 STUD |
0822661410 |
from US $0.59 |
||
|
0891120610
|
0891120610
0891120610 NUTHEX |
0891120610 |
US $2.21 |
||
|
0891533610
|
0891533610
0891533610 WASHER-LOCK |
0891533610 |
US $1.93 |
||
|
0891534010
|
0891534010
08915-34010 WASHER-LOCK |
08915-34010 |
US $1.73 |
||
|
13049N
|
13049N
13049-79S00
Inlet-Water
8809--01 ~ 9008--01; RB20D |
13049-79S00 |
— | ||
| replacement | |||||
|
13049N
|
13049N
1304979S01 Inlet-Water8809--01 ~ 9008--01; RB20D |
1304979S01 |
from US $36 |
||
|
21010
|
21010
21010-42L25 Pump Assy-Water8809--01 ~ 8907--01; RB20D; ｴｷﾀｲ ﾊﾟﾂｷﾝ ｦ ｼﾖｳ[B106] |
21010-42L25 |
US $197.28 |
||
|
21010
|
21010
21010-42L26 Pump Assy-Water8907--01 ~ 9008--01; RB20D; ｴｷﾀｲ ﾊﾟﾂｷﾝ ｦ ｼﾖｳ[B106] |
21010-42L26 |
US $262.08 |
||
|
21014Z
|
21014Z
KP510-00150 Gasket-Liquid8809--01 ~ 9008--01; RB20D; [K504] |
KP510-00150 |
US $29.51 |
||
|
21014Z
|
21014Z
KP510-00150 Gasket-Liquid8809--01 ~ 9008--01; RB20D; [K504] |
KP510-00150 |
US $29.51 |
||
|
21051
|
21051
21051-42L01 Pulley-Fan & Water Pump8809--01 ~ 9008--01; RB20D |
21051-42L01 |
US $81.36 |
||
|
21060
|
21060
2106072L00 Fan-Cooling8809--01 ~ 9008--01; RB20D |
2106072L00 |
US $100.37 |
||
|
21082
|
21082
21082-72L00 Coupling Assy-Fan8809--01 ~ 9008--01; RB20D; [B106] |
21082-72L00 |
US $508.34 |
||
|
211
|
Water hose & piping
211
|
||||
|
211
|
Water hose & piping
211
|
||||
|
21200
|
21200
21200-42L05
Thermostat Assy
8809--01 ~ 9008--01; RB20D; 76.5C ﾊﾞﾙﾌﾞ ｺﾞﾑﾂｷ |
21200-42L05 |
— | ||
| replacements | |||||
|
21200
|
21200
21200-42L0A Thermostat8809--01 ~ 9008--01; RB20D; 76.5C ﾊﾞﾙﾌﾞ ｺﾞﾑﾂｷ |
21200-42L0A |
US $33.28 |
||
|
21200
|
21200
21200-42L0B THERMOSTAT8809--01 ~ 9008--01; RB20D; 76.5C ﾊﾞﾙﾌﾞ ｺﾞﾑﾂｷ |
21200-42L0B |
US $40.85 |
||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
214
|
Radiator, shroud & fitting
214
|
||||
|
22630
|
22630
22630-51E00
ENGINE COOLANT TEMPERATURE SENSOR
8809--01 ~ 9008--01; RB20D |
22630-51E00 |
— | ||
| replacement | |||||
|
22630
|
22630
2263051E02 ENGINE COOLANT TEMPERATURE SENSOR8809--01 ~ 9008--01; RB20D |
2263051E02 |
from US $38.79 |
||
|
22630
|
22630
22630-71L00
Engine Coolant Temperature Sensor
9008--01 ~ 9206--01; RB20D |
22630-71L00 |
— | ||
| replacement | |||||
|
22630
|
22630
2263044B20 Engine Coolant Temperature Sensor9008--01 ~ 9206--01; RB20D |
2263044B20 |
from US $34.67 |
||
|
22630
|
22630
22636N4200 Gasket-Temperature Sensor8809--01 ~ 9008--01; RB20D |
22636N4200 |
from US $1.33 |
||
|
22630A
|
22630A
22636N4200 Gasket-Temperature Sensor8809--01 ~ 9008--01; RB20D |
22636N4200 |
from US $1.33 |
||
