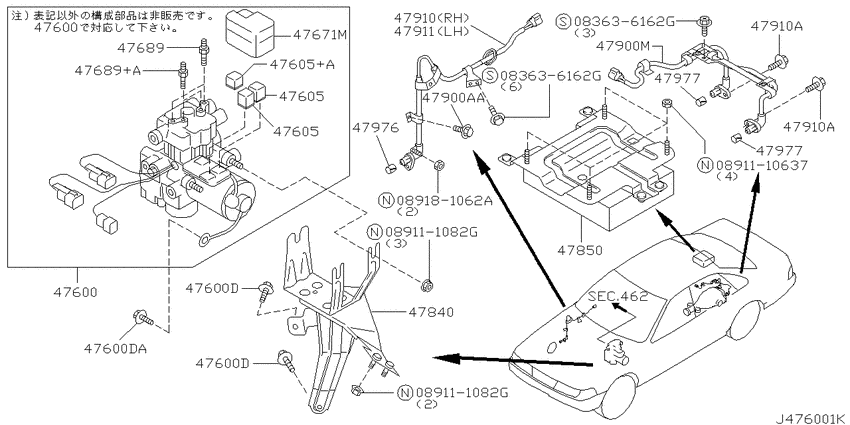

Anti skid control (1990-08-01 ~ ; S.4WD) Diagram Nissan CEFIRO
- Year
- 1990 - 1992
- Sales region
- Japan
- Engine
- RB20DT
- drive
- 4WD
- transmission
- AT.F4
- grade
- NASHI
- body
- S
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
083636162G
|
083636162G
083636162G Bolt |
083636162G |
US $2.34 |
||
|
0891110637
|
0891110637
0891110637 NUT |
0891110637 |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089181062A
|
089181062A
089181062A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
089181062A |
— | ||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
47600
|
47600
47600-86L00 ｱｸﾁﾕｴ-ﾀ- ｱﾂｾﾝﾌﾞﾘ-,ｱﾝﾁ ｽｷﾂﾄﾞ9008--01 ~ ; S.4WD.IRS |
47600-86L00 |
US $1,806 |
||
|
47600
|
47600
01121-03811 BOLT-FLEXIBLE HOSE9008--01 ~ ; S.4WD.IRS |
01121-03811 |
US $1.93 |
||
|
47600
|
47600
0145600411 SCREW9008--01 ~ 9108--01; S.4WD.IRS |
0145600411 |
US $1.67 |
||
|
47600D
|
47600D
01121-03811 BOLT-FLEXIBLE HOSE9008--01 ~ ; S.4WD.IRS |
01121-03811 |
US $1.93 |
||
|
47600D
|
47600D
0145600411 SCREW9008--01 ~ 9108--01; S.4WD.IRS |
0145600411 |
US $1.67 |
||
|
47600D
|
47600D
01121-03811 BOLT-FLEXIBLE HOSE9008--01 ~ ; S.4WD.IRS |
01121-03811 |
US $1.93 |
||
|
47600D
|
47600D
0145600411 SCREW9008--01 ~ 9108--01; S.4WD.IRS |
0145600411 |
US $1.67 |
||
|
47600DA
|
47600DA
0145600411 SCREW9008--01 ~ 9108--01; S.4WD.IRS |
0145600411 |
US $1.67 |
||
|
47605
|
47605
47605-17V00 Relay Assy-Actuator9008--01 ~ 9108--01; S.4WD.IRS |
47605-17V00 |
US $55.58 |
||
|
47605
|
47605
47605-17V01 Relay Assy-Actuator9008--01 ~ 9206--01; S.4WD.IRS |
47605-17V01 |
US $30.24 |
||
|
47605
|
47605
4760517V03 Relay Assy-Actuator9206--01 ~ ; S.4WD.IRS |
4760517V03 |
US $22.61 |
||
|
47605
|
47605
47605-17V00 Relay Assy-Actuator9008--01 ~ 9108--01; S.4WD.IRS |
47605-17V00 |
US $55.58 |
||
|
47605
|
47605
47605-17V01 Relay Assy-Actuator9008--01 ~ 9206--01; S.4WD.IRS |
47605-17V01 |
US $30.24 |
||
|
47605
|
47605
4760517V03 Relay Assy-Actuator9206--01 ~ ; S.4WD.IRS |
4760517V03 |
US $22.61 |
||
|
47605+A
|
47605+A
47605-17V01 Relay Assy-Actuator9008--01 ~ 9206--01; S.4WD.IRS |
47605-17V01 |
US $30.24 |
||
|
47605+A
|
47605+A
4760517V03 Relay Assy-Actuator9206--01 ~ ; S.4WD.IRS |
4760517V03 |
US $22.61 |
||
|
47671M
|
47671M
47671-61U00 Cover-Actuator9105--01 ~ 9108--01; S.4WD.IRS |
47671-61U00 |
US $7.49 |
||
|
47689
|
47689
4768917V00 Bleeder9008--01 ~ 9206--01; S.4WD.IRS |
4768917V00 |
US $6.77 |
||
|
47689
|
47689
4768917V01 Bleeder9206--01 ~ ; S.4WD.IRS |
4768917V01 |
US $6.77 |
||
|
47689
|
47689
4768917V01 Bleeder9008--01 ~ 9108--01; S.4WD.IRS |
4768917V01 |
US $6.77 |
||
|
47689+A
|
47689+A
4768917V01 Bleeder9008--01 ~ 9108--01; S.4WD.IRS |
4768917V01 |
US $6.77 |
||
|
47840
|
47840
47840-01U00 Bracket-Actuator9008--01 ~ ; S.4WD.IRS |
47840-01U00 |
US $218.88 |
||
|
47850
|
47850
47850-86L00 ﾓｼﾞﾕ-ﾙ ｱﾂｾﾝﾌﾞﾘ-,ｱﾝﾁ ｽｷﾂﾄﾞ(abs cont unit)9008--01 ~ ; S.4WD.IRS |
47850-86L00 |
US $1,155.46 |
||
|
47900AA
|
47900AA
0112104761 BOLT9008--01 ~ 9108--01; S.4WD.IRS |
0112104761 |
from US $0.59 |
||
|
47900M
|
47900M
4790005U00
Sensor Assy-Anti Skid, Rear
9008--01 ~ 9108--01; S.4WD.IRS |
4790005U00 |
— | ||
|
47910
|
47910
47910-86L00 ｾﾝｻ- ｱﾂｾﾝﾌﾞﾘ-,ｱﾝﾁ ｽｷﾂﾄﾞ ﾌﾛﾝﾄ rh9008--01 ~ ; S.4WD.IRS |
47910-86L00 |
US $400.73 |
||
|
47910
|
47910
01121-04631 BOLT9008--01 ~ 9206--01; S.4WD.IRS |
01121-04631 |
US $1.73 |
||
|
47910A
|
47910A
01121-04631 BOLT9008--01 ~ 9206--01; S.4WD.IRS |
01121-04631 |
US $1.73 |
||
|
47910A
|
47910A
01121-04631 BOLT9008--01 ~ 9206--01; S.4WD.IRS |
01121-04631 |
US $1.73 |
||
|
47911
|
47911
47911-86L00 ｾﾝｻ- ｱﾂｾﾝﾌﾞﾘ-,ｱﾝﾁ ｽｷﾂﾄﾞ ﾌﾛﾝﾄ lh9008--01 ~ ; S.4WD.IRS |
47911-86L00 |
US $400.73 |
||
|
47976
|
47976
4797632P10
Shim-Sensor, Front
9008--01 ~ 9108--01; S.4WD.IRS |
4797632P10 |
— | ||
|
47977
|
47977
47977-32P10 Shim-Sensor, Rear9008--01 ~ 9108--01; S.4WD.IRS |
47977-32P10 |
US $20.10 |
||
|
47977
|
47977
47977-32P10 Shim-Sensor, Rear9008--01 ~ 9108--01; S.4WD.IRS |
47977-32P10 |
US $20.10 |
||
