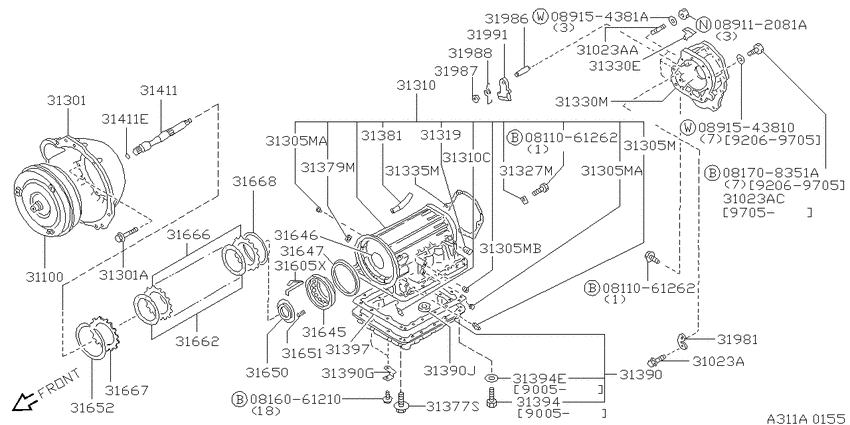

Torque converter,housing & case (1990-08-01 ~ ; 4WD.AT.F4) Diagram Nissan CEFIRO
- Year
- 1990 - 1992
- Sales region
- Japan
- Engine
- RB20DT
- drive
- 4WD
- transmission
- AT.F4
- grade
- NASHI
- body
- S
- Suspension
- IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0811061262
|
0811061262
08110-61262
Bolt-hexagon
|
08110-61262 |
— | ||
|
0811061262
|
0811061262
08110-61262
Bolt-hexagon
|
08110-61262 |
— | ||
|
0816061210
|
0816061210
08160-61210
Bolt-hexagon
|
08160-61210 |
— | ||
| replacement | |||||
|
0816061210
|
0816061210
08110-61225
Bolt-hexagon
|
08110-61225 |
— | ||
|
081708351A
|
081708351A
08170-8351A
Bolt-hexagon
|
08170-8351A |
— | ||
|
089112081A
|
089112081A
089112081A NUTHEX |
089112081A |
from US $0.59 |
||
|
0891543810
|
0891543810
08915-43810
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43810 |
— | ||
|
089154381A
|
089154381A
089154381A Washer-Plain |
089154381A |
US $0.57 |
||
|
31023A
|
31023A
31377-41X00 Bolt9008--01 ~ 9206--01; AT.F4 |
31377-41X00 |
US $1.73 |
||
|
31023A
|
31023A
31377-41X02 Bolt9008--01 ~ 9108--01; 4WD.AT.F4 |
31377-41X02 |
US $5.47 |
||
|
31023A
|
31023A
31377-41X20 Bolt9705--01 ~ ; 4WD.IRS.AT.F4 |
31377-41X20 |
US $2.45 |
||
|
31023AA
|
31023AA
31377-41X02 Bolt9008--01 ~ 9108--01; 4WD.AT.F4 |
31377-41X02 |
US $5.47 |
||
|
31023AC
|
31023AC
31377-41X20 Bolt9705--01 ~ ; 4WD.IRS.AT.F4 |
31377-41X20 |
US $2.45 |
||
|
31100
|
31100
31100-42X77 Converter Assy-Torque9008--01 ~ ; RB20DT.AT.F4 |
31100-42X77 |
US $1,298.47 |
||
|
31301
|
31301
31301-41X12 Housing-Converter9008--01 ~ 9108--01; 4WD.AT.F4 |
31301-41X12 |
US $502.68 |
||
|
31301
|
31301
31301-41X67 Housing-Converter9710--01 ~ ; 4WD.IRS.AT.F4 |
31301-41X67 |
US $502.68 |
||
|
31301
|
31301
31309-X6600 Bolt9008--01 ~ 9206--01; AT.F4 |
31309-X6600 |
US $2.45 |
||
|
31301A
|
31301A
31309-X6600 Bolt9008--01 ~ 9206--01; AT.F4 |
31309-X6600 |
US $2.45 |
||
|
31305M
|
31305M
31305-41X02 Plug-Thread, Square Head9008--01 ~ 9206--01; AT.F4 |
31305-41X02 |
US $2.45 |
||
|
31305M
|
31305M
31305-41X00 Plug-Thread9008--01 ~ 9206--01; AT.F4 |
31305-41X00 |
US $1.67 |
||
|
31305M
|
31305M
31305-41X01 Plug-Thread9008--01 ~ 9206--01; AT.F4 |
31305-41X01 |
US $2.45 |
||
|
31305MA
|
31305MA
31305-41X00 Plug-Thread9008--01 ~ 9206--01; AT.F4 |
31305-41X00 |
US $1.67 |
||
|
31305MA
|
31305MA
31305-41X00 Plug-Thread9008--01 ~ 9206--01; AT.F4 |
31305-41X00 |
US $1.67 |
||
|
31305MB
|
31305MB
31305-41X01 Plug-Thread9008--01 ~ 9206--01; AT.F4 |
31305-41X01 |
US $2.45 |
||
|
31310
|
31310
31310-41X06 Case Assy-Automatic Transmission9008--01 ~ 9108--01; 4WD.AT.F4 |
31310-41X06 |
US $538.08 |
||
|
31310
|
31310
31310-41X18 Case Assy-Automatic Transmission9308--01 ~ ; 4WD.IRS.AT.F4 |
31310-41X18 |
US $538.08 |
||
|
31310
|
31310
31308-41X00 Pin-Dowel9308--01 ~ ; AT.F4 |
31308-41X00 |
US $2.45 |
||
|
31310
|
31310
31308-51X00 Pin-Dowel9008--01 ~ 9206--01; AT.F4 |
31308-51X00 |
US $2.45 |
||
|
31310C
|
31310C
31308-41X00 Pin-Dowel9308--01 ~ ; AT.F4 |
31308-41X00 |
US $2.45 |
||
|
31310C
|
31310C
31308-51X00 Pin-Dowel9008--01 ~ 9206--01; AT.F4 |
31308-51X00 |
US $2.45 |
||
|
31319
|
31319
31345-X6101 Plug9008--01 ~ 9206--01; AT.F4 |
31345-X6101 |
US $2.45 |
||
|
31327M
|
31327M
31327-41X00 Plate-Baffle9008--01 ~ 9206--01; AT.F4 |
31327-41X00 |
US $2.45 |
||
|
31330E
|
31330E
31376-41X02 Clip-Harness9008--01 ~ 9108--01; 4WD.AT.F4 |
31376-41X02 |
US $1.73 |
||
|
31330M
|
31330M
31331-41X06 Case Assy-Adapter9008--01 ~ ; 4WD.AT.F4 |
31331-41X06 |
US $508.34 |
||
|
31335M
|
31335M
31338-41X00
Gasket-Extension
9008--01 ~ 9206--01; 4WD.AT.F4 |
31338-41X00 |
— | ||
| replacement | |||||
|
31335M
|
31335M
31338-41X0A Gasket-Extension9008--01 ~ 9206--01; 4WD.AT.F4 |
31338-41X0A |
US $7.76 |
||
|
31377S
|
31377S
31377-41X25
Bolt Set-Oil Pan Gasket
9008--01 ~ 9206--01; AT.F4; 18ｺ ｲﾘ |
31377-41X25 |
— | ||
|
31379M
|
31379M
3137541X00 Seal-Oil9008--01 ~ 9206--01; AT.F4 |
3137541X00 |
from US $2.36 |
||
|
31381
|
31381
31381-41X01 Breather-Air9008--01 ~ 9108--01; 4WD.AT.F4 |
31381-41X01 |
US $9.07 |
||
|
31390
|
31390
3139041X03 Pan Assy-Oil9008--01 ~ 9108--01; 4WD.AT.F4 |
3139041X03 |
US $48.82 |
||
|
31390
|
31390
21644-41X00 Bracket-Oil Cooler Tube9008--01 ~ 9206--01; AT.F4 |
21644-41X00 |
US $9.02 |
||
|
31390
|
31390
31392-X5100
Magnet
9008--01 ~ 9206--01; AT.F4 |
31392-X5100 |
— | ||
| replacement | |||||
|
31390
|
31390
313793AX0A Magnet9008--01 ~ 9206--01; AT.F4 |
313793AX0A |
from US $2.94 |
||
|
31390G
|
31390G
21644-41X00 Bracket-Oil Cooler Tube9008--01 ~ 9206--01; AT.F4 |
21644-41X00 |
US $9.02 |
||
|
31390J
|
31390J
31392-X5100
Magnet
9008--01 ~ 9206--01; AT.F4 |
31392-X5100 |
— | ||
| replacement | |||||
|
31390J
|
31390J
313793AX0A Magnet9008--01 ~ 9206--01; AT.F4 |
313793AX0A |
from US $2.94 |
||
|
31394
|
31394
3137731X06 Plug-Drain9008--01 ~ 9206--01; AT.F4 |
3137731X06 |
from US $4.13 |
||
|
31394
|
31394
1102601M02 Washer-Drain Plug9008--01 ~ 9206--01; AT.F4 |
1102601M02 |
from US $0.81 |
||
|
31394E
|
31394E
1102601M02 Washer-Drain Plug9008--01 ~ 9206--01; AT.F4 |
1102601M02 |
from US $0.81 |
||
|
31397
|
31397
31397-41X00 Gasket-Oil Pan9008--01 ~ 9206--01; AT.F4 |
31397-41X00 |
US $22.03 |
||
|
31397
|
31397
31397-41X91
Gasket & Seal Kit-Auto Transmission
9008--01 ~ 9108--01; 4WD.AT.F4 |
31397-41X91 |
— | ||
|
31397
|
31397
31397-41X92
Gasket & Seal Kit-Auto Transmission
9108--01 ~ ; 4WD.IRS.AT.F4 |
31397-41X92 |
— | ||
|
31411
|
31411
31411-41X03 Shaft-Input9008--01 ~ ; RB20DT.AT.F4 |
31411-41X03 |
US $77.33 |
||
|
31411
|
31411
31159-X6101 Seal-O Ring9008--01 ~ 9206--01; AT.F4 |
31159-X6101 |
US $3.31 |
||
|
31411E
|
31411E
31159-X6101 Seal-O Ring9008--01 ~ 9206--01; AT.F4 |
31159-X6101 |
US $3.31 |
||
|
31605X
|
31605X
31605-41X20 Spring9607--01 ~ ; AT.F4 |
31605-41X20 |
US $4.03 |
||
|
31645
|
31645
31645-41X02 Piston Assy-Low & Reverse Brake9008--01 ~ ; RB20DT.AT.F4 |
31645-41X02 |
US $22.46 |
||
|
31646
|
31646
31527-41X05 Seal-Lathe Cut Ring9008--01 ~ 9206--01; AT.F4 |
31527-41X05 |
US $4.03 |
||
|
31647
|
31647
31528-41X00 Seal-Lip9008--01 ~ 9206--01; AT.F4 |
31528-41X00 |
US $7.92 |
||
|
31650
|
31650
31656-41X00 Retainer-Low & Reverse Brake9008--01 ~ 9206--01; AT.F4 |
31656-41X00 |
US $10.51 |
||
|
31650
|
31650
31656-41X01 Retainer-Low & Reverse Brake9406--01 ~ ; AT.F4 |
31656-41X01 |
US $10.51 |
||
|
31651
|
31651
3152121X00 Spring-Piston Return9008--01 ~ 9206--01; AT.F4 |
3152121X00 |
US $1.73 |
||
|
31652
|
31652
31506-41X09 Ring-Snap9008--01 ~ 9206--01; AT.F4 |
31506-41X09 |
US $4.03 |
||
|
31662
|
31662
31532-41X14 Plate Assy-Drive9008--01 ~ ; RB20DT.AT.F4 |
31532-41X14 |
US $34.70 |
||
|
31666
|
31666
31666-41X01 Plate-Driven9008--01 ~ 9607--01; RB20DT.AT.F4 |
31666-41X01 |
US $19.87 |
||
|
31666
|
31666
31666-41X02 Plate-Driven9607--01 ~ ; RB20DT.AT.F4 |
31666-41X02 |
US $19.87 |
||
|
31667
|
31667
31667-41X00 Plate-Retaining9008--01 ~ ; RB20DT.AT.F4; ｾﾝﾀｸ T=8.0 |
31667-41X00 |
US $17.71 |
||
|
31667
|
31667
31667-41X01 Plate-Retaining9008--01 ~ ; RB20DT.AT.F4; ｾﾝﾀｸ T=8.2 |
31667-41X01 |
US $17.71 |
||
|
31667
|
31667
31667-41X07 Plate-Retaining9008--01 ~ ; RB20DT.AT.F4; ｾﾝﾀｸ T=7.6 |
31667-41X07 |
US $17.42 |
||
|
31667
|
31667
31667-41X08 Plate-Retaining9008--01 ~ ; RB20DT.AT.F4; ｾﾝﾀｸ T=7.8 |
31667-41X08 |
US $17.71 |
||
|
31667
|
31667
31667-41X13 Plate-Retaining9607--01 ~ ; AT.F4; ｾﾝﾀｸ T=7.2 |
31667-41X13 |
US $17.42 |
||
|
31667
|
31667
31667-41X14 Plate-Retaining9008--01 ~ 9607--01; RB20DT.AT.F4; ｾﾝﾀｸ T=7.4 |
31667-41X14 |
US $17.42 |
||
|
31668
|
31668
31535-41X08 Plate-Dished9008--01 ~ 9206--01; AT.F4 |
31535-41X08 |
US $29.23 |
||
|
31981
|
31981
31981-41X01 Support-Parking Actuator9008--01 ~ 9206--01; AT.F4 |
31981-41X01 |
US $4.18 |
||
|
31986
|
31986
31986-41X00 Shaft-Parking Pawl9008--01 ~ 9206--01; AT.F4 |
31986-41X00 |
US $4.03 |
||
|
31987
|
31987
31437-41X00 Spacer-Parking Pawl9008--01 ~ 9206--01; AT.F4 |
31437-41X00 |
US $0.86 |
||
|
31988
|
31988
31988-41X00 Spring-Return Pawl9008--01 ~ 9206--01; AT.F4 |
31988-41X00 |
US $7.92 |
||
|
31991
|
31991
31991-41X01 Pawl-Parking9008--01 ~ 9010--01; AT.F4 |
31991-41X01 |
US $33.12 |
||
|
31991
|
31991
31991-41X02 Pawl-Parking9010--01 ~ 9104--01; AT.F4 |
31991-41X02 |
US $33.12 |
||
