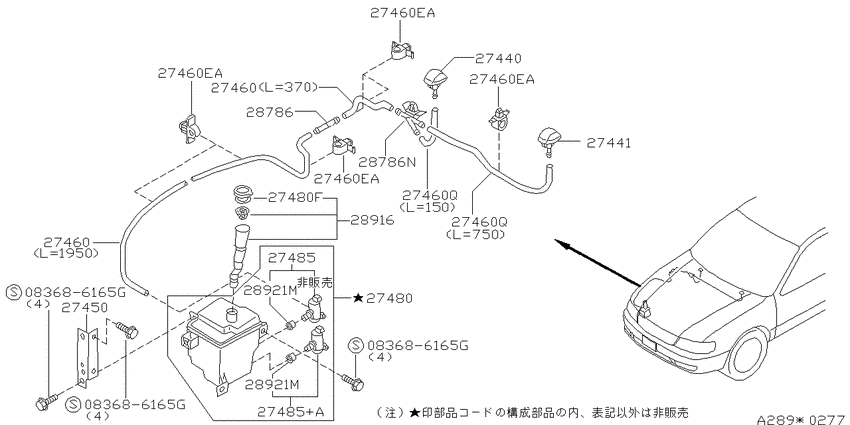

Windshield washer (1997-06-01 ~ 1999-08-01; フロント ウインド ウオッシャー; W) Diagram Nissan CEFIRO
- Year
- 1997 - 1999
- Sales region
- Japan
- Engine
- VQ30DE
- transmission
- AT
- grade
- CRU/G
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
083686165G
|
083686165G
083686165G SCRHEX HDPP W |
083686165G |
from US $0.63 |
||
|
083686165G
|
083686165G
083686165G SCRHEX HDPP W |
083686165G |
from US $0.63 |
||
|
083686165G
|
083686165G
083686165G SCRHEX HDPP W |
083686165G |
from US $0.63 |
||
|
27440
|
27440
28930-31U00 Nozzle Assy-Washer, No 19706--01 ~ 9908--01; W |
28930-31U00 |
US $21.60 |
||
|
27441
|
27441
28931-31U00 Nozzle Assy-Washer, No 29706--01 ~ 9908--01; W |
28931-31U00 |
US $21.60 |
||
|
27450
|
27450
28925-31U00 Bracket Assy-Washer Tank9706--01 ~ 9908--01; W |
28925-31U00 |
US $8.64 |
||
| replacement | |||||
|
27450
|
27450
2892531U0C
Bracket Assy-Washer Tank
9706--01 ~ 9908--01; W |
2892531U0C |
— | ||
|
27460
|
27460
28935-31U00
Hose-Washer
9706--01 ~ 9908--01; W; L=370S/#B8940-89910 |
28935-31U00 |
— | ||
|
27460
|
27460
28940-31U00
Hose-Washer
9706--01 ~ 9908--01; W; L=1950 S/#B8940-89910 |
28940-31U00 |
— | ||
|
27460
|
27460
28945-34E00 CLIP9706--01 ~ 9908--01; W |
28945-34E00 |
US $1.44 |
||
|
27460
|
27460
2894530Y10 Clip9706--01 ~ 9908--01; W |
2894530Y10 |
US $4.30 |
||
|
27460
|
27460
2894530Y10 Clip9706--01 ~ 9908--01; W |
2894530Y10 |
US $4.30 |
||
|
27460
|
27460
28940-31U01
Hose-Washer
9706--01 ~ 9805--01; W; L=750S/#B8940-89910 |
28940-31U01 |
— | ||
|
27460
|
27460
28940-31U10
Hose-Washer
9805--01 ~ 9908--01; W; L=140 S/#B8940-89910 |
28940-31U10 |
— | ||
|
27460
|
27460
28940-31U15
Hose-Washer
9805--01 ~ 9908--01; W; L=750 S/#B8940-89910 |
28940-31U15 |
— | ||
|
27460
|
27460
28940-40F00 Hose-Washer9706--01 ~ 9805--01; W; L=150S/#B8940-89910 |
28940-40F00 |
US $11.66 |
||
|
27460
|
27460
28935-31U00
Hose-Washer
9706--01 ~ 9908--01; W; L=370S/#B8940-89910 |
28935-31U00 |
— | ||
|
27460
|
27460
28940-31U00
Hose-Washer
9706--01 ~ 9908--01; W; L=1950 S/#B8940-89910 |
28940-31U00 |
— | ||
|
27460
|
27460
28945-34E00 CLIP9706--01 ~ 9908--01; W |
28945-34E00 |
US $1.44 |
||
|
27460
|
27460
2894530Y10 Clip9706--01 ~ 9908--01; W |
2894530Y10 |
US $4.30 |
||
|
27460
|
27460
2894530Y10 Clip9706--01 ~ 9908--01; W |
2894530Y10 |
US $4.30 |
||
|
27460
|
27460
28940-31U01
Hose-Washer
9706--01 ~ 9805--01; W; L=750S/#B8940-89910 |
28940-31U01 |
— | ||
|
27460
|
27460
28940-31U10
Hose-Washer
9805--01 ~ 9908--01; W; L=140 S/#B8940-89910 |
28940-31U10 |
— | ||
|
27460
|
27460
28940-31U15
Hose-Washer
9805--01 ~ 9908--01; W; L=750 S/#B8940-89910 |
28940-31U15 |
— | ||
|
27460
|
27460
28940-40F00 Hose-Washer9706--01 ~ 9805--01; W; L=150S/#B8940-89910 |
28940-40F00 |
US $11.66 |
||
|
27460EA
|
27460EA
2894530Y10 Clip9706--01 ~ 9908--01; W |
2894530Y10 |
US $4.30 |
||
|
27460EA
|
27460EA
2894530Y10 Clip9706--01 ~ 9908--01; W |
2894530Y10 |
US $4.30 |
||
|
27460EA
|
27460EA
2894530Y10 Clip9706--01 ~ 9908--01; W |
2894530Y10 |
US $4.30 |
||
|
27460EA
|
27460EA
2894530Y10 Clip9706--01 ~ 9908--01; W |
2894530Y10 |
US $4.30 |
||
|
27460Q
|
27460Q
28940-31U01
Hose-Washer
9706--01 ~ 9805--01; W; L=750S/#B8940-89910 |
28940-31U01 |
— | ||
|
27460Q
|
27460Q
28940-31U10
Hose-Washer
9805--01 ~ 9908--01; W; L=140 S/#B8940-89910 |
28940-31U10 |
— | ||
|
27460Q
|
27460Q
28940-31U15
Hose-Washer
9805--01 ~ 9908--01; W; L=750 S/#B8940-89910 |
28940-31U15 |
— | ||
|
27460Q
|
27460Q
28940-40F00 Hose-Washer9706--01 ~ 9805--01; W; L=150S/#B8940-89910 |
28940-40F00 |
US $11.66 |
||
|
27460Q
|
27460Q
28940-31U01
Hose-Washer
9706--01 ~ 9805--01; W; L=750S/#B8940-89910 |
28940-31U01 |
— | ||
|
27460Q
|
27460Q
28940-31U10
Hose-Washer
9805--01 ~ 9908--01; W; L=140 S/#B8940-89910 |
28940-31U10 |
— | ||
|
27460Q
|
27460Q
28940-31U15
Hose-Washer
9805--01 ~ 9908--01; W; L=750 S/#B8940-89910 |
28940-31U15 |
— | ||
|
27460Q
|
27460Q
28940-40F00 Hose-Washer9706--01 ~ 9805--01; W; L=150S/#B8940-89910 |
28940-40F00 |
US $11.66 |
||
|
27480
|
27480
28910-31U10 Tank Assy-Windshield Washer9706--01 ~ 9908--01; W |
28910-31U10 |
US $139.54 |
||
|
27480
|
27480
28913-31U00 Cap-Windshield Washer Tank9706--01 ~ 9908--01; W |
28913-31U00 |
US $2.45 |
||
| replacement | |||||
|
27480
|
27480
B891365F00 ｷﾔﾂﾌﾟ9706--01 ~ 9908--01; W |
B891365F00 |
US $4.03 |
||
|
27480F
|
27480F
28913-31U00 Cap-Windshield Washer Tank9706--01 ~ 9908--01; W |
28913-31U00 |
US $2.45 |
||
| replacement | |||||
|
27480F
|
27480F
B891365F00 ｷﾔﾂﾌﾟ9706--01 ~ 9908--01; W |
B891365F00 |
US $4.03 |
||
|
27485
|
27485
2892050Y00 Pump Assy-Washer9706--01 ~ 9908--01; W |
2892050Y00 |
from US $26.76 |
||
|
27485
|
27485
2892050Y10 Pump Assy-Washer9706--01 ~ 9908--01; W |
2892050Y10 |
from US $40.06 |
||
|
27485+A
|
27485+A
2892050Y10 Pump Assy-Washer9706--01 ~ 9908--01; W |
2892050Y10 |
from US $40.06 |
||
|
28786
|
28786
28937-40F00 Connector-Hose9706--01 ~ 9908--01; W |
28937-40F00 |
US $2.45 |
||
|
28786
|
28786
2893689900 Joint9706--01 ~ 9908--01; W |
2893689900 |
from US $4.18 |
||
|
28786N
|
28786N
2893689900 Joint9706--01 ~ 9908--01; W |
2893689900 |
from US $4.18 |
||
|
28916
|
28916
28915-31U00 Inlet-Washer Tank9706--01 ~ 9908--01; W |
28915-31U00 |
US $24.34 |
||
| replacement | |||||
|
28916
|
28916
B8915-31U00
Inlet-washer tank
9706--01 ~ 9908--01; W |
B8915-31U00 |
— | ||
|
28921M
|
28921M
2892150Y00 Packing-Washer Motor9706--01 ~ 9908--01; W; ﾘﾔ ﾓ-ﾀ- ﾖｳ |
2892150Y00 |
US $4.57 |
||
|
28921M
|
28921M
2892150Y00 Packing-Washer Motor9706--01 ~ 9908--01; W; ﾘﾔ ﾓ-ﾀ- ﾖｳ |
2892150Y00 |
US $4.57 |
||
