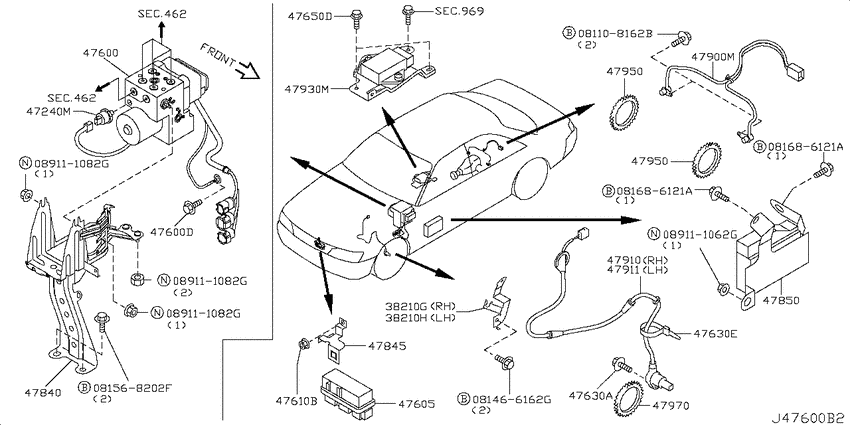

Anti skid control (2002-03-01 ~ 2003-08-01; VDC付仕様; S.(450XL+450XV+450VIP)) Diagram Nissan CIMA
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- VK45DD
- drive
- 2WD
- transmission
- AT.F5
- grade
- 450XV
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081108162B
|
081108162B
081108162B
Bolt-hexagon
|
081108162B |
— | ||
|
081466162G
|
081466162G
081466162G Bolt-hexagon |
081466162G |
from US $0.67 |
||
|
081568202F
|
081568202F
081568202F BOLTHEXPP WW |
081568202F |
from US $0.85 |
||
|
081686121A
|
081686121A
081686121A Screw |
081686121A |
US $2.21 |
||
|
081686121A
|
081686121A
081686121A Screw |
081686121A |
US $2.21 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
38210G
|
38210G
47960-AG060 Bracket-Sensor0101--01 ~ 0308--01; S.(450XL+450XV+450VIP) |
47960-AG060 |
US $4.18 |
||
|
38210H
|
38210H
47961-AG060 Bracket-Sensor0101--01 ~ 0308--01; S.(450XL+450XV+450VIP) |
47961-AG060 |
US $4.18 |
||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
462
|
Brake piping & control
462
|
||||
|
47240M
|
47240M
47240-AG020 Switch Assy-Hypoid, Control0101--01 ~ 0308--01; S.(450XV+450VIP) |
47240-AG020 |
US $416.30 |
||
|
47600
|
47600
47600-AR100 Actuator Assy-Anti Skid0101--01 ~ 0112--01; S.(450XV+450VIP) |
47600-AR100 |
US $2,968 |
||
|
47600
|
47600
47600-CR901 Actuator Assy-Anti Skid0112--01 ~ 0308--01; S.(450XV+450VIP) |
47600-CR901 |
US $2,968 |
||
|
47600
|
47600
0145600411 SCREW0112--01 ~ 0308--01; S.(450XL+450XV+450VIP) |
0145600411 |
US $1.67 |
||
|
47600
|
47600
25628-40U00 Screw0101--01 ~ 0112--01; S.(450XL+450XV+450VIP) |
25628-40U00 |
US $1.73 |
||
|
47600D
|
47600D
0145600411 SCREW0112--01 ~ 0308--01; S.(450XL+450XV+450VIP) |
0145600411 |
US $1.67 |
||
|
47600D
|
47600D
25628-40U00 Screw0101--01 ~ 0112--01; S.(450XL+450XV+450VIP) |
25628-40U00 |
US $1.73 |
||
|
47605
|
47605
47605-C9900 Relay Assy-Actuator0101--01 ~ 0308--01; S.(450XV+450VIP) |
47605-C9900 |
US $221.78 |
||
|
47610B
|
47610B
01221-00361 NUT0101--01 ~ 0308--01; S.(450XV+450VIP) |
01221-00361 |
from US $0.78 |
||
|
47630A
|
47630A
544590M008
Screw
0101--01 ~ 0308--01; S.(450XL+450XV+450VIP) |
544590M008 |
— | ||
| replacement | |||||
|
47630A
|
47630A
544590M00B Bolt0101--01 ~ 0308--01; S.(450XL+450XV+450VIP) |
544590M00B |
US $1.90 |
||
|
47630E
|
47630E
0155200083 CLIP-WIRING HARNESS0101--01 ~ 0308--01; S.(450XL+450XV+450VIP) |
0155200083 |
US $2.21 |
||
|
47650D
|
47650D
0145600411 SCREW0101--01 ~ 0112--01; *S.(450XL+450XV) |
0145600411 |
US $1.67 |
||
|
47840
|
47840
47840-AR100 Bracket-Actuator0101--01 ~ 0112--01; S.(450XV+450VIP) |
47840-AR100 |
US $111.60 |
||
|
47840
|
47840
47840AS500 Bracket-Actuator0112--01 ~ 0308--01; S.(450XV+450VIP) |
47840AS500 |
US $101.38 |
||
|
47845
|
47845
47845-AR100 Bracker-Connector0101--01 ~ 0308--01; S.(450XV+450VIP) |
47845-AR100 |
US $16.99 |
||
|
47850
|
47850
47850-AR100 Module Assy-Anti Skid0101--01 ~ 0107--01; S.(450XV+450VIP) |
47850-AR100 |
US $1,904 |
||
|
47850
|
47850
47850-AR101 Module Assy-Anti Skid0107--01 ~ 0109--01; S.(450XV+450VIP) |
47850-AR101 |
US $1,904 |
||
|
47850
|
47850
47850AR102 Module Assy-Anti Skid0109--01 ~ 0112--01; S.(450XV+450VIP) |
47850AR102 |
US $1,904 |
||
|
47850
|
47850
47850-AS500 Module Assy-Anti Skid0112--01 ~ 0308--01; S.(450XV+450VIP) |
47850-AS500 |
US $1,582 |
||
|
47900M
|
47900M
47900-AR200 Sensor Assy-Anti Skid, Rear0101--01 ~ 0308--01; S.(450XV+450VIP) |
47900-AR200 |
US $317.18 |
||
|
47910
|
47910
47910AG060 Sensor Assy-Anti Skid, Front Rh0101--01 ~ 0308--01; S.(450XL+450XV+450VIP) |
47910AG060 |
US $317.18 |
||
|
47911
|
47911
47911AG060 Sensor Assy-Anti Skid, Front Lh0101--01 ~ 0308--01; S.(450XL+450XV+450VIP) |
47911AG060 |
from US $221.35 |
||
|
47930M
|
47930M
47930-AG300 Sensor Assy-G0101--01 ~ 0112--01; S.(450XV+450VIP) |
47930-AG300 |
US $1,209.26 |
||
|
47930M
|
47930M
47930-CR800 Sensor Assy-G0112--01 ~ 0308--01; S.(450XV+450VIP) |
47930-CR800 |
US $1,428 |
||
|
47950
|
47950
47950-AR000 Sensor Rotor-Anti Skid Rear0101--01 ~ 0308--01; S.(450XL+450XV+450VIP) |
47950-AR000 |
US $51.71 |
||
|
47950
|
47950
47950-AR000 Sensor Rotor-Anti Skid Rear0101--01 ~ 0308--01; S.(450XL+450XV+450VIP) |
47950-AR000 |
US $51.71 |
||
|
47970
|
47970
47970-AR000 Sensor-Rotor, Anti Skid Front0101--01 ~ 0308--01; S.(450XL+450XV+450VIP) |
47970-AR000 |
US $45.94 |
||
|
969
|
Console box
969
|
||||
