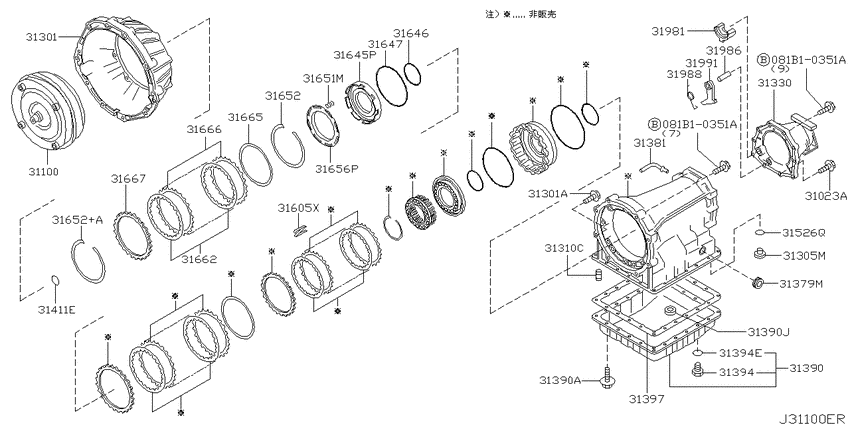

Torque converter,housing & case (2001-01-01 ~ 2001-12-01; VK45DD.AT.F5) Diagram Nissan CIMA
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- VK45DD
- drive
- 2WD
- transmission
- AT.F5
- grade
- 450XV
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081B10351A
|
081B10351A
081B10351A BOLTFLANGE |
081B10351A |
US $2.39 |
||
|
081B10351A
|
081B10351A
081B10351A BOLTFLANGE |
081B10351A |
US $2.39 |
||
|
31023A
|
31023A
31377-90X02 Bolt0101--01 ~ 0308--01; VK45DD.AT.F5 |
31377-90X02 |
US $2.45 |
||
|
31023A
|
31023A
31377-90X02 Bolt0112--01 ~ 0308--01; VK45DD.AT.F5 |
31377-90X02 |
US $2.45 |
||
|
31100
|
31100
31100-90X02 Converter Assy-Torque0101--01 ~ 0112--01; VK45DD.AT.F5 |
31100-90X02 |
US $1,203.60 |
||
|
31100
|
31100
3110090X10 Converter Assy-Torque0210--01 ~ 0308--01; VK45DD.AT.F5 |
3110090X10 |
US $1,203.60 |
||
|
31100
|
31100
31100-90X12 Converter Assy-Torque0112--01 ~ 0210--01; VK45DD.AT.F5 |
31100-90X12 |
US $1,203.60 |
||
|
31301
|
31301
31301-90X00 Housing-Converter0101--01 ~ 0308--01; VK45DD.AT.F5 |
31301-90X00 |
US $574.90 |
||
|
31301
|
31301
3137741X06 Bolt0101--01 ~ 0308--01; VK45DD.AT.F5 |
3137741X06 |
from US $1.13 |
||
|
31301
|
31301
3137741X06 Bolt0112--01 ~ 0308--01; VK45DD.AT.F5 |
3137741X06 |
from US $1.13 |
||
|
31301A
|
31301A
3137741X06 Bolt0101--01 ~ 0308--01; VK45DD.AT.F5 |
3137741X06 |
from US $1.13 |
||
|
31301A
|
31301A
3137741X06 Bolt0112--01 ~ 0308--01; VK45DD.AT.F5 |
3137741X06 |
from US $1.13 |
||
|
31305M
|
31305M
31305-90X01 Plug-Thread0101--01 ~ 0303--01; VK45DD.AT.F5 |
31305-90X01 |
from US $2.33 |
||
|
31310C
|
31310C
31308-41X00 Pin-Dowel0101--01 ~ 0308--01; VK45DD.AT.F5 |
31308-41X00 |
US $2.45 |
||
|
31330
|
31330
31330-90X00 Extension Assy-Rear0101--01 ~ 0112--01; VK45DD.AT.F5 |
31330-90X00 |
US $254.88 |
||
|
31379M
|
31379M
3137531X01 Seal-Oil0101--01 ~ 0308--01; VK45DD.AT.F5 |
3137531X01 |
from US $2.36 |
||
|
31381
|
31381
31381-41X01 Breather-Air0101--01 ~ 0308--01; VK45DD.AT.F5 |
31381-41X01 |
US $9.07 |
||
|
31390
|
31390
31390-90X00
Pan Assy-Oil
0101--01 ~ 0308--01; VK45DD.AT.F5 |
31390-90X00 |
— | ||
| replacement | |||||
|
31390
|
31390
3139090X0B Pan Assy-Oil0101--01 ~ 0308--01; VK45DD.AT.F5 |
3139090X0B |
from US $58.91 |
||
|
31390
|
31390
3137741X06 Bolt0101--01 ~ 0308--01; VK45DD.AT.F5 |
3137741X06 |
from US $1.13 |
||
|
31390
|
31390
31392-X5100
Magnet
0101--01 ~ 0308--01; VK45DD.AT.F5 |
31392-X5100 |
— | ||
| replacement | |||||
|
31390
|
31390
313793AX0A Magnet0101--01 ~ 0308--01; VK45DD.AT.F5 |
313793AX0A |
from US $2.94 |
||
|
31390A
|
31390A
3137741X06 Bolt0101--01 ~ 0308--01; VK45DD.AT.F5 |
3137741X06 |
from US $1.13 |
||
|
31390J
|
31390J
31392-X5100
Magnet
0101--01 ~ 0308--01; VK45DD.AT.F5 |
31392-X5100 |
— | ||
| replacement | |||||
|
31390J
|
31390J
313793AX0A Magnet0101--01 ~ 0308--01; VK45DD.AT.F5 |
313793AX0A |
from US $2.94 |
||
|
31394
|
31394
3137731X06 Plug-Drain0101--01 ~ 0308--01; VK45DD.AT.F5 |
3137731X06 |
from US $4.13 |
||
|
31394
|
31394
1102601M02 Washer-Drain Plug0101--01 ~ 0308--01; VK45DD.AT.F5 |
1102601M02 |
from US $0.81 |
||
|
31394E
|
31394E
1102601M02 Washer-Drain Plug0101--01 ~ 0308--01; VK45DD.AT.F5 |
1102601M02 |
from US $0.81 |
||
|
31397
|
31397
3139790X00 Gasket-Oil Pan0101--01 ~ 0308--01; VK45DD.AT.F5 |
3139790X00 |
US $23.16 |
||
|
31397
|
31397
31397-90X25 Gasket & Seal Kit-Auto Transmission0101--01 ~ 0112--01; AT.F5 |
31397-90X25 |
US $254.88 |
||
|
31411E
|
31411E
31526-90X05 Seal-O Ring0101--01 ~ 0308--01; VK45DD.AT.F5 |
31526-90X05 |
US $4.03 |
||
|
31526Q
|
31526Q
3152690X08 Seal-O Ring0101--01 ~ 0303--01; VK45DD.AT.F5 |
3152690X08 |
from US $2.45 |
||
|
31605X
|
31605X
31605-90X00 Spring0101--01 ~ 0308--01; VK45DD.AT.F5 |
31605-90X00 |
US $4.18 |
||
|
31645P
|
31645P
31645-90X00 Piston-Reverse Brake0101--01 ~ 0308--01; VK45DD.AT.F5 |
31645-90X00 |
US $22.46 |
||
|
31646
|
31646
31527-90X02 Seal-Lathe Cut Ring0101--01 ~ 0308--01; VK45DD.AT.F5 |
31527-90X02 |
from US $7.76 |
||
|
31647
|
31647
31528-90X00 Seal-O Ring0101--01 ~ 0308--01; VK45DD.AT.F5 |
31528-90X00 |
US $13.82 |
||
|
31651M
|
31651M
31505-90X00 Spring-Piston Return0101--01 ~ 0308--01; VK45DD.AT.F5 |
31505-90X00 |
US $10.22 |
||
|
31652
|
31652
31506-90X04 Ring-Snap0101--01 ~ 0308--01; VK45DD.AT.F5 |
31506-90X04 |
US $5.33 |
||
|
31652
|
31652
31506-90X03 Ring-Snap0101--01 ~ 0308--01; VK45DD.AT.F5 |
31506-90X03 |
from US $5.33 |
||
|
31652+A
|
31652+A
31506-90X03 Ring-Snap0101--01 ~ 0308--01; VK45DD.AT.F5 |
31506-90X03 |
from US $5.33 |
||
|
31656P
|
31656P
31656-90X00 Retainer-Spring, Reverse0101--01 ~ 0308--01; VK45DD.AT.F5 |
31656-90X00 |
US $13.54 |
||
|
31662
|
31662
31662-90X00 Plate Assy-Drive0101--01 ~ 0308--01; VK45DD.AT.F5 |
31662-90X00 |
US $29.81 |
||
|
31665
|
31665
31665-90X00 Plate-Dished0101--01 ~ 0308--01; VK45DD.AT.F5 |
31665-90X00 |
US $6.66 |
||
|
31666
|
31666
31666-90X00 Plate-Driven0101--01 ~ 0308--01; VK45DD.AT.F5 |
31666-90X00 |
US $29.81 |
||
|
31667
|
31667
31667-90X14 Plate-Retaining0101--01 ~ 0308--01; VK45DD.AT.F5; T=4.2 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-90X14 |
US $17.71 |
||
|
31667
|
31667
31667-90X15 Plate-Retaining0101--01 ~ 0308--01; VK45DD.AT.F5; T=4.4 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-90X15 |
US $17.71 |
||
|
31667
|
31667
31667-90X16 Plate-Retaining0101--01 ~ 0308--01; VK45DD.AT.F5; T=4.6 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-90X16 |
US $17.71 |
||
|
31667
|
31667
31667-90X17 Plate-Retaining0101--01 ~ 0308--01; VK45DD.AT.F5; T=4.8 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-90X17 |
US $17.71 |
||
|
31667
|
31667
31667-90X18 Plate-Retaining0101--01 ~ 0308--01; VK45DD.AT.F5; T=5.0 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31667-90X18 |
US $17.71 |
||
|
31981
|
31981
31981-90X00 Support-Parking Actuator0101--01 ~ 0308--01; VK45DD.AT.F5 |
31981-90X00 |
US $7.34 |
||
|
31986
|
31986
31986-90X00 Shaft-Parking Pawl0101--01 ~ 0308--01; VK45DD.AT.F5 |
31986-90X00 |
US $4.18 |
||
|
31988
|
31988
31988-90X00 Spring-Return Pawl0101--01 ~ 0308--01; VK45DD.AT.F5 |
31988-90X00 |
US $8.06 |
||
|
31991
|
31991
31991-90X00 Pawl-Parking0101--01 ~ 0308--01; VK45DD.AT.F5 |
31991-90X00 |
US $33.84 |
||
