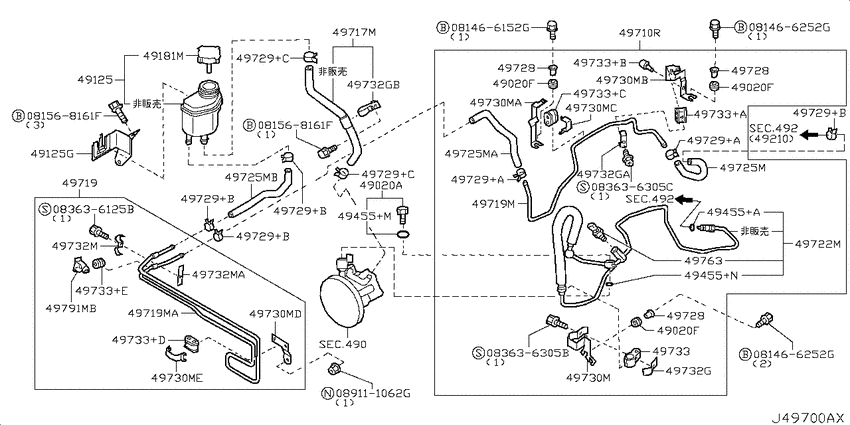

Power steering piping (2003-11-01 ~ 2008-02-01; VK45DE.AT.F5) Diagram Nissan CIMA
- Year
- 2003 - 2012
- Sales region
- Japan
- Engine
- VK45DE
- drive
- 2WD
- transmission
- AT.F5
- grade
- 450XL
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466252G
|
081466252G
081466252G Bolt-hexagon |
081466252G |
from US $0.63 |
||
|
081466252G
|
081466252G
081466252G Bolt-hexagon |
081466252G |
from US $0.63 |
||
|
081568161F
|
081568161F
081568161F
BOLTHEXPP WW
|
081568161F |
— | ||
|
081568161F
|
081568161F
081568161F
BOLTHEXPP WW
|
081568161F |
— | ||
|
083636125B
|
083636125B
08363-6125B
Bolt
|
08363-6125B |
— | ||
|
083636305B
|
083636305B
08363-6305B
SCREWMACHINE
|
08363-6305B |
— | ||
|
083636305C
|
083636305C
08363-6305C
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-6305C |
— | ||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
490
|
Power steering pump
490
|
||||
|
490
|
Power steering pump
490
|
||||
|
490
|
Power steering pump
490
|
||||
|
490
|
Power steering pump
490
|
||||
|
49020A
|
49020A
52950-AG000 Bolt0308--01 ~ 0311--01; VK45DE |
52950-AG000 |
US $4.18 |
||
|
49020F
|
49020F
18316S3260 Bush0308--01 ~ 0311--01; VK45DE |
18316S3260 |
from US $3.39 |
||
|
49020F
|
49020F
18316S3260 Bush0308--01 ~ 0311--01; VK45DE |
18316S3260 |
from US $3.39 |
||
|
49020F
|
49020F
18316S3260 Bush0308--01 ~ 0311--01; VK45DE |
18316S3260 |
from US $3.39 |
||
|
49125
|
49125
49192AA300 Tank Assy-Reservoir0308--01 ~ 0311--01; VK45DE |
49192AA300 |
US $286.03 |
||
|
49125
|
49125
49191-AR000 Bracket-Reservoir Tank0308--01 ~ 0311--01; VK45DE |
49191-AR000 |
US $49.82 |
||
|
49125G
|
49125G
49191-AR000 Bracket-Reservoir Tank0308--01 ~ 0311--01; VK45DE |
49191-AR000 |
US $49.82 |
||
|
49181M
|
49181M
49181-AA300 Cap Assy-Reservoir0308--01 ~ 0311--01; VK45DE |
49181-AA300 |
US $49.10 |
||
|
492
|
Power steering gear
492
|
||||
|
492
|
Power steering gear
492
|
||||
|
492
|
Power steering gear
492
|
||||
|
492
|
Power steering gear
492
|
||||
|
492
|
Power steering gear
492
|
||||
|
492
|
Power steering gear
492
|
||||
|
49455+A
|
49455+A
4974501E00 SEAL-O RING0308--01 ~ 0311--01; VK45DE |
4974501E00 |
US $2.78 |
||
|
49455+M
|
49455+M
5295262U00 Seal-O Ring0308--01 ~ 0311--01; VK45DE |
5295262U00 |
US $2.88 |
||
|
49455+N
|
49455+N
5295262U10 Seal-O Ring0308--01 ~ 0311--01; VK45DE |
5295262U10 |
US $2.88 |
||
|
49710R
|
49710R
49710-AR100 Hose & Tube Set-Power Steering0308--01 ~ 0311--01; VK45DE |
49710-AR100 |
US $651.36 |
||
|
49717M
|
49717M
49717-AR700 Hose Assy-Suction, Power Steering0308--01 ~ 0311--01; VK45DE |
49717-AR700 |
US $57.89 |
||
|
49717M
|
49717M
49717AR70A Hose Assy-Suction, Power Steering0802--01 ~ ; VK45DE.AT.F5 |
49717AR70A |
US $44.64 |
||
|
49719
|
49719
49790-AR005 Tube Assy-Power Steering0308--01 ~ 0311--01; VK45DE |
49790-AR005 |
US $151.20 |
||
|
49719
|
49719
49726-AR100 Tube Assy-Power Steering0308--01 ~ 0311--01; VK45DE |
49726-AR100 |
US $42.62 |
||
|
49719
|
49719
49726-AR005 Tube Assy-Power Steering0308--01 ~ 0311--01; VK45DE |
49726-AR005 |
US $42.62 |
||
|
49719M
|
49719M
49726-AR100 Tube Assy-Power Steering0308--01 ~ 0311--01; VK45DE |
49726-AR100 |
US $42.62 |
||
|
49719M
|
49719M
49726-AR005 Tube Assy-Power Steering0308--01 ~ 0311--01; VK45DE |
49726-AR005 |
US $42.62 |
||
|
49719MA
|
49719MA
49726-AR005 Tube Assy-Power Steering0308--01 ~ 0311--01; VK45DE |
49726-AR005 |
US $42.62 |
||
|
49722M
|
49722M
49720AR100 Hose & Tube Assy-Pressure, Ps0308--01 ~ 0311--01; VK45DE |
49720AR100 |
US $315.77 |
||
|
49725M
|
49725M
49725AR000 Hose-Return, Power Steering0308--01 ~ 0311--01; VK45DE |
49725AR000 |
US $26.78 |
||
|
49725M
|
49725M
49725AR100 Hose-Return, Power Steering0308--01 ~ 0311--01; VK45DE |
49725AR100 |
US $26.78 |
||
|
49725M
|
49725M
49725-AR005 Hose-Return, Power Steering0308--01 ~ 0311--01; VK45DE |
49725-AR005 |
US $24.34 |
||
|
49725MA
|
49725MA
49725AR100 Hose-Return, Power Steering0308--01 ~ 0311--01; VK45DE |
49725AR100 |
US $26.78 |
||
|
49725MB
|
49725MB
49725-AR005 Hose-Return, Power Steering0308--01 ~ 0311--01; VK45DE |
49725-AR005 |
US $24.34 |
||
|
49728
|
49728
49728-55S00
Collar
0308--01 ~ 0311--01; VK45DE |
49728-55S00 |
— | ||
| replacement | |||||
|
49728
|
49728
49728-55S0A Collar-Insulator0308--01 ~ 0311--01; VK45DE |
49728-55S0A |
US $2.64 |
||
|
49728
|
49728
49728-55S00
Collar
0308--01 ~ 0311--01; S.(VK45DD+VK45DE) |
49728-55S00 |
— | ||
| replacement | |||||
|
49728
|
49728
49728-55S0A Collar-Insulator0308--01 ~ 0311--01; S.(VK45DD+VK45DE) |
49728-55S0A |
US $2.64 |
||
|
49728
|
49728
49728-55S0A Collar-Insulator0802--01 ~ ; S |
49728-55S0A |
US $2.64 |
||
|
49728
|
49728
49728-55S00
Collar
0308--01 ~ 0311--01; VK45DE |
49728-55S00 |
— | ||
| replacement | |||||
|
49728
|
49728
49728-55S0A Collar-Insulator0308--01 ~ 0311--01; VK45DE |
49728-55S0A |
US $2.64 |
||
|
49728
|
49728
49728-55S00
Collar
0308--01 ~ 0311--01; S.(VK45DD+VK45DE) |
49728-55S00 |
— | ||
| replacement | |||||
|
49728
|
49728
49728-55S0A Collar-Insulator0308--01 ~ 0311--01; S.(VK45DD+VK45DE) |
49728-55S0A |
US $2.64 |
||
|
49728
|
49728
49728-55S0A Collar-Insulator0802--01 ~ ; S |
49728-55S0A |
US $2.64 |
||
|
49728
|
49728
49728-55S00
Collar
0308--01 ~ 0311--01; VK45DE |
49728-55S00 |
— | ||
| replacement | |||||
|
49728
|
49728
49728-55S0A Collar-Insulator0308--01 ~ 0311--01; VK45DE |
49728-55S0A |
US $2.64 |
||
|
49728
|
49728
49728-55S00
Collar
0308--01 ~ 0311--01; S.(VK45DD+VK45DE) |
49728-55S00 |
— | ||
| replacement | |||||
|
49728
|
49728
49728-55S0A Collar-Insulator0308--01 ~ 0311--01; S.(VK45DD+VK45DE) |
49728-55S0A |
US $2.64 |
||
|
49728
|
49728
49728-55S0A Collar-Insulator0802--01 ~ ; S |
49728-55S0A |
US $2.64 |
||
|
49729+A
|
49729+A
49729-2J001 Clamp0308--01 ~ 0311--01; VK45DE |
49729-2J001 |
US $2.45 |
||
|
49729+A
|
49729+A
497292J00B Clamp0702--01 ~ 0802--01; VK45DE.AT.F5 |
497292J00B |
from US $1.94 |
||
|
49729+A
|
49729+A
49729-2J001 Clamp0308--01 ~ 0311--01; VK45DE |
49729-2J001 |
US $2.45 |
||
|
49729+A
|
49729+A
497292J00B Clamp0702--01 ~ 0802--01; VK45DE.AT.F5 |
497292J00B |
from US $1.94 |
||
|
49729+B
|
49729+B
49729-2J000 Clamp0308--01 ~ 0311--01; VK45DE |
49729-2J000 |
US $2.45 |
||
|
49729+B
|
49729+B
49729-2J00A Clamp0802--01 ~ ; VK45DE.AT.F5 |
49729-2J00A |
US $2.45 |
||
|
49729+B
|
49729+B
49729-2J000 Clamp0308--01 ~ 0311--01; VK45DE |
49729-2J000 |
US $2.45 |
||
|
49729+B
|
49729+B
49729-2J00A Clamp0802--01 ~ ; VK45DE.AT.F5 |
49729-2J00A |
US $2.45 |
||
|
49729+B
|
49729+B
49729-2J000 Clamp0308--01 ~ 0311--01; VK45DE |
49729-2J000 |
US $2.45 |
||
|
49729+B
|
49729+B
49729-2J00A Clamp0802--01 ~ ; VK45DE.AT.F5 |
49729-2J00A |
US $2.45 |
||
|
49729+B
|
49729+B
49729-2J000 Clamp0308--01 ~ 0311--01; VK45DE |
49729-2J000 |
US $2.45 |
||
|
49729+B
|
49729+B
49729-2J00A Clamp0802--01 ~ ; VK45DE.AT.F5 |
49729-2J00A |
US $2.45 |
||
|
49729+C
|
49729+C
49729-2J015 Clamp0311--01 ~ 0802--01; VK45DE.AT.F5 |
49729-2J015 |
US $2.45 |
||
|
49729+C
|
49729+C
49729-2J016
Clamp
0308--01 ~ 0311--01; VK45DE |
49729-2J016 |
— | ||
| replacement | |||||
|
49729+C
|
49729+C
497292J01B Clamp0308--01 ~ 0311--01; VK45DE |
497292J01B |
from US $1.96 |
||
|
49729+C
|
49729+C
49729-2J01A Clamp0802--01 ~ ; VK45DE.AT.F5 |
49729-2J01A |
US $2.45 |
||
|
49729+C
|
49729+C
49729-2J015 Clamp0311--01 ~ 0802--01; VK45DE.AT.F5 |
49729-2J015 |
US $2.45 |
||
|
49729+C
|
49729+C
49729-2J016
Clamp
0308--01 ~ 0311--01; VK45DE |
49729-2J016 |
— | ||
| replacement | |||||
|
49729+C
|
49729+C
497292J01B Clamp0308--01 ~ 0311--01; VK45DE |
497292J01B |
from US $1.96 |
||
|
49729+C
|
49729+C
49729-2J01A Clamp0802--01 ~ ; VK45DE.AT.F5 |
49729-2J01A |
US $2.45 |
||
|
49730M
|
49730M
49730-AR101 Bracket-Tube0308--01 ~ 0311--01; VK45DE |
49730-AR101 |
US $9.22 |
||
|
49730M
|
49730M
49730-AR001 Bracket-Tube0308--01 ~ 0311--01; VK45DE |
49730-AR001 |
US $9.22 |
||
|
49730M
|
49730M
49730-AR002 Bracket-Tube0308--01 ~ 0311--01; VK45DE |
49730-AR002 |
US $9.22 |
||
|
49730M
|
49730M
49730-1P102 Bracket-Tube0308--01 ~ 0311--01; VK45DE |
49730-1P102 |
US $10.37 |
||
|
49730M
|
49730M
49730-AR005 Bracket-Tube0308--01 ~ 0311--01; VK45DE |
49730-AR005 |
US $10.08 |
||
|
49730M
|
49730M
49730-AR006 Bracket-Tube0308--01 ~ 0311--01; VK45DE |
49730-AR006 |
US $9.22 |
||
|
49730MA
|
49730MA
49730-AR001 Bracket-Tube0308--01 ~ 0311--01; VK45DE |
49730-AR001 |
US $9.22 |
||
|
49730MB
|
49730MB
49730-AR002 Bracket-Tube0308--01 ~ 0311--01; VK45DE |
49730-AR002 |
US $9.22 |
||
|
49730MC
|
49730MC
49730-1P102 Bracket-Tube0308--01 ~ 0311--01; VK45DE |
49730-1P102 |
US $10.37 |
||
|
49730MD
|
49730MD
49730-AR005 Bracket-Tube0308--01 ~ 0311--01; VK45DE |
49730-AR005 |
US $10.08 |
||
|
49730ME
|
49730ME
49730-AR006 Bracket-Tube0308--01 ~ 0311--01; VK45DE |
49730-AR006 |
US $9.22 |
||
|
49732G
|
49732G
49732-79914 Clip-Power Steering Tube0308--01 ~ 0311--01; VK45DE |
49732-79914 |
US $4.90 |
||
|
49732G
|
49732G
49732-79961 Bracket-Power Steering Tube0308--01 ~ 0311--01; VK45DE |
49732-79961 |
US $4.18 |
||
|
49732G
|
49732G
49732-AR000 Clamp0308--01 ~ 0311--01; VK45DE |
49732-AR000 |
US $10.37 |
||
|
49732GA
|
49732GA
49732-79961 Bracket-Power Steering Tube0308--01 ~ 0311--01; VK45DE |
49732-79961 |
US $4.18 |
||
|
49732GB
|
49732GB
49732-AR000 Clamp0308--01 ~ 0311--01; VK45DE |
49732-AR000 |
US $10.37 |
||
|
49732M
|
49732M
49732-1F100 Bracket-Power Steering Tube0308--01 ~ 0311--01; VK45DE |
49732-1F100 |
US $12.67 |
||
|
49732M
|
49732M
49732-1F101 Bracket-Power Steering Tube0308--01 ~ 0311--01; VK45DE |
49732-1F101 |
US $12.67 |
||
|
49732MA
|
49732MA
49732-1F101 Bracket-Power Steering Tube0308--01 ~ 0311--01; VK45DE |
49732-1F101 |
US $12.67 |
||
|
49733
|
49733
49733-6L000 Insulator0308--01 ~ 0311--01; VK45DE |
49733-6L000 |
US $7.63 |
||
|
49733
|
49733
49733-W1100 Insulator0308--01 ~ 0311--01; VK45DE |
49733-W1100 |
US $5.18 |
||
|
49733
|
49733
49733-04U00 Insulator0308--01 ~ 0311--01; VK45DE |
49733-04U00 |
US $4.90 |
||
|
49733
|
49733
49733-01J00 Insulator0308--01 ~ 0311--01; VK45DE |
49733-01J00 |
US $7.34 |
||
|
49733
|
49733
49733-01J60 Insulator0308--01 ~ 0311--01; VK45DE |
49733-01J60 |
US $7.34 |
||
|
49733
|
49733
49733-AD010 Insulator0308--01 ~ 0311--01; VK45DE |
49733-AD010 |
US $9.07 |
||
|
49733+A
|
49733+A
49733-W1100 Insulator0308--01 ~ 0311--01; VK45DE |
49733-W1100 |
US $5.18 |
||
|
49733+B
|
49733+B
49733-04U00 Insulator0308--01 ~ 0311--01; VK45DE |
49733-04U00 |
US $4.90 |
||
|
49733+C
|
49733+C
49733-01J00 Insulator0308--01 ~ 0311--01; VK45DE |
49733-01J00 |
US $7.34 |
||
|
49733+D
|
49733+D
49733-01J60 Insulator0308--01 ~ 0311--01; VK45DE |
49733-01J60 |
US $7.34 |
||
|
49733+E
|
49733+E
49733-AD010 Insulator0308--01 ~ 0311--01; VK45DE |
49733-AD010 |
US $9.07 |
||
|
49763
|
49763
49763-6N200 Sensor Assy-Pressure, Power Steering0308--01 ~ 0311--01; VK45DE |
49763-6N200 |
US $103.82 |
||
|
49791MB
|
49791MB
49791-5P500 Clip0308--01 ~ 0311--01; VK45DE |
49791-5P500 |
US $6.19 |
||
