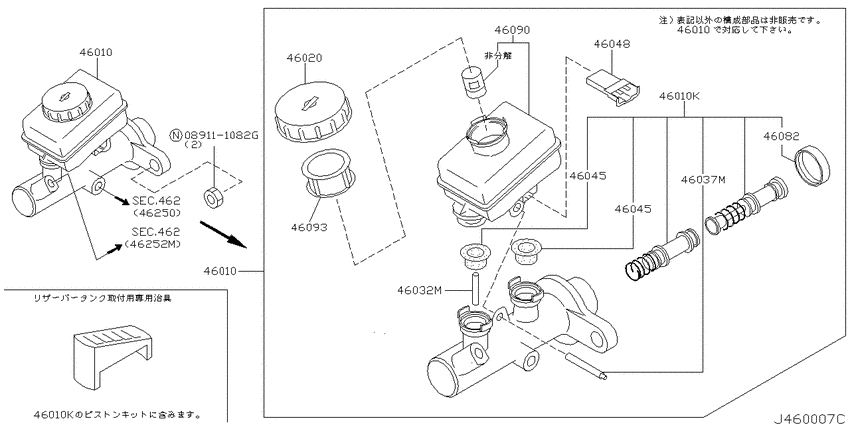

Brake master cylinder (2001-01-01 ~ 2003-08-01; VK45DD.AT.F4) Diagram Nissan CIMA
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- VK45DD
- drive
- 4WD
- transmission
- AT.F4
- grade
- 450X4
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
46010
|
46010
46010-AR020 Cylinder Assy-Brake Master0101--01 ~ 0308--01; VK45DD.AT.F4; ﾎﾞｯｼｭ 1(25.40) |
46010-AR020 |
US $484.27 |
||
|
46010
|
46010
460111E085 PISTON KIT-TANDEM BRAKE MASTER CYLINDER0101--01 ~ 0308--01; VK45DD.AT.F4; ﾎﾞｯｼｭ 1(25.40) |
460111E085 |
US $120.96 |
||
|
46010
|
46010
46010-AR020 Cylinder Assy-Brake Master0101--01 ~ 0308--01; VK45DD.AT.F4; ﾎﾞｯｼｭ 1(25.40) |
46010-AR020 |
US $484.27 |
||
|
46010
|
46010
460111E085 PISTON KIT-TANDEM BRAKE MASTER CYLINDER0101--01 ~ 0308--01; VK45DD.AT.F4; ﾎﾞｯｼｭ 1(25.40) |
460111E085 |
US $120.96 |
||
|
46010
|
46010
46010-AR020 Cylinder Assy-Brake Master0101--01 ~ 0308--01; VK45DD.AT.F4; ﾎﾞｯｼｭ 1(25.40) |
46010-AR020 |
US $484.27 |
||
|
46010
|
46010
460111E085 PISTON KIT-TANDEM BRAKE MASTER CYLINDER0101--01 ~ 0308--01; VK45DD.AT.F4; ﾎﾞｯｼｭ 1(25.40) |
460111E085 |
US $120.96 |
||
|
46010K
|
46010K
460111E085 PISTON KIT-TANDEM BRAKE MASTER CYLINDER0101--01 ~ 0308--01; VK45DD.AT.F4; ﾎﾞｯｼｭ 1(25.40) |
460111E085 |
US $120.96 |
||
|
46010K
|
46010K
460111E085 PISTON KIT-TANDEM BRAKE MASTER CYLINDER0101--01 ~ 0308--01; VK45DD.AT.F4; ﾎﾞｯｼｭ 1(25.40) |
460111E085 |
US $120.96 |
||
|
46020
|
46020
460206N000 Cap Assy-Oil Reservoir Tank0101--01 ~ 0308--01; VK45DD.AT.F4; ﾎﾞｯｼｭ |
460206N000 |
US $18.02 |
||
|
46020
|
46020
46020AL500 Cap Assy-Oil Reservoir Tank0308--01 ~ 0311--01; VK45DD; ﾎﾞｯｼｭ |
46020AL500 |
from US $17.71 |
||
|
46032M
|
46032M
460325V200 Screw-Stopper0101--01 ~ 0308--01; VK45DD.AT.F4; ﾎﾞｯｼｭ |
460325V200 |
US $4.30 |
||
|
46037M
|
46037M
46037-5V200 Pin-Spring0101--01 ~ 0308--01; VK45DD.AT.F4; ﾎﾞｯｼｭ |
46037-5V200 |
US $1.52 |
||
|
46045
|
46045
3064421U00 Seal-O Ring, Reservoir Cap0101--01 ~ 0308--01; VK45DD.AT.F4; ﾎﾞｯｼｭ |
3064421U00 |
US $2.91 |
||
|
46045
|
46045
3064421U00 Seal-O Ring, Reservoir Cap0101--01 ~ 0308--01; VK45DD.AT.F4; ﾎﾞｯｼｭ |
3064421U00 |
US $2.91 |
||
|
46048
|
46048
46048-64J21 Indicator Assy-Level0101--01 ~ 0308--01; VK45DD.AT.F4; ﾎﾞｯｼｭ |
46048-64J21 |
US $42.91 |
||
|
46082
|
46082
46082-5V200 Ring-Snap0101--01 ~ 0308--01; VK45DD.AT.F4; ﾎﾞｯｼｭ |
46082-5V200 |
US $1.01 |
||
|
46090
|
46090
46091-AR020 Tank-Oil Reservoir0101--01 ~ 0308--01; VK45DD.AT.F4; ﾎﾞｯｼｭ |
46091-AR020 |
US $58.03 |
||
|
46093
|
46093
46093-5V200 Strainer-Brake Oil0101--01 ~ 0308--01; VK45DD.AT.F4; ﾎﾞｯｼｭ |
46093-5V200 |
US $9.79 |
||
|
