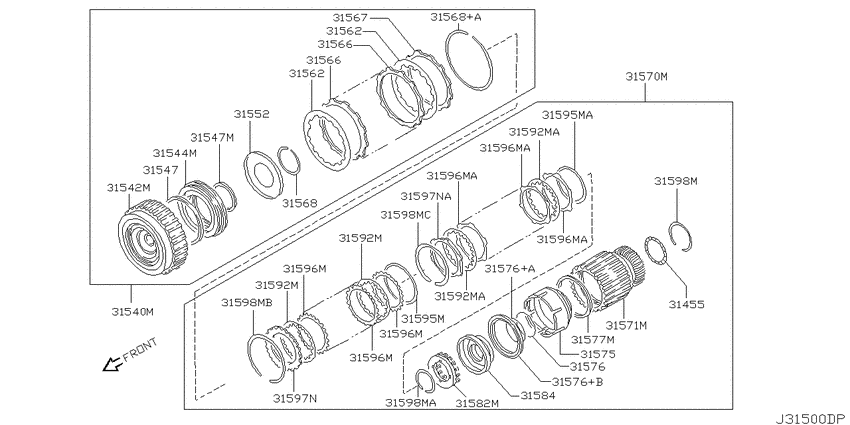

Clutch & band servo (2001-01-01 ~ 2003-11-01; ハイ & フォワードクラッチ; AT.F4) Diagram Nissan CIMA
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- VK45DD
- drive
- 4WD
- transmission
- AT.F4
- grade
- 450X4
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31455
|
31455
31455-41X04 Bearing-Needle, Radial0101--01 ~ 0311--01; AT.F4 |
31455-41X04 |
US $16.42 |
||
|
31540M
|
31540M
31540-51X09 Clutch Assy-High0101--01 ~ 0311--01; AT.F4 |
31540-51X09 |
US $372.41 |
||
|
31542M
|
31542M
31542-51X05 Drum-High Clutch0101--01 ~ 0311--01; AT.F4 |
31542-51X05 |
US $174.24 |
||
|
31544M
|
31544M
31544-51X01 Piston Assy-High Clutch0101--01 ~ 0311--01; AT.F4 |
31544-51X01 |
US $82.80 |
||
|
31547
|
31547
31527-41X08 Seal-Lathe Cut Ring0101--01 ~ 0311--01; AT.F4 |
31527-41X08 |
US $6.19 |
||
|
31547
|
31547
31517-21X00 Seal-Lathe Cut Ring0101--01 ~ 0311--01; AT.F4 |
31517-21X00 |
US $6.77 |
||
|
31547M
|
31547M
31517-21X00 Seal-Lathe Cut Ring0101--01 ~ 0311--01; AT.F4 |
31517-21X00 |
US $6.77 |
||
|
31552
|
31552
31521-51X03 Retainer-Spring0101--01 ~ 0311--01; AT.F4 |
31521-51X03 |
US $8.06 |
||
|
31552
|
31552
31521-51X02 Retainer-Spring0101--01 ~ 0311--01; AT.F4 |
31521-51X02 |
US $4.18 |
||
|
31562
|
31562
31532-51X12 Plate Assy-Drive0101--01 ~ 0311--01; AT.F4 |
31532-51X12 |
US $13.29 |
||
|
31562
|
31562
31532-51X12 Plate Assy-Drive0101--01 ~ 0311--01; AT.F4 |
31532-51X12 |
US $13.29 |
||
|
31566
|
31566
31536-51X00 Plate-Driven0101--01 ~ 0311--01; AT.F4 |
31536-51X00 |
US $12.53 |
||
|
31566
|
31566
31536-51X00 Plate-Driven0101--01 ~ 0311--01; AT.F4 |
31536-51X00 |
US $12.53 |
||
|
31567
|
31567
31537-51X00 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=4.6 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X00 |
US $22.90 |
||
|
31567
|
31567
31537-51X01 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=4.8 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X01 |
US $22.90 |
||
|
31567
|
31567
31537-51X02 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=5.0 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X02 |
US $22.90 |
||
|
31567
|
31567
31537-51X03 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=5.2 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X03 |
US $22.90 |
||
|
31567
|
31567
31537-51X04 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=5.4 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X04 |
US $22.90 |
||
|
31567
|
31567
31537-51X61 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=4.4 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X61 |
US $31.82 |
||
|
31567
|
31567
31537-51X00 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=4.6 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X00 |
US $22.90 |
||
|
31567
|
31567
31537-51X01 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=4.8 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X01 |
US $22.90 |
||
|
31567
|
31567
31537-51X02 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=5.0 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X02 |
US $22.90 |
||
|
31567
|
31567
31537-51X61 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=4.4 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X61 |
US $31.82 |
||
|
31568
|
31568
31506-51X07 Ring-Snap0101--01 ~ 0311--01; AT.F4 |
31506-51X07 |
US $4.18 |
||
|
31568
|
31568
31506-51X02 Ring-Snap0101--01 ~ 0311--01; AT.F4 |
31506-51X02 |
US $6.19 |
||
|
31568
|
31568
31568-21X00 Ring-Snap, Transfer Clutch Drum0101--01 ~ 0308--01; VK45DD.AT.F4 |
31568-21X00 |
US $4.18 |
||
|
31568+A
|
31568+A
31506-51X02 Ring-Snap0101--01 ~ 0311--01; AT.F4 |
31506-51X02 |
US $6.19 |
||
|
31570M
|
31570M
31570-51X24 Clutch Assy-Foward0101--01 ~ 0311--01; AT.F4 |
31570-51X24 |
US $436.13 |
||
|
31571M
|
31571M
31571-51X09 Drum Assy-Foward Clutch0101--01 ~ 0311--01; AT.F4 |
31571-51X09 |
US $297.36 |
||
|
31575
|
31575
31575-51X00 Piston-Foward Clutch0101--01 ~ 0311--01; AT.F4 |
31575-51X00 |
US $24.77 |
||
|
31576
|
31576
31527-41X06 Seal-Lathe Cut Ring0101--01 ~ 0311--01; AT.F4 |
31527-41X06 |
US $4.03 |
||
|
31576
|
31576
31527-41X05 Seal-Lathe Cut Ring0101--01 ~ 0311--01; AT.F4 |
31527-41X05 |
US $4.03 |
||
|
31576
|
31576
31527-51X05
Seal-Lathe Cut Ring
0101--01 ~ 0311--01; AT.F4 |
31527-51X05 |
— | ||
|
31576+A
|
31576+A
31527-41X05 Seal-Lathe Cut Ring0101--01 ~ 0311--01; AT.F4 |
31527-41X05 |
US $4.03 |
||
|
31576+B
|
31576+B
31527-51X05
Seal-Lathe Cut Ring
0101--01 ~ 0311--01; AT.F4 |
31527-51X05 |
— | ||
|
31577M
|
31577M
31528-41X00 Seal-Lip0101--01 ~ 0311--01; AT.F4 |
31528-41X00 |
US $7.92 |
||
|
31582M
|
31582M
31521-51X01 Retainer-Spring, Foward Clutch0101--01 ~ 0311--01; AT.F4 |
31521-51X01 |
US $14.40 |
||
|
31584
|
31584
31584-51X01 Piston Assy-Overrun Clutch0101--01 ~ 0311--01; AT.F4 |
31584-51X01 |
US $24.77 |
||
|
31592M
|
31592M
3153251X01 Plate Assy-Drive, Foward Clutch0101--01 ~ 0311--01; AT.F4 |
3153251X01 |
US $27.58 |
||
|
31592M
|
31592M
31532-51X02 Plate Assy-Drive, Overrun Clutch0101--01 ~ 0311--01; AT.F4 |
31532-51X02 |
US $26.06 |
||
|
31592M
|
31592M
3153251X01 Plate Assy-Drive, Foward Clutch0101--01 ~ 0311--01; AT.F4 |
3153251X01 |
US $27.58 |
||
|
31592M
|
31592M
31532-51X02 Plate Assy-Drive, Overrun Clutch0101--01 ~ 0311--01; AT.F4 |
31532-51X02 |
US $26.06 |
||
|
31592MA
|
31592MA
31532-51X02 Plate Assy-Drive, Overrun Clutch0101--01 ~ 0311--01; AT.F4 |
31532-51X02 |
US $26.06 |
||
|
31592MA
|
31592MA
31532-51X02 Plate Assy-Drive, Overrun Clutch0101--01 ~ 0311--01; AT.F4 |
31532-51X02 |
US $26.06 |
||
|
31595M
|
31595M
31529-51X00 Plate-Dished0101--01 ~ 0311--01; AT.F4 |
31529-51X00 |
US $19.44 |
||
|
31595M
|
31595M
31535-51X02 Plate-Dished0101--01 ~ 0311--01; AT.F4 |
31535-51X02 |
US $7.63 |
||
|
31595MA
|
31595MA
31535-51X02 Plate-Dished0101--01 ~ 0311--01; AT.F4 |
31535-51X02 |
US $7.63 |
||
|
31596M
|
31596M
31536-51X07 Plate-Driven, Foward Clutch0101--01 ~ 0311--01; AT.F4 |
31536-51X07 |
US $5.18 |
||
|
31596M
|
31596M
31536-51X02 Plate-Driven, Overrun Clutch0101--01 ~ 0311--01; AT.F4 |
31536-51X02 |
US $5.18 |
||
|
31596M
|
31596M
31536-51X07 Plate-Driven, Foward Clutch0101--01 ~ 0311--01; AT.F4 |
31536-51X07 |
US $5.18 |
||
|
31596M
|
31596M
31536-51X02 Plate-Driven, Overrun Clutch0101--01 ~ 0311--01; AT.F4 |
31536-51X02 |
US $5.18 |
||
|
31596M
|
31596M
31536-51X07 Plate-Driven, Foward Clutch0101--01 ~ 0311--01; AT.F4 |
31536-51X07 |
US $5.18 |
||
|
31596M
|
31596M
31536-51X02 Plate-Driven, Overrun Clutch0101--01 ~ 0311--01; AT.F4 |
31536-51X02 |
US $5.18 |
||
|
31596MA
|
31596MA
31536-51X02 Plate-Driven, Overrun Clutch0101--01 ~ 0311--01; AT.F4 |
31536-51X02 |
US $5.18 |
||
|
31596MA
|
31596MA
31536-51X02 Plate-Driven, Overrun Clutch0101--01 ~ 0311--01; AT.F4 |
31536-51X02 |
US $5.18 |
||
|
31596MA
|
31596MA
31536-51X02 Plate-Driven, Overrun Clutch0101--01 ~ 0311--01; AT.F4 |
31536-51X02 |
US $5.18 |
||
|
31597N
|
31597N
31537-51X06 Plate-Retaining, Foward Clutch0101--01 ~ 0311--01; AT.F4; T=4.6 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X06 |
US $22.90 |
||
|
31597N
|
31597N
31537-51X07 Plate-Retaining, Foward Clutch0101--01 ~ 0311--01; AT.F4; T=4.8 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X07 |
US $22.90 |
||
|
31597N
|
31597N
31537-51X08 Plate-Retaining, Foward Clutch0101--01 ~ 0311--01; AT.F4; T=5.0 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X08 |
US $22.90 |
||
|
31597N
|
31597N
31537-51X09 Plate-Retaining, Foward Clutch0101--01 ~ 0311--01; AT.F4; T=5.2 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X09 |
US $22.90 |
||
|
31597N
|
31597N
31537-51X10 Plate-Retaining, Foward Clutch0101--01 ~ 0311--01; AT.F4; T=5.4 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X10 |
US $22.90 |
||
|
31597N
|
31597N
31537-51X11 Plate-Retaining, Overrun Clutch0101--01 ~ 0311--01; AT.F4; T=3.8 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X11 |
US $22.90 |
||
|
31597N
|
31597N
31537-51X12 Plate-Retaining, Overrun Clutch0101--01 ~ 0311--01; AT.F4; T=4.0 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X12 |
US $22.90 |
||
|
31597N
|
31597N
31537-51X69 Plate-Retaining, Foward Clutch0101--01 ~ 0311--01; AT.F4; T=5.6 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X69 |
US $22.90 |
||
|
31597N
|
31597N
31537-51X70 Plate-Retaining, Foward Clutch0101--01 ~ 0311--01; AT.F4; T=5.8 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X70 |
US $22.90 |
||
|
31597N
|
31597N
31537-51X13 Plate-Retaining, Overrun Clutch0101--01 ~ 0311--01; AT.F4; T=4.2 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X13 |
US $22.90 |
||
|
31597N
|
31597N
31537-51X14 Plate-Retaining, Overrun Clutch0101--01 ~ 0311--01; AT.F4; T=4.4 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X14 |
US $22.90 |
||
|
31597N
|
31597N
31537-51X15 Plate-Retaining, Overrun Clutch0101--01 ~ 0311--01; AT.F4; T=4.6 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X15 |
US $22.90 |
||
|
31597N
|
31597N
31537-51X64 Plate-Retaining, Overrun Clutch0101--01 ~ 0311--01; AT.F4; T=4.8 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X64 |
US $17.71 |
||
|
31597NA
|
31597NA
31537-51X13 Plate-Retaining, Overrun Clutch0101--01 ~ 0311--01; AT.F4; T=4.2 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X13 |
US $22.90 |
||
|
31597NA
|
31597NA
31537-51X14 Plate-Retaining, Overrun Clutch0101--01 ~ 0311--01; AT.F4; T=4.4 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X14 |
US $22.90 |
||
|
31597NA
|
31597NA
31537-51X15 Plate-Retaining, Overrun Clutch0101--01 ~ 0311--01; AT.F4; T=4.6 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X15 |
US $22.90 |
||
|
31597NA
|
31597NA
31537-51X64 Plate-Retaining, Overrun Clutch0101--01 ~ 0311--01; AT.F4; T=4.8 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X64 |
US $17.71 |
||
|
31598M
|
31598M
31506-41X05 Ring-Snap, Foward Clutch0101--01 ~ 0311--01; AT.F4 |
31506-41X05 |
US $2.45 |
||
|
31598M
|
31598M
31506-51X08 Ring-Snap, Foward Clutch0101--01 ~ 0311--01; AT.F4 |
31506-51X08 |
US $1.73 |
||
|
31598M
|
31598M
31506-51X03 Ring-Snap, Foward Clutch0101--01 ~ 0311--01; AT.F4 |
31506-51X03 |
US $5.33 |
||
|
31598M
|
31598M
31506-51X02 Ring-Snap0101--01 ~ 0311--01; AT.F4 |
31506-51X02 |
US $6.19 |
||
|
31598MA
|
31598MA
31506-51X08 Ring-Snap, Foward Clutch0101--01 ~ 0311--01; AT.F4 |
31506-51X08 |
US $1.73 |
||
|
31598MB
|
31598MB
31506-51X03 Ring-Snap, Foward Clutch0101--01 ~ 0311--01; AT.F4 |
31506-51X03 |
US $5.33 |
||
|
31598MC
|
31598MC
31506-51X02 Ring-Snap0101--01 ~ 0311--01; AT.F4 |
31506-51X02 |
US $6.19 |
