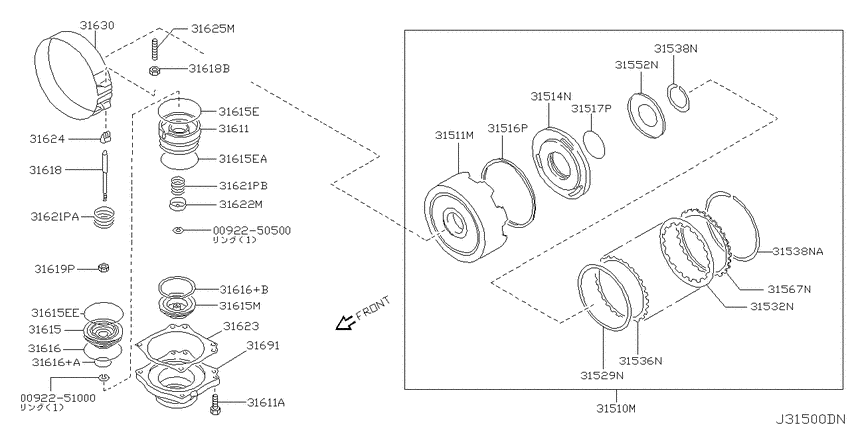

Clutch & band servo (2001-01-01 ~ 2003-11-01; サーボ & リバースクラッチ; AT.F4) Diagram Nissan CIMA
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- VK45DD
- drive
- 4WD
- transmission
- AT.F4
- grade
- 450X4
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250500
|
0092250500
00922-50500
ﾘﾝｸﾞ,ｽﾅﾂﾌﾟ
|
00922-50500 |
— | ||
|
0092251000
|
0092251000
00922-51000
ﾘﾝｸﾞ,ｽﾅﾂﾌﾟ
|
00922-51000 |
— | ||
|
31510M
|
31510M
31510-51X07 Clutch Assy-Reverse0101--01 ~ 0305--01; AT.F4 |
31510-51X07 |
US $298.78 |
||
|
31510M
|
31510M
31510-55X00 Clutch Assy-Reverse0305--01 ~ 0311--01; AT.F4 |
31510-55X00 |
US $298.78 |
||
|
31511M
|
31511M
31511-51X02 Drum-Reverse Clutch0101--01 ~ 0305--01; AT.F4 |
31511-51X02 |
US $158.40 |
||
|
31511M
|
31511M
31511-55X00 Drum-Reverse Clutch0305--01 ~ 0311--01; AT.F4 |
31511-55X00 |
US $158.40 |
||
|
31514N
|
31514N
31514-51X03 Piston Assy-Clutch0101--01 ~ 0311--01; AT.F4 |
31514-51X03 |
US $83.52 |
||
|
31516P
|
31516P
31516-21X01
Seal-Lip
0101--01 ~ 0311--01; AT.F4 |
31516-21X01 |
— | ||
| replacement | |||||
|
31516P
|
31516P
C1516-21X01 Seal-lip0101--01 ~ 0311--01; AT.F4 |
C1516-21X01 |
US $11.79 |
||
|
31517P
|
31517P
31527-51X03 Seal-Lathe Cut Ring0101--01 ~ 0311--01; AT.F4 |
31527-51X03 |
US $4.18 |
||
|
31529N
|
31529N
31535-51X05 Plate-Dished0101--01 ~ 0311--01; AT.F4 |
31535-51X05 |
US $10.80 |
||
|
31532N
|
31532N
31532-51X13 Plate Assy-Drive0101--01 ~ 0311--01; AT.F4 |
31532-51X13 |
US $17.71 |
||
|
31536N
|
31536N
31536-51X00 Plate-Driven0101--01 ~ 0311--01; AT.F4 |
31536-51X00 |
US $12.53 |
||
|
31538N
|
31538N
31506-51X06 Ring-Snap0101--01 ~ 0311--01; AT.F4 |
31506-51X06 |
US $1.73 |
||
|
31538N
|
31538N
31506-51X02 Ring-Snap0101--01 ~ 0311--01; AT.F4 |
31506-51X02 |
US $6.19 |
||
|
31538NA
|
31538NA
31506-51X02 Ring-Snap0101--01 ~ 0311--01; AT.F4 |
31506-51X02 |
US $6.19 |
||
|
31552N
|
31552N
31521-51X02 Retainer-Spring0101--01 ~ 0311--01; AT.F4 |
31521-51X02 |
US $4.18 |
||
|
31567N
|
31567N
31537-51X00 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=4.6 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X00 |
US $22.90 |
||
|
31567N
|
31567N
31537-51X01 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=4.8 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X01 |
US $22.90 |
||
|
31567N
|
31567N
31537-51X02 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=5.0 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X02 |
US $22.90 |
||
|
31567N
|
31567N
31537-51X61 Plate-Retaining0101--01 ~ 0311--01; AT.F4; T=4.4 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31537-51X61 |
US $31.82 |
||
|
31611
|
31611
31611-51X02 Retainer-Servo Piston0101--01 ~ 0311--01; AT.F4 |
31611-51X02 |
US $47.66 |
||
|
31611
|
31611
31377-51X04 Bolt0101--01 ~ 0311--01; AT.F4 |
31377-51X04 |
US $1.73 |
||
|
31611A
|
31611A
31377-51X04 Bolt0101--01 ~ 0311--01; AT.F4 |
31377-51X04 |
US $1.73 |
||
|
31615
|
31615
31615-51X04 Piston-Band Servo0101--01 ~ 0311--01; AT.F4; 2ND ｻｰﾎﾞ |
31615-51X04 |
US $36.86 |
||
|
31615
|
31615
31526-51X02 Seal-Lathe Cut Ring0101--01 ~ 0311--01; AT.F4 |
31526-51X02 |
US $2.45 |
||
|
31615
|
31615
31526-51X01 Seal-O Ring0101--01 ~ 0311--01; AT.F4 |
31526-51X01 |
US $4.18 |
||
|
31615
|
31615
31526-41X02 Seal-O Ring0101--01 ~ 0311--01; AT.F4; 3R |
31526-41X02 |
US $2.36 |
||
|
31615
|
31615
31526-4AX01 Seal-O Ring0101--01 ~ 0311--01; AT.F4; 3R |
31526-4AX01 |
US $2.45 |
||
|
31615
|
31615
31526-48X01 Seal-O Ring0101--01 ~ 0311--01; AT.F4; 2A |
31526-48X01 |
US $2.45 |
||
|
31615
|
31615
31526-51X02 Seal-Lathe Cut Ring0101--01 ~ 0311--01; AT.F4 |
31526-51X02 |
US $2.45 |
||
|
31615
|
31615
31695-51X02 Piston-Overdrive Servo0101--01 ~ 0311--01; AT.F4 |
31695-51X02 |
US $14.40 |
||
|
31615E
|
31615E
31526-51X02 Seal-Lathe Cut Ring0101--01 ~ 0311--01; AT.F4 |
31526-51X02 |
US $2.45 |
||
|
31615E
|
31615E
31526-51X01 Seal-O Ring0101--01 ~ 0311--01; AT.F4 |
31526-51X01 |
US $4.18 |
||
|
31615E
|
31615E
31526-41X02 Seal-O Ring0101--01 ~ 0311--01; AT.F4; 3R |
31526-41X02 |
US $2.36 |
||
|
31615E
|
31615E
31526-4AX01 Seal-O Ring0101--01 ~ 0311--01; AT.F4; 3R |
31526-4AX01 |
US $2.45 |
||
|
31615E
|
31615E
31526-48X01 Seal-O Ring0101--01 ~ 0311--01; AT.F4; 2A |
31526-48X01 |
US $2.45 |
||
|
31615E
|
31615E
31526-51X02 Seal-Lathe Cut Ring0101--01 ~ 0311--01; AT.F4 |
31526-51X02 |
US $2.45 |
||
|
31615EA
|
31615EA
31526-51X01 Seal-O Ring0101--01 ~ 0311--01; AT.F4 |
31526-51X01 |
US $4.18 |
||
|
31615EE
|
31615EE
31526-51X02 Seal-Lathe Cut Ring0101--01 ~ 0311--01; AT.F4 |
31526-51X02 |
US $2.45 |
||
|
31615M
|
31615M
31695-51X02 Piston-Overdrive Servo0101--01 ~ 0311--01; AT.F4 |
31695-51X02 |
US $14.40 |
||
|
31616
|
31616
31527-41X03 Seal-Lathe Cut Ring0101--01 ~ 0311--01; AT.F4 |
31527-41X03 |
US $4.57 |
||
|
31616
|
31616
31527-41X04 Seal-Lathe Cut Ring0101--01 ~ 0311--01; AT.F4 |
31527-41X04 |
US $4.57 |
||
|
31616
|
31616
31527-51X04 Seal-Ring, Overdrive Servo Piston0101--01 ~ 0311--01; AT.F4 |
31527-51X04 |
US $4.18 |
||
|
31616+A
|
31616+A
31527-41X04 Seal-Lathe Cut Ring0101--01 ~ 0311--01; AT.F4 |
31527-41X04 |
US $4.57 |
||
|
31616+B
|
31616+B
31527-51X04 Seal-Ring, Overdrive Servo Piston0101--01 ~ 0311--01; AT.F4 |
31527-51X04 |
US $4.18 |
||
|
31618
|
31618
31618-51X01 Stem-Band Servo Piston0101--01 ~ 0311--01; AT.F4 |
31618-51X01 |
US $9.07 |
||
|
31618
|
31618
31365-41X00 Nut0101--01 ~ 0311--01; AT.F4 |
31365-41X00 |
US $1.73 |
||
|
31618B
|
31618B
31365-41X00 Nut0101--01 ~ 0311--01; AT.F4 |
31365-41X00 |
US $1.73 |
||
|
31619P
|
31619P
31619-01X00 Washer-Piston Stem0101--01 ~ 0311--01; AT.F4 |
31619-01X00 |
US $0.86 |
||
|
31621PA
|
31621PA
31605-41X17 Spring-Servo0101--01 ~ 0311--01; AT.F4; 2ND ｻｰﾎﾞ ｲﾝﾅｰ |
31605-41X17 |
US $4.03 |
||
|
31621PB
|
31621PB
31605-41X01 Spring-Servo0101--01 ~ 0311--01; AT.F4; 4TH ﾘﾀｰﾝ |
31605-41X01 |
US $2.45 |
||
|
31622M
|
31622M
31622-41X00 Retainer-Spring, Servo Piston0101--01 ~ 0311--01; AT.F4; 4TH |
31622-41X00 |
US $1.73 |
||
|
31623
|
31623
31623-51X01 Gasket-Retainer, Servo0101--01 ~ 0311--01; AT.F4; 2ND ｻｰﾎﾞ |
31623-51X01 |
US $5.18 |
||
|
31624
|
31624
31624-41X00 Strut-Band0101--01 ~ 0311--01; AT.F4 |
31624-41X00 |
US $4.18 |
||
|
31625M
|
31625M
31625-41X01 Pin-Anchor End0101--01 ~ 0311--01; AT.F4 |
31625-41X01 |
US $4.03 |
||
|
31630
|
31630
31630-51X05 Band Assy-Brake0101--01 ~ 0311--01; AT.F4 |
31630-51X05 |
US $49.25 |
||
|
31691
|
31691
31691-51X02 Retainer-Piston, Overdrive Servo0101--01 ~ 0311--01; AT.F4 |
31691-51X02 |
US $37.58 |
||
