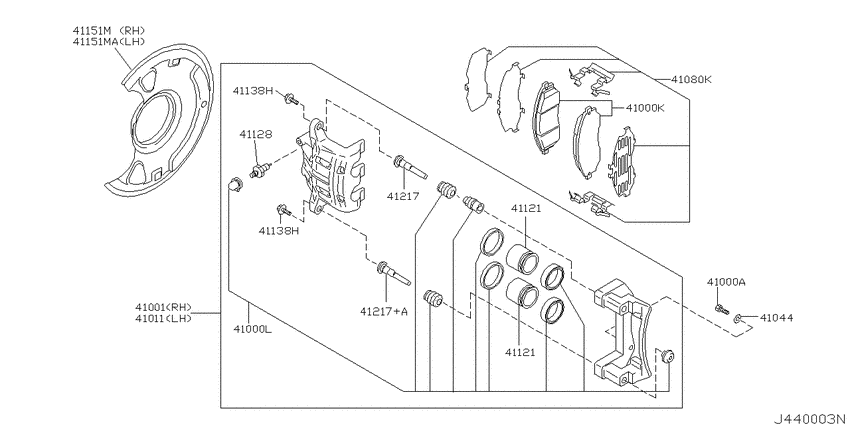

Front brake (2001-01-01 ~ 2003-08-01; VK45DD.AT.F4) Diagram Nissan CIMA
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- VK45DD
- drive
- 4WD
- transmission
- AT.F4
- grade
- 450X4
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41000A
|
41000A
41005-AG010 Bolt0101--01 ~ 0308--01; VK45DD.AT.F4 |
41005-AG010 |
US $3.46 |
||
|
41000K
|
41000K
AY040NS098 Pad Kit-Disc Brake0101--01 ~ 0308--01; VK45DD.AT.F4 |
AY040NS098 |
US $158.40 |
||
|
41000L
|
41000L
AY600NS004 Seal Kit-Disc Brake0101--01 ~ 0308--01; VK45DD.AT.F4 |
AY600NS004 |
US $51.59 |
||
|
41001
|
41001
41001AR000 Caliper Assy-Front Rh, W/o Pads Or Shims0101--01 ~ 0308--01; VK45DD.AT.F4 |
41001AR000 |
US $672.60 |
||
|
41001
|
41001
41001-AS500 Caliper Assy-Front Rh, W/o Pads Or Shims0308--01 ~ 0311--01; VK45DD |
41001-AS500 |
US $672.60 |
||
|
41011
|
41011
41011-AR000 Caliper Assy-Front Lh, W/o Pads Or Shims0101--01 ~ 0308--01; VK45DD.AT.F4 |
41011-AR000 |
US $672.60 |
||
|
41011
|
41011
41011-AS500 Caliper Assy-Front Lh, W/o Pads Or Shims0308--01 ~ 0311--01; VK45DD |
41011-AS500 |
US $672.60 |
||
|
41044
|
41044
41044-6P010 Washer0101--01 ~ 0308--01; VK45DD.AT.F4 |
41044-6P010 |
US $3.46 |
||
|
41080K
|
41080K
41080-AR025 Hardware Kit-Front Disc Brake Pad0101--01 ~ 0308--01; VK45DD.AT.F4 |
41080-AR025 |
US $106.42 |
||
|
41121
|
41121
411210V700 Piston-Cylinder0101--01 ~ 0308--01; VK45DD.AT.F4 |
411210V700 |
US $47.66 |
||
|
41121
|
41121
411210V700 Piston-Cylinder0101--01 ~ 0308--01; VK45DD.AT.F4 |
411210V700 |
US $47.66 |
||
|
41128
|
41128
4112888E01
SCREW-BLEEDER
0101--01 ~ 0308--01; VK45DD.AT.F4 |
4112888E01 |
— | ||
| replacement | |||||
|
41128
|
41128
41128AW70A Screw-Bleeder0101--01 ~ 0308--01; VK45DD.AT.F4 |
41128AW70A |
from US $7.63 |
||
|
41128
|
41128
41128-05U00 Screw-Bleeder0101--01 ~ 0308--01; VK45DD.AT.F4 |
41128-05U00 |
US $6.62 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
0101--01 ~ 0308--01; VK45DD.AT.F4 |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt0101--01 ~ 0308--01; VK45DD.AT.F4 |
44141AW70A |
from US $3.35 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
0101--01 ~ 0308--01; VK45DD.AT.F4 |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt0101--01 ~ 0308--01; VK45DD.AT.F4 |
44141AW70A |
from US $3.35 |
||
|
41151M
|
41151M
41151-AG800 Plate-Baffle0101--01 ~ 0308--01; VK45DD.AT.F4 |
41151-AG800 |
US $36.14 |
||
|
41151M
|
41151M
41151-AG800 Plate-Baffle0101--01 ~ 0308--01; VK45DD.AT.F4 |
41151-AG800 |
US $36.14 |
||
|
41151MA
|
41151MA
41151-AG800 Plate-Baffle0101--01 ~ 0308--01; VK45DD.AT.F4 |
41151-AG800 |
US $36.14 |
||
|
41217
|
41217
441400V700 Pin0101--01 ~ 0308--01; VK45DD.AT.F4 |
441400V700 |
from US $7.63 |
||
|
41217
|
41217
44139-0V700 Pin0101--01 ~ 0308--01; VK45DD.AT.F4 |
44139-0V700 |
US $11.95 |
||
|
41217+A
|
41217+A
44139-0V700 Pin0101--01 ~ 0308--01; VK45DD.AT.F4 |
44139-0V700 |
US $11.95 |
||
