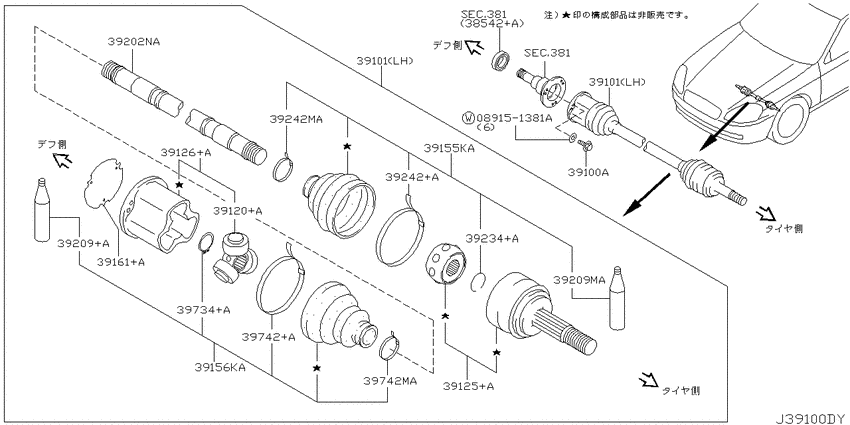

Front drive shaft (ff) (2003-08-01 ~ 2003-11-01; 左側; VK45DD) Diagram Nissan CIMA
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- VK45DD
- drive
- 4WD
- transmission
- AT.F4
- grade
- 450X4
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.57 |
||
|
381
|
Front final drive
381
|
||||
|
381
|
Front final drive
381
|
||||
|
381
|
Front final drive
381
|
||||
|
381
|
Front final drive
381
|
||||
|
381
|
Front final drive
381
|
||||
|
381
|
Front final drive
381
|
||||
|
39100A
|
39100A
39106-50W00
Bolt
0101--01 ~ 0308--01; VK45DD.AT.F4 |
39106-50W00 |
— | ||
| replacement | |||||
|
39100A
|
39100A
3910650W0A Bolt0101--01 ~ 0308--01; VK45DD.AT.F4 |
3910650W0A |
US $2.91 |
||
|
39101
|
39101
39101-AR560 Shaft Assy-Front Drive, Lh0101--01 ~ 0308--01; VK45DD.AT.F4 |
39101-AR560 |
US $1,282.90 |
||
|
39101
|
39101
39101-AR560 Shaft Assy-Front Drive, Lh0101--01 ~ 0308--01; VK45DD.AT.F4 |
39101-AR560 |
US $1,282.90 |
||
|
39120+A
|
39120+A
39720-10V10 Spider Assy-Slide Joint0101--01 ~ 0308--01; VK45DD.AT.F4; ﾏｰｸ 00 ｾﾝﾀｸｼﾃ ｼﾖｳ |
39720-10V10 |
US $78.19 |
||
|
39120+A
|
39120+A
39720-10V11 Spider Assy-Slide Joint0101--01 ~ 0308--01; VK45DD.AT.F4; ﾏｰｸ 01 ｾﾝﾀｸｼﾃ ｼﾖｳ |
39720-10V11 |
US $76.46 |
||
|
39120+A
|
39120+A
39720-10V12 Spider Assy-Slide Joint0101--01 ~ 0308--01; VK45DD.AT.F4; ﾏｰｸ 02 ｾﾝﾀｸｼﾃ ｼﾖｳ |
39720-10V12 |
US $76.46 |
||
|
39125+A
|
39125+A
39211-5P560 Joint Assy-Outer0101--01 ~ 0108--01; VK45DD.AT.F4 |
39211-5P560 |
US $716.50 |
||
|
39125+A
|
39125+A
39211-AG860 Joint Assy-Outer0108--01 ~ 0308--01; VK45DD.AT.F4 |
39211-AG860 |
US $613.13 |
||
|
39126+A
|
39126+A
39711-35F10 Joint Assy-Inner0101--01 ~ 0308--01; VK45DD.AT.F4 |
39711-35F10 |
US $263.36 |
||
|
39155KA
|
39155KA
39241-23U25
Repair Kit-Dust Boot, Outer
0101--01 ~ 0107--01; VK45DD.AT.F4 |
39241-23U25 |
— | ||
| replacement | |||||
|
39155KA
|
39155KA
C9BDA23U2H C9BDA23U2H0101--01 ~ 0107--01; VK45DD.AT.F4 |
C9BDA23U2H |
from US $54 |
||
|
39155KA
|
39155KA
3924123U26 Repair Kit-Dust Boot, Outer0107--01 ~ 0308--01; VK45DD.AT.F4 |
3924123U26 |
from US $61.83 |
||
|
39156KA
|
39156KA
39741-05U86
Repair Kit-Dust B00T, Inner
0101--01 ~ 0308--01; VK45DD.AT.F4 |
39741-05U86 |
— | ||
| replacement | |||||
|
39156KA
|
39156KA
C9GDA-05U8H REPAIR KIT-DUST0101--01 ~ 0308--01; VK45DD.AT.F4 |
C9GDA-05U8H |
from US $54.13 |
||
|
39161+A
|
39161+A
3971530C00 Plug0101--01 ~ 0308--01; VK45DD.AT.F4 |
3971530C00 |
US $6.91 |
||
|
39202NA
|
39202NA
39205-AR580 Shaft-Front Drive, Lh0101--01 ~ 0308--01; VK45DD.AT.F4 |
39205-AR580 |
US $311.52 |
||
|
39209+A
|
39209+A
C97092U620 Grease-Inner0101--01 ~ 0207--01; VK45DD.AT.F4; ﾃﾞﾌ ｻｲﾄﾞ |
C97092U620 |
US $23.33 |
||
|
39209+A
|
39209+A
C9709-77E15 Grease-Inner0207--01 ~ 0308--01; VK45DD.AT.F4; ﾃﾞﾌ ｻｲﾄﾞ |
C9709-77E15 |
US $23.33 |
||
|
39209MA
|
39209MA
C92092U620 Grease-Outer0101--01 ~ 0308--01; VK45DD.AT.F4; ﾀｲﾔ ｻｲﾄﾞ |
C92092U620 |
US $23.33 |
||
|
39234+A
|
39234+A
3923401A00 Circlip-Drive Shaft0101--01 ~ 0308--01; VK45DD.AT.F4 |
3923401A00 |
US $1.01 |
||
|
39242+A
|
39242+A
3924223U00 Band-Boot, Drive Shaft Outer0101--01 ~ 0308--01; VK45DD.AT.F4 |
3924223U00 |
US $5.42 |
||
|
39242MA
|
39242MA
3924223U10 Band-Boot, Drive Shaft0101--01 ~ 0308--01; VK45DD.AT.F4 |
3924223U10 |
US $4.46 |
||
|
39734+A
|
39734+A
3970841W00 Ring-Snap, C0101--01 ~ 0308--01; VK45DD.AT.F4 |
3970841W00 |
US $0.92 |
||
|
39742+A
|
39742+A
3924201E00 BAND-BOOT,DRIVE SHAFT INNER0101--01 ~ 0308--01; VK45DD.AT.F4 |
3924201E00 |
US $4.25 |
||
|
39742MA
|
39742MA
39742W1205 Band-Dust Cover, Shaft0101--01 ~ 0308--01; VK45DD.AT.F4 |
39742W1205 |
US $8.90 |
||
