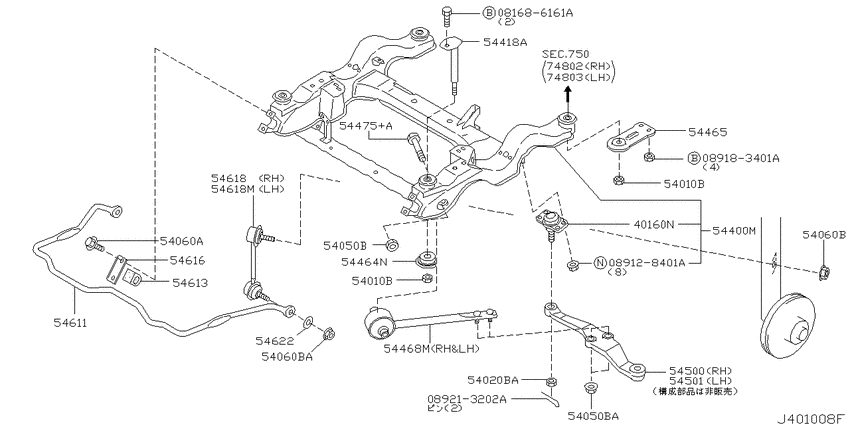

Front suspension (2001-01-01 ~ 2003-08-01; メンバー&スタビライザー; VK45DD.AT.F4) Diagram Nissan CIMA
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- VK45DD
- drive
- 4WD
- transmission
- AT.F4
- grade
- 450X4
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081686161A
|
081686161A
081686161A
Bolt
|
081686161A |
— | ||
|
089128401A
|
089128401A
089128401A NUTHEX |
089128401A |
from US $0.52 |
||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
089213202A
|
089213202A
089213202A PINCOTTER SPLI |
089213202A |
US $2.21 |
||
|
40160N
|
40160N
40160AR510 Joint Assy-Ball, Lower0101--01 ~ 0308--01; VK45DD.AT.F4 |
40160AR510 |
US $120.33 |
||
|
54010B
|
54010B
55269-2Y000 Nut0101--01 ~ 0308--01; VK45DD.AT.F4 |
55269-2Y000 |
US $3.46 |
||
|
54010B
|
54010B
55269-2Y000 Nut0101--01 ~ 0308--01; VK45DD.AT.F4 |
55269-2Y000 |
US $3.46 |
||
|
54020BA
|
54020BA
0121100011 NUT0101--01 ~ 0308--01; VK45DD.AT.F4 |
0121100011 |
US $3.18 |
||
|
54050B
|
54050B
0122300191 NUT0101--01 ~ 0103--01; VK45DD.AT.F4 |
0122300191 |
from US $1.13 |
||
|
54050B
|
54050B
0122300331 NUT0103--01 ~ 0308--01; VK45DD.AT.F4 |
0122300331 |
from US $0.70 |
||
|
54050B
|
54050B
0122300201 NUT0103--01 ~ 0308--01; VK45DD.AT.F4 |
0122300201 |
US $7.34 |
||
|
54050B
|
54050B
0122300281 NUT0101--01 ~ 0103--01; VK45DD.AT.F4 |
0122300281 |
US $2.49 |
||
|
54050BA
|
54050BA
0122300201 NUT0103--01 ~ 0308--01; VK45DD.AT.F4 |
0122300201 |
US $7.34 |
||
|
54050BA
|
54050BA
0122300281 NUT0101--01 ~ 0103--01; VK45DD.AT.F4 |
0122300281 |
US $2.49 |
||
|
54060A
|
54060A
54459AG010 Bolt0101--01 ~ 0308--01; VK45DD.AT.F4 |
54459AG010 |
US $5.04 |
||
|
54060B
|
54060B
54588-AD002
Nut
0101--01 ~ 0308--01; VK45DD.AT.F4 |
54588-AD002 |
— | ||
| replacement | |||||
|
54060B
|
54060B
54588AD00A Nut0101--01 ~ 0308--01; VK45DD.AT.F4 |
54588AD00A |
from US $1.07 |
||
|
54060B
|
54060B
0121100591 NUT0101--01 ~ 0308--01; VK45DD.AT.F4 |
0121100591 |
US $2.45 |
||
|
54060BA
|
54060BA
0121100591 NUT0101--01 ~ 0308--01; VK45DD.AT.F4 |
0121100591 |
US $2.45 |
||
|
54400M
|
54400M
54400-AR500 Member Compl-Front Suspension0101--01 ~ 0308--01; VK45DD.AT.F4 |
54400-AR500 |
US $1,217.76 |
||
|
54418A
|
54418A
54418-AG000 Bolt0101--01 ~ 0308--01; VK45DD.AT.F4 |
54418-AG000 |
US $10.37 |
||
|
54464N
|
54464N
54464-AG800 Stopper-Rebound Front Suspension0101--01 ~ 0308--01; VK45DD.AT.F4 |
54464-AG800 |
US $9.79 |
||
|
54465
|
54465
54465-0P000 Stay-Front Suspension Member0101--01 ~ 0308--01; VK45DD.AT.F4 |
54465-0P000 |
US $17.28 |
||
|
54468M
|
54468M
54468-AR500 Rod Compl-Tension, Front Suspension0101--01 ~ 0308--01; VK45DD.AT.F4 |
54468-AR500 |
US $154.08 |
||
|
54475+A
|
54475+A
54475-0P200 Bolt-Tension Rod0101--01 ~ 0308--01; VK45DD.AT.F4 |
54475-0P200 |
US $5.90 |
||
|
54500
|
54500
54504AR500 Link Compl-Transverse, Rh0101--01 ~ 0308--01; VK45DD.AT.F4 |
54504AR500 |
US $305.86 |
||
|
54501
|
54501
54505AR500 Link Compl-Transverse, Lh0101--01 ~ 0308--01; VK45DD.AT.F4 |
54505AR500 |
US $305.86 |
||
|
54611
|
54611
54611-AR500 Stabilizer-Front0101--01 ~ 0308--01; VK45DD.AT.F4 |
54611-AR500 |
US $393.65 |
||
|
54613
|
54613
546131P119 Bush-Stabilizer0101--01 ~ 0308--01; VK45DD.AT.F4 |
546131P119 |
from US $8.35 |
||
|
54616
|
54616
54616-1P101 Clamp-Stabilizer0101--01 ~ 0308--01; VK45DD.AT.F4 |
54616-1P101 |
US $12.24 |
||
|
54618
|
54618
54618-AR000 Rod Assy-Connecting, Stabilizer0101--01 ~ 0308--01; VK45DD.AT.F4 |
54618-AR000 |
US $52.13 |
||
|
54618
|
54618
54618-AR001 Rod Assy-Connecting, Stabilizer0309--01 ~ 0311--01; VK45DD |
54618-AR001 |
US $68.26 |
||
|
54618
|
54618
54668-AR000 Rod Assy-Connecting, Stabilizer0101--01 ~ 0308--01; VK45DD.AT.F4 |
54668-AR000 |
US $52.13 |
||
|
54618
|
54618
54668-AR001 Rod Assy-Connecting, Stabilizer0309--01 ~ 0311--01; VK45DD |
54668-AR001 |
US $68.26 |
||
|
54618M
|
54618M
54668-AR000 Rod Assy-Connecting, Stabilizer0101--01 ~ 0308--01; VK45DD.AT.F4 |
54668-AR000 |
US $52.13 |
||
|
54618M
|
54618M
54668-AR001 Rod Assy-Connecting, Stabilizer0309--01 ~ 0311--01; VK45DD |
54668-AR001 |
US $68.26 |
||
|
54622
|
54622
54622-0P001 Washer-Special0101--01 ~ 0308--01; VK45DD.AT.F4 |
54622-0P001 |
US $2.45 |
||
|
