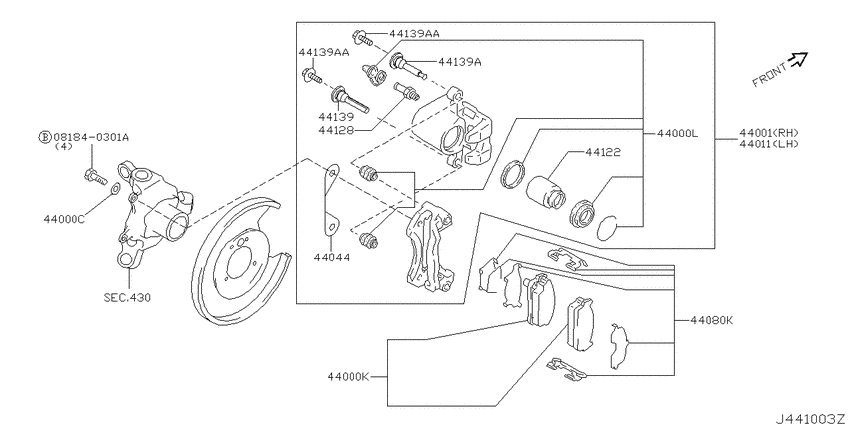

Rear brake (2001-01-01 ~ 2003-08-01; ディスク ﾌﾞﾚｰｷ; VK45DD.AT.F4) Diagram Nissan CIMA
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- VK45DD
- drive
- 4WD
- transmission
- AT.F4
- grade
- 450X4
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081840301A
|
081840301A
081840301A Bolt-hexagon |
081840301A |
from US $0.76 |
||
|
44000C
|
44000C
0131101261 WASHER0101--01 ~ 0308--01; VK45DD.AT.F4 |
0131101261 |
US $3.31 |
||
|
44000C
|
44000C
40256-30P00 Washer0101--01 ~ 0105--01; VK45DD.AT.F4 |
40256-30P00 |
US $3.06 |
||
|
44000K
|
44000K
AY060NS029 Pad Kit-Disc Brake0101--01 ~ 0204--01; VK45DD.AT.F4 |
AY060NS029 |
US $82.23 |
||
|
44000K
|
44000K
AY060NS034 Pad Kit-Disc Brake0204--01 ~ 0308--01; VK45DD.AT.F4 |
AY060NS034 |
US $119.52 |
||
|
44000L
|
44000L
AY620NS030 Seal Kit-Disc Brake0101--01 ~ 0308--01; VK45DD.AT.F4 |
AY620NS030 |
US $88.99 |
||
|
44001
|
44001
44001-AR000 Caliper Assy-Rear Rh, W/o Pads Or Shims0101--01 ~ 0308--01; VK45DD.AT.F4 |
44001-AR000 |
US $535.25 |
||
|
44011
|
44011
44011-AR000 Caliper Assy-Rear Lh, W/o Pads Or Shims0101--01 ~ 0308--01; VK45DD.AT.F4 |
44011-AR000 |
US $535.25 |
||
|
44044
|
44044
44044-AR000 Washer0101--01 ~ 0112--01; VK45DD.AT.F4 |
44044-AR000 |
US $5.47 |
||
|
44080K
|
44080K
44080AG025 Hardware Kit-Rear Disc Brake Pad0101--01 ~ 0308--01; VK45DD.AT.F4 |
44080AG025 |
US $37.01 |
||
|
44122
|
44122
44126-64G00 Piston0101--01 ~ 0308--01; VK45DD.AT.F4 |
44126-64G00 |
US $48.24 |
||
|
44128
|
44128
411288J100 Screw-Bleeder0101--01 ~ 0308--01; VK45DD.AT.F4 |
411288J100 |
from US $6.91 |
||
|
44139
|
44139
44140-5L300 Pin-Slide0101--01 ~ 0308--01; VK45DD.AT.F4 |
44140-5L300 |
US $17.19 |
||
|
44139
|
44139
441415L300 Pin-Slide0101--01 ~ 0308--01; VK45DD.AT.F4 |
441415L300 |
US $17.19 |
||
|
44139
|
44139
411360W700 Pin-Bolt0101--01 ~ 0308--01; VK45DD.AT.F4 |
411360W700 |
from US $4.18 |
||
|
44139A
|
44139A
441415L300 Pin-Slide0101--01 ~ 0308--01; VK45DD.AT.F4 |
441415L300 |
US $17.19 |
||
|
44139A
|
44139A
411360W700 Pin-Bolt0101--01 ~ 0308--01; VK45DD.AT.F4 |
411360W700 |
from US $4.18 |
||
|
44139AA
|
44139AA
411360W700 Pin-Bolt0101--01 ~ 0308--01; VK45DD.AT.F4 |
411360W700 |
from US $4.18 |
||
|
44139AA
|
44139AA
411360W700 Pin-Bolt0101--01 ~ 0308--01; VK45DD.AT.F4 |
411360W700 |
from US $4.18 |
