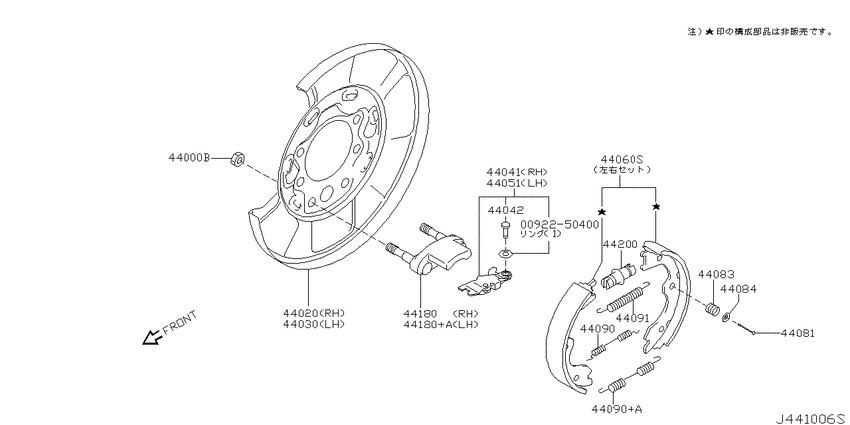

Rear brake (2001-12-01 ~ 2003-08-01; パーキング ブレーキ; VK45DD.AT.F4) Diagram Nissan CIMA
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- VK45DD
- drive
- 4WD
- transmission
- AT.F4
- grade
- 450X4
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250400
|
0092250400
00922-50400 CLAMP-CABLE |
00922-50400 |
US $1.73 |
||
|
44000B
|
44000B
54588-AR000 Nut0105--01 ~ 0308--01; VK45DD.AT.F4 |
54588-AR000 |
US $4.18 |
||
|
44020
|
44020
44020-AR000 Plate Assy-Back, Rear Brake Rh0101--01 ~ 0308--01; VK45DD.AT.F4 |
44020-AR000 |
US $89.14 |
||
|
44030
|
44030
44030-AR000 Plate Assy-Back, Rear Brake Lh0101--01 ~ 0308--01; VK45DD.AT.F4 |
44030-AR000 |
US $89.14 |
||
|
44041
|
44041
44040-AR000 Lever-Toggle, Rh0101--01 ~ 0308--01; VK45DD.AT.F4; ﾐｷﾞ ﾖｳ |
44040-AR000 |
US $55.30 |
||
|
44042
|
44042
44042-0P010 Pin0101--01 ~ 0308--01; VK45DD.AT.F4 |
44042-0P010 |
US $9.22 |
||
|
44051
|
44051
44050-AR000 Lever-Toggle, Lh0101--01 ~ 0308--01; VK45DD.AT.F4; ﾋﾀﾞﾘ ﾖｳ |
44050-AR000 |
US $55.30 |
||
|
44060S
|
44060S
44060-AR025 Shoe Set-Parking Brake0101--01 ~ 0308--01; VK45DD.AT.F4 |
44060-AR025 |
US $167.04 |
||
|
44081
|
44081
44081-AG000 Pin-Anti Shoe Rattle0101--01 ~ 0308--01; VK45DD.AT.F4 |
44081-AG000 |
US $1.44 |
||
|
44083
|
44083
44083-AG001 Spring-Anti Shoe Rattle0101--01 ~ 0308--01; VK45DD.AT.F4 |
44083-AG001 |
US $1.87 |
||
|
44084
|
44084
44084-01A00
Retainer-Spring, Anti Shoe Rattle
0103--01 ~ 0308--01; VK45DD.AT.F4 |
44084-01A00 |
— | ||
| replacement | |||||
|
44084
|
44084
4408401A0A Retainer-Spring, Anti Shoe Rattle0103--01 ~ 0308--01; VK45DD.AT.F4 |
4408401A0A |
from US $1.67 |
||
|
44084
|
44084
44084-AR000 Retainer-Spring, Anti Shoe Rattle0101--01 ~ 0103--01; VK45DD.AT.F4 |
44084-AR000 |
US $1.58 |
||
|
44090
|
44090
44090-AR000 Spring-Return, Rear Brake Shoe0101--01 ~ 0308--01; VK45DD.AT.F4 |
44090-AR000 |
US $5.04 |
||
|
44090
|
44090
44090AR010 Spring-Return, Rear Brake Shoe0101--01 ~ 0308--01; VK45DD.AT.F4 |
44090AR010 |
US $5.47 |
||
|
44090+A
|
44090+A
44090AR010 Spring-Return, Rear Brake Shoe0101--01 ~ 0308--01; VK45DD.AT.F4 |
44090AR010 |
US $5.47 |
||
|
44091
|
44091
44091-AR000 Spring-Return, Rear Brake Shoe0101--01 ~ 0308--01; VK45DD.AT.F4 |
44091-AR000 |
from US $2.64 |
||
|
44180
|
44180
44078-AR000 Block-Anchor0101--01 ~ 0308--01; VK45DD.AT.F4 |
44078-AR000 |
US $44.06 |
||
|
44180
|
44180
44079-AR000 Block-Anchor0101--01 ~ 0308--01; VK45DD.AT.F4 |
44079-AR000 |
US $44.06 |
||
|
44180+A
|
44180+A
44079-AR000 Block-Anchor0101--01 ~ 0308--01; VK45DD.AT.F4 |
44079-AR000 |
US $44.06 |
||
|
44200
|
44200
44200-AR000 Adjuster Assy-Rear Brake0101--01 ~ 0308--01; VK45DD.AT.F4 |
44200-AR000 |
US $20.02 |
||
