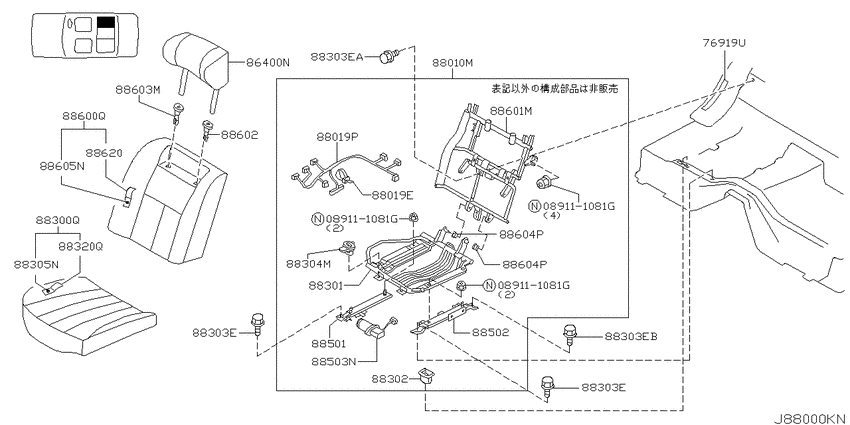

Rear seat (2003-08-01 ~ 2003-11-01; VIPシート RH; S) Diagram Nissan CIMA
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- VK45DD
- drive
- 4WD
- transmission
- AT.F4
- grade
- 450X4
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
76919U
|
76919U
76919-AG000 Magic Fastener0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
76919-AG000 |
US $5.04 |
||
|
86400N
|
86400N
86430-AR000 Headrest Assy-Rear Seat0101--01 ~ 0308--01; S.VQ30DET +S.(450XL+450XV+450X4) |
86430-AR000 |
US $214.56 |
||
|
86400N
|
86400N
86430-AR010 Headrest Assy-Rear Seat0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
86430-AR010 |
US $214.56 |
||
|
86400N
|
86400N
86430-AR600 Headrest Assy-Rear Seat0101--01 ~ 0308--01; "*S.VQ30DET +*S.(450XL+450XV+450X4) |
86430-AR600 |
US $286.56 |
||
|
86400N
|
86400N
86430-AR602 Headrest Assy-Rear Seat0101--01 ~ 0308--01; "*S.VQ30DET +*S.(450XL+450XV+450X4) |
86430-AR602 |
US $286.56 |
||
|
86400N
|
86400N
86430-AR603 Headrest Assy-Rear Seat0101--01 ~ 0308--01; "*S.VQ30DET +*S.(450XL+450XV+450X4) |
86430-AR603 |
US $286.56 |
||
|
86400N
|
86400N
86430-AR610 Headrest Assy-Rear Seat0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
86430-AR610 |
US $286.56 |
||
|
86400N
|
86400N
86430-AR612 Headrest Assy-Rear Seat0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
86430-AR612 |
US $286.56 |
||
|
86400N
|
86400N
86430-AR613 Headrest Assy-Rear Seat0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
86430-AR613 |
US $286.56 |
||
|
86400N
|
86400N
86460-AR000 Headrest Assy-Rear Seat0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
86460-AR000 |
US $214.56 |
||
|
86400N
|
86400N
86460-AR400 Headrest Assy-Rear Seat0101--01 ~ 0112--01; *S.450X4 |
86460-AR400 |
US $286.56 |
||
|
86400N
|
86400N
86460-AR402 Headrest Assy-Rear Seat0101--01 ~ 0112--01; *S.450X4 |
86460-AR402 |
US $286.56 |
||
|
86400N
|
86400N
86460-AR403 Headrest Assy-Rear Seat0101--01 ~ 0112--01; *S.450X4 |
86460-AR403 |
US $286.56 |
||
|
88010M
|
88010M
88010-AR010 Frame & Power Unit-Rear Seat, Rh0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
88010-AR010 |
US $1,139.88 |
||
|
88019P
|
88019P
88019-AR010 Harness Assy-Rear, Rh0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
88019-AR010 |
US $66.67 |
||
|
88300Q
|
88300Q
88300-AR010 Cushion Assy-Rear Seat, Rh0101--01 ~ 0112--01; *S.(450XL+450XV+450X4); [D105] |
88300-AR010 |
US $2,184 |
||
|
88300Q
|
88300Q
88300-AR410 Cushion Assy-Rear Seat, Rh0101--01 ~ 0112--01; *S.(450XL+450XV+450X4); [D105] |
88300-AR410 |
US $2,856 |
||
|
88300Q
|
88300Q
88300-AR412 Cushion Assy-Rear Seat, Rh0101--01 ~ 0112--01; *S.(450XL+450XV+450X4); [D105] |
88300-AR412 |
US $2,856 |
||
|
88300Q
|
88300Q
88300-AR413 Cushion Assy-Rear Seat, Rh0101--01 ~ 0112--01; *S.(450XL+450XV+450X4); [D105] |
88300-AR413 |
US $2,856 |
||
|
88301
|
88301
88301-AG520 Frame Assy-Rear Seat Cushion0101--01 ~ 0112--01; *S.450X4 |
88301-AG520 |
US $397.90 |
||
|
88302
|
88302
883021P360 Bar Assy-Guard, Rear Seat Cushion0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
883021P360 |
US $2.02 |
||
|
88302
|
88302
883021P360 Bar Assy-Guard, Rear Seat Cushion0101--01 ~ 0112--01; *S.450X4 |
883021P360 |
US $2.02 |
||
|
88303E
|
88303E
0112107251 BOLT0112--01 ~ 0308--01; S.VQ30DET +S.(450XL+450XV+450X4) |
0112107251 |
from US $1.18 |
||
|
88303E
|
88303E
0112501591
BOLT
0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
0112501591 |
— | ||
|
88303E
|
88303E
88709-0P000 Bolt-Special0101--01 ~ 0308--01; *S.(450XV+450X4) |
88709-0P000 |
US $3.46 |
||
|
88303E
|
88303E
01125-00931 SCREW0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
01125-00931 |
US $2.45 |
||
|
88303E
|
88303E
87850-0P000 Bolt0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
87850-0P000 |
US $3.46 |
||
|
88303E
|
88303E
88709-0P000 Bolt-Special0308--01 ~ 0311--01; *S.450X4 |
88709-0P000 |
US $3.46 |
||
|
88303E
|
88303E
0112107251 BOLT0112--01 ~ 0308--01; S.VQ30DET +S.(450XL+450XV+450X4) |
0112107251 |
from US $1.18 |
||
|
88303E
|
88303E
0112501591
BOLT
0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
0112501591 |
— | ||
|
88303E
|
88303E
88709-0P000 Bolt-Special0101--01 ~ 0308--01; *S.(450XV+450X4) |
88709-0P000 |
US $3.46 |
||
|
88303E
|
88303E
01125-00931 SCREW0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
01125-00931 |
US $2.45 |
||
|
88303E
|
88303E
87850-0P000 Bolt0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
87850-0P000 |
US $3.46 |
||
|
88303E
|
88303E
88709-0P000 Bolt-Special0308--01 ~ 0311--01; *S.450X4 |
88709-0P000 |
US $3.46 |
||
|
88303EA
|
88303EA
01125-00931 SCREW0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
01125-00931 |
US $2.45 |
||
|
88303EB
|
88303EB
87850-0P000 Bolt0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
87850-0P000 |
US $3.46 |
||
|
88304M
|
88304M
8830450Y00 Hook-Cushion, Rear Seat0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
8830450Y00 |
US $2.64 |
||
|
88304M
|
88304M
8830450Y00 Hook-Cushion, Rear Seat0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
8830450Y00 |
US $2.64 |
||
|
88501
|
88501
88501-AG520 Slide-Rh Seat, Outside0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
88501-AG520 |
US $83.81 |
||
|
88502
|
88502
88502-AG520 Slide-Rh Seat, Inside0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
88502-AG520 |
US $119.38 |
||
|
88503N
|
88503N
88503-AG520 Motor & Unit Assy-Rear Seat, Rh0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
88503-AG520 |
US $303.02 |
||
|
88600Q
|
88600Q
88600-AR080 Back Assy-Rear Seat, Rh0101--01 ~ 0112--01; *S.(450XL+450XV+450X4); [D105] |
88600-AR080 |
US $2,184 |
||
|
88600Q
|
88600Q
88600-AR480 Back Assy-Rear Seat, Rh0101--01 ~ 0112--01; *S.(450XL+450XV+450X4); [D105] |
88600-AR480 |
US $2,856 |
||
|
88600Q
|
88600Q
88600-AR482 Back Assy-Rear Seat, Rh0101--01 ~ 0112--01; *S.(450XL+450XV+450X4); [D105] |
88600-AR482 |
US $2,856 |
||
|
88600Q
|
88600Q
88600-AR483 Back Assy-Rear Seat, Rh0101--01 ~ 0112--01; *S.(450XL+450XV+450X4); [D105] |
88600-AR483 |
US $2,856 |
||
|
88601M
|
88601M
88601-AG520 Frame Assy-Rear Seat Back, Rh0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
88601-AG520 |
US $359.66 |
||
|
88602
|
88602
876022J000 Holder Assy-Headrest, Lock0101--01 ~ 0112--01; *S.(450XV+450X4) |
876022J000 |
from US $4.03 |
||
|
88602
|
88602
87602-3W502 Holder-Head Rest Lock0101--01 ~ 0112--01; *S.(450XV+450X4) |
87602-3W502 |
US $4.18 |
||
|
88602
|
88602
87602AR012 Holder Assy-Headrest, Lock0101--01 ~ 0112--01; *S.(450XV+450X4) |
87602AR012 |
US $4.03 |
||
|
88603M
|
88603M
87603-3W502 Holder-Head Rest Free0101--01 ~ 0112--01; *S.450X4 |
87603-3W502 |
US $4.18 |
||
|
88603M
|
88603M
8760365F00 Holder Assy-Headrest, Free0101--01 ~ 0112--01; *S.(450XV+450X4) |
8760365F00 |
from US $4.18 |
||
|
88603M
|
88603M
87603AR012 Holder Assy-Headrest, Free0101--01 ~ 0112--01; *S.(450XV+450X4) |
87603AR012 |
US $4.03 |
||
|
88604P
|
88604P
87614-K0100 Bush-Rear Seat0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
87614-K0100 |
US $1.73 |
||
|
88604P
|
88604P
87614-K0100 Bush-Rear Seat0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
87614-K0100 |
US $1.73 |
||
|
88620
|
88620
88620-AR040 Trim Assy-Rear Seat Back0101--01 ~ 0112--01; S.VQ30DET +S.(450XL+450XV+450X4); [D105] |
88620-AR040 |
US $1,638 |
||
|
88620
|
88620
88620-AR440 Trim Assy-Rear Seat Back0101--01 ~ 0112--01; *S.(450XV+450X4); [D105] |
88620-AR440 |
US $2,548 |
||
|
88620
|
88620
88620-AR442 Trim Assy-Rear Seat Back0101--01 ~ 0112--01; *S.(450XV+450X4); [D105] |
88620-AR442 |
US $2,548 |
||
|
88620
|
88620
88620-AR443 Trim Assy-Rear Seat Back0101--01 ~ 0112--01; *S.(450XV+450X4); [D105] |
88620-AR443 |
US $2,548 |
