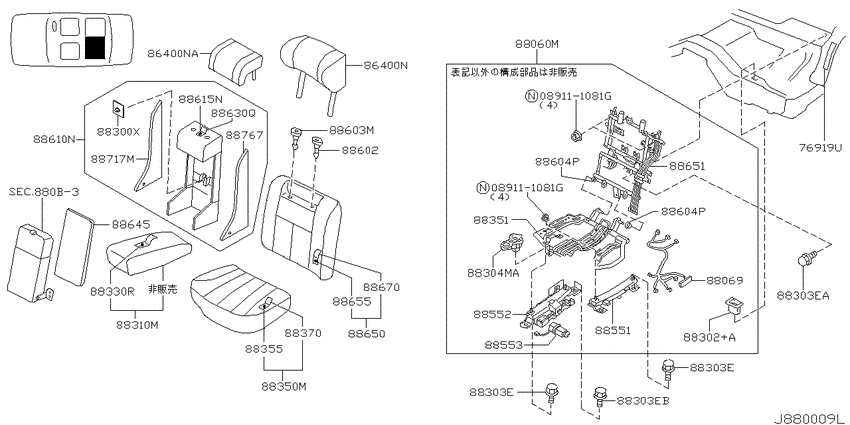

Rear seat (2001-01-01 ~ 2001-12-01; コンフォート シート LH; *S.(450XL+450XV+450X4)) Diagram Nissan CIMA
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- VK45DD
- drive
- 4WD
- transmission
- AT.F4
- grade
- 450X4
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
089111081G
|
089111081G
089111081G NUTHEX |
089111081G |
from US $0.48 |
||
|
76919U
|
76919U
76919-AG000 Magic Fastener0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
76919-AG000 |
US $5.04 |
||
|
86400N
|
86400N
86430-AR000 Headrest Assy-Rear Seat0101--01 ~ 0308--01; S.VQ30DET +S.(450XL+450XV+450X4) |
86430-AR000 |
US $214.56 |
||
|
86400N
|
86400N
86430-AR010 Headrest Assy-Rear Seat0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
86430-AR010 |
US $214.56 |
||
|
86400N
|
86400N
86430-AR600 Headrest Assy-Rear Seat0101--01 ~ 0308--01; "*S.VQ30DET +*S.(450XL+450XV+450X4) |
86430-AR600 |
US $286.56 |
||
|
86400N
|
86400N
86430-AR602 Headrest Assy-Rear Seat0101--01 ~ 0308--01; "*S.VQ30DET +*S.(450XL+450XV+450X4) |
86430-AR602 |
US $286.56 |
||
|
86400N
|
86400N
86430-AR603 Headrest Assy-Rear Seat0101--01 ~ 0308--01; "*S.VQ30DET +*S.(450XL+450XV+450X4) |
86430-AR603 |
US $286.56 |
||
|
86400N
|
86400N
86430-AR610 Headrest Assy-Rear Seat0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
86430-AR610 |
US $286.56 |
||
|
86400N
|
86400N
86430-AR612 Headrest Assy-Rear Seat0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
86430-AR612 |
US $286.56 |
||
|
86400N
|
86400N
86430-AR613 Headrest Assy-Rear Seat0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
86430-AR613 |
US $286.56 |
||
|
86400N
|
86400N
86460-AR000 Headrest Assy-Rear Seat0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
86460-AR000 |
US $214.56 |
||
|
86400N
|
86400N
86460-AR400 Headrest Assy-Rear Seat0101--01 ~ 0112--01; *S.450X4 |
86460-AR400 |
US $286.56 |
||
|
86400N
|
86400N
86460-AR402 Headrest Assy-Rear Seat0101--01 ~ 0112--01; *S.450X4 |
86460-AR402 |
US $286.56 |
||
|
86400N
|
86400N
86460-AR403 Headrest Assy-Rear Seat0101--01 ~ 0112--01; *S.450X4 |
86460-AR403 |
US $286.56 |
||
|
86400NA
|
86400NA
86460-AR000 Headrest Assy-Rear Seat0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
86460-AR000 |
US $214.56 |
||
|
86400NA
|
86400NA
86460-AR400 Headrest Assy-Rear Seat0101--01 ~ 0112--01; *S.450X4 |
86460-AR400 |
US $286.56 |
||
|
86400NA
|
86400NA
86460-AR402 Headrest Assy-Rear Seat0101--01 ~ 0112--01; *S.450X4 |
86460-AR402 |
US $286.56 |
||
|
86400NA
|
86400NA
86460-AR403 Headrest Assy-Rear Seat0101--01 ~ 0112--01; *S.450X4 |
86460-AR403 |
US $286.56 |
||
|
88060M
|
88060M
88060-AR010 Frame & Power Unit-Rear Seat, Lh0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
88060-AR010 |
US $1,359.36 |
||
|
88069
|
88069
88069-AR010 Harness Assy-Rear, Lh0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
88069-AR010 |
US $66.67 |
||
|
88300X
|
88300X
76988-10V10 Clip-Trim0101--01 ~ 0308--01; S.VQ30DET +S.(450XL+450XV+450X4) |
76988-10V10 |
US $1.73 |
||
|
88302+A
|
88302+A
883021P360 Bar Assy-Guard, Rear Seat Cushion0101--01 ~ 0112--01; *S.450X4 |
883021P360 |
US $2.02 |
||
|
88303E
|
88303E
0112107251 BOLT0112--01 ~ 0308--01; S.VQ30DET +S.(450XL+450XV+450X4) |
0112107251 |
from US $1.18 |
||
|
88303E
|
88303E
0112501591
BOLT
0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
0112501591 |
— | ||
|
88303E
|
88303E
88709-0P000 Bolt-Special0101--01 ~ 0308--01; *S.(450XV+450X4) |
88709-0P000 |
US $3.46 |
||
|
88303E
|
88303E
01125-00931 SCREW0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
01125-00931 |
US $2.45 |
||
|
88303E
|
88303E
87850-0P000 Bolt0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
87850-0P000 |
US $3.46 |
||
|
88303E
|
88303E
88709-0P000 Bolt-Special0308--01 ~ 0311--01; *S.450X4 |
88709-0P000 |
US $3.46 |
||
|
88303E
|
88303E
0112107251 BOLT0112--01 ~ 0308--01; S.VQ30DET +S.(450XL+450XV+450X4) |
0112107251 |
from US $1.18 |
||
|
88303E
|
88303E
0112501591
BOLT
0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
0112501591 |
— | ||
|
88303E
|
88303E
88709-0P000 Bolt-Special0101--01 ~ 0308--01; *S.(450XV+450X4) |
88709-0P000 |
US $3.46 |
||
|
88303E
|
88303E
01125-00931 SCREW0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
01125-00931 |
US $2.45 |
||
|
88303E
|
88303E
87850-0P000 Bolt0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
87850-0P000 |
US $3.46 |
||
|
88303E
|
88303E
88709-0P000 Bolt-Special0308--01 ~ 0311--01; *S.450X4 |
88709-0P000 |
US $3.46 |
||
|
88303EA
|
88303EA
01125-00931 SCREW0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
01125-00931 |
US $2.45 |
||
|
88303EB
|
88303EB
87850-0P000 Bolt0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
87850-0P000 |
US $3.46 |
||
|
88304MA
|
88304MA
8830450Y00 Hook-Cushion, Rear Seat0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
8830450Y00 |
US $2.64 |
||
|
88310M
|
88310M
88310-AR010 Cushion Assy-Rear Seat Center0101--01 ~ 0112--01; *S.(450XL+450XV+450X4); [D105] |
88310-AR010 |
US $1,104.48 |
||
|
88310M
|
88310M
88310-AR410 Cushion Assy-Rear Seat Center0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
88310-AR410 |
US $1,428 |
||
|
88310M
|
88310M
88310-AR412 Cushion Assy-Rear Seat Center0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
88310-AR412 |
US $1,428 |
||
|
88310M
|
88310M
88310-AR413 Cushion Assy-Rear Seat Center0101--01 ~ 0112--01; *S.(450XL+450XV+450X4); [D105] |
88310-AR413 |
US $1,428 |
||
|
88350M
|
88350M
88350-AR010 Cushion Assy-Rear Seat, Lh0101--01 ~ 0112--01; *S.(450XL+450XV+450X4); [D105] |
88350-AR010 |
US $2,184 |
||
|
88350M
|
88350M
88350-AR410 Cushion Assy-Rear Seat, Lh0101--01 ~ 0112--01; *S.(450XL+450XV+450X4); [D105] |
88350-AR410 |
US $2,856 |
||
|
88350M
|
88350M
88350-AR412 Cushion Assy-Rear Seat, Lh0101--01 ~ 0112--01; *S.(450XL+450XV+450X4); [D105] |
88350-AR412 |
US $2,856 |
||
|
88350M
|
88350M
88350-AR413 Cushion Assy-Rear Seat, Lh0101--01 ~ 0112--01; *S.(450XL+450XV+450X4); [D105] |
88350-AR413 |
US $2,856 |
||
|
88351
|
88351
88351-AG520 Frame Assy-Rear Seat Cushion, Lh0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
88351-AG520 |
US $397.90 |
||
|
88551
|
88551
88551-AG520 Slide-Lh Seat, Outside0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
88551-AG520 |
US $91.44 |
||
|
88552
|
88552
88552-AG520 Slide-Lh Seat, Inside0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
88552-AG520 |
US $119.38 |
||
|
88553
|
88553
88553-AG520 Motor & Unit Assy-Rear Seat, Lh0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
88553-AG520 |
US $331.34 |
||
|
88602
|
88602
876022J000 Holder Assy-Headrest, Lock0101--01 ~ 0112--01; *S.(450XV+450X4) |
876022J000 |
from US $4.03 |
||
|
88602
|
88602
87602-3W502 Holder-Head Rest Lock0101--01 ~ 0112--01; *S.(450XV+450X4) |
87602-3W502 |
US $4.18 |
||
|
88602
|
88602
87602AR012 Holder Assy-Headrest, Lock0101--01 ~ 0112--01; *S.(450XV+450X4) |
87602AR012 |
US $4.03 |
||
|
88603M
|
88603M
87603-3W502 Holder-Head Rest Free0101--01 ~ 0112--01; *S.450X4 |
87603-3W502 |
US $4.18 |
||
|
88603M
|
88603M
8760365F00 Holder Assy-Headrest, Free0101--01 ~ 0112--01; *S.(450XV+450X4) |
8760365F00 |
from US $4.18 |
||
|
88603M
|
88603M
87603AR012 Holder Assy-Headrest, Free0101--01 ~ 0112--01; *S.(450XV+450X4) |
87603AR012 |
US $4.03 |
||
|
88604P
|
88604P
87614-K0100 Bush-Rear Seat0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
87614-K0100 |
US $1.73 |
||
|
88604P
|
88604P
87614-K0100 Bush-Rear Seat0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
87614-K0100 |
US $1.73 |
||
|
88610N
|
88610N
88610-AR080 Back Assy-Rear Seat, Center0101--01 ~ 0112--01; *S.(450XL+450XV+450X4); [D105] |
88610-AR080 |
US $1,104.48 |
||
|
88610N
|
88610N
88610-AR480 Back Assy-Rear Seat, Center0101--01 ~ 0112--01; *S.(450XL+450XV+450X4); [D105] |
88610-AR480 |
US $1,428 |
||
|
88610N
|
88610N
88610-AR482 Back Assy-Rear Seat, Center0101--01 ~ 0112--01; *S.(450XL+450XV+450X4); [D105] |
88610-AR482 |
US $1,428 |
||
|
88610N
|
88610N
88610-AR483 Back Assy-Rear Seat, Center0101--01 ~ 0112--01; *S.(450XL+450XV+450X4); [D105] |
88610-AR483 |
US $1,428 |
||
|
88645
|
88645
88716-AR040 Board-Rear Seat Back0101--01 ~ 0112--01; S.VQ30DET +S.(450XL+450XV+450X4) |
88716-AR040 |
US $93.89 |
||
|
88645
|
88645
88716-AR080 Board-Rear Seat Back0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
88716-AR080 |
US $93.89 |
||
|
88645
|
88645
88716-AR442 Board-Rear Seat Back0101--01 ~ 0308--01; "*S.VQ30DET +*S.(450XL+450XV+450X4) |
88716-AR442 |
US $116.93 |
||
|
88645
|
88645
88716-AR482 Board-Rear Seat Back0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
88716-AR482 |
US $152.64 |
||
|
88645
|
88645
88716-AR600 Board-Rear Seat Back0101--01 ~ 0308--01; "*S.VQ30DET +*S.(450XL+450XV+450X4) |
88716-AR600 |
US $140.26 |
||
|
88645
|
88645
88716-AR603 Board-Rear Seat Back0101--01 ~ 0308--01; "*S.VQ30DET +*S.(450XL+450XV+450X4) |
88716-AR603 |
US $116.93 |
||
|
88645
|
88645
88716-AR680 Board-Rear Seat Back0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
88716-AR680 |
US $140.26 |
||
|
88645
|
88645
88716-AR683 Board-Rear Seat Back0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
88716-AR683 |
US $116.93 |
||
|
88650
|
88650
88650-AR010 Back Assy-Rear Seat, Lh0101--01 ~ 0112--01; *S.(450XL+450XV+450X4); [D105] |
88650-AR010 |
US $2,184 |
||
|
88650
|
88650
88650-AR410 Back Assy-Rear Seat, Lh0101--01 ~ 0112--01; *S.(450XL+450XV+450X4); [D105] |
88650-AR410 |
US $2,856 |
||
|
88650
|
88650
88650-AR412 Back Assy-Rear Seat, Lh0101--01 ~ 0112--01; *S.(450XL+450XV+450X4); [D105] |
88650-AR412 |
US $2,856 |
||
|
88650
|
88650
88650-AR413 Back Assy-Rear Seat, Lh0101--01 ~ 0112--01; *S.(450XL+450XV+450X4); [D105] |
88650-AR413 |
US $2,856 |
||
|
88651
|
88651
88651-AG520 Frame Assy-Rear Seat Back, Lh0101--01 ~ 0112--01; *S.(450XL+450XV+450X4) |
88651-AG520 |
US $433.30 |
