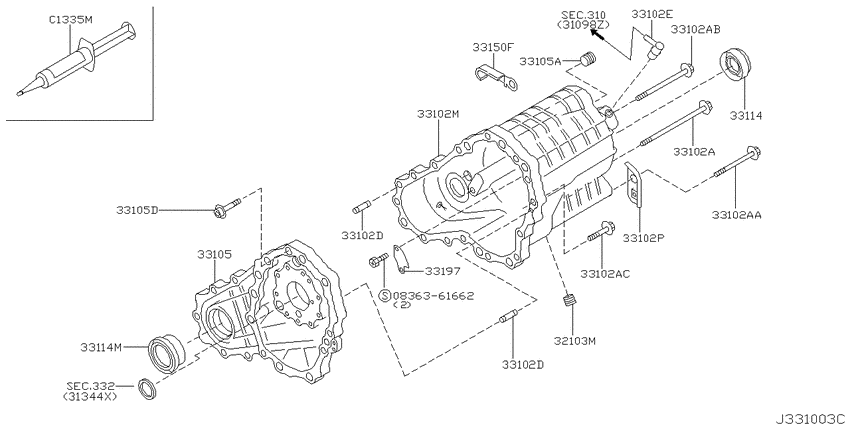

Transfer case (2001-12-01 ~ 2003-08-01; VQ30DET +VK45DD) Diagram Nissan CIMA
- Year
- 2001 - 2003
- Sales region
- Japan
- Engine
- VK45DD
- drive
- 4WD
- transmission
- AT.F4
- grade
- 450X4
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0836361662
|
0836361662
08363-61662
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-61662 |
— | ||
|
310
|
Auto transmission,transaxle & fitting
310
|
||||
|
310
|
Auto transmission,transaxle & fitting
310
|
||||
|
310
|
Auto transmission,transaxle & fitting
310
|
||||
|
32103M
|
32103M
32103-01A01
Plug-Drain
0101--01 ~ 0308--01; VK45DD.AT.F4 |
32103-01A01 |
— | ||
| replacements | |||||
|
32103M
|
32103M
3210301A0A
Plug-Drain
0101--01 ~ 0308--01; VK45DD.AT.F4 |
3210301A0A |
— | ||
|
32103M
|
32103M
32103-01A02 Plug-Drain0101--01 ~ 0308--01; VK45DD.AT.F4 |
32103-01A02 |
US $6.79 |
||
|
33102A
|
33102A
33201-23U00 Bolt0101--01 ~ 0112--01; VK45DD.AT.F4 |
33201-23U00 |
US $2.45 |
||
|
33102A
|
33102A
33201-23U04 Bolt0112--01 ~ 0308--01; VK45DD.AT.F4 |
33201-23U04 |
US $2.45 |
||
|
33102A
|
33102A
33201-23U01 Bolt0101--01 ~ 0308--01; VK45DD.AT.F4 |
33201-23U01 |
US $2.45 |
||
|
33102A
|
33102A
33201-23U03 Bolt0101--01 ~ 0308--01; VK45DD.AT.F4 |
33201-23U03 |
US $2.45 |
||
|
33102A
|
33102A
33201-23U00 Bolt0112--01 ~ 0308--01; VK45DD.AT.F4 |
33201-23U00 |
US $2.45 |
||
|
33102AA
|
33102AA
33201-23U01 Bolt0101--01 ~ 0308--01; VK45DD.AT.F4 |
33201-23U01 |
US $2.45 |
||
|
33102AB
|
33102AB
33201-23U03 Bolt0101--01 ~ 0308--01; VK45DD.AT.F4 |
33201-23U03 |
US $2.45 |
||
|
33102AC
|
33102AC
33201-23U00 Bolt0112--01 ~ 0308--01; VK45DD.AT.F4 |
33201-23U00 |
US $2.45 |
||
|
33102D
|
33102D
04651-0818P Pin-Dowel0101--01 ~ 0308--01; VK45DD.AT.F4 |
04651-0818P |
US $2.45 |
||
|
33102D
|
33102D
04651-0818P Pin-Dowel0101--01 ~ 0308--01; VK45DD.AT.F4 |
04651-0818P |
US $2.45 |
||
|
33102E
|
33102E
38322-23U00 Breather0101--01 ~ 0308--01; VK45DD.AT.F4 |
38322-23U00 |
US $10.80 |
||
|
33102M
|
33102M
33103-AR510 Case-Transfer, Rear0101--01 ~ 0308--01; VK45DD.AT.F4 |
33103-AR510 |
US $430.46 |
||
|
33102P
|
33102P
34939-5P510 Clip-Bracket, Control Cable0101--01 ~ 0308--01; VK45DD.AT.F4 |
34939-5P510 |
US $20.45 |
||
|
33105
|
33105
33107-23U10 Case-Transfer, Front0101--01 ~ 0308--01; VK45DD.AT.F4 |
33107-23U10 |
US $327.10 |
||
|
33105
|
33105
33312-23U00 Plug0101--01 ~ 0308--01; VK45DD.AT.F4 |
33312-23U00 |
US $1.73 |
||
| replacement | |||||
|
33105
|
33105
3331223U0A Plug0101--01 ~ 0308--01; VK45DD.AT.F4 |
3331223U0A |
US $1.73 |
||
|
33105
|
33105
33159-05U10 Screw0101--01 ~ 0308--01; VK45DD.AT.F4 |
33159-05U10 |
US $3.46 |
||
|
33105A
|
33105A
33312-23U00 Plug0101--01 ~ 0308--01; VK45DD.AT.F4 |
33312-23U00 |
US $1.73 |
||
| replacement | |||||
|
33105A
|
33105A
3331223U0A Plug0101--01 ~ 0308--01; VK45DD.AT.F4 |
3331223U0A |
US $1.73 |
||
|
33105D
|
33105D
33159-05U10 Screw0101--01 ~ 0308--01; VK45DD.AT.F4 |
33159-05U10 |
US $3.46 |
||
|
33114
|
33114
3314005U00
Seal-Oil, Transfer Case
0101--01 ~ 0308--01; VK45DD.AT.F4 |
3314005U00 |
— | ||
| replacement | |||||
|
33114
|
33114
33140-AT31A Seal-Oil, Transfer Case0101--01 ~ 0308--01; VK45DD.AT.F4 |
33140-AT31A |
from US $19.22 |
||
|
33114
|
33114
3321605U00
Seal-Oil, Transfer Case
0101--01 ~ 0308--01; VK45DD.AT.F4 |
3321605U00 |
— | ||
| replacement | |||||
|
33114
|
33114
33216-CG01A Seal-Oil, Transfer Case0101--01 ~ 0308--01; VK45DD.AT.F4 |
33216-CG01A |
from US $12.33 |
||
|
33114M
|
33114M
3321605U00
Seal-Oil, Transfer Case
0101--01 ~ 0308--01; VK45DD.AT.F4 |
3321605U00 |
— | ||
| replacement | |||||
|
33114M
|
33114M
33216-CG01A Seal-Oil, Transfer Case0101--01 ~ 0308--01; VK45DD.AT.F4 |
33216-CG01A |
from US $12.33 |
||
|
33150F
|
33150F
24213-1P400 Clip0101--01 ~ 0308--01; VK45DD.AT.F4 |
24213-1P400 |
US $9.36 |
||
|
33197
|
33197
33108-05U00 Plate-Baffle0101--01 ~ 0308--01; VK45DD.AT.F4 |
33108-05U00 |
US $2.36 |
||
|
332
|
Transfer gear
332
|
||||
|
332
|
Transfer gear
332
|
||||
|
332
|
Transfer gear
332
|
||||
|
C1335M
|
C1335M
C133531X25 Sealant-Fluid0101--01 ~ 0308--01; VK45DD.AT.F4 |
C133531X25 |
US $30.64 |
||
