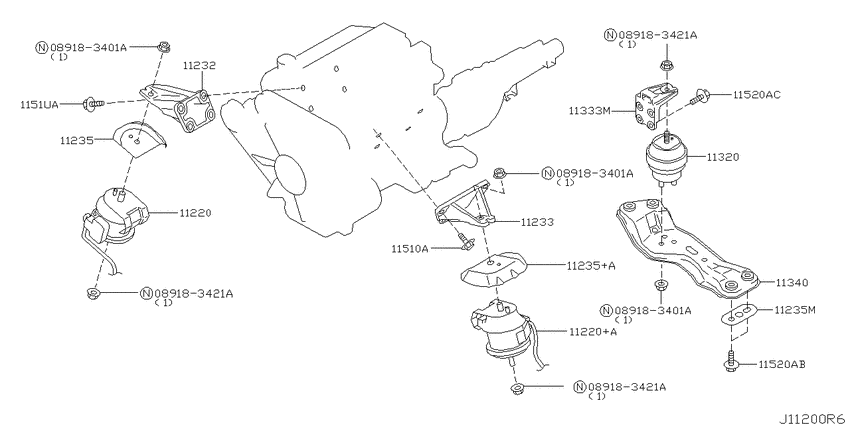

Engine & transmission mounting (2003-11-01 ~ ; VK45DE.AT.F4) Diagram Nissan CIMA
- Year
- 2003 - 2008
- Sales region
- Japan
- Engine
- VK45DE
- drive
- 4WD
- transmission
- AT.F4
- grade
- 450X4
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
089183401A
|
089183401A
089183401A Nut-Flange, Hex |
089183401A |
from US $0.68 |
||
|
089183421A
|
089183421A
089183421A NUT FLANGEHEX |
089183421A |
US $0.68 |
||
|
089183421A
|
089183421A
089183421A NUT FLANGEHEX |
089183421A |
US $0.68 |
||
|
089183421A
|
089183421A
089183421A NUT FLANGEHEX |
089183421A |
US $0.68 |
||
|
11220
|
11220
11210AR500 Insulator-Engine Mounting, Front0311--01 ~ ; VK45DE.AT.F4 |
11210AR500 |
US $440.38 |
||
|
11220
|
11220
11220-AR500 Insulator-Engine Mounting, Front0311--01 ~ ; VK45DE.AT.F4 |
11220-AR500 |
US $440.38 |
||
|
11220+A
|
11220+A
11220-AR500 Insulator-Engine Mounting, Front0311--01 ~ ; VK45DE.AT.F4 |
11220-AR500 |
US $440.38 |
||
|
11232
|
11232
11232-AR500 Bracket-Engine Mounting, Rh0311--01 ~ ; VK45DE.AT.F4 |
11232-AR500 |
US $111.17 |
||
|
11233
|
11233
11233-AR500 Bracket-Engine Mounting, Lh0311--01 ~ ; VK45DE.AT.F4 |
11233-AR500 |
US $111.17 |
||
|
11235
|
11235
11284-AR500 Plate-Heat Shield0311--01 ~ ; VK45DE.AT.F4 |
11284-AR500 |
US $11.09 |
||
|
11235
|
11235
11284-AR511 Plate-Heat Shield0311--01 ~ ; VK45DE.AT.F4 |
11284-AR511 |
US $11.09 |
||
|
11235
|
11235
11384-01U00 Plate-Heat Shield0311--01 ~ ; VK45DE.AT.F4 |
11384-01U00 |
US $8.87 |
||
|
11235+A
|
11235+A
11284-AR511 Plate-Heat Shield0311--01 ~ ; VK45DE.AT.F4 |
11284-AR511 |
US $11.09 |
||
|
11235M
|
11235M
11384-01U00 Plate-Heat Shield0311--01 ~ ; VK45DE.AT.F4 |
11384-01U00 |
US $8.87 |
||
|
11320
|
11320
11320-AR500 Insulator-Engine Mounting, Rear0311--01 ~ ; VK45DE.AT.F4 |
11320-AR500 |
US $440.38 |
||
|
11333M
|
11333M
11323-AR500 Bracket-Engine Mounting, Rear0311--01 ~ ; VK45DE.AT.F4 |
11323-AR500 |
US $111.17 |
||
|
11340
|
11340
11310-AR500 Member Assy-Engine Mounting, Rear0311--01 ~ ; VK45DE.AT.F4 |
11310-AR500 |
US $291.70 |
||
|
11510A
|
11510A
11298-4M411 Bolt0311--01 ~ ; VK45DE.AT.F4 |
11298-4M411 |
from US $1.76 |
||
|
1151UA
|
1151UA
11298-4M411 Bolt0311--01 ~ ; VK45DE.AT.F4 |
11298-4M411 |
from US $1.76 |
||
|
11520AB
|
11520AB
0112105071 BOLT0311--01 ~ ; VK45DE.AT.F4 |
0112105071 |
US $2.91 |
||
|
11520AC
|
11520AC
11298AH000 Bolt0311--01 ~ ; VK45DE.AT.F4 |
11298AH000 |
US $3.46 |
