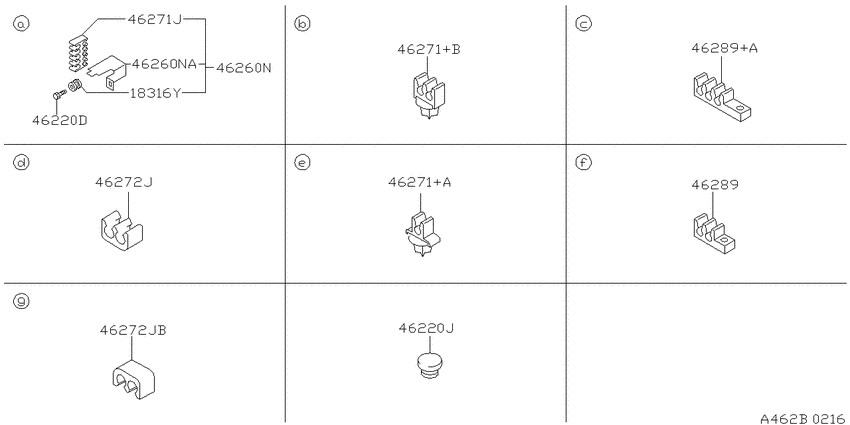

Brake piping & control (1992-09-01 ~ 1993-09-01; クリップ; S.(4WD.STD+4WD.DSP)) Diagram Nissan CIMA
- Year
- 1993 - 1996
- Sales region
- Japan
- Engine
- VH41DE
- drive
- 4WD.DSP
- transmission
- AT.F4
- grade
- TP/S4
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
18316Y
|
18316Y
18316S3260 Bush9209--01 ~ 9309--01; S.(4WD.STD+4WD.DSP) |
18316S3260 |
from US $3.42 |
||
|
46220D
|
46220D
01436-01231 Bolt9209--01 ~ 9309--01; S.(4WD.STD+4WD.DSP) |
01436-01231 |
US $1.73 |
||
|
46220D
|
46220D
01436-01421 SCREW9108--01 ~ 9209--01; S |
01436-01421 |
US $3.46 |
||
|
46220J
|
46220J
0165800431 PLUG-REAR FLOOR9209--01 ~ 9309--01; S.(4WD.STD+4WD.DSP) |
0165800431 |
US $3.06 |
||
|
46220J
|
46220J
0165801481 PLUG9309--01 ~ 9505--01; S.4WD.VH41DE |
0165801481 |
US $3.18 |
||
|
46220J
|
46220J
0165800431 PLUG-REAR FLOOR9309--01 ~ 9606--01; S.(4WD.STD+4WD.DSP) |
0165800431 |
US $3.06 |
||
|
46260N
|
46260N
46260-0P610 Bracket-Brake Tube9209--01 ~ 9309--01; S.(4WD.STD+4WD.DSP) |
46260-0P610 |
US $16.85 |
||
|
46260N
|
46260N
46260-0P601 Bracket-Brake Tube9209--01 ~ 9309--01; S.(4WD.STD+4WD.DSP) |
46260-0P601 |
US $9.50 |
||
|
46260NA
|
46260NA
46260-0P601 Bracket-Brake Tube9209--01 ~ 9309--01; S.(4WD.STD+4WD.DSP) |
46260-0P601 |
US $9.50 |
||
|
46271+A
|
46271+A
46271-01E03 CLIP-TUBE,CLUTCH9505--01 ~ 9606--01; S.(4WD.STD+4WD.DSP) |
46271-01E03 |
US $0.97 |
||
|
46271+A
|
46271+A
46271-0P010
Clamp-Brake Tube
9209--01 ~ 9309--01; S.(4WD.STD+4WD.DSP) |
46271-0P010 |
— | ||
| replacement | |||||
|
46271+A
|
46271+A
175626P002 Insulator9209--01 ~ 9309--01; S.(4WD.STD+4WD.DSP) |
175626P002 |
US $1.67 |
||
|
46271+B
|
46271+B
4627116E10 CLIP-TUBE,BRAKE9108--01 ~ 9209--01; S |
4627116E10 |
US $2.36 |
||
|
46271J
|
46271J
46271-1P100 Insulator9209--01 ~ 9309--01; S.(4WD.STD+4WD.DSP) |
46271-1P100 |
US $2.02 |
||
|
46272J
|
46272J
46272-1P100 Insulator9209--01 ~ 9309--01; S.(4WD.STD+4WD.DSP) |
46272-1P100 |
US $4.71 |
||
|
46272J
|
46272J
46272-01G04
Insulator
9209--01 ~ 9309--01; S.(4WD.STD+4WD.DSP) |
46272-01G04 |
— | ||
| replacement | |||||
|
46272J
|
46272J
46272-2S401 Insulator9209--01 ~ 9309--01; S.(4WD.STD+4WD.DSP) |
46272-2S401 |
US $3.06 |
||
|
46272JB
|
46272JB
46272-01G04
Insulator
9209--01 ~ 9309--01; S.(4WD.STD+4WD.DSP) |
46272-01G04 |
— | ||
| replacement | |||||
|
46272JB
|
46272JB
46272-2S401 Insulator9209--01 ~ 9309--01; S.(4WD.STD+4WD.DSP) |
46272-2S401 |
US $3.06 |
||
|
46289
|
46289
46289-71L00 Clamp9209--01 ~ 9309--01; S.(4WD.STD+4WD.DSP) |
46289-71L00 |
US $1.67 |
||
|
46289
|
46289
46289-1P100 Clamp9108--01 ~ 9209--01; S |
46289-1P100 |
US $4.46 |
||
|
46289+A
|
46289+A
46289-1P100 Clamp9108--01 ~ 9209--01; S |
46289-1P100 |
US $4.46 |
||
