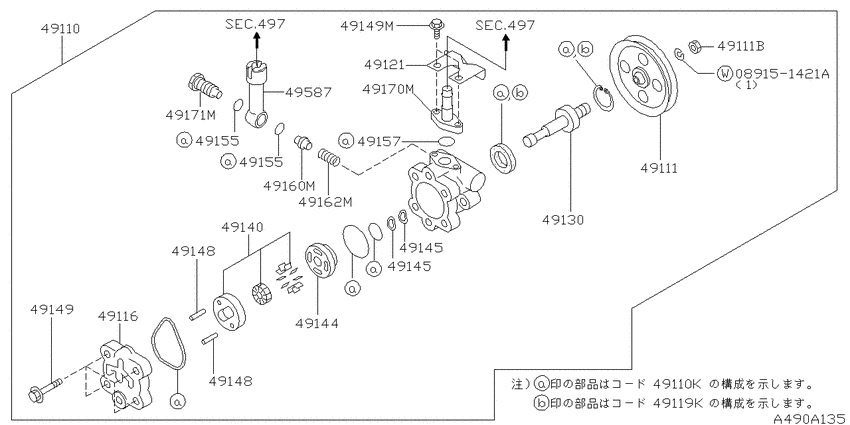

Power steering pump (1993-02-01 ~ 1993-09-01; VH41DE.(TP1+TP2+TP3+TP/T)) Diagram Nissan CIMA
- Year
- 1993
- Sales region
- Japan
- Engine
- VH41DE
- drive
- 2WD.STD
- transmission
- AT.F4
- grade
- TP/T
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089151421A
|
089151421A
089151421A Washer-Copper |
089151421A |
from US $0.19 |
||
|
49110
|
49110
49110-1P100 Pump Assy-Power Steering9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
49110-1P100 |
US $1,540 |
||
|
49110
|
49110
49591-03U29 Power Steering Pump Seal Kit9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
49591-03U29 |
US $22.05 |
||
|
49110K
|
49110K
49591-03U29 Power Steering Pump Seal Kit9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
49591-03U29 |
US $22.05 |
||
|
49111
|
49111
49132-1P100 Pulley-Power Steering Pump9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
49132-1P100 |
US $94.75 |
||
|
49111
|
49111
49133-50L00 Nut-Pulley, Power Steering Pump9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
49133-50L00 |
US $1.73 |
||
| replacement | |||||
|
49111
|
49111
4913350L0A Nut-Pulley, Power Steering Pump9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
4913350L0A |
US $1.73 |
||
|
49111B
|
49111B
49133-50L00 Nut-Pulley, Power Steering Pump9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
49133-50L00 |
US $1.73 |
||
| replacement | |||||
|
49111B
|
49111B
4913350L0A Nut-Pulley, Power Steering Pump9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
4913350L0A |
US $1.73 |
||
|
49116
|
49116
49116-15V00 Cover-Rear, Power Steering Pump9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
49116-15V00 |
US $31.68 |
||
|
49119K
|
49119K
49119-03U26 Seal Kit-Drive Shaft, Power Steering Pump9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
49119-03U26 |
US $10.22 |
||
|
49121
|
49121
49125-1P100 Bracket Assy-Power Steering Pump9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
49125-1P100 |
US $37.01 |
||
|
49130
|
49130
49130-29C00 Shaft-Drive, Power Steering Pump9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
49130-29C00 |
US $45.05 |
||
|
49140
|
49140
49140-28N00 Rotor & Camring Set-Power Steering Pump9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
49140-28N00 |
US $158.40 |
||
|
49144
|
49144
49144-63U10 Plate-Side, Power Steering Pump9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
49144-63U10 |
US $46.08 |
||
|
49145
|
49145
49145-15V00 Spring-Side Plate9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
49145-15V00 |
US $0.86 |
||
|
49145
|
49145
49145-15V00 Spring-Side Plate9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
49145-15V00 |
US $0.86 |
||
|
49148
|
49148
49148-28N00 Pin-Camring, Power Steering Pump9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
49148-28N00 |
US $3.74 |
||
|
49148
|
49148
49148-28N00 Pin-Camring, Power Steering Pump9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
49148-28N00 |
US $3.74 |
||
|
49149
|
49149
49149-F6601 Bolt-Bracket, Power Steering Pump9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
49149-F6601 |
US $4.32 |
||
|
49149
|
49149
49164-63U02 Bolt-Power Steering Pump9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
49164-63U02 |
US $3.46 |
||
|
49149M
|
49149M
49164-63U02 Bolt-Power Steering Pump9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
49164-63U02 |
US $3.46 |
||
|
49155
|
49155
4958926E00 WASHER-COPPER9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
4958926E00 |
from US $4.63 |
||
|
49155
|
49155
4958926E00 WASHER-COPPER9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
4958926E00 |
from US $4.63 |
||
|
49157
|
49157
4916226E00 SEAL-INLET CONNECTOR9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
4916226E00 |
from US $1.65 |
||
|
49160M
|
49160M
49165-71V00 Valve Assy-Flow Control9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
49165-71V00 |
US $60.48 |
||
|
49162M
|
49162M
49167-63U00 Spring-Flow Control Valve9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
49167-63U00 |
US $6.34 |
||
|
49170M
|
49170M
49161-1P101 Connector Assy-Power Steering Pump9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
49161-1P101 |
US $66.82 |
||
|
49171M
|
49171M
49171-60U00 Bolt-Connector9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
49171-60U00 |
US $5.90 |
||
|
49587
|
49587
49172-1P100 Joint-Outlet, Power Steering Pump9302--01 ~ 9309--01; VH41DE.(TP1+TP2+TP3+TP/T) |
49172-1P100 |
US $66.38 |
||
|
