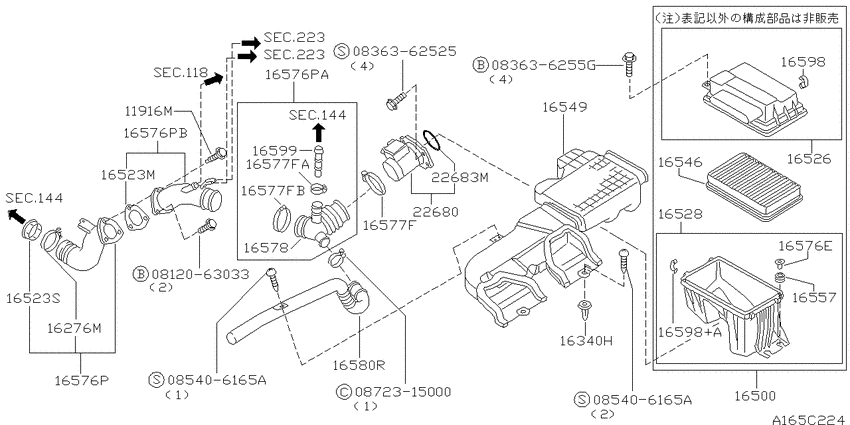

Air cleaner (1993-09-01 ~ 1996-06-01; VG30DET) Diagram Nissan CIMA
- Year
- 1993 - 1996
- Sales region
- Japan
- Engine
- VG30DET
- drive
- 2WD.STD
- transmission
- AT.F4
- grade
- TP/TS
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812063033
|
0812063033
08120-63033
Bolt-hexagon
|
08120-63033 |
— | ||
|
0836362525
|
0836362525
08363-62525
ｽｸﾘﾕ-,ﾏｼﾝ
|
08363-62525 |
— | ||
|
083636255G
|
083636255G
08363-6255G
SCREWMACHINE
|
08363-6255G |
— | ||
|
085406165A
|
085406165A
08540-6165A
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08540-6165A |
— | ||
|
085406165A
|
085406165A
08540-6165A
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08540-6165A |
— | ||
|
0872315000
|
0872315000
08723-15000
ｸﾗﾝﾌﾟ,ﾎ-ｽ
|
08723-15000 |
— | ||
|
118
|
Crankcase ventilation
118
|
||||
|
11916M
|
11916M
11916-0P601 Bolt-Hex9309--01 ~ 9606--01; VG30DET |
11916-0P601 |
US $3.89 |
||
|
144
|
Turbo charger
144
|
||||
|
144
|
Turbo charger
144
|
||||
|
144
|
Turbo charger
144
|
||||
|
144
|
Turbo charger
144
|
||||
|
16276M
|
16276M
16276-0P610 Band9309--01 ~ 9606--01; VG30DET |
16276-0P610 |
US $4.90 |
||
|
16340H
|
16340H
62035-Q0101
Grommet-Screw
9309--01 ~ 9606--01; VG30DET |
62035-Q0101 |
— | ||
| replacement | |||||
|
16340H
|
16340H
0128100821 GROMMET-SCREW9309--01 ~ 9606--01; VG30DET |
0128100821 |
from US $0.82 |
||
|
16500
|
16500
16500-0P501 Air Cleaner9405--01 ~ 9606--01; VG30DET |
16500-0P501 |
US $362.50 |
||
|
16500
|
16500
16500-0P601
Air Cleaner
9309--01 ~ 9405--01; VG30DET |
16500-0P601 |
— | ||
|
16523M
|
16523M
14465-0P601 Gasket9309--01 ~ 9606--01; VG30DET |
14465-0P601 |
US $5.18 |
||
|
16523S
|
16523S
14465-22J00
Insulator
9309--01 ~ 9606--01; VG30DET |
14465-22J00 |
— | ||
|
16526
|
16526
16526-0P501 Air Cleaner Cover9405--01 ~ 9606--01; VG30DET |
16526-0P501 |
US $74.45 |
||
|
16526
|
16526
16526-0P601 Air Cleaner Cover9309--01 ~ 9405--01; VG30DET |
16526-0P601 |
US $46.80 |
||
|
16528
|
16528
16528-0P601 Body Assy-Air Cleaner9309--01 ~ 9606--01; VG30DET |
16528-0P601 |
US $214.56 |
||
|
16546
|
16546
AY120NS001
Element Assy-Air
9309--01 ~ 9606--01; VG30DET |
AY120NS001 |
— | ||
| replacements | |||||
|
16546
|
16546
AY120NS00101 Element Assy-Air9309--01 ~ 9606--01; VG30DET |
AY120NS00101 |
US $29.76 |
||
|
16546
|
16546
AY120-NS063 Element Assy-Air9309--01 ~ 9606--01; VG30DET |
AY120-NS063 |
US $24.74 |
||
|
16549
|
16549
16549-0P602 Duct Assy-Air With Resonator9309--01 ~ 9606--01; VG30DET |
16549-0P602 |
US $177.12 |
||
|
16557
|
16557
16557-0P601 Mounting Rubber9309--01 ~ 9606--01; VG30DET |
16557-0P601 |
US $4.03 |
||
|
16576E
|
16576E
16566-0P601 Retainer9309--01 ~ 9606--01; VG30DET |
16566-0P601 |
US $3.46 |
||
|
16576P
|
16576P
16576-0P610 Duct Assy-Air9309--01 ~ 9606--01; VG30DET |
16576-0P610 |
US $144 |
||
|
16576P
|
16576P
16576-0P603 Duct Assy-Air9309--01 ~ 9406--01; VG30DET |
16576-0P603 |
US $250.56 |
||
|
16576P
|
16576P
16576-0P604 Duct Assy-Air9406--01 ~ 9505--01; VG30DET |
16576-0P604 |
US $220.32 |
||
|
16576P
|
16576P
16576-0P605 Duct Assy-Air9505--01 ~ 9606--01; VG30DET |
16576-0P605 |
US $201.60 |
||
|
16576P
|
16576P
16576-0P616 Duct Assy-Air9309--01 ~ 9606--01; VG30DET |
16576-0P616 |
US $101.38 |
||
|
16576PA
|
16576PA
16576-0P603 Duct Assy-Air9309--01 ~ 9406--01; VG30DET |
16576-0P603 |
US $250.56 |
||
|
16576PA
|
16576PA
16576-0P604 Duct Assy-Air9406--01 ~ 9505--01; VG30DET |
16576-0P604 |
US $220.32 |
||
|
16576PA
|
16576PA
16576-0P605 Duct Assy-Air9505--01 ~ 9606--01; VG30DET |
16576-0P605 |
US $201.60 |
||
|
16576PB
|
16576PB
16576-0P616 Duct Assy-Air9309--01 ~ 9606--01; VG30DET |
16576-0P616 |
US $101.38 |
||
|
16577F
|
16577F
01555-00113 CLAMP-HOSE9309--01 ~ 9310--01; VG30DET |
01555-00113 |
US $4.03 |
||
| replacement | |||||
|
16577F
|
16577F
0155500323 CLAMP-HOSE9309--01 ~ 9310--01; VG30DET |
0155500323 |
US $4.18 |
||
|
16577F
|
16577F
01555-00571 CLAMP-HOSE9310--01 ~ 9606--01; VG30DET |
01555-00571 |
US $7.63 |
||
| replacement | |||||
|
16577F
|
16577F
0155501031 CLAMP-HOSE9310--01 ~ 9606--01; VG30DET |
0155501031 |
US $7.63 |
||
|
16577F
|
16577F
14464-27M00 Clamp-Hose9309--01 ~ 9505--01; VG30DET |
14464-27M00 |
US $21.31 |
||
| replacement | |||||
|
16577F
|
16577F
1446445V13 Clamp-Hose9309--01 ~ 9505--01; VG30DET |
1446445V13 |
US $21.31 |
||
|
16577F
|
16577F
16439-40P12 Clamp-Hose9309--01 ~ 9505--01; VG30DET |
16439-40P12 |
US $9.94 |
||
|
16577FA
|
16577FA
14464-27M00 Clamp-Hose9309--01 ~ 9505--01; VG30DET |
14464-27M00 |
US $21.31 |
||
| replacement | |||||
|
16577FA
|
16577FA
1446445V13 Clamp-Hose9309--01 ~ 9505--01; VG30DET |
1446445V13 |
US $21.31 |
||
|
16577FB
|
16577FB
16439-40P12 Clamp-Hose9309--01 ~ 9505--01; VG30DET |
16439-40P12 |
US $9.94 |
||
|
16578
|
16578
16578-0P603 Duct-Air9309--01 ~ 9505--01; VG30DET |
16578-0P603 |
US $137.66 |
||
|
16580R
|
16580R
16585-0P611 Resonator Assy9309--01 ~ 9606--01; VG30DET |
16585-0P611 |
US $151.20 |
||
|
16598
|
16598
16598-60U01
Clip
9309--01 ~ 9606--01; VG30DET |
16598-60U01 |
— | ||
| replacement | |||||
|
16598
|
16598
16598-60U0A Clip9309--01 ~ 9606--01; VG30DET |
16598-60U0A |
from US $2.16 |
||
|
16598
|
16598
16598-60U01
Clip
9309--01 ~ 9606--01; VG30DET |
16598-60U01 |
— | ||
| replacement | |||||
|
16598
|
16598
16598-60U0A Clip9309--01 ~ 9606--01; VG30DET |
16598-60U0A |
from US $2.16 |
||
|
16598+A
|
16598+A
16598-60U01
Clip
9309--01 ~ 9606--01; VG30DET |
16598-60U01 |
— | ||
| replacement | |||||
|
16598+A
|
16598+A
16598-60U0A Clip9309--01 ~ 9606--01; VG30DET |
16598-60U0A |
from US $2.16 |
||
|
16599
|
16599
16599-0P603 Cap-Connector9309--01 ~ 9606--01; VG30DET |
16599-0P603 |
US $40.90 |
||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
22680
|
22680
2268016V00 Mass Air Flow9309--01 ~ 9606--01; VG30DET |
2268016V00 |
US $627.29 |
||
|
22683M
|
22683M
2268316V00 Seal-O Ring9309--01 ~ 9606--01; VG30DET |
2268316V00 |
US $2.42 |
||
