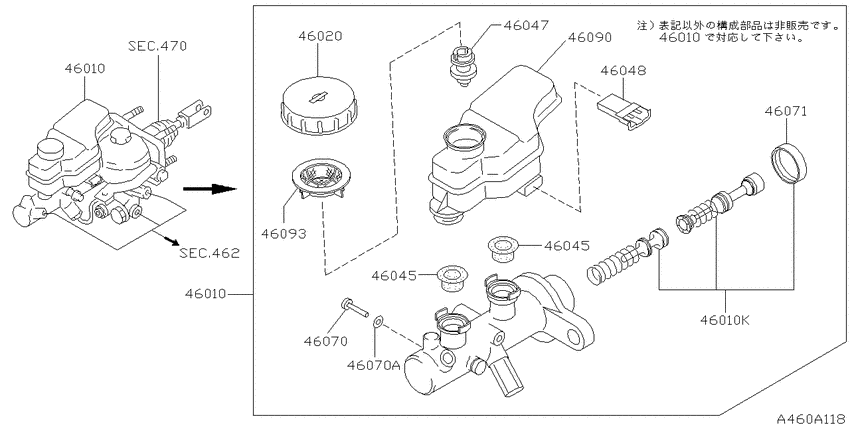

Brake master cylinder (1993-09-01 ~ 1995-05-01; VH41DE +VG30DET) Diagram Nissan CIMA
- Year
- 1993 - 1996
- Sales region
- Japan
- Engine
- VG30DET
- drive
- 2WD.STD
- transmission
- AT.F4
- grade
- TP/TS
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46010
|
46010
46010-1P000 Cylinder Assy-Brake Master9505--01 ~ 9606--01; VG30DET.TP/TS.AT.F4; ﾄｷｺ 1 ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳ ｶ |
46010-1P000 |
US $448.87 |
||
|
46010
|
46010
46010-1P020 Cylinder Assy-Brake Master9505--01 ~ 9606--01; VG30DET.TP/TS.AT.F4; ﾅﾌﾞｺ 1 ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳ ｶ |
46010-1P020 |
US $448.87 |
||
|
46010
|
46010
46010-1P201 Cylinder Assy-Brake Master9309--01 ~ 9505--01; *VG30DET.TP/TS; ﾄｷｺ 1 ABS ｼﾖｳ |
46010-1P201 |
US $495.60 |
||
|
46010
|
46010
460101P220 Cylinder Assy-Brake Master9309--01 ~ 9505--01; VH41DE.TP/LS +VG30DET.TP/TS; ﾅﾌﾞｺ 1 |
460101P220 |
US $495.60 |
||
|
46010
|
46010
46010-1P601 Cylinder Assy-Brake Master9505--01 ~ 9606--01; *VG30DET.TP/TS.AT.F4; ﾅﾌﾞｺ 1 ABS ｼﾖｳ |
46010-1P601 |
US $543.74 |
||
|
46010
|
46010
46011-0P027 Piston Kit-Tandem Brake Master Cylinder9309--01 ~ 9505--01; *VG30DET.TP/TS; ﾄｷｺ 1 ABS ｼﾖｳ |
46011-0P027 |
US $121.82 |
||
|
46010
|
46010
46011-0P028 Piston Kit-Tandem Brake Master Cylinder9505--01 ~ 9606--01; VG30DET.TP/TS.AT.F4; ﾄｷｺ 1 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46011-0P028 |
US $121.82 |
||
|
46010
|
46010
46011-1C227 Piston Kit-Tandem Brake Master Cylinder9505--01 ~ 9606--01; *VG30DET.TP/TS.AT.F4; ﾅﾌﾞｺ 1 ABS ｼﾖｳ |
46011-1C227 |
US $91.58 |
||
|
46010
|
46010
46011-1P227 Piston Kit-Tandem Brake Master Cylinder9505--01 ~ 9606--01; VG30DET.TP/TS.AT.F4; ﾅﾌﾞｺ 1 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46011-1P227 |
US $121.82 |
||
|
46010
|
46010
46011-1P229 Piston Kit-Tandem Brake Master Cylinder9309--01 ~ 9505--01; VH41DE.TP/LS +VG30DET.TP/TS; ﾅﾌﾞｺ 1 |
46011-1P229 |
US $121.82 |
||
|
46010
|
46010
46010-1P000 Cylinder Assy-Brake Master9505--01 ~ 9606--01; VG30DET.TP/TS.AT.F4; ﾄｷｺ 1 ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳ ｶ |
46010-1P000 |
US $448.87 |
||
|
46010
|
46010
46010-1P020 Cylinder Assy-Brake Master9505--01 ~ 9606--01; VG30DET.TP/TS.AT.F4; ﾅﾌﾞｺ 1 ﾄﾞﾁﾗﾃﾞﾓ ｼﾖｳ ｶ |
46010-1P020 |
US $448.87 |
||
|
46010
|
46010
46010-1P201 Cylinder Assy-Brake Master9309--01 ~ 9505--01; *VG30DET.TP/TS; ﾄｷｺ 1 ABS ｼﾖｳ |
46010-1P201 |
US $495.60 |
||
|
46010
|
46010
460101P220 Cylinder Assy-Brake Master9309--01 ~ 9505--01; VH41DE.TP/LS +VG30DET.TP/TS; ﾅﾌﾞｺ 1 |
460101P220 |
US $495.60 |
||
|
46010
|
46010
46010-1P601 Cylinder Assy-Brake Master9505--01 ~ 9606--01; *VG30DET.TP/TS.AT.F4; ﾅﾌﾞｺ 1 ABS ｼﾖｳ |
46010-1P601 |
US $543.74 |
||
|
46010
|
46010
46011-0P027 Piston Kit-Tandem Brake Master Cylinder9309--01 ~ 9505--01; *VG30DET.TP/TS; ﾄｷｺ 1 ABS ｼﾖｳ |
46011-0P027 |
US $121.82 |
||
|
46010
|
46010
46011-0P028 Piston Kit-Tandem Brake Master Cylinder9505--01 ~ 9606--01; VG30DET.TP/TS.AT.F4; ﾄｷｺ 1 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46011-0P028 |
US $121.82 |
||
|
46010
|
46010
46011-1C227 Piston Kit-Tandem Brake Master Cylinder9505--01 ~ 9606--01; *VG30DET.TP/TS.AT.F4; ﾅﾌﾞｺ 1 ABS ｼﾖｳ |
46011-1C227 |
US $91.58 |
||
|
46010
|
46010
46011-1P227 Piston Kit-Tandem Brake Master Cylinder9505--01 ~ 9606--01; VG30DET.TP/TS.AT.F4; ﾅﾌﾞｺ 1 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46011-1P227 |
US $121.82 |
||
|
46010
|
46010
46011-1P229 Piston Kit-Tandem Brake Master Cylinder9309--01 ~ 9505--01; VH41DE.TP/LS +VG30DET.TP/TS; ﾅﾌﾞｺ 1 |
46011-1P229 |
US $121.82 |
||
|
46010K
|
46010K
46011-0P027 Piston Kit-Tandem Brake Master Cylinder9309--01 ~ 9505--01; *VG30DET.TP/TS; ﾄｷｺ 1 ABS ｼﾖｳ |
46011-0P027 |
US $121.82 |
||
|
46010K
|
46010K
46011-0P028 Piston Kit-Tandem Brake Master Cylinder9505--01 ~ 9606--01; VG30DET.TP/TS.AT.F4; ﾄｷｺ 1 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46011-0P028 |
US $121.82 |
||
|
46010K
|
46010K
46011-1C227 Piston Kit-Tandem Brake Master Cylinder9505--01 ~ 9606--01; *VG30DET.TP/TS.AT.F4; ﾅﾌﾞｺ 1 ABS ｼﾖｳ |
46011-1C227 |
US $91.58 |
||
|
46010K
|
46010K
46011-1P227 Piston Kit-Tandem Brake Master Cylinder9505--01 ~ 9606--01; VG30DET.TP/TS.AT.F4; ﾅﾌﾞｺ 1 ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46011-1P227 |
US $121.82 |
||
|
46010K
|
46010K
46011-1P229 Piston Kit-Tandem Brake Master Cylinder9309--01 ~ 9505--01; VH41DE.TP/LS +VG30DET.TP/TS; ﾅﾌﾞｺ 1 |
46011-1P229 |
US $121.82 |
||
|
46020
|
46020
4602064J01 Cap Assy-Oil Reservoir Tank9505--01 ~ 9606--01; .VG30DET.TP/TS.AT.F4 +VH41DE.(TP/L+TP/LL+TP/S4); ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
4602064J01 |
from US $17.15 |
||
|
46020
|
46020
46020-64J21
Cap Assy-Oil Reservoir Tank
9309--01 ~ 9505--01; 5(4WD.STD+4WD.DSP).VH41DE +VH41DE.TP/LS +VG30DET.TP/TS; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46020-64J21 |
— | ||
| replacement | |||||
|
46020
|
46020
460206N000 Cap Assy-Oil Reservoir Tank9309--01 ~ 9505--01; 5(4WD.STD+4WD.DSP).VH41DE +VH41DE.TP/LS +VG30DET.TP/TS; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
460206N000 |
US $18.02 |
||
|
46045
|
46045
46045W1010 Seal-Reservoir Tank9505--01 ~ 9606--01; .VG30DET.TP/TS.AT.F4 +VH41DE.(TP/L+TP/LL+TP/S4); ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46045W1010 |
from US $3.07 |
||
|
46045
|
46045
46045W1300 Seal-Reservoir Tank9309--01 ~ 9505--01; 5(4WD.STD+4WD.DSP).VH41DE +VH41DE.TP/LS +VG30DET.TP/TS; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46045W1300 |
US $5.42 |
||
|
46045
|
46045
46045W1010 Seal-Reservoir Tank9505--01 ~ 9606--01; .VG30DET.TP/TS.AT.F4 +VH41DE.(TP/L+TP/LL+TP/S4); ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46045W1010 |
from US $3.07 |
||
|
46045
|
46045
46045W1300 Seal-Reservoir Tank9309--01 ~ 9505--01; 5(4WD.STD+4WD.DSP).VH41DE +VH41DE.TP/LS +VG30DET.TP/TS; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46045W1300 |
US $5.42 |
||
|
46047
|
46047
46047-1P220 Float-Reservoir Tank9309--01 ~ 9505--01; 5(4WD.STD+4WD.DSP).VH41DE +VH41DE.TP/LS +VG30DET.TP/TS; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46047-1P220 |
US $8.06 |
||
|
46047
|
46047
46047-60U04 Float-Reservoir Tank9505--01 ~ 9606--01; VG30DET.TP/TS.AT.F4; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46047-60U04 |
US $7.49 |
||
|
46047
|
46047
46047-60U64 Float-Reservoir Tank9505--01 ~ 9606--01; VG30DET; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46047-60U64 |
US $5.18 |
||
|
46048
|
46048
46048-64J01 Indicator Assy-Level9505--01 ~ 9606--01; .VG30DET.TP/TS.AT.F4 +VH41DE.(TP/L+TP/LL+TP/S4); ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46048-64J01 |
US $42.91 |
||
|
46048
|
46048
46048-64J21 Indicator Assy-Level9309--01 ~ 9505--01; 5(4WD.STD+4WD.DSP).VH41DE +VH41DE.TP/LS +VG30DET.TP/TS; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46048-64J21 |
US $42.91 |
||
|
46070
|
46070
46032-1P220 Screw-Stopper9309--01 ~ 9505--01; VH41DE.TP/LS +VG30DET.TP/TS; ﾅﾌﾞｺ |
46032-1P220 |
US $4.30 |
||
|
46070
|
46070
46032-58E20 SCREW-STOPPER9505--01 ~ 9606--01; *VG30DET.TP/TS.AT.F4; ﾅﾌﾞｺ ABS ｼﾖｳ |
46032-58E20 |
US $4.18 |
||
|
46070
|
46070
46032-85L10 Screw-Stopper9309--01 ~ 9505--01; *VG30DET.TP/TS; ﾄｷｺ ABS ｼﾖｳ |
46032-85L10 |
US $5.76 |
||
|
46070
|
46070
46032-W1010 Screw-Stopper9505--01 ~ 9606--01; VG30DET.TP/TS.AT.F4; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46032-W1010 |
US $4.32 |
||
|
46070
|
46070
46079-1P220 Packing-Stopper Screw9309--01 ~ 9505--01; VH41DE.TP/LS +VG30DET.TP/TS; ﾅﾌﾞｺ |
46079-1P220 |
US $1.95 |
||
|
46070
|
46070
46079-W1010 Packing-Stopper Screw9505--01 ~ 9606--01; .VG30DET.TP/TS.AT.F4 +VH41DE.(TP/L+TP/LL+TP/S4); ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46079-W1010 |
US $2.45 |
||
|
46070
|
46070
46079-W1300 Packing-Stopper Screw9505--01 ~ 9606--01; *VG30DET.TP/TS.AT.F4; ﾅﾌﾞｺ ABS ｼﾖｳ |
46079-W1300 |
US $2.45 |
||
|
46070A
|
46070A
46079-1P220 Packing-Stopper Screw9309--01 ~ 9505--01; VH41DE.TP/LS +VG30DET.TP/TS; ﾅﾌﾞｺ |
46079-1P220 |
US $1.95 |
||
|
46070A
|
46070A
46079-W1010 Packing-Stopper Screw9505--01 ~ 9606--01; .VG30DET.TP/TS.AT.F4 +VH41DE.(TP/L+TP/LL+TP/S4); ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46079-W1010 |
US $2.45 |
||
|
46070A
|
46070A
46079-W1300 Packing-Stopper Screw9505--01 ~ 9606--01; *VG30DET.TP/TS.AT.F4; ﾅﾌﾞｺ ABS ｼﾖｳ |
46079-W1300 |
US $2.45 |
||
|
46071
|
46071
4608201A11
Retainer-Piston
9505--01 ~ 9606--01; VG30DET +VH41DE.(TP/LS+TP/S4); ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
4608201A11 |
— | ||
| replacement | |||||
|
46071
|
46071
46082-01A1A Ring-Snap9505--01 ~ 9606--01; VG30DET +VH41DE.(TP/LS+TP/S4); ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46082-01A1A |
US $2.43 |
||
|
46071
|
46071
46082-R9000 Ring-Snap9309--01 ~ 9505--01; 5(4WD.STD+4WD.DSP).VH41DE +VH41DE.TP/LS +VG30DET.TP/TS; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46082-R9000 |
US $3.17 |
||
| replacement | |||||
|
46071
|
46071
46082R900A Retainer-Piston9309--01 ~ 9505--01; 5(4WD.STD+4WD.DSP).VH41DE +VH41DE.TP/LS +VG30DET.TP/TS; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46082R900A |
US $2.64 |
||
|
46090
|
46090
46091-0P000 Tank-Oil Reservoir9505--01 ~ 9606--01; VG30DET.TP/TS.AT.F4; ﾄｷｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46091-0P000 |
US $69.70 |
||
|
46090
|
46090
46091-10Y20 Tank-Oil Reservoir9505--01 ~ 9606--01; VG30DET; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46091-10Y20 |
US $58.61 |
||
|
46090
|
46090
46091-1P220
Tank-Oil Reservoir
9309--01 ~ 9505--01; 5(4WD.STD+4WD.DSP).VH41DE +VH41DE.TP/LS +VG30DET.TP/TS; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46091-1P220 |
— | ||
|
46093
|
46093
46093-14Y01 Strainer-Brake Oil9309--01 ~ 9505--01; *VG30DET.TP/TS; ﾄｷｺ ABS ｼﾖｳ |
46093-14Y01 |
US $14.11 |
||
|
46093
|
46093
46093-1P220 Strainer-Brake Oil9309--01 ~ 9505--01; 5(4WD.STD+4WD.DSP).VH41DE +VH41DE.TP/LS +VG30DET.TP/TS; ﾅﾌﾞｺ ｹﾞﾝﾌﾞﾂ ｶｸﾆﾝ |
46093-1P220 |
US $10.80 |
||
|
46093
|
46093
46093-64J62 Strainer-Brake Oil9505--01 ~ 9606--01; VG30DET; ﾅﾌﾞｺ |
46093-64J62 |
US $9.98 |
||
|
