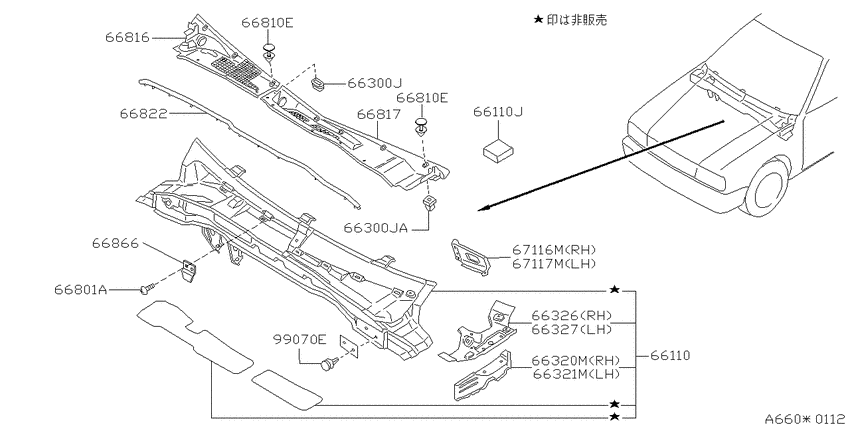

Cowl top & fitting (1993-09-01 ~ ; S) Diagram Nissan CIMA
- Year
- 1993 - 1996
- Sales region
- Japan
- Engine
- VG30DET
- drive
- 2WD.STD
- transmission
- AT.F4
- grade
- TP/TS
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
66110
|
66110
66100-0P030 Air Box Assy9309--01 ~ ; S |
66100-0P030 |
US $531 |
||
|
66110
|
66110
66911-0P000 Insulator-Air Box9309--01 ~ ; S |
66911-0P000 |
US $27.36 |
||
|
66110J
|
66110J
66911-0P000 Insulator-Air Box9309--01 ~ ; S |
66911-0P000 |
US $27.36 |
||
|
66300J
|
66300J
8087485E00 PLUG-HOLE9309--01 ~ ; S |
8087485E00 |
from US $1.22 |
||
|
66300J
|
66300J
808740P010 Plug-Hole9309--01 ~ ; S |
808740P010 |
from US $1.68 |
||
|
66300JA
|
66300JA
808740P010 Plug-Hole9309--01 ~ ; S |
808740P010 |
from US $1.68 |
||
|
66320M
|
66320M
66320-0P000 Cowl Top-Side, Rh9309--01 ~ ; S |
66320-0P000 |
US $44.93 |
||
|
66321M
|
66321M
66321-0P000 Cowl Top-Side, Lh9309--01 ~ ; S |
66321-0P000 |
US $44.93 |
||
|
66326
|
66326
66324-0P000 Brace-Cowl Top Side, Rh9309--01 ~ ; S |
66324-0P000 |
US $54 |
||
|
66327
|
66327
66325-0P000 Brace-Cowl Top Side, Lh9309--01 ~ ; S |
66325-0P000 |
US $54 |
||
|
66801A
|
66801A
0143601161
SCREW
9309--01 ~ 9606--01; S |
0143601161 |
— | ||
| replacement | |||||
|
66801A
|
66801A
08368-6125G ｽｸﾘﾕ-9309--01 ~ 9606--01; S |
08368-6125G |
US $2.21 |
||
|
66810E
|
66810E
6682061U00 Clip9309--01 ~ ; S |
6682061U00 |
from US $2.65 |
||
|
66810E
|
66810E
6682061U00 Clip9309--01 ~ ; S |
6682061U00 |
from US $2.65 |
||
|
66816
|
66816
668620P000 Cover-Cowl Top Grille, Rh9309--01 ~ ; S |
668620P000 |
US $54 |
||
|
66817
|
66817
66863-0P000 Cover-Cowl Top Grille, Lh9309--01 ~ ; S |
66863-0P000 |
US $81.07 |
||
|
66822
|
66822
66830-0P000 Sealing Rubber-Cowl Top9309--01 ~ ; S |
66830-0P000 |
US $30.24 |
||
|
66866
|
66866
67196-0P000 Bracket-Cowl Top Cover, Side9309--01 ~ ; S |
67196-0P000 |
US $10.37 |
||
|
67116M
|
67116M
67116-0P000 Extension-Dash Upper, Rh9309--01 ~ ; S |
67116-0P000 |
US $27.36 |
||
|
67117M
|
67117M
67117-0P000 Extension-Dash Upper, Lh9309--01 ~ ; S |
67117-0P000 |
US $27.36 |
||
|
99070E
|
99070E
0155300731 CLIP9309--01 ~ ; S |
0155300731 |
from US $0.61 |
||
