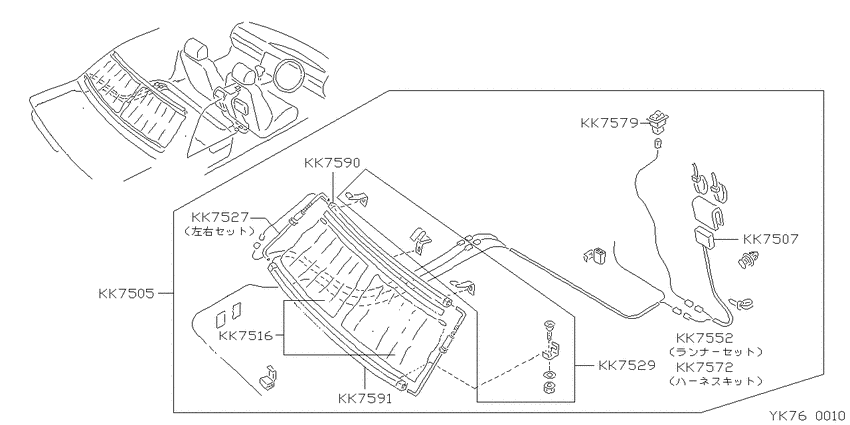

curtain (1991-08-01 ~ ; リニアモーター式; S) Diagram Nissan CIMA
- Year
- 1993 - 1996
- Sales region
- Japan
- Engine
- VG30DET
- drive
- 2WD.STD
- transmission
- AT.F4
- grade
- TP/TS
- body
- S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
KK7505
|
KK7505
H2310-2P000
ﾘﾓｰﾄ ｶｰﾃﾝ
9310--01 ~ 9606--01; S; ｼﾛ[K504] |
H2310-2P000 |
— | ||
|
KK7507
|
KK7507
H2315-67U00
ﾘﾓｰﾄ ｶｰﾃﾝ ｺﾝﾄﾛｰﾙ
9310--01 ~ 9606--01; S; ｼﾛ[K504] |
H2315-67U00 |
— | ||
|
KK7516
|
KK7516
H2364-2P000
ﾚｰｽ ｶｰﾃﾝ ｾﾂﾄ
9310--01 ~ 9606--01; S; ｼﾛ,OYA H23102P000[K504] |
H2364-2P000 |
— | ||
|
KK7527
|
KK7527
H2342-1P100
ｶｰﾃﾝ ｻｲﾄﾞﾊﾞｰ
9310--01 ~ 9606--01; S; ｼﾛ[K504] |
H2342-1P100 |
— | ||
|
KK7529
|
KK7529
H2343-1P100
ﾌﾞﾗｹﾂﾄ ｶｰﾃﾝ
9310--01 ~ 9606--01; S; ｼﾛ[K504] |
H2343-1P100 |
— | ||
|
KK7552
|
KK7552
H2371-1P100
ﾘﾔ ｶｰﾃﾝ ﾗﾝﾅｰ
9310--01 ~ 9606--01; S; ｼﾛ[K504] |
H2371-1P100 |
— | ||
|
KK7572
|
KK7572
H2352-1P110
ﾜｲﾔｰ rr rh
9310--01 ~ 9606--01; S; ｼﾛ[K504] |
H2352-1P110 |
— | ||
|
KK7579
|
KK7579
H2305-45V00 ﾘﾔ ｶｰﾃﾝ ｽｲﾂﾁ9310--01 ~ 9606--01; S; ｼﾛ[K504] |
H2305-45V00 |
US $60.48 |
||
|
KK7590
|
KK7590
H2340-1P100
ﾘﾔ ｶｰﾃﾝ ｱﾂﾊﾟｰ ﾚｰﾙ
9310--01 ~ 9606--01; S; ｼﾛ[K504] |
H2340-1P100 |
— | ||
|
KK7591
|
KK7591
H2341-1P100
ﾘﾔ ｶｰﾃﾝ ﾛｱ ﾚｰﾙ
9310--01 ~ 9606--01; S; ｼﾛ[K504] |
H2341-1P100 |
— |
