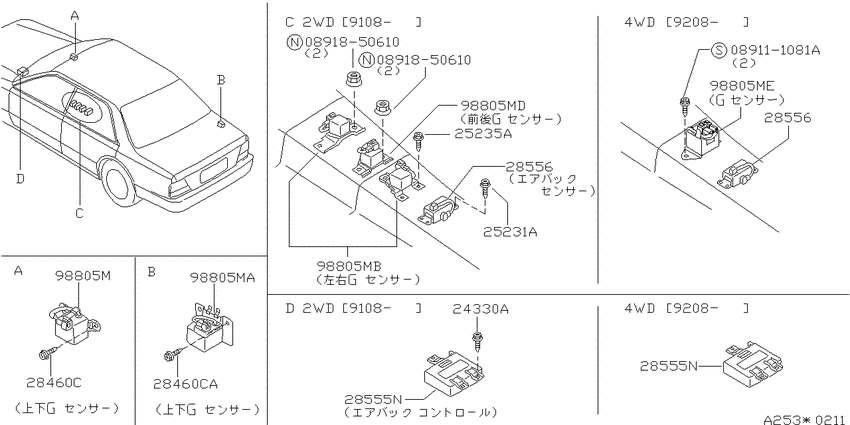

Electrical unit (1993-09-01 ~ ; ボディ (3); S) Diagram Nissan CIMA
- Year
- 1993 - 1996
- Sales region
- Japan
- Engine
- VG30DET
- drive
- 2WD.STD
- transmission
- AT.F4
- grade
- TP/TS
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111081A
|
089111081A
089111081A
NUTHEX
|
089111081A |
— | ||
|
0891850610
|
0891850610
08918-50610
ﾅﾂﾄ,ﾌﾗﾝｼﾞ
|
08918-50610 |
— | ||
|
0891850610
|
0891850610
08918-50610
ﾅﾂﾄ,ﾌﾗﾝｼﾞ
|
08918-50610 |
— | ||
|
24330A
|
24330A
01121-04031 BOLT9309--01 ~ 9505--01; S.VG30DET +S.TP/LS; *AIR BAG LESS |
01121-04031 |
US $1.73 |
||
|
24330A
|
24330A
01141-00341 BOLT9309--01 ~ 9505--01; *S.VG30DET +*S.TP/LS; ｴｱ ﾊﾞﾂｸﾞ ｼﾖｳ |
01141-00341 |
US $3.31 |
||
|
25231A
|
25231A
01141-00321 BOLT9309--01 ~ 9505--01; *S.VG30DET +*S.TP/LS; ｴｱ ﾊﾞﾂｸﾞ ｼﾖｳ |
01141-00321 |
US $3.46 |
||
|
28555N
|
28555N
28555-1P685 Control Unit-Diagnosis, Air Bag9505--01 ~ 9606--01; 5S.2WD.STD.(TP/L+TP/LL) +S.2WD.DSP +S.VG30DET +S.TP/LS |
28555-1P685 |
US $920.40 |
||
|
28555N
|
28555N
28555-2P525 Control Unit-Diagnosis, Air Bag9606--01 ~ ; *S; ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞｼﾖｳ |
28555-2P525 |
US $920.40 |
||
|
28555N
|
28555N
28555-2P526 Control Unit-Diagnosis, Air Bag9606--01 ~ ; S |
28555-2P526 |
US $920.40 |
||
|
28555N
|
28555N
B8555-1P662 Control Unit-Diagnosis, Air Bag9309--01 ~ 9505--01; 9*S.2WD.STD.(TP/L+TP/LL) +*S.2WD.DSP +*S.VG30DET +*S.TP/LS; ｼﾞﾖｼﾕｾｷ ｴｱ-ﾊﾞﾂｸｼﾖｳ |
B8555-1P662 |
US $703.75 |
||
|
28555N
|
28555N
B8555-1P663 Control Unit-Diagnosis, Air Bag9505--01 ~ 9606--01; 9*S.2WD.STD.(TP/L+TP/LL) +*S.2WD.DSP +*S.VG30DET +*S.TP/LS; ｼﾞﾖｼﾕｾｷ ｴｱ-ﾊﾞﾂｸｼﾖｳ |
B8555-1P663 |
US $703.75 |
||
|
28555N
|
28555N
B8555-1P672 Control Unit-Diagnosis, Air Bag9309--01 ~ 9505--01; *S.VG30DET +*S.TP/LS; ｴｱ ﾊﾞﾂｸﾞ ｼﾖｳ |
B8555-1P672 |
US $703.75 |
||
|
28555N
|
28555N
28555-1P685 Control Unit-Diagnosis, Air Bag9505--01 ~ 9606--01; 5S.2WD.STD.(TP/L+TP/LL) +S.2WD.DSP +S.VG30DET +S.TP/LS |
28555-1P685 |
US $920.40 |
||
|
28555N
|
28555N
28555-2P525 Control Unit-Diagnosis, Air Bag9606--01 ~ ; *S; ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞｼﾖｳ |
28555-2P525 |
US $920.40 |
||
|
28555N
|
28555N
28555-2P526 Control Unit-Diagnosis, Air Bag9606--01 ~ ; S |
28555-2P526 |
US $920.40 |
||
|
28555N
|
28555N
B8555-1P662 Control Unit-Diagnosis, Air Bag9309--01 ~ 9505--01; 9*S.2WD.STD.(TP/L+TP/LL) +*S.2WD.DSP +*S.VG30DET +*S.TP/LS; ｼﾞﾖｼﾕｾｷ ｴｱ-ﾊﾞﾂｸｼﾖｳ |
B8555-1P662 |
US $703.75 |
||
|
28555N
|
28555N
B8555-1P663 Control Unit-Diagnosis, Air Bag9505--01 ~ 9606--01; 9*S.2WD.STD.(TP/L+TP/LL) +*S.2WD.DSP +*S.VG30DET +*S.TP/LS; ｼﾞﾖｼﾕｾｷ ｴｱ-ﾊﾞﾂｸｼﾖｳ |
B8555-1P663 |
US $703.75 |
||
|
28555N
|
28555N
B8555-1P672 Control Unit-Diagnosis, Air Bag9309--01 ~ 9505--01; *S.VG30DET +*S.TP/LS; ｴｱ ﾊﾞﾂｸﾞ ｼﾖｳ |
B8555-1P672 |
US $703.75 |
||
|
28556
|
28556
B8556-1P400 Sensor-Air Bag9606--01 ~ ; S |
B8556-1P400 |
US $615.96 |
||
|
28556
|
28556
B8556-1P600 Sensor-Air Bag9309--01 ~ 9505--01; *S.VG30DET +*S.TP/LS; ｴｱ ﾊﾞﾂｸﾞ ｼﾖｳ |
B8556-1P600 |
US $467.28 |
||
|
28556
|
28556
B8556-1P400 Sensor-Air Bag9606--01 ~ ; S |
B8556-1P400 |
US $615.96 |
||
|
28556
|
28556
B8556-1P600 Sensor-Air Bag9309--01 ~ 9505--01; *S.VG30DET +*S.TP/LS; ｴｱ ﾊﾞﾂｸﾞ ｼﾖｳ |
B8556-1P600 |
US $467.28 |
||
|
98805M
|
98805M
98805-1P400 ｾﾝｻ- ｱﾂｾﾝﾌﾞﾘ-,g9606--01 ~ ; S |
98805-1P400 |
US $1,339.54 |
||
|
98805ME
|
98805ME
98805-1P400 ｾﾝｻ- ｱﾂｾﾝﾌﾞﾘ-,g9606--01 ~ ; S |
98805-1P400 |
US $1,339.54 |
