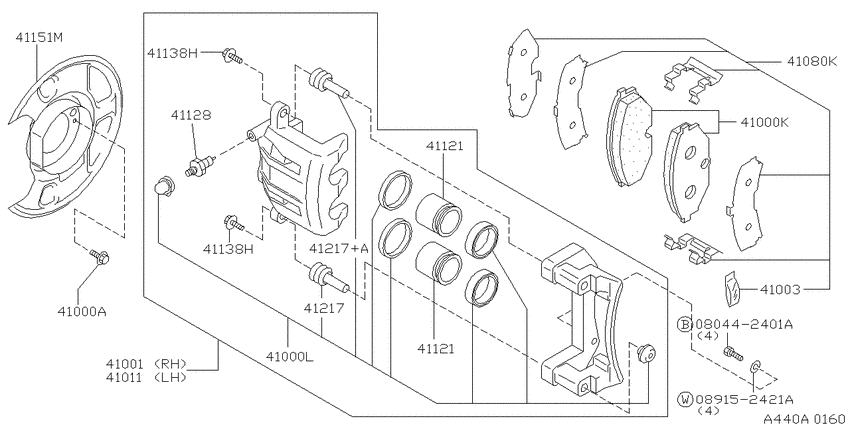

Front brake (1993-09-01 ~ ; VH41DE +VG30DET) Diagram Nissan CIMA
- Year
- 1993 - 1996
- Sales region
- Japan
- Engine
- VG30DET
- drive
- 2WD.STD
- transmission
- AT.F4
- grade
- TP/TS
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080442401A
|
080442401A
080442401A Bolt-hexagon |
080442401A |
US $1.91 |
||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
41000A
|
41000A
0141100131 BOLT9309--01 ~ 9505--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
0141100131 |
US $1.73 |
||
|
41000K
|
41000K
AY040NS018
Pad Kit-Disc Brake
9309--01 ~ 9505--01; VH41DE +VG30DET |
AY040NS018 |
— | ||
| replacement | |||||
|
41000K
|
41000K
AY040NS840 PAD KIT, FRONT BRAKE9309--01 ~ 9505--01; VH41DE +VG30DET |
AY040NS840 |
US $332.49 |
||
|
41000L
|
41000L
AY600NS012 Seal Kit-Disc Brake9309--01 ~ 9606--01; VH41DE +VG30DET |
AY600NS012 |
from US $50.45 |
||
|
41001
|
41001
41001-0P603
Caliper Assy-Front Rh, W/o Pads Or Shims
9309--01 ~ 9606--01; VH41DE +VG30DET |
41001-0P603 |
— | ||
| replacement | |||||
|
41001
|
41001
410010P603RE
Caliper assy
9309--01 ~ 9606--01; VH41DE +VG30DET |
410010P603RE |
— | ||
|
41003
|
41003
41003-03P25 Grease-Shim Disc Brake9309--01 ~ 9505--01; VH41DE +VG30DET |
41003-03P25 |
US $2.02 |
||
|
41011
|
41011
41011-0P603
Caliper Assy-Front Lh, W/o Pads Or Shims
9309--01 ~ 9606--01; VH41DE +VG30DET |
41011-0P603 |
— | ||
| replacements | |||||
|
41011
|
41011
41011-5P601 Caliper Assy-Front Lh, W/o Pad & Shim9309--01 ~ 9606--01; VH41DE +VG30DET |
41011-5P601 |
US $970.50 |
||
|
41011
|
41011
410805V025 Hardware Kit-Front Disc Brake Pad9309--01 ~ 9606--01; VH41DE +VG30DET |
410805V025 |
from US $85.08 |
||
|
41011
|
41011
410110P603RE
Caliper assy
9309--01 ~ 9606--01; VH41DE +VG30DET |
410110P603RE |
— | ||
|
41080K
|
41080K
41080-0P625 Hardware Kit-Front Disc Brake Pad9309--01 ~ 9606--01; VH41DE +VG30DET |
41080-0P625 |
US $59.62 |
||
|
41121
|
41121
4112105N00 Piston-Cylinder9309--01 ~ 9606--01; VH41DE +VG30DET |
4112105N00 |
from US $47.14 |
||
|
41121
|
41121
4112105N00 Piston-Cylinder9309--01 ~ 9606--01; VH41DE +VG30DET |
4112105N00 |
from US $47.14 |
||
|
41128
|
41128
4112888E01
SCREW-BLEEDER
9309--01 ~ 9606--01; VH41DE +VG30DET |
4112888E01 |
— | ||
| replacement | |||||
|
41128
|
41128
41128AW70A Screw-Bleeder9309--01 ~ 9606--01; VH41DE +VG30DET |
41128AW70A |
from US $7.63 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
9309--01 ~ 9606--01; VH41DE +VG30DET |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt9309--01 ~ 9606--01; VH41DE +VG30DET |
44141AW70A |
from US $3.35 |
||
|
41138H
|
41138H
44141-N9500
Pin-Bolt
9309--01 ~ 9606--01; VH41DE +VG30DET |
44141-N9500 |
— | ||
| replacement | |||||
|
41138H
|
41138H
44141AW70A Pin-Bolt9309--01 ~ 9606--01; VH41DE +VG30DET |
44141AW70A |
from US $3.35 |
||
|
41151M
|
41151M
41150-0P600 Plate-Baffle9309--01 ~ 9505--01; 2WD.VH41DE +VG30DET; ﾐｷﾞ ﾖｳ |
41150-0P600 |
US $35.86 |
||
|
41151M
|
41151M
41150-0P601 Plate-Baffle9601--01 ~ 9606--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET; ﾐｷﾞ ﾖｳ |
41150-0P601 |
US $39.31 |
||
|
41151M
|
41151M
41160-0P600 Plate-Baffle9309--01 ~ 9505--01; 2WD.VH41DE +VG30DET; ﾋﾀﾞﾘ ﾖｳ |
41160-0P600 |
US $39.31 |
||
|
41151M
|
41151M
41160-0P601 Plate-Baffle9601--01 ~ 9606--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET; ﾋﾀﾞﾘ ﾖｳ |
41160-0P601 |
US $39.31 |
||
|
41217
|
41217
44140N9500 Pin-Lock9309--01 ~ 9606--01; VH41DE +VG30DET |
44140N9500 |
from US $8.45 |
||
|
41217
|
41217
44139-16E01 PIN9309--01 ~ 9606--01; VH41DE +VG30DET |
44139-16E01 |
US $18.29 |
||
|
41217+A
|
41217+A
44139-16E01 PIN9309--01 ~ 9606--01; VH41DE +VG30DET |
44139-16E01 |
US $18.29 |
||
