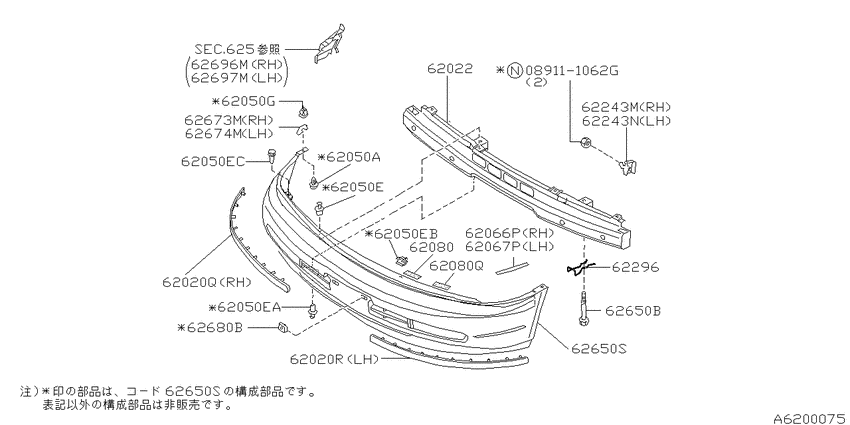

Front bumper (1993-09-01 ~ ; S) Diagram Nissan CIMA
- Year
- 1993 - 1996
- Sales region
- Japan
- Engine
- VG30DET
- drive
- 2WD.STD
- transmission
- AT.F4
- grade
- TP/TS
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.59 |
||
|
62020Q
|
62020Q
62074-2P000 Moulding-Front Bumper, Rh9309--01 ~ 9504--01; S |
62074-2P000 |
US $54.43 |
||
|
62020Q
|
62020Q
62074-2P001 Moulding-Front Bumper, Rh9504--01 ~ ; S |
62074-2P001 |
US $54.43 |
||
|
62020R
|
62020R
62075-2P000 Moulding-Front Bumper, Lh9309--01 ~ 9504--01; S |
62075-2P000 |
US $54.43 |
||
|
62020R
|
62020R
62075-2P001 Moulding-Front Bumper, Lh9504--01 ~ ; S |
62075-2P001 |
US $54.43 |
||
|
62022
|
62022
62030-2P030 Reinforce-Front Bumper Center, Inner9309--01 ~ ; S |
62030-2P030 |
US $623.04 |
||
|
62050A
|
62050A
01461-00941 SCREW9309--01 ~ 9505--01; S |
01461-00941 |
US $2.45 |
||
|
62050E
|
62050E
0155307901 CLIP9309--01 ~ 9505--01; S |
0155307901 |
US $1.01 |
||
|
62050E
|
62050E
01553-08521 CLIP9505--01 ~ ; S |
01553-08521 |
US $1.87 |
||
|
62050E
|
62050E
0155306941 CLIP9309--01 ~ ; S |
0155306941 |
US $1.67 |
||
|
62050E
|
62050E
62228-0P000 Clip9309--01 ~ ; S |
62228-0P000 |
US $2.16 |
||
|
62050E
|
62050E
0155307901 CLIP9505--01 ~ ; S |
0155307901 |
US $1.01 |
||
|
62050E
|
62050E
01553-08521 CLIP9309--01 ~ 9505--01; S |
01553-08521 |
US $1.87 |
||
|
62050EA
|
62050EA
0155306941 CLIP9309--01 ~ ; S |
0155306941 |
US $1.67 |
||
|
62050EB
|
62050EB
62228-0P000 Clip9309--01 ~ ; S |
62228-0P000 |
US $2.16 |
||
|
62050EC
|
62050EC
0155307901 CLIP9505--01 ~ ; S |
0155307901 |
US $1.01 |
||
|
62050EC
|
62050EC
01553-08521 CLIP9309--01 ~ 9505--01; S |
01553-08521 |
US $1.87 |
||
|
62050G
|
62050G
0128100111 GROMMET-SCREW9309--01 ~ ; S |
0128100111 |
from US $0.85 |
||
|
62066P
|
62066P
62066-1P105 Protector-Front Bumper, Rh9309--01 ~ 9606--01; S |
62066-1P105 |
US $6.05 |
||
|
62067P
|
62067P
62067-1P105 Protector-Front Bumper, Lh9309--01 ~ 9606--01; S |
62067-1P105 |
US $6.05 |
||
|
62080
|
62080
62234-1P100 Shield-Sight, Front Bumper9309--01 ~ ; S |
62234-1P100 |
US $6.62 |
||
|
62080
|
62080
62235-1P100 Shield-Sight, Front Bumper Lh9309--01 ~ ; S |
62235-1P100 |
US $6.62 |
||
|
62080Q
|
62080Q
62235-1P100 Shield-Sight, Front Bumper Lh9309--01 ~ ; S |
62235-1P100 |
US $6.62 |
||
|
62243M
|
62243M
62294-1P100 Retainer-Front Bumper, Lower Rh9309--01 ~ ; S |
62294-1P100 |
US $27.50 |
||
|
62243N
|
62243N
62295-1P100 Retainer-Front Bumper, Lower Lh9309--01 ~ ; S |
62295-1P100 |
US $27.50 |
||
|
62296
|
62296
62296-1P100 Retainer-Bumper Stay9309--01 ~ ; S |
62296-1P100 |
US $5.62 |
||
|
625
|
Front apron & radiator core support
625
|
||||
|
62650B
|
62650B
6229710Y00 Bolt9309--01 ~ ; S |
6229710Y00 |
US $3.46 |
||
|
62650S
|
62650S
62022-2P025 Fascia Kit-Front Bumper9309--01 ~ ; S; ﾑﾄｿｳ (PP) |
62022-2P025 |
US $1,005.36 |
||
|
62650S
|
62650S
62022-2P025 Fascia Kit-Front Bumper9309--01 ~ ; S; ﾑﾄｿｳ (PP) |
62022-2P025 |
US $1,005.36 |
||
|
62673M
|
62673M
62094-1P100 Spacer-Bumper Side, Rh9309--01 ~ ; S |
62094-1P100 |
US $4.61 |
||
|
62674M
|
62674M
62095-1P100 Spacer-Bumper Side, Lh9309--01 ~ ; S |
62095-1P100 |
US $4.61 |
||
|
62680B
|
62680B
0124100881 NUT-SPRING9309--01 ~ 9505--01; S |
0124100881 |
from US $0.94 |
||
|
62680B
|
62680B
0124101051 NUT-SPRING9505--01 ~ ; S |
0124101051 |
from US $0.98 |
||
