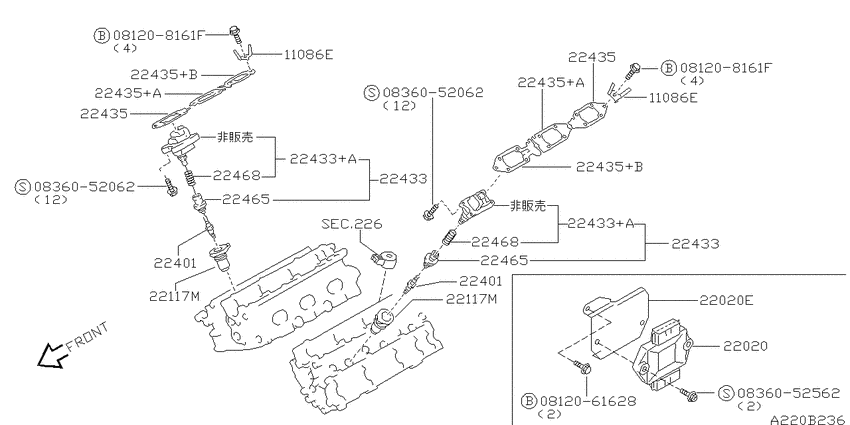

Ignition System (1993-09-01 ~ 1996-06-01; VG30DET) Diagram Nissan CIMA
- Year
- 1993 - 1996
- Sales region
- Japan
- Engine
- VG30DET
- drive
- 2WD.STD
- transmission
- AT.F4
- grade
- TP/TS
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
from US $0.57 |
||
|
081208161F
|
081208161F
081208161F
Bolt-hexagon
|
081208161F |
— | ||
|
081208161F
|
081208161F
081208161F
Bolt-hexagon
|
081208161F |
— | ||
|
0836052062
|
0836052062
0836052062
ｽｸﾘﾕ-,ﾏｼﾝ
|
0836052062 |
— | ||
|
0836052062
|
0836052062
0836052062
ｽｸﾘﾕ-,ﾏｼﾝ
|
0836052062 |
— | ||
|
0836052562
|
0836052562
08360-52562
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-52562 |
— | ||
|
11086E
|
11086E
24201-F6510 Clamp9309--01 ~ 9606--01; VG30DET |
24201-F6510 |
US $2.45 |
||
|
11086E
|
11086E
24201-F6510 Clamp9309--01 ~ 9606--01; VG30DET |
24201-F6510 |
US $2.45 |
||
|
22020
|
22020
22020-97E00 TRANSISTOR IGNITION UNIT9309--01 ~ 9505--01; VG30DET; ﾋﾀﾁ |
22020-97E00 |
US $814.20 |
||
|
22020
|
22020
22020-97E01 TRANSISTOR IGNITION UNIT9505--01 ~ 9606--01; VG30DET; ﾋﾀﾁ |
22020-97E01 |
US $746.23 |
||
|
22020
|
22020
22020-97E10 TRANSISTOR IGNITION UNIT9309--01 ~ 9505--01; VG30DET; ﾐﾂﾋﾞｼ |
22020-97E10 |
US $814.20 |
||
|
22020
|
22020
22020-97E11 TRANSISTOR IGNITION UNIT9505--01 ~ 9606--01; VG30DET; ﾐﾂﾋﾞｼ |
22020-97E11 |
US $747.65 |
||
|
22020
|
22020
22435-0P601 Bracket-Transistor Ignition9309--01 ~ 9606--01; VG30DET |
22435-0P601 |
US $28.08 |
||
|
22020E
|
22020E
22435-0P601 Bracket-Transistor Ignition9309--01 ~ 9606--01; VG30DET |
22435-0P601 |
US $28.08 |
||
|
22117M
|
22117M
22117-1P660 Spacer-Spark Plug9309--01 ~ 9606--01; VG30DET |
22117-1P660 |
US $7.20 |
||
|
22117M
|
22117M
22117-1P660 Spacer-Spark Plug9309--01 ~ 9606--01; VG30DET |
22117-1P660 |
US $7.20 |
||
|
22401
|
22401
22401-0P614 Plug-Spark9309--01 ~ 9606--01; VG30DET; PFR4F-11A[B512] |
22401-0P614 |
US $21.60 |
||
|
22401
|
22401
224010P615 Plug-Spark9309--01 ~ 9606--01; VG30DET; PFR5F-11A[B512] |
224010P615 |
US $21.60 |
||
|
22401
|
22401
224010P616 Plug-Spark9309--01 ~ 9606--01; VG30DET; PFR6F-11A[B512] |
224010P616 |
US $21.60 |
||
|
22401
|
22401
22401-0P614 Plug-Spark9309--01 ~ 9606--01; VG30DET; PFR4F-11A[B512] |
22401-0P614 |
US $21.60 |
||
|
22401
|
22401
224010P615 Plug-Spark9309--01 ~ 9606--01; VG30DET; PFR5F-11A[B512] |
224010P615 |
US $21.60 |
||
|
22401
|
22401
224010P616 Plug-Spark9309--01 ~ 9606--01; VG30DET; PFR6F-11A[B512] |
224010P616 |
US $21.60 |
||
|
22433
|
22433
22448-F6513 Coil Assy-Ignition9309--01 ~ 9606--01; VG30DET; ﾊﾝｼﾝ |
22448-F6513 |
US $175.68 |
||
|
22433
|
22433
22448-F6562 Coil Assy-Ignition9309--01 ~ 9606--01; VG30DET; ﾐﾂﾋﾞｼ |
22448-F6562 |
US $175.68 |
||
|
22433
|
22433
2243359S12 Coil Assy-Ignition9309--01 ~ 9606--01; VG30DET; ﾊﾝｼﾝ |
2243359S12 |
US $202.37 |
||
|
22433
|
22433
22433-59S61 Coil Assy-Ignition9309--01 ~ 9606--01; VG30DET; ﾐﾂﾋﾞｼ |
22433-59S61 |
US $175.68 |
||
|
22433
|
22433
22448-F6513 Coil Assy-Ignition9309--01 ~ 9606--01; VG30DET; ﾊﾝｼﾝ |
22448-F6513 |
US $175.68 |
||
|
22433
|
22433
22448-F6562 Coil Assy-Ignition9309--01 ~ 9606--01; VG30DET; ﾐﾂﾋﾞｼ |
22448-F6562 |
US $175.68 |
||
|
22433
|
22433
2243359S12 Coil Assy-Ignition9309--01 ~ 9606--01; VG30DET; ﾊﾝｼﾝ |
2243359S12 |
US $202.37 |
||
|
22433
|
22433
22433-59S61 Coil Assy-Ignition9309--01 ~ 9606--01; VG30DET; ﾐﾂﾋﾞｼ |
22433-59S61 |
US $175.68 |
||
|
22433+A
|
22433+A
2243359S12 Coil Assy-Ignition9309--01 ~ 9606--01; VG30DET; ﾊﾝｼﾝ |
2243359S12 |
US $202.37 |
||
|
22433+A
|
22433+A
22433-59S61 Coil Assy-Ignition9309--01 ~ 9606--01; VG30DET; ﾐﾂﾋﾞｼ |
22433-59S61 |
US $175.68 |
||
|
22433+A
|
22433+A
2243359S12 Coil Assy-Ignition9309--01 ~ 9606--01; VG30DET; ﾊﾝｼﾝ |
2243359S12 |
US $202.37 |
||
|
22433+A
|
22433+A
22433-59S61 Coil Assy-Ignition9309--01 ~ 9606--01; VG30DET; ﾐﾂﾋﾞｼ |
22433-59S61 |
US $175.68 |
||
|
22435
|
22435
22435-F6505 Bracket-Ignition Coil9309--01 ~ 9606--01; VG30DET |
22435-F6505 |
US $26.78 |
||
|
22435
|
22435
22435-F6506 Bracket-Ignition Coil9309--01 ~ 9606--01; VG30DET |
22435-F6506 |
US $26.78 |
||
|
22435
|
22435
22435-F6507 Bracket-Ignition Coil9309--01 ~ 9606--01; VG30DET |
22435-F6507 |
US $26.78 |
||
|
22435
|
22435
22435-F6505 Bracket-Ignition Coil9309--01 ~ 9606--01; VG30DET |
22435-F6505 |
US $26.78 |
||
|
22435
|
22435
22435-F6506 Bracket-Ignition Coil9309--01 ~ 9606--01; VG30DET |
22435-F6506 |
US $26.78 |
||
|
22435
|
22435
22435-F6507 Bracket-Ignition Coil9309--01 ~ 9606--01; VG30DET |
22435-F6507 |
US $26.78 |
||
|
22435+A
|
22435+A
22435-F6506 Bracket-Ignition Coil9309--01 ~ 9606--01; VG30DET |
22435-F6506 |
US $26.78 |
||
|
22435+A
|
22435+A
22435-F6506 Bracket-Ignition Coil9309--01 ~ 9606--01; VG30DET |
22435-F6506 |
US $26.78 |
||
|
22435+B
|
22435+B
22435-F6507 Bracket-Ignition Coil9309--01 ~ 9606--01; VG30DET |
22435-F6507 |
US $26.78 |
||
|
22435+B
|
22435+B
22435-F6507 Bracket-Ignition Coil9309--01 ~ 9606--01; VG30DET |
22435-F6507 |
US $26.78 |
||
|
22465
|
22465
22465-F6501 Protector-Ignition Coil9309--01 ~ 9606--01; VG30DET; ﾊﾝｼﾝ |
22465-F6501 |
US $10.51 |
||
|
22465
|
22465
22465-F6511 Protector-Ignition Coil9309--01 ~ 9606--01; VG30DET; ﾐﾂﾋﾞｼ |
22465-F6511 |
US $11.66 |
||
|
22465
|
22465
22465-F6501 Protector-Ignition Coil9309--01 ~ 9606--01; VG30DET; ﾊﾝｼﾝ |
22465-F6501 |
US $10.51 |
||
|
22465
|
22465
22465-F6511 Protector-Ignition Coil9309--01 ~ 9606--01; VG30DET; ﾐﾂﾋﾞｼ |
22465-F6511 |
US $11.66 |
||
|
22468
|
22468
22468-1P101 Spr-Coil9309--01 ~ 9606--01; VG30DET; ﾊﾝｼﾝ |
22468-1P101 |
US $4.61 |
||
|
22468
|
22468
22468-F6561 Spr-Coil9309--01 ~ 9606--01; VG30DET; ﾐﾂﾋﾞｼ |
22468-F6561 |
US $4.90 |
||
|
22468
|
22468
22468-1P101 Spr-Coil9309--01 ~ 9606--01; VG30DET; ﾊﾝｼﾝ |
22468-1P101 |
US $4.61 |
||
|
22468
|
22468
22468-F6561 Spr-Coil9309--01 ~ 9606--01; VG30DET; ﾐﾂﾋﾞｼ |
22468-F6561 |
US $4.90 |
||
|
226
|
Engine control module
226
|
||||
|
226
|
Engine control module
226
|
||||
