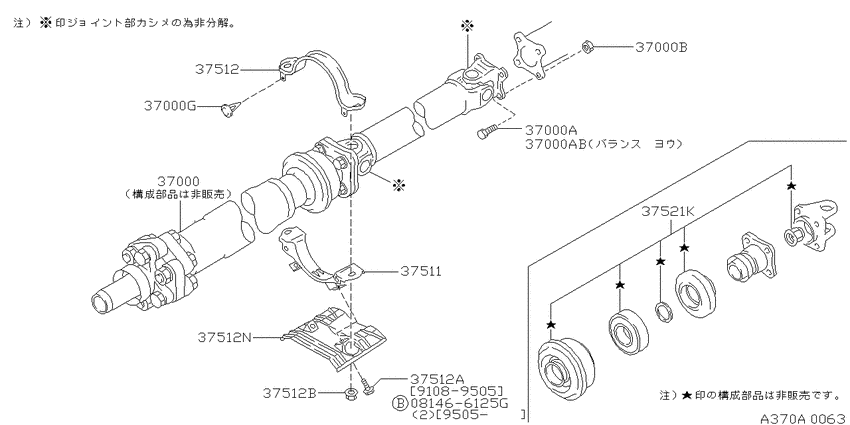

Propeller shaft (1993-09-01 ~ 1996-06-01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET) Diagram Nissan CIMA
- Year
- 1993 - 1996
- Sales region
- Japan
- Engine
- VG30DET
- drive
- 2WD.STD
- transmission
- AT.F4
- grade
- TP/TS
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466125G
|
081466125G
081466125G
Bolt-hexagon
|
081466125G |
— | ||
|
37000
|
37000
37000-2P001 Shaft Assy-Propeller9309--01 ~ 9606--01; VG30DET |
37000-2P001 |
US $1,319.71 |
||
|
37000
|
37000
37120-1P100 Bolt-Fix Propeller Shaft9309--01 ~ 9606--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET; 46.8G |
37120-1P100 |
US $2.91 |
||
|
37000
|
37000
37120-1P101 Bolt-Fix Propeller Shaft9309--01 ~ 9606--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET; ﾊﾞﾗﾝｽﾖｳ 48.5G ﾏ-ｸA |
37120-1P101 |
US $2.45 |
||
|
37000
|
37000
37120-1P103 Bolt-Fix Propeller Shaft9309--01 ~ 9606--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET; ﾊﾞﾗﾝｽﾖｳ 50.2G ﾏ-ｸB |
37120-1P103 |
US $2.45 |
||
|
37000
|
37000
37120-1P105 Bolt-Fix Propeller Shaft9309--01 ~ 9606--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET; ﾊﾞﾗﾝｽﾖｳ 51.9G ﾏ-ｸC |
37120-1P105 |
US $2.45 |
||
|
37000
|
37000
37171-1P100
Nut-Fix Propeller Shaft
9309--01 ~ 9606--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
37171-1P100 |
— | ||
| replacement | |||||
|
37000
|
37000
371711P10A Nut-Fix Propeller Shaft9309--01 ~ 9606--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
371711P10A |
from US $1.15 |
||
|
37000
|
37000
0155301A50 Clamp-Propeller Shaft Balance9309--01 ~ 9606--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
0155301A50 |
from US $0.54 |
||
|
37000A
|
37000A
37120-1P100 Bolt-Fix Propeller Shaft9309--01 ~ 9606--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET; 46.8G |
37120-1P100 |
US $2.91 |
||
|
37000A
|
37000A
37120-1P101 Bolt-Fix Propeller Shaft9309--01 ~ 9606--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET; ﾊﾞﾗﾝｽﾖｳ 48.5G ﾏ-ｸA |
37120-1P101 |
US $2.45 |
||
|
37000A
|
37000A
37120-1P103 Bolt-Fix Propeller Shaft9309--01 ~ 9606--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET; ﾊﾞﾗﾝｽﾖｳ 50.2G ﾏ-ｸB |
37120-1P103 |
US $2.45 |
||
|
37000A
|
37000A
37120-1P105 Bolt-Fix Propeller Shaft9309--01 ~ 9606--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET; ﾊﾞﾗﾝｽﾖｳ 51.9G ﾏ-ｸC |
37120-1P105 |
US $2.45 |
||
|
37000AB
|
37000AB
37120-1P101 Bolt-Fix Propeller Shaft9309--01 ~ 9606--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET; ﾊﾞﾗﾝｽﾖｳ 48.5G ﾏ-ｸA |
37120-1P101 |
US $2.45 |
||
|
37000AB
|
37000AB
37120-1P103 Bolt-Fix Propeller Shaft9309--01 ~ 9606--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET; ﾊﾞﾗﾝｽﾖｳ 50.2G ﾏ-ｸB |
37120-1P103 |
US $2.45 |
||
|
37000AB
|
37000AB
37120-1P105 Bolt-Fix Propeller Shaft9309--01 ~ 9606--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET; ﾊﾞﾗﾝｽﾖｳ 51.9G ﾏ-ｸC |
37120-1P105 |
US $2.45 |
||
|
37000B
|
37000B
37171-1P100
Nut-Fix Propeller Shaft
9309--01 ~ 9606--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
37171-1P100 |
— | ||
| replacement | |||||
|
37000B
|
37000B
371711P10A Nut-Fix Propeller Shaft9309--01 ~ 9606--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
371711P10A |
from US $1.15 |
||
|
37000G
|
37000G
0155301A50 Clamp-Propeller Shaft Balance9309--01 ~ 9606--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
0155301A50 |
from US $0.54 |
||
|
37511
|
37511
37511-0P000 Bracket-Center Bearing9309--01 ~ 9606--01; VG30DET |
37511-0P000 |
US $31.61 |
||
|
37512
|
37512
37512-0P000 Bracket-Center Bearing9309--01 ~ 9606--01; VG30DET |
37512-0P000 |
US $32.71 |
||
|
37512
|
37512
0122500062 NUT9503--01 ~ 9606--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
0122500062 |
from US $1.67 |
||
|
37512
|
37512
0122500231 NUT9309--01 ~ 9503--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
0122500231 |
from US $0.63 |
||
|
37512B
|
37512B
0122500062 NUT9503--01 ~ 9606--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
0122500062 |
from US $1.67 |
||
|
37512B
|
37512B
0122500231 NUT9309--01 ~ 9503--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
0122500231 |
from US $0.63 |
||
|
37521K
|
37521K
37521-41L85 Bearing Kit-Center9309--01 ~ 9606--01; VG30DET |
37521-41L85 |
US $252 |
||
| replacement | |||||
|
37521K
|
37521K
37521-6P025 Bearing Kit-Center9309--01 ~ 9606--01; VG30DET |
37521-6P025 |
US $158.40 |
||
