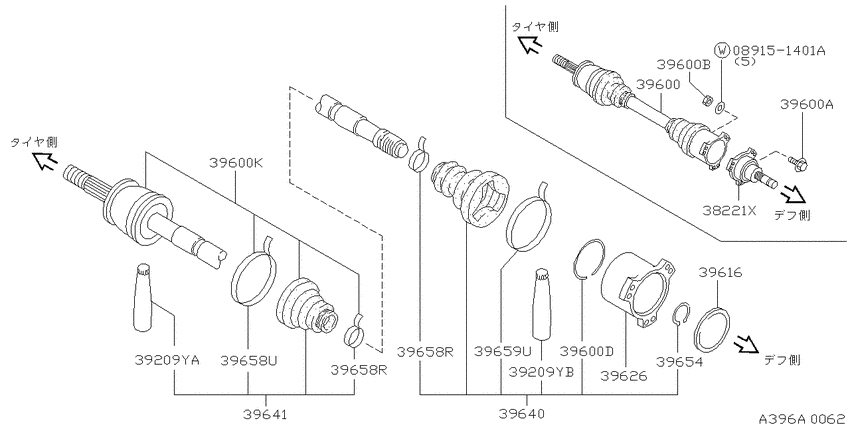

Rear drive shaft (1995-09-01 ~ 1996-06-01; 右用; !(2WD.STD+2WD.DSP).VH41DE +VG30DET) Diagram Nissan CIMA
- Year
- 1993 - 1996
- Sales region
- Japan
- Engine
- VG30DET
- drive
- 2WD.STD
- transmission
- AT.F4
- grade
- TP/TS
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089151401A
|
089151401A
089151401A Washer-Lock |
089151401A |
from US $0.59 |
||
|
38221X
|
38221X
38220-1P100 Flange Assy-Slide Rh9309--01 ~ 9407--01; VG30DET; ABS ｼﾖｳ |
38220-1P100 |
US $244.80 |
||
|
38221X
|
38221X
38220-3P200 Flange Assy-Slide Rh9407--01 ~ 9509--01; VG30DET.TP/TS.AT.F4 |
38220-3P200 |
US $267.84 |
||
|
38221X
|
38221X
38220-3P215 Flange Assy-Slide Rh9407--01 ~ 9606--01; *VG30DET.TP/TS.AT.F4; ABS ｼﾖｳ |
38220-3P215 |
US $266.40 |
||
|
39209YA
|
39209YA
39209-03P28 Grease9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39209-03P28 |
US $27.79 |
||
|
39209YA
|
39209YA
39709-16E25 GREASE-INNER9407--01 ~ 9509--01; VG30DET |
39709-16E25 |
US $26.21 |
||
| replacement | |||||
|
39209YA
|
39209YA
C97092U618 Grease-Inner9407--01 ~ 9509--01; VG30DET |
C97092U618 |
US $23.33 |
||
|
39209YB
|
39209YB
39209-03P86 Grease-Inner9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39209-03P86 |
US $31.10 |
||
|
39209YB
|
39209YB
397094P225 Grease9501--01 ~ 9509--01; VG30DET |
397094P225 |
US $25.63 |
||
|
39209YB
|
39209YB
39709-55E25 GREASE-INNER9407--01 ~ 9501--01; VG30DET |
39709-55E25 |
US $30.96 |
||
| replacement | |||||
|
39209YB
|
39209YB
C97092U618 Grease-Inner9407--01 ~ 9501--01; VG30DET |
C97092U618 |
US $23.33 |
||
|
39600
|
39600
39600-0P500 Shaft Assy-Rear Drive9407--01 ~ 9509--01; VG30DET |
39600-0P500 |
US $1,107.31 |
||
|
39600
|
39600
39600-0P600 Shaft Assy-Rear Drive9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39600-0P600 |
US $1,326.79 |
||
|
39600
|
39600
39606-17V00
Bolt
9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39606-17V00 |
— | ||
| replacement | |||||
|
39600
|
39600
3960617V0A Bolt9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
3960617V0A |
from US $1.15 |
||
|
39600
|
39600
39606-22P00
Bolt
9407--01 ~ 9509--01; VG30DET |
39606-22P00 |
— | ||
| replacement | |||||
|
39600
|
39600
3960622P0A Bolt9407--01 ~ 9509--01; VG30DET |
3960622P0A |
from US $1.18 |
||
|
39600
|
39600
39607-03P00
Nut
9407--01 ~ 9509--01; VG30DET |
39607-03P00 |
— | ||
| replacement | |||||
|
39600
|
39600
3960703P0A Nut9407--01 ~ 9509--01; VG30DET |
3960703P0A |
US $1.93 |
||
|
39600
|
39600
39735-03P00 Ring-Stopper9407--01 ~ 9509--01; VG30DET |
39735-03P00 |
US $2.45 |
||
|
39600
|
39600
39735-17V20 Ring-Snap9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39735-17V20 |
US $1.73 |
||
|
39600
|
39600
39735-03P00 Ring-Stopper9407--01 ~ 9509--01; VG30DET |
39735-03P00 |
US $2.45 |
||
|
39600
|
39600
39735-17V20 Ring-Snap9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39735-17V20 |
US $1.73 |
||
|
39600
|
39600
38225-17V20 Circlip9309--01 ~ 9606--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
38225-17V20 |
US $3.17 |
||
|
39600
|
39600
39210-0P525 Repair Kit-Rear Drive Shaft, Rh9407--01 ~ 9509--01; VG30DET |
39210-0P525 |
US $923.23 |
||
|
39600
|
39600
39210-0P625 Repair Kit-Rear Drive Shaft, Rh9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39210-0P625 |
US $1,003.94 |
||
|
39600A
|
39600A
39606-17V00
Bolt
9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39606-17V00 |
— | ||
| replacement | |||||
|
39600A
|
39600A
3960617V0A Bolt9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
3960617V0A |
from US $1.15 |
||
|
39600A
|
39600A
39606-22P00
Bolt
9407--01 ~ 9509--01; VG30DET |
39606-22P00 |
— | ||
| replacement | |||||
|
39600A
|
39600A
3960622P0A Bolt9407--01 ~ 9509--01; VG30DET |
3960622P0A |
from US $1.18 |
||
|
39600B
|
39600B
39607-03P00
Nut
9407--01 ~ 9509--01; VG30DET |
39607-03P00 |
— | ||
| replacement | |||||
|
39600B
|
39600B
3960703P0A Nut9407--01 ~ 9509--01; VG30DET |
3960703P0A |
US $1.93 |
||
|
39600D
|
39600D
39735-03P00 Ring-Stopper9407--01 ~ 9509--01; VG30DET |
39735-03P00 |
US $2.45 |
||
|
39600D
|
39600D
39735-17V20 Ring-Snap9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39735-17V20 |
US $1.73 |
||
|
39600D
|
39600D
39735-03P00 Ring-Stopper9407--01 ~ 9509--01; VG30DET |
39735-03P00 |
US $2.45 |
||
|
39600D
|
39600D
39735-17V20 Ring-Snap9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39735-17V20 |
US $1.73 |
||
|
39600K
|
39600K
39210-0P525 Repair Kit-Rear Drive Shaft, Rh9407--01 ~ 9509--01; VG30DET |
39210-0P525 |
US $923.23 |
||
|
39600K
|
39600K
39210-0P625 Repair Kit-Rear Drive Shaft, Rh9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39210-0P625 |
US $1,003.94 |
||
|
39616
|
39616
39716-88G00 Plug-Slide Joint9407--01 ~ 9509--01; VG30DET |
39716-88G00 |
US $8.21 |
||
|
39616
|
39616
39716-88G00 Plug-Slide Joint9407--01 ~ 9509--01; VG30DET |
39716-88G00 |
US $8.21 |
||
|
39626
|
39626
39711-60U20 Joint Assy-Inner9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39711-60U20 |
US $341.26 |
||
|
39626
|
39626
39711-73L00 Joint Assy-Inner9407--01 ~ 9509--01; VG30DET |
39711-73L00 |
US $378.07 |
||
| replacement | |||||
|
39626
|
39626
39711-73L02 Joint Assy-Inner9407--01 ~ 9509--01; VG30DET |
39711-73L02 |
US $379.49 |
||
|
39626
|
39626
39711-60U20 Joint Assy-Inner9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39711-60U20 |
US $341.26 |
||
|
39626
|
39626
39711-73L00 Joint Assy-Inner9407--01 ~ 9509--01; VG30DET |
39711-73L00 |
US $378.07 |
||
| replacement | |||||
|
39626
|
39626
39711-73L02 Joint Assy-Inner9407--01 ~ 9509--01; VG30DET |
39711-73L02 |
US $379.49 |
||
|
39640
|
39640
3974103P27 Repair Kit-Seal, Inner9407--01 ~ 9501--01; VG30DET |
3974103P27 |
US $80.50 |
||
|
39640
|
39640
39741-03P87 Repair Kit-Seal, Inner9501--01 ~ 9509--01; VG30DET |
39741-03P87 |
US $80.50 |
||
|
39640
|
39640
39741-17V85
Repair Kit-Seal, Inner
9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39741-17V85 |
— | ||
| replacements | |||||
|
39640
|
39640
39741-17V86
Repair Kit-Seal, Inner
9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39741-17V86 |
— | ||
|
39640
|
39640
C9GDA-17V86 Boot Repair Kit,9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
C9GDA-17V86 |
US $98.56 |
||
|
39640
|
39640
3974103P27 Repair Kit-Seal, Inner9407--01 ~ 9501--01; VG30DET |
3974103P27 |
US $80.50 |
||
|
39640
|
39640
39741-03P87 Repair Kit-Seal, Inner9501--01 ~ 9509--01; VG30DET |
39741-03P87 |
US $80.50 |
||
|
39640
|
39640
39741-17V85
Repair Kit-Seal, Inner
9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39741-17V85 |
— | ||
| replacements | |||||
|
39640
|
39640
39741-17V86
Repair Kit-Seal, Inner
9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39741-17V86 |
— | ||
|
39640
|
39640
C9GDA-17V86 Boot Repair Kit,9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
C9GDA-17V86 |
US $98.56 |
||
|
39641
|
39641
39241-17V87
Repair Kit-Seal, Outer
9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39241-17V87 |
— | ||
| replacement | |||||
|
39641
|
39641
C9BDA-17V87 Repair Kit-Seal, Outer9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
C9BDA-17V87 |
US $96.61 |
||
|
39641
|
39641
39241-73L25 Repair Kit-Seal, Outer9407--01 ~ 9509--01; VG30DET |
39241-73L25 |
US $82.08 |
||
| replacement | |||||
|
39641
|
39641
39241-73L27 Repair Kit-Seal, Outer9407--01 ~ 9509--01; VG30DET |
39241-73L27 |
US $82.08 |
||
|
39641
|
39641
39241-17V87
Repair Kit-Seal, Outer
9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39241-17V87 |
— | ||
| replacement | |||||
|
39641
|
39641
C9BDA-17V87 Repair Kit-Seal, Outer9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
C9BDA-17V87 |
US $96.61 |
||
|
39641
|
39641
39241-73L25 Repair Kit-Seal, Outer9407--01 ~ 9509--01; VG30DET |
39241-73L25 |
US $82.08 |
||
| replacement | |||||
|
39641
|
39641
39241-73L27 Repair Kit-Seal, Outer9407--01 ~ 9509--01; VG30DET |
39241-73L27 |
US $82.08 |
||
|
39654
|
39654
39708-73L00 Ring-Snap9407--01 ~ 9509--01; VG30DET |
39708-73L00 |
US $3.72 |
||
|
39654
|
39654
39734-17V20 Ring-Snap, Drive Shaft9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39734-17V20 |
US $3.31 |
||
|
39654
|
39654
39708-73L00 Ring-Snap9407--01 ~ 9509--01; VG30DET |
39708-73L00 |
US $3.72 |
||
|
39654
|
39654
39734-17V20 Ring-Snap, Drive Shaft9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39734-17V20 |
US $3.31 |
||
|
39658R
|
39658R
39242-03P05 Band-Rubber Boot, Shaft9407--01 ~ 9509--01; VG30DET |
39242-03P05 |
from US $4.18 |
||
|
39658R
|
39658R
39242-17V05 Band-Boot, Drive Shaft Outer9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39242-17V05 |
US $5.62 |
||
|
39658R
|
39658R
39242-03P05 Band-Rubber Boot, Shaft9407--01 ~ 9509--01; VG30DET |
39242-03P05 |
from US $4.18 |
||
|
39658R
|
39658R
39242-17V05 Band-Boot, Drive Shaft Outer9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39242-17V05 |
US $5.62 |
||
|
39658R
|
39658R
39242-03P05 Band-Rubber Boot, Shaft9407--01 ~ 9509--01; VG30DET |
39242-03P05 |
from US $4.18 |
||
|
39658R
|
39658R
39242-17V05 Band-Boot, Drive Shaft Outer9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39242-17V05 |
US $5.62 |
||
|
39658R
|
39658R
39242-03P05 Band-Rubber Boot, Shaft9407--01 ~ 9509--01; VG30DET |
39242-03P05 |
from US $4.18 |
||
|
39658R
|
39658R
39242-17V05 Band-Boot, Drive Shaft Outer9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39242-17V05 |
US $5.62 |
||
|
39658U
|
39658U
3924210E00 BAND-BOOT,DRIVE SHAFT OUTER9407--01 ~ 9509--01; VG30DET |
3924210E00 |
US $4.42 |
||
|
39658U
|
39658U
39242-17V20 Band-Boot, Drive Shaft Outer9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39242-17V20 |
US $5.62 |
||
|
39658U
|
39658U
3924210E00 BAND-BOOT,DRIVE SHAFT OUTER9407--01 ~ 9509--01; VG30DET |
3924210E00 |
US $4.42 |
||
|
39658U
|
39658U
39242-17V20 Band-Boot, Drive Shaft Outer9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39242-17V20 |
US $5.62 |
||
|
39659U
|
39659U
3974203P00 Band-Boot, Drive Shaft Inner9407--01 ~ 9509--01; VG30DET |
3974203P00 |
US $9.69 |
||
|
39659U
|
39659U
39742-17V20 Band-Boot Drive Shaft Inner9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39742-17V20 |
US $9.94 |
||
|
39659U
|
39659U
3974203P00 Band-Boot, Drive Shaft Inner9407--01 ~ 9509--01; VG30DET |
3974203P00 |
US $9.69 |
||
|
39659U
|
39659U
39742-17V20 Band-Boot Drive Shaft Inner9309--01 ~ 9407--01; !(2WD.STD+2WD.DSP).VH41DE +VG30DET |
39742-17V20 |
US $9.94 |
||
