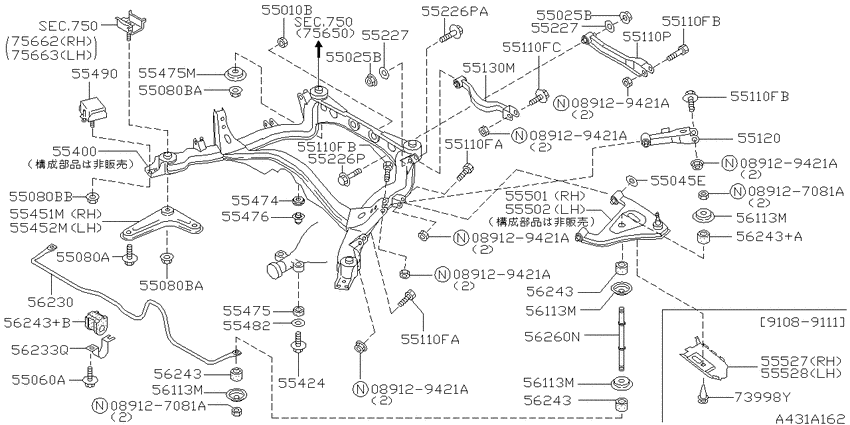

Rear suspension (1993-09-01 ~ 1996-06-01; メンバー & リンク パーツ; VH41DE.(TP/LS+TP/L) +VG30DET) Diagram Nissan CIMA
- Year
- 1993 - 1996
- Sales region
- Japan
- Engine
- VG30DET
- drive
- 2WD.STD
- transmission
- AT.F4
- grade
- TP/TS
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089127081A
|
089127081A
089127081A NUT-HEX |
089127081A |
US $2.21 |
||
|
089127081A
|
089127081A
089127081A NUT-HEX |
089127081A |
US $2.21 |
||
|
089129421A
|
089129421A
089129421A Nut |
089129421A |
from US $0.57 |
||
|
089129421A
|
089129421A
089129421A Nut |
089129421A |
from US $0.57 |
||
|
089129421A
|
089129421A
089129421A Nut |
089129421A |
from US $0.57 |
||
|
089129421A
|
089129421A
089129421A Nut |
089129421A |
from US $0.57 |
||
|
089129421A
|
089129421A
089129421A Nut |
089129421A |
from US $0.57 |
||
|
089129421A
|
089129421A
089129421A Nut |
089129421A |
from US $0.57 |
||
|
55010B
|
55010B
0122300191 NUT9309--01 ~ 9409--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
0122300191 |
from US $1.13 |
||
|
55010B
|
55010B
55269-0P010 Nut9409--01 ~ 9505--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
55269-0P010 |
US $2.45 |
||
|
55025B
|
55025B
0122500651 NUT9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
0122500651 |
from US $1.13 |
||
|
55025B
|
55025B
0122500651 NUT9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
0122500651 |
from US $1.13 |
||
|
55045E
|
55045E
5504435F00 Stopper-Arm Bush9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
5504435F00 |
US $6.79 |
||
|
55060A
|
55060A
01125-01271 BOLT9309--01 ~ 9404--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
01125-01271 |
US $8.05 |
||
|
55060A
|
55060A
0112503161 BOLT9404--01 ~ 9501--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
0112503161 |
from US $0.93 |
||
|
55060A
|
55060A
54459-0P035
Bolt
9501--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
54459-0P035 |
— | ||
| replacement | |||||
|
55060A
|
55060A
544590P03E Bolt9501--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
544590P03E |
from US $0.98 |
||
|
55080A
|
55080A
0112101581 BOLT9309--01 ~ 9401--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
0112101581 |
US $4.30 |
||
|
55080A
|
55080A
01125-03181 BOLT9401--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
01125-03181 |
US $3.18 |
||
|
55080BA
|
55080BA
0122500491 NUT ASSY-BEARING LOCK9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
0122500491 |
from US $3.06 |
||
|
55080BA
|
55080BA
0122500491 NUT ASSY-BEARING LOCK9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
0122500491 |
from US $3.06 |
||
|
55080BB
|
55080BB
0122500102 NUT9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
0122500102 |
from US $0.57 |
||
|
55110FA
|
55110FA
01111-01381 BOLT-FIX,LINK9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
01111-01381 |
US $4.71 |
||
|
55110FA
|
55110FA
01111-01381 BOLT-FIX,LINK9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
01111-01381 |
US $4.71 |
||
|
55110FB
|
55110FB
0111101401 BOLT-FIX,LINK9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
0111101401 |
US $3.44 |
||
|
55110FB
|
55110FB
0111101401 BOLT-FIX,LINK9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
0111101401 |
US $3.44 |
||
|
55110FB
|
55110FB
0111101401 BOLT-FIX,LINK9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
0111101401 |
US $3.44 |
||
|
55110FC
|
55110FC
0111101371 BOLT-FIX,LINK9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
0111101371 |
US $4.18 |
||
|
55110P
|
55110P
5511070T00 Link Compl-Lower, Rear Suspension9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
5511070T00 |
US $119.76 |
||
|
55120
|
55120
5512010Y00 LINK ASSY9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
5512010Y00 |
US $63.94 |
||
|
55130M
|
55130M
55130-0P002 Link Compl-Upper, Rear Suspension Rear9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
55130-0P002 |
US $140.40 |
||
|
55226P
|
55226P
55226-0P000 Bolt9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
55226-0P000 |
US $42.41 |
||
|
55226P
|
55226P
5522635F10 Bolt9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
5522635F10 |
US $42.41 |
||
|
55226PA
|
55226PA
5522635F10 Bolt9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
5522635F10 |
US $42.41 |
||
|
55227
|
55227
55227-35F10
Disc-Eccentric, Rear Suspension
9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
55227-35F10 |
— | ||
| replacement | |||||
|
55227
|
55227
5522735F1A DISCECCENTRIC9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
5522735F1A |
from US $41.70 |
||
|
55227
|
55227
55227-35F10
Disc-Eccentric, Rear Suspension
9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
55227-35F10 |
— | ||
| replacement | |||||
|
55227
|
55227
5522735F1A DISCECCENTRIC9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
5522735F1A |
from US $41.70 |
||
|
55400
|
55400
55400-1P101 Member Compl-Rear Suspension9309--01 ~ 9409--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
55400-1P101 |
US $1,151.21 |
||
|
55400
|
55400
55400-1P110 Member Compl-Rear Suspension9409--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
55400-1P110 |
US $947.30 |
||
|
55424
|
55424
5542433P00 Bolt-Differential Mounting9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
5542433P00 |
US $42.41 |
||
|
55451M
|
55451M
55451-0P001 Stay Assy-Rear Suspension Member Rh9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
55451-0P001 |
US $56.02 |
||
|
55452M
|
55452M
55452-0P001 Stay Assy-Rear Suspension Member Lh9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
55452-0P001 |
US $56.02 |
||
|
55474
|
55474
55474-33P00 Stopper-Differential Mounting, Upper9309--01 ~ 9503--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET; ﾐｷﾞ&ﾋﾀﾞﾘ ﾖｳ |
55474-33P00 |
US $11.93 |
||
|
55474
|
55474
55474-70T00
Stopper-Differential Mounting, Upper
9503--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET; ﾋﾀﾞﾘ ﾖｳ |
55474-70T00 |
— | ||
| replacement | |||||
|
55474
|
55474
5547470T20 Stopper-Differential Mounting, Upper9503--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET; ﾋﾀﾞﾘ ﾖｳ |
5547470T20 |
from US $8.73 |
||
|
55475
|
55475
55475-33P00 Stopper-Differential Mounting, Lower9309--01 ~ 9503--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET; ﾐｷﾞ&ﾋﾀﾞﾘ ﾖｳ |
55475-33P00 |
US $7.63 |
||
|
55475
|
55475
55475-60U00 Stopper-Member Mounting Lower9309--01 ~ 9505--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
55475-60U00 |
US $4.82 |
||
|
55475M
|
55475M
55475-60U00 Stopper-Member Mounting Lower9309--01 ~ 9505--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
55475-60U00 |
US $4.82 |
||
|
55476
|
55476
55476-33P00 Insulator-Differential Mounting9309--01 ~ 9503--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET; ﾐｷﾞ&ﾋﾀﾞﾘ ﾖｳ |
55476-33P00 |
US $23.98 |
||
|
55476
|
55476
55476-70T00 Insulator-Differential Mounting9503--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET; ﾋﾀﾞﾘ ﾖｳ |
55476-70T00 |
US $17.71 |
||
|
55482
|
55482
55482-60U10
Washer-Special
9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
55482-60U10 |
— | ||
| replacement | |||||
|
55482
|
55482
5548260U1A ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
5548260U1A |
US $2.91 |
||
|
55490
|
55490
55490-1P100 Damper Assy-Dynamic, Rear Suspension9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
55490-1P100 |
US $128.30 |
||
|
55501
|
55501
55501-1P425 Arm Assy-Rear Suspension, Rh9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
55501-1P425 |
US $320.02 |
||
|
55502
|
55502
55502-1P425 Arm Assy-Rear Suspension, Lh9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
55502-1P425 |
US $320.02 |
||
|
56113M
|
56113M
5611333P00 Washer-Lock9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
5611333P00 |
US $1.82 |
||
|
56113M
|
56113M
5611333P00 Washer-Lock9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
5611333P00 |
US $1.82 |
||
|
56113M
|
56113M
5611333P00 Washer-Lock9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
5611333P00 |
US $1.82 |
||
|
56113M
|
56113M
5611333P00 Washer-Lock9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
5611333P00 |
US $1.82 |
||
|
56230
|
56230
56230-1P106 Stabilizer-Rear9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
56230-1P106 |
US $181.44 |
||
|
56233Q
|
56233Q
5623301P10 Bracket Assy-Rear Stabilizer9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
5623301P10 |
from US $4.48 |
||
|
56243
|
56243
5461201P00 Bush-Rubber, Shock Absorber9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
5461201P00 |
from US $2.98 |
||
|
56243
|
56243
5461235F00 Bush-Rear Stabilizer9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
5461235F00 |
from US $6.68 |
||
|
56243
|
56243
54613-16V00 Bush-Rear Stabilizer9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
54613-16V00 |
US $5.81 |
||
|
56243
|
56243
5461201P00 Bush-Rubber, Shock Absorber9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
5461201P00 |
from US $2.98 |
||
|
56243
|
56243
5461235F00 Bush-Rear Stabilizer9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
5461235F00 |
from US $6.68 |
||
|
56243
|
56243
54613-16V00 Bush-Rear Stabilizer9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
54613-16V00 |
US $5.81 |
||
|
56243
|
56243
5461201P00 Bush-Rubber, Shock Absorber9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
5461201P00 |
from US $2.98 |
||
|
56243
|
56243
5461235F00 Bush-Rear Stabilizer9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
5461235F00 |
from US $6.68 |
||
|
56243
|
56243
54613-16V00 Bush-Rear Stabilizer9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
54613-16V00 |
US $5.81 |
||
|
56243+A
|
56243+A
5461235F00 Bush-Rear Stabilizer9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
5461235F00 |
from US $6.68 |
||
|
56243+B
|
56243+B
54613-16V00 Bush-Rear Stabilizer9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
54613-16V00 |
US $5.81 |
||
|
56260N
|
56260N
5461835F10 Rod Assy-Connecting, Stabilizer9309--01 ~ 9606--01; "VH41DE.(TP/LS+TP/L).AT.F4 +VG30DET |
5461835F10 |
from US $27.88 |
||
|
