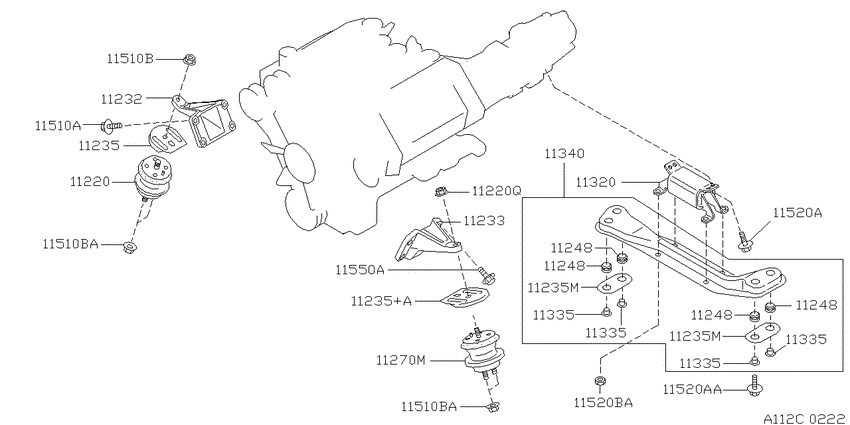

Engine & transmission mounting (1997-09-01 ~ ; 4WD.IRS.VH41DE) Diagram Nissan CIMA
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- VH41DE
- transmission
- AT
- grade
- 41LV
- body
- S
- Suspension
- 4WD.IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11220
|
11220
11220-7P010 Insulator-Engine Mounting, Front9709--01 ~ ; 4WD.IRS.VH41DE |
11220-7P010 |
US $201.60 |
||
|
11220
|
11220
01225-00671 NUT9709--01 ~ ; 4WD.IRS.VH41DE |
01225-00671 |
US $5.42 |
||
|
11220Q
|
11220Q
01225-00671 NUT9709--01 ~ ; 4WD.IRS.VH41DE |
01225-00671 |
US $5.42 |
||
|
11232
|
11232
11232-1P400 Bracket-Engine Mounting, Rh9709--01 ~ ; 4WD.IRS.VH41DE |
11232-1P400 |
US $85.10 |
||
|
11233
|
11233
11233-1P400 Bracket-Engine Mounting, Lh9709--01 ~ ; 4WD.IRS.VH41DE |
11233-1P400 |
US $85.10 |
||
|
11235
|
11235
11284-1P400 Plate-Heat Shield9709--01 ~ ; 4WD.IRS.VH41DE |
11284-1P400 |
US $11.52 |
||
|
11235
|
11235
11284-1P400 Plate-Heat Shield9709--01 ~ ; 4WD.IRS.VH41DE |
11284-1P400 |
US $11.52 |
||
|
11235
|
11235
11384-1P400 Plate-Heat Shield9709--01 ~ ; 4WD.IRS.VH41DE |
11384-1P400 |
US $16.42 |
||
|
11235+A
|
11235+A
11284-1P400 Plate-Heat Shield9709--01 ~ ; 4WD.IRS.VH41DE |
11284-1P400 |
US $11.52 |
||
|
11235M
|
11235M
11384-1P400 Plate-Heat Shield9709--01 ~ ; 4WD.IRS.VH41DE |
11384-1P400 |
US $16.42 |
||
|
11235M
|
11235M
11384-1P400 Plate-Heat Shield9709--01 ~ ; 4WD.IRS.VH41DE |
11384-1P400 |
US $16.42 |
||
|
11248
|
11248
1124851E09 PAD-ENGINE MOUNTING MEMBER9709--01 ~ ; 4WD.IRS.VH41DE |
1124851E09 |
from US $7.44 |
||
|
11248
|
11248
1124851E09 PAD-ENGINE MOUNTING MEMBER9709--01 ~ ; 4WD.IRS.VH41DE |
1124851E09 |
from US $7.44 |
||
|
11248
|
11248
1124851E09 PAD-ENGINE MOUNTING MEMBER9709--01 ~ ; 4WD.IRS.VH41DE |
1124851E09 |
from US $7.44 |
||
|
11248
|
11248
1124851E09 PAD-ENGINE MOUNTING MEMBER9709--01 ~ ; 4WD.IRS.VH41DE |
1124851E09 |
from US $7.44 |
||
|
11270M
|
11270M
11220-7P010 Insulator-Engine Mounting, Front9709--01 ~ ; 4WD.IRS.VH41DE |
11220-7P010 |
US $201.60 |
||
|
11320
|
11320
11320-7P000 Insulator-Engine Mounting, Rear9709--01 ~ ; 4WD.IRS.VH41DE |
11320-7P000 |
US $113.04 |
||
|
11335
|
11335
11394-1P400 Spacer9709--01 ~ ; 4WD.IRS.VH41DE |
11394-1P400 |
US $9.94 |
||
|
11335
|
11335
11394-1P400 Spacer9709--01 ~ ; 4WD.IRS.VH41DE |
11394-1P400 |
US $9.94 |
||
|
11335
|
11335
11394-1P400 Spacer9709--01 ~ ; 4WD.IRS.VH41DE |
11394-1P400 |
US $9.94 |
||
|
11335
|
11335
11394-1P400 Spacer9709--01 ~ ; 4WD.IRS.VH41DE |
11394-1P400 |
US $9.94 |
||
|
11340
|
11340
11310-1P401 Member Assy-Engine Mounting, Rear9709--01 ~ ; 4WD.IRS.VH41DE |
11310-1P401 |
US $266.40 |
||
|
11510A
|
11510A
01125-03151 BOLT9709--01 ~ ; 4WD.IRS.VH41DE |
01125-03151 |
US $3.46 |
||
|
11510B
|
11510B
01225-00671 NUT9709--01 ~ ; 4WD.IRS.VH41DE |
01225-00671 |
US $5.42 |
||
|
11510B
|
11510B
0122500521 NUT9709--01 ~ ; 4WD.IRS.VH41DE |
0122500521 |
from US $1.07 |
||
|
11510BA
|
11510BA
0122500521 NUT9709--01 ~ ; 4WD.IRS.VH41DE |
0122500521 |
from US $1.07 |
||
|
11510BA
|
11510BA
0122500521 NUT9709--01 ~ ; 4WD.IRS.VH41DE |
0122500521 |
from US $1.07 |
||
|
11520A
|
11520A
01121-03441 BOLT9709--01 ~ ; 4WD.IRS.VH41DE |
01121-03441 |
US $9.36 |
||
|
11520A
|
11520A
0112105071 BOLT9709--01 ~ ; 4WD.IRS.VH41DE |
0112105071 |
US $2.91 |
||
|
11520AA
|
11520AA
0112105071 BOLT9709--01 ~ ; 4WD.IRS.VH41DE |
0112105071 |
US $2.91 |
||
|
11520BA
|
11520BA
0122500481
NUT
9709--01 ~ ; 4WD.IRS.VH41DE |
0122500481 |
— | ||
|
11550A
|
11550A
01125-03151 BOLT9709--01 ~ ; 4WD.IRS.VH41DE |
01125-03151 |
US $3.46 |
