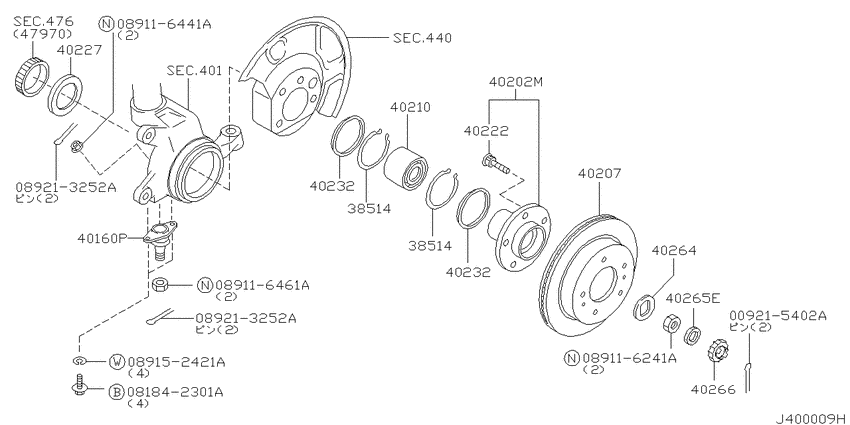

Front axle (1997-09-01 ~ ; 4WD.IRS.VH41DE) Diagram Nissan CIMA
- Year
- 1997 - 2012
- Sales region
- Japan
- Engine
- VH41DE
- transmission
- AT
- grade
- 41LV
- body
- S
- Suspension
- 4WD.IRS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
009215402A
|
009215402A
009215402A PINCOTTERSPLI |
009215402A |
from US $0.50 |
||
|
081842301A
|
081842301A
08184-2301A
Bolt-hexagon
|
08184-2301A |
— | ||
|
089116241A
|
089116241A
089116241A NUTHEX |
089116241A |
US $4.85 |
||
|
089116441A
|
089116441A
089116441A NUT-HEX |
089116441A |
from US $0.94 |
||
|
089116461A
|
089116461A
08911-6461A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08911-6461A |
— | ||
|
089152421A
|
089152421A
089152421A WASHER-SPRING |
089152421A |
from US $0.59 |
||
|
089213252A
|
089213252A
089213252A PINCOTTER SPLI |
089213252A |
US $1.93 |
||
|
089213252A
|
089213252A
089213252A PINCOTTER SPLI |
089213252A |
US $1.93 |
||
|
38514
|
38514
40214-1P400 Ring-Snap9709--01 ~ ; 4WD.IRS.VH41DE |
40214-1P400 |
US $4.18 |
||
|
38514
|
38514
40214-1P400 Ring-Snap9709--01 ~ ; 4WD.IRS.VH41DE |
40214-1P400 |
US $4.18 |
||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
401
|
Front suspension
401
|
||||
|
40160P
|
40160P
40160-1P400 Joint Assy-Ball, Lower9709--01 ~ ; 4WD.IRS.VH41DE |
40160-1P400 |
US $81.94 |
||
|
40202M
|
40202M
40202-1P400 Hub Assy-Road Wheel, Front9709--01 ~ ; 4WD.IRS.VH41DE |
40202-1P400 |
US $506.93 |
||
|
40207
|
40207
40206-6P010 Rotor-Disc Brake, Front9709--01 ~ ; 4WD.IRS.VH41DE |
40206-6P010 |
US $239.04 |
||
|
40210
|
40210
402101P400 Bearing Assy-Front Wheel9709--01 ~ ; 4WD.IRS.VH41DE |
402101P400 |
US $159.84 |
||
|
40222
|
40222
4322228B10 Bolt-Hub9709--01 ~ ; 4WD.IRS.VH41DE |
4322228B10 |
from US $1.39 |
||
|
40227
|
40227
39252-1P400 Shield-Dust9709--01 ~ ; 4WD.IRS.VH41DE |
39252-1P400 |
US $39.89 |
||
|
40227
|
40227
40227-0P002 Seal-Grease, Side Shaft9709--01 ~ ; 4WD.IRS.VH41DE |
40227-0P002 |
from US $6.51 |
||
|
40227
|
40227
40227-0P000 Seal-Grease, Side Shaft9709--01 ~ ; 4WD.IRS.VH41DE |
40227-0P000 |
US $11.66 |
||
|
40227
|
40227
40227-0P001 Seal-Grease, Side Shaft9709--01 ~ ; 4WD.IRS.VH41DE |
40227-0P001 |
from US $6.51 |
||
|
40232
|
40232
40232-1P400 Seal-Grease, Front Hub9709--01 ~ ; 4WD.IRS.VH41DE |
40232-1P400 |
US $10.66 |
||
|
40232
|
40232
40232-1P400 Seal-Grease, Front Hub9709--01 ~ ; 4WD.IRS.VH41DE |
40232-1P400 |
US $10.66 |
||
|
40264
|
40264
4003701E00 WASHER-FRONT WHEEL BEARING9709--01 ~ ; 4WD.IRS.VH41DE |
4003701E00 |
from US $3.06 |
||
|
40265E
|
40265E
4026801E00 INSULATOR-ADJUSTING CAP9709--01 ~ ; 4WD.IRS.VH41DE |
4026801E00 |
from US $1.35 |
||
|
40266
|
40266
40263-51E00 CAP-ADJUSTING,LH9709--01 ~ ; 4WD.IRS.VH41DE |
40263-51E00 |
from US $2.37 |
||
|
440
|
Front brake
440
|
||||
|
476
|
Anti skid control
476
|
||||
|
476
|
Anti skid control
476
|
||||
